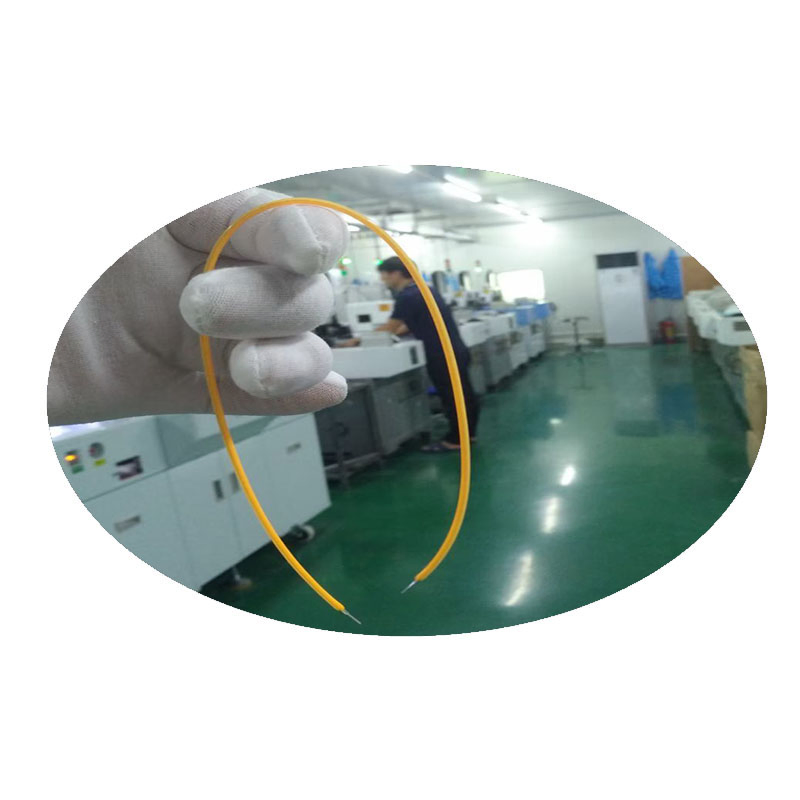

Quality 1200mm Long 24V LED Flexible Filament Phosphor Converted Red LED Filament

1 / 5

Quality 1200mm Long 24V LED Flexible Filament Phosphor Converted Red LED Filament

Customization:	Available
LED Packaging Type:	SMD LED
Emitting Color:	Warm White

Send Inquiry

Product Description

📋

Basic Information

LED Chips

China Chip

Power

1W / 8W

Life

50000h

Certification

RoHS, CE

Item

LED Filament

Origin

China

HS Code

8541410090

💡

Product Description

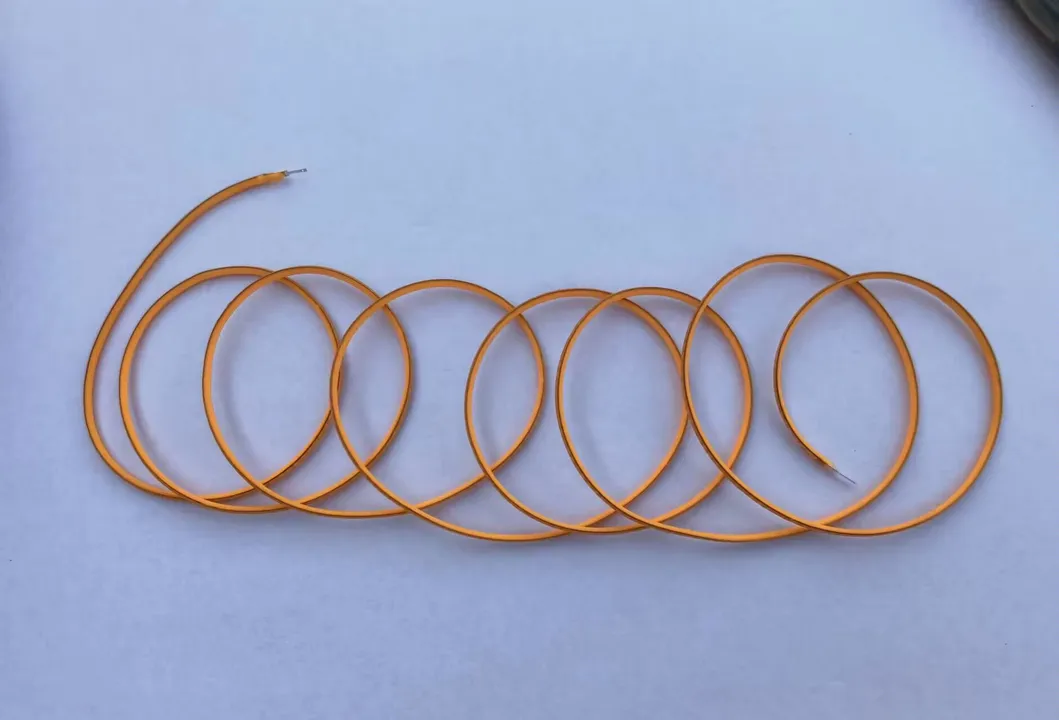

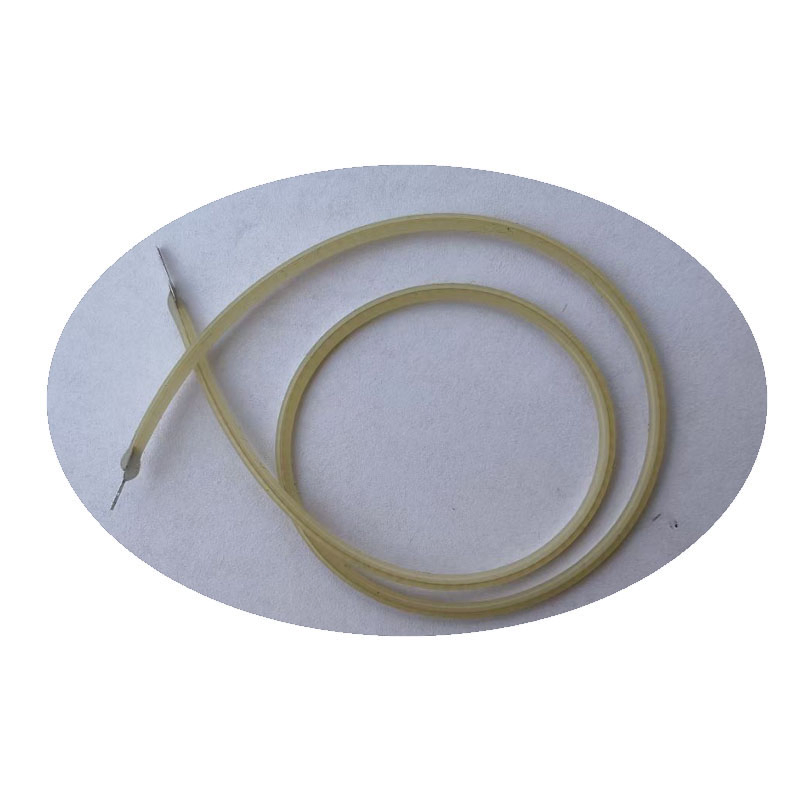

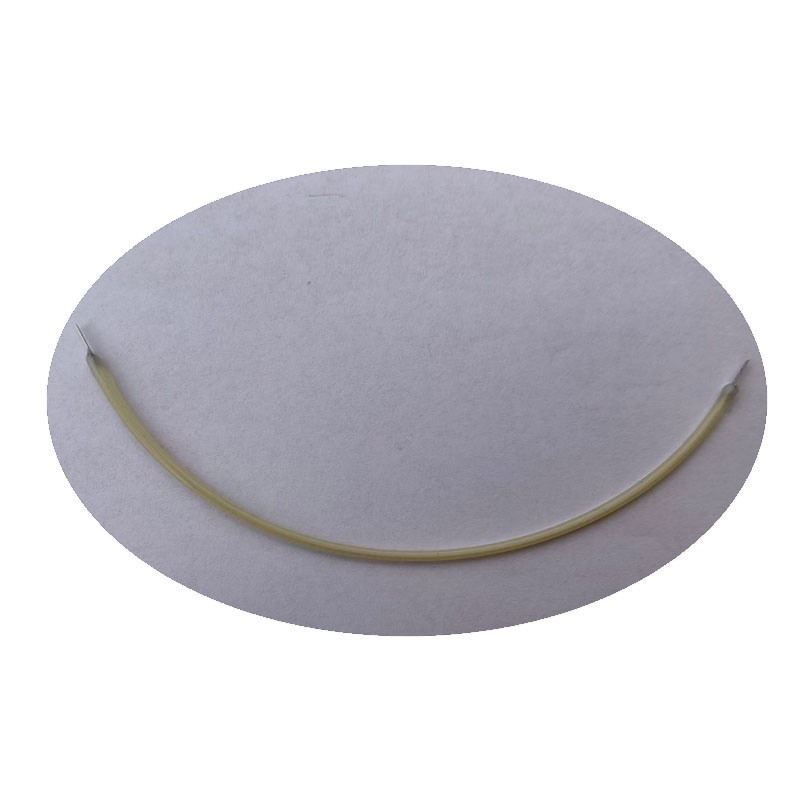

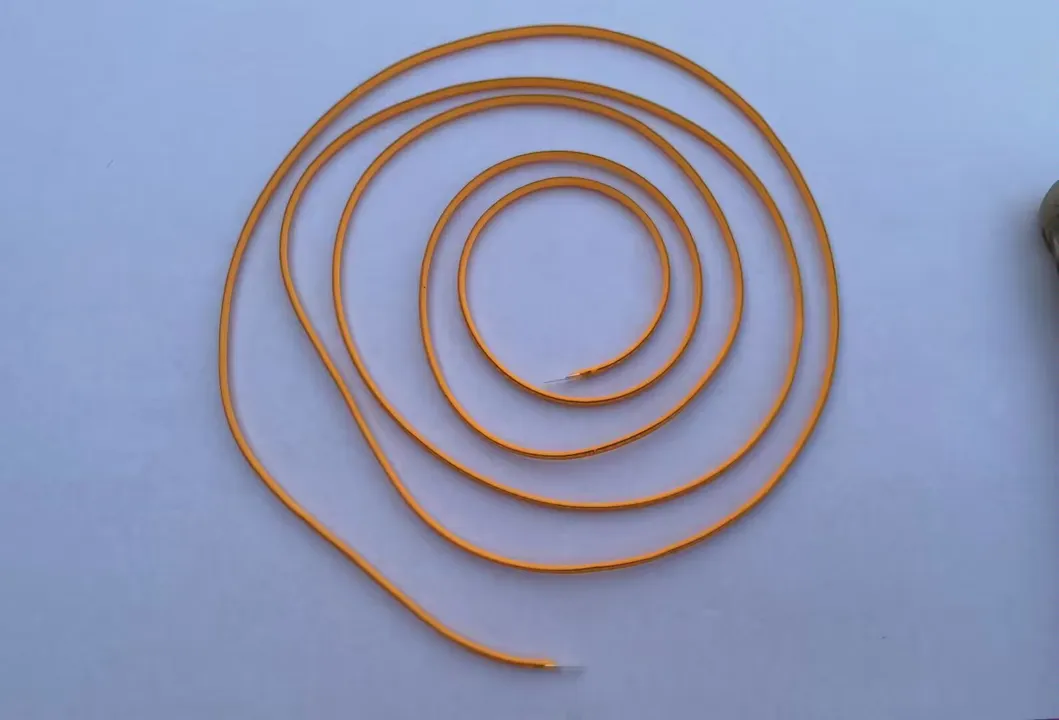

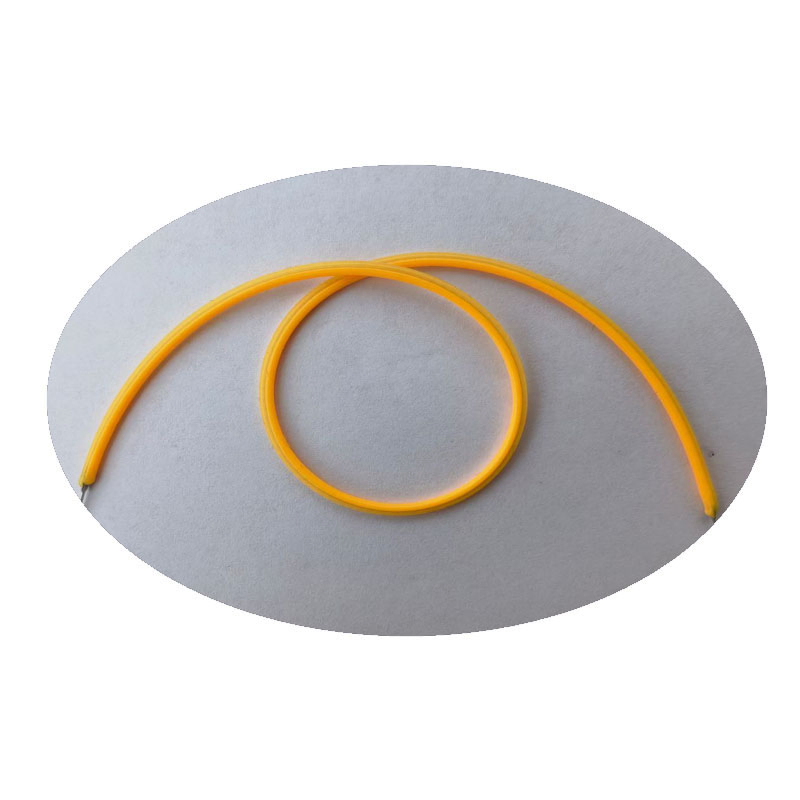

Quality Soft Filament Warm White 2200K 1200mm Length Flexible Filament LED Chip

📏 Size: 1200MM
⚡ Power: 8W
🌡️ Color Temp: 2200K / 2700K / Red
🔌 Voltage: 24V

Application: Ideal for LED bulb and LED Tungsten lamp production.

⚠️ Handling Notes:

Packaged LED material is silicone-based, providing a soft and flexible surface. While silicone reduces thermal stress, it is susceptible to mechanical damage. Avoid applying direct pressure to any part of the LED. Use pneumatic nozzles for assembly to ensure long-term reliability and lifespan.

Cleaning: Use pure alcohol to clean or dip for no more than 1 minute after soldering. Ensure solvents do not damage the packaging.

📦

Storage & Maintenance

1. Pre-opening: Store at 5ºC - 30ºC, humidity < 60% RH. Valid for one year.

2. After opening: Maintain room temperature < 30ºC, humidity < 60% RH. Complete reflow soldering within 4 hours and packaging within 12 hours.

3. Dehumidification: If moisture is absorbed, perform dehumidification (Reel products: 75ºC ± 5ºC / 12H; Bulk: 110ºC ± 5ºC / 1H).

📜

Certifications

🚢

Packaging & Shipping

Frequently Asked Questions

What is the main application for this flexible LED filament?

The 1200mm flexible filament is primarily designed for high-quality LED bulbs and LED tungsten lamps, offering a classic aesthetic with modern efficiency.

What color temperatures are available for this product?

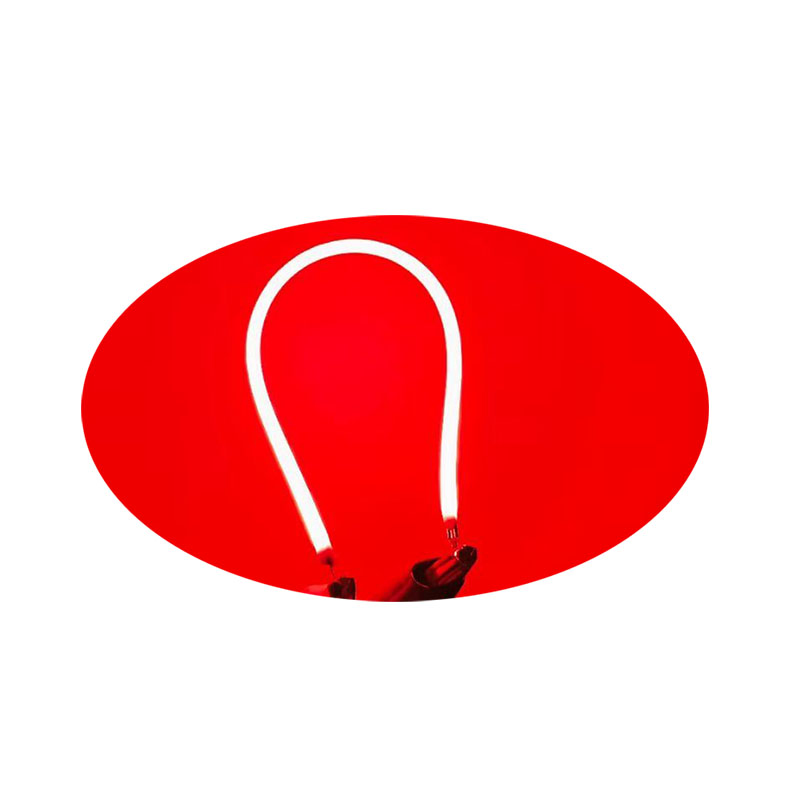

It is available in Warm White (2200K ± 100K and 2700K ± 100K) as well as Phosphor Converted Red.

How should I clean the filament after soldering?

We recommend using pure alcohol. You can wash, wipe, or dip the component for no more than 1 minute to ensure the packaging is not damaged.

What are the recommended storage conditions?

Before opening, store in a cool, dry environment (5ºC - 30ºC, < 60% RH). After opening, soldering should be completed within 4 hours to avoid moisture issues.

What makes the silicone nature of the LED important for handling?

The silicone makes the surface soft and flexible, which reduces thermal stress. However, it requires careful handling with pneumatic nozzles to avoid mechanical damage from external pressure.

What is the expected lifespan and certification of this LED chip?

The LED filament has an estimated life of 50,000 hours and is fully certified with RoHS and CE standards.
