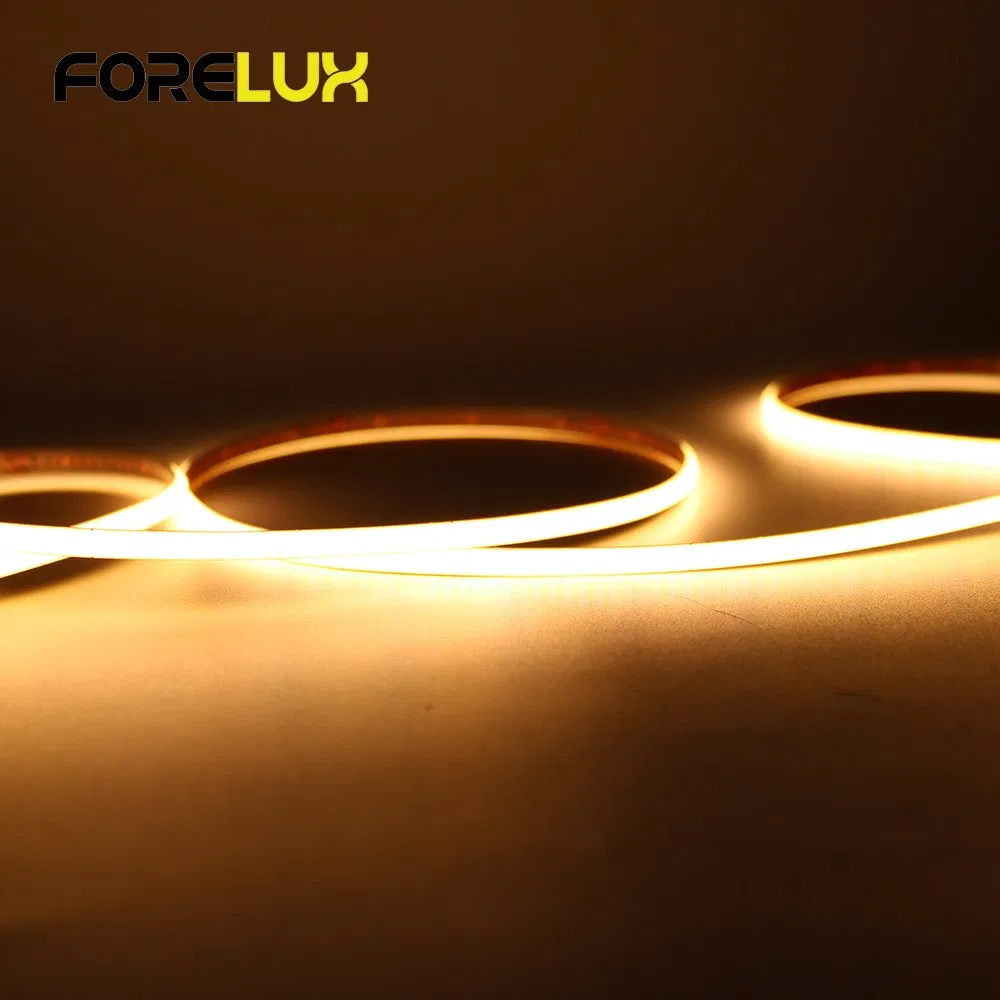

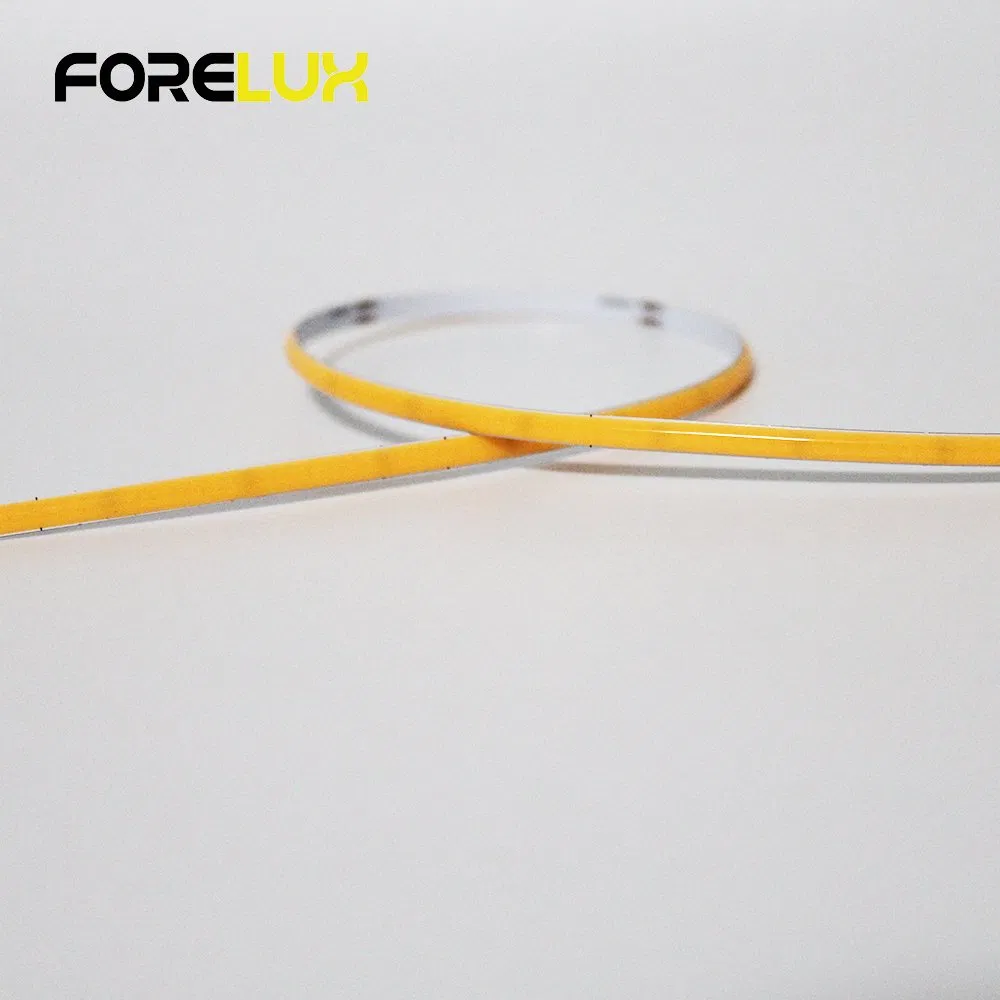

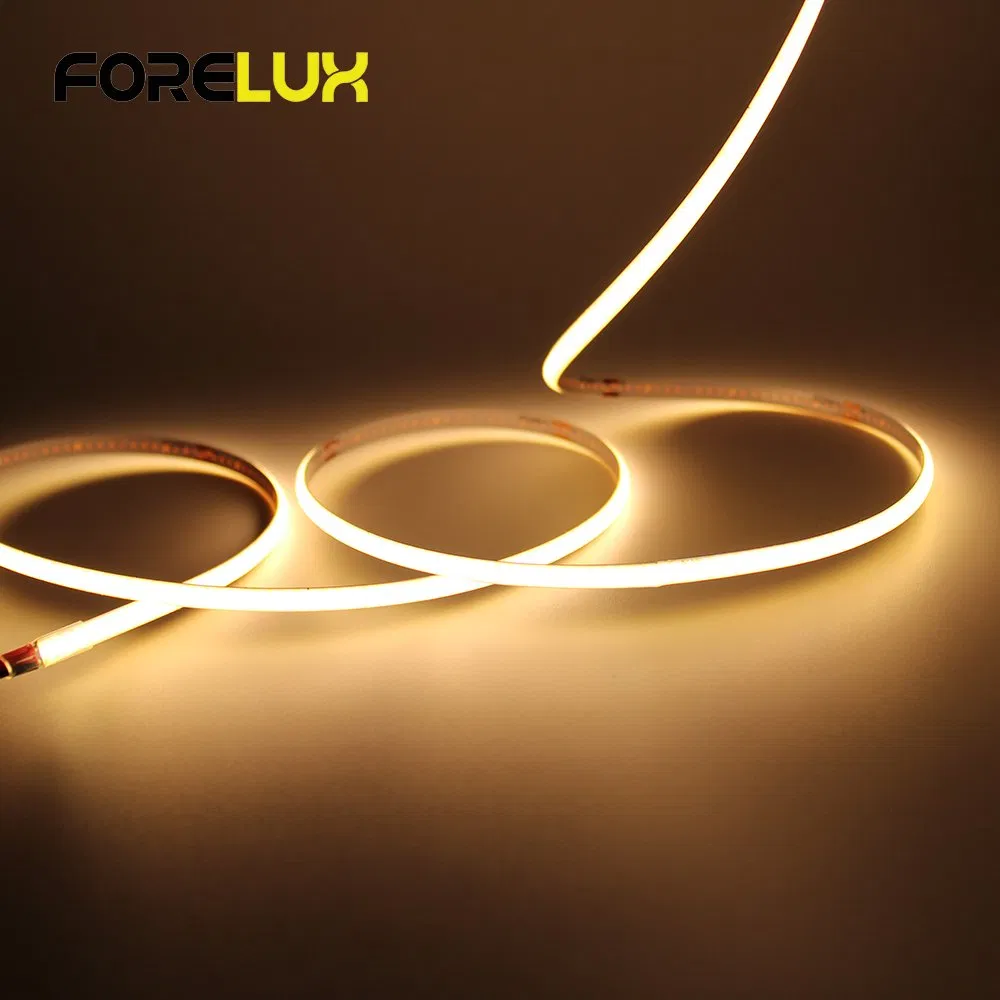

2700K 4000K 6500K FCOB LED CRI 90 95 LED COB Light 480leds 24V Slim 3mm 4mm 5mm Ultra Narrow COB Flexible LED Strip
- Applied new LED technology chip on board, COB LED type
- Energy saving, environmental-friendly, and sustainable LED lighting solution
- Easy installation with double-sided adhesive tape on the back
- Suitable for furniture lighting, cabinet lighting, shelf lighting, etc.

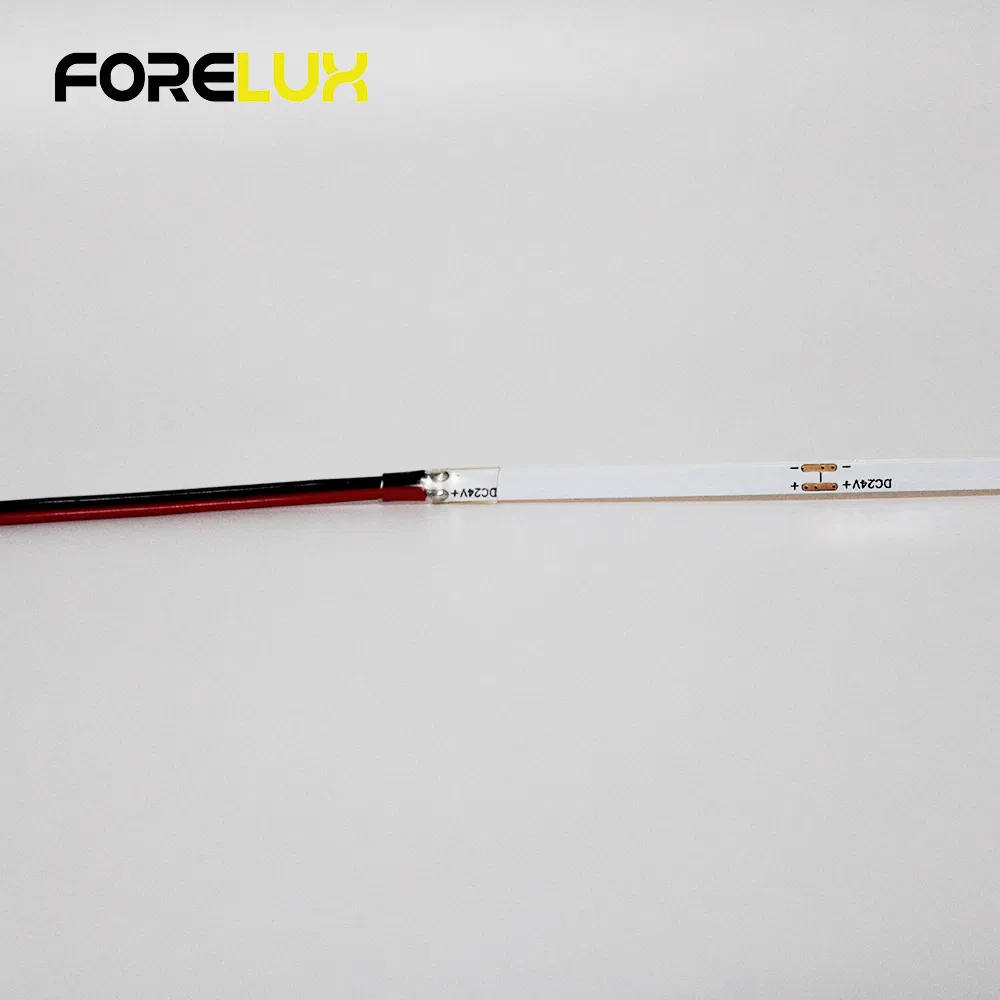

- 15CM length wire at one end
- 5m/roll packed with Anti-static bag
📊 Basic Information
Model NO.FLSCOBD480-24V-XXK-C9P4
Emitting Color2700K, 3000K, 4000K, 6500K
VoltageDC24V/12V
IP RatingIP65/IP67/IP68 Optional
LED TypeCOB Type
LED Qty480LEDs/M
PCB Width4mm
PCB Material2oz Pure Copper Double-Sided FPC
Lifespan50,000 hrs
Warranty5 Years
OEM/ODMSupport
⚙️ Product Parameters
| Product Name | COB LED Strip |
| Model No. | FLSCOBD480-24V-XXK-C9P4 |
| Input Voltage | DC24V |
| Power/m | 6W/m (customized support) |
| Luminous Efficacy | 75lm/W |
| CRI | Ra90+ |
| Mini Cut Units | 50mm |
| Dimmable | Yes (Compatible with Triac, PWM/0/1-10V Dali) |
| Beam Angle | 180° |
| Max. Run Length | 5m |

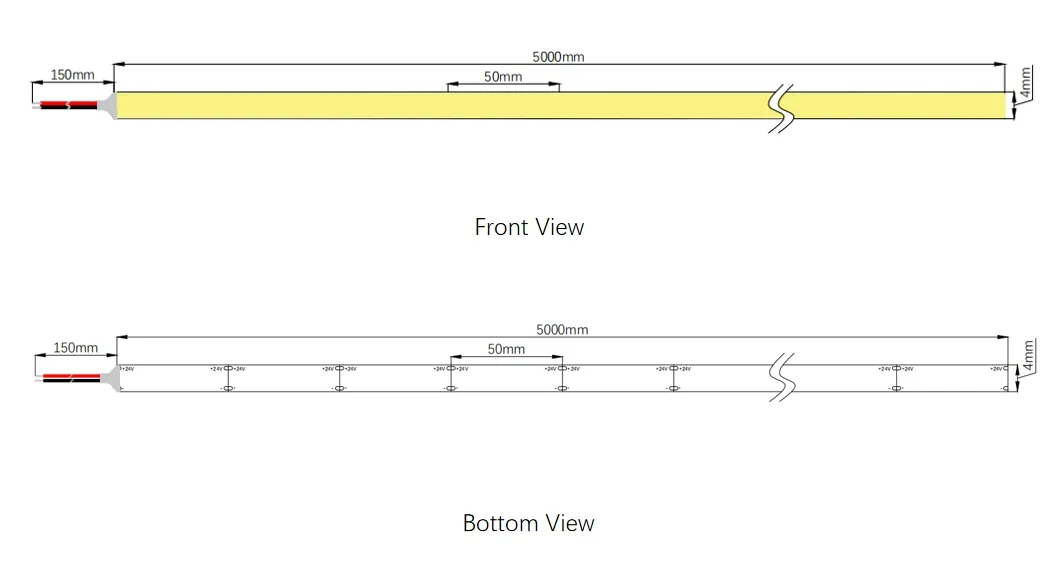

📐 Product Diagram

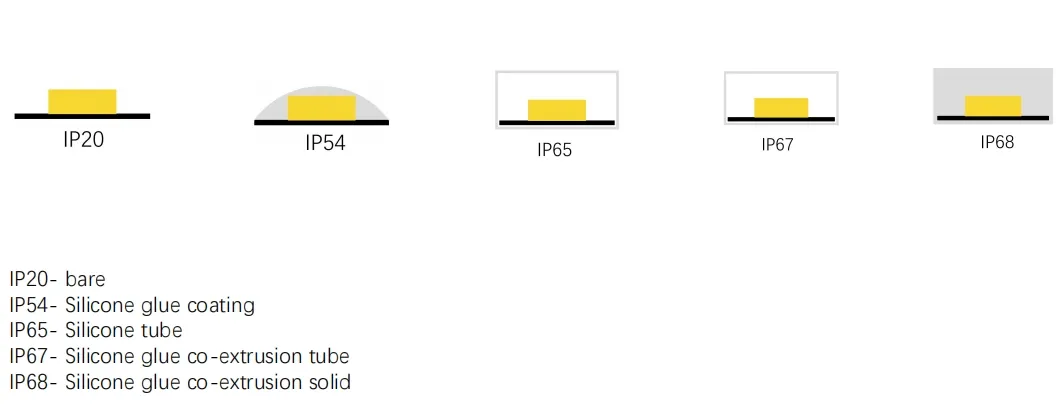

🛡️ IP Rating Reference

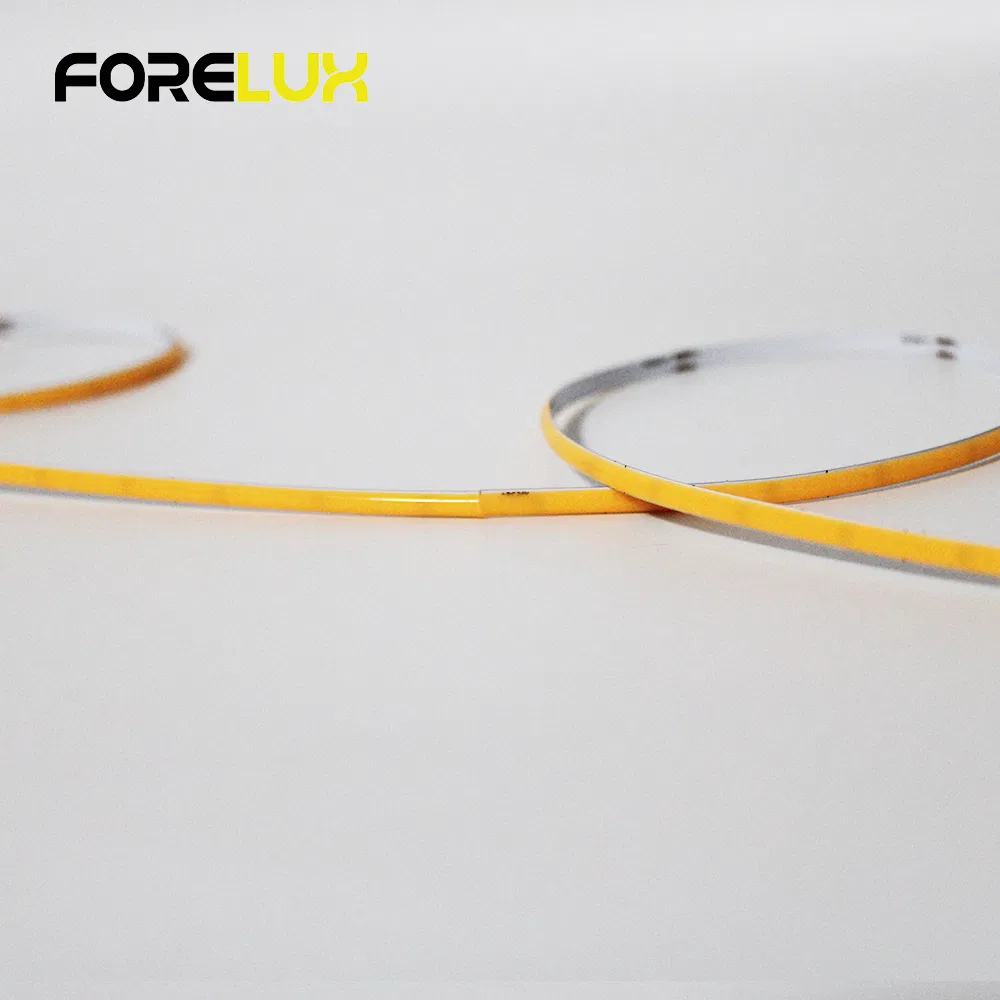

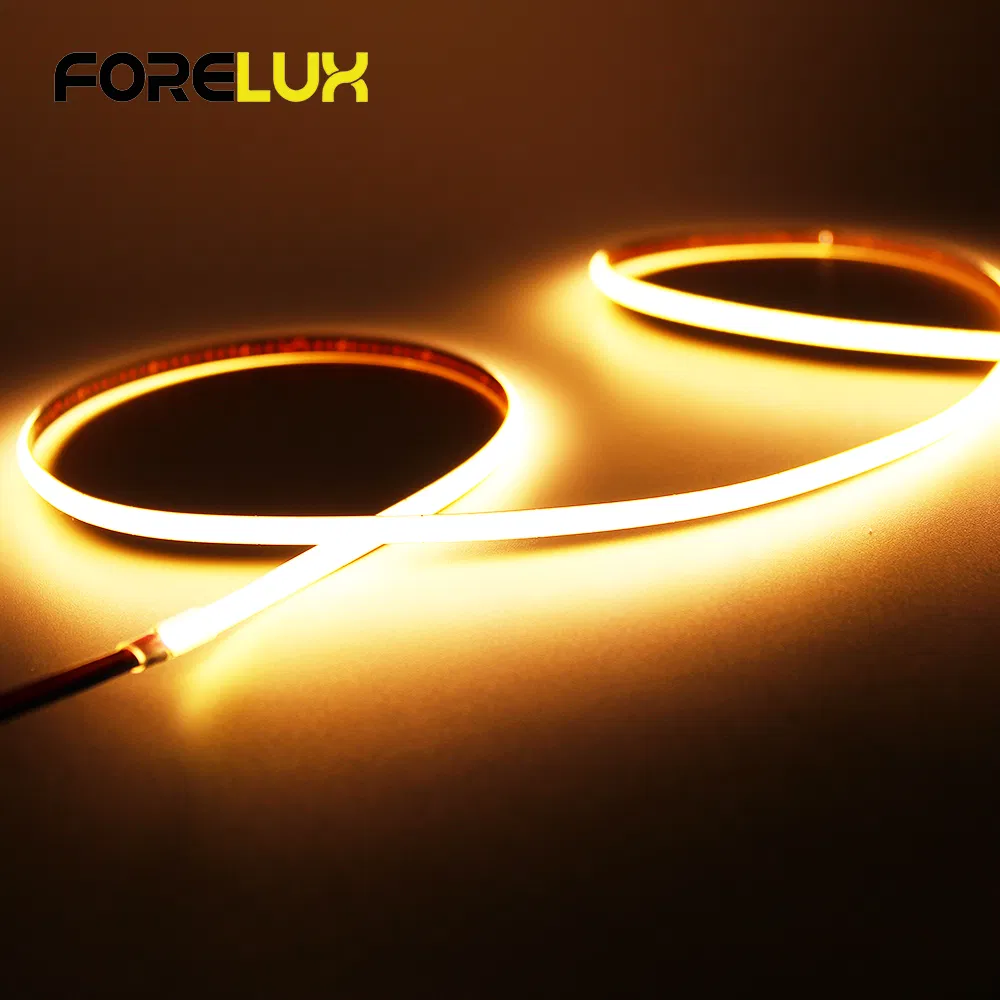

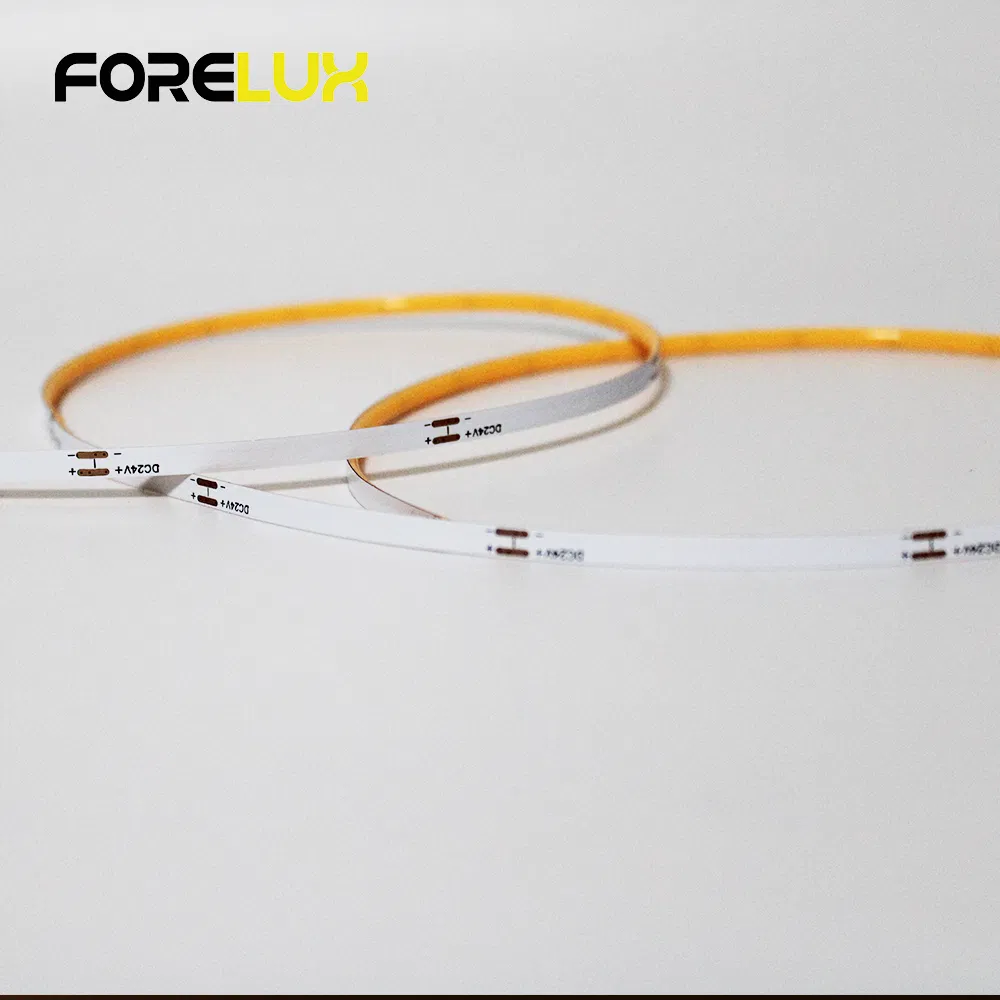

📷 Product Showcase
⭐ Our Service & Advantages
- Non-standard LED Strip Lights manufacturing according to specific requirements.
- No MOQ (Minimum Order Quantity) requests.
- Fast lead time within 15 days.
- Free samples available for testing.
- 100% support for customized designs.
- Full OEM and ODM services provided.

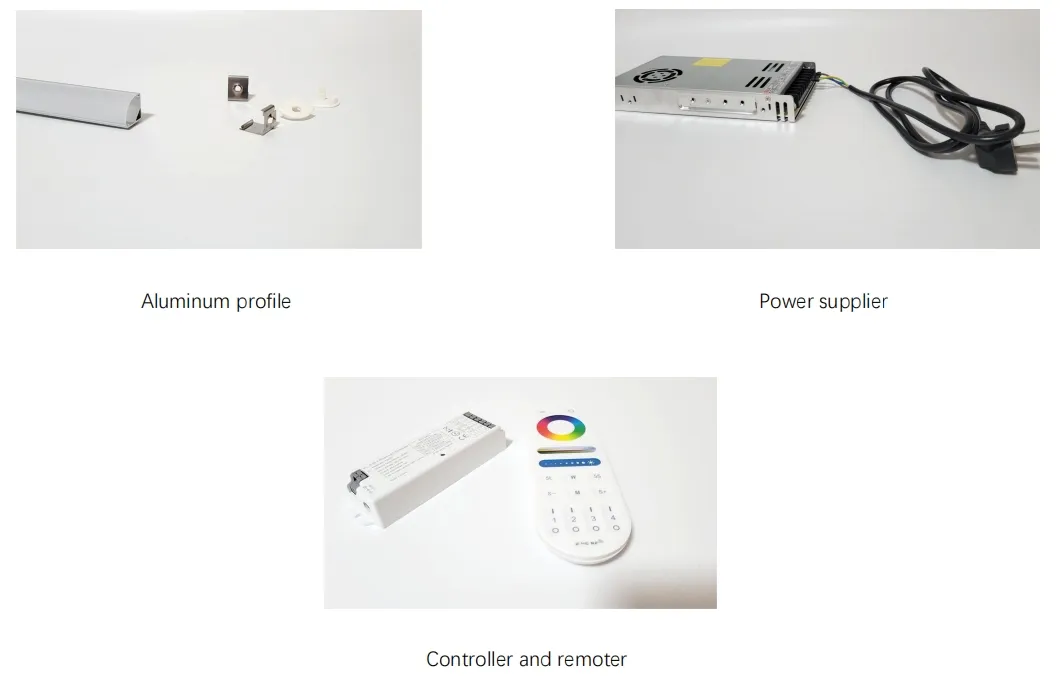

🔌 Accessories & Wiring
Note: We provide complete LED lighting solutions. If you have specific requirements for accessories, please contact us with details.

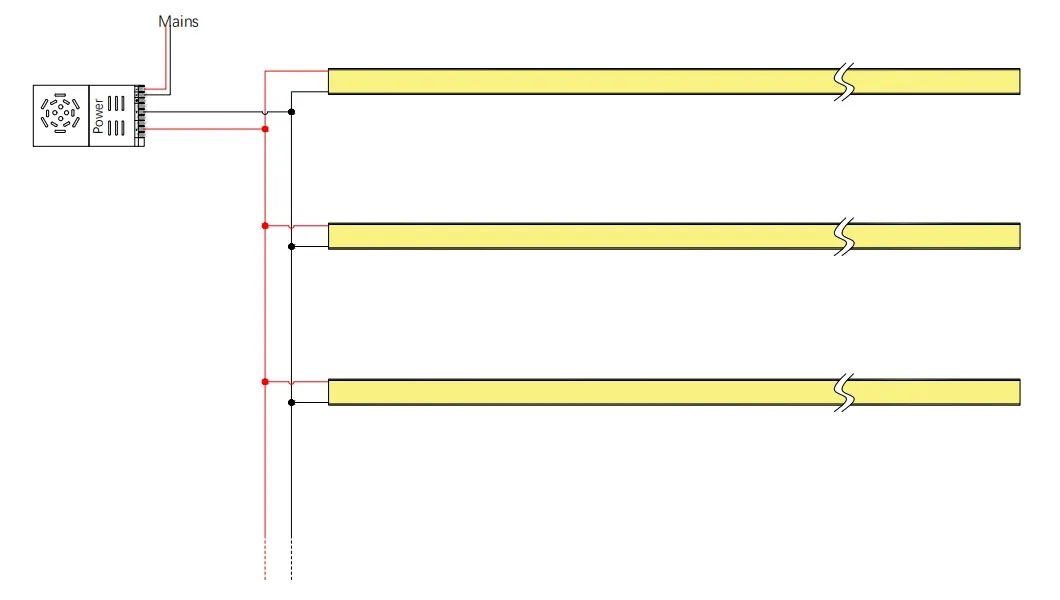

⚡ Wiring Diagram

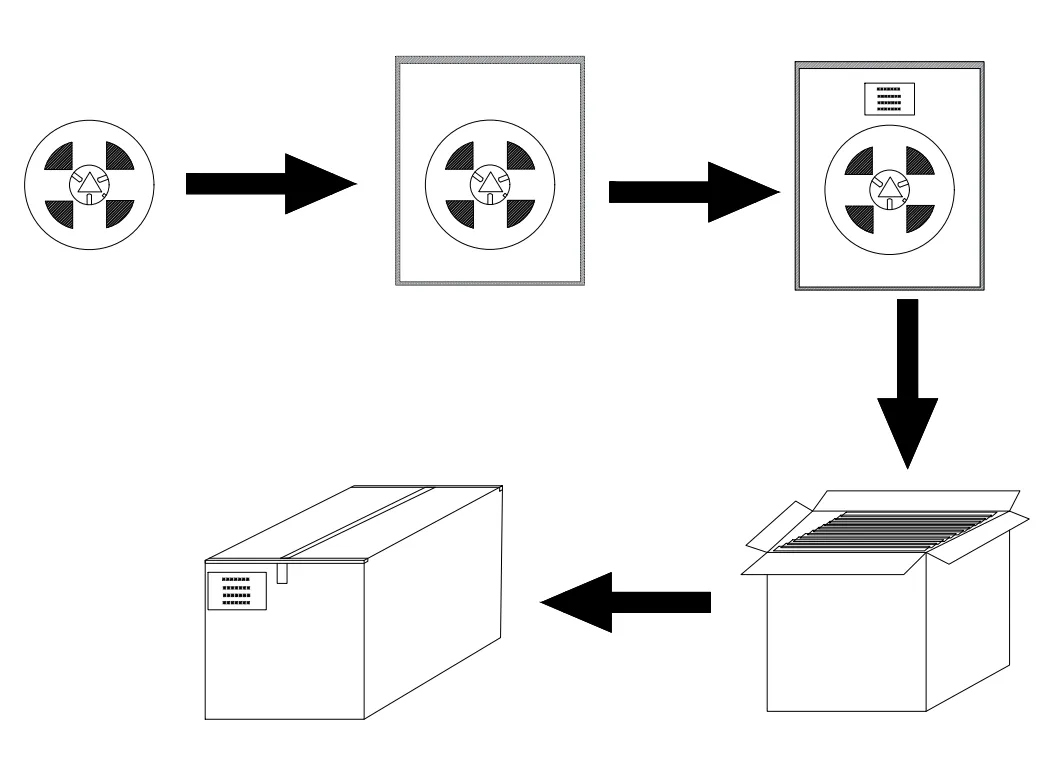

📦 Packing & Delivery
Packaging5m/roll, Anti-static bag, 100 rolls per carton
Lead Time7-10 working days for standard orders
ShippingDHL, UPS, FedEx, TNT, Air or Sea
❓ Frequently Asked Questions
Can I have a sample order for the LED light?
Yes, we welcome sample orders to test and check the product quality.
Do you have a Minimum Order Quantity (MOQ)?
No, we do not have MOQ requests. You can place orders according to your specific needs.
What is the typical lead time for orders?
Standard lead time is 3-5 working days for samples and 10-15 working days for mass production.
How long is the warranty for the LED strip lights?
We offer a comprehensive warranty of 3 to 5 years depending on the model.
What payment methods do you accept?
We accept T/T (Bank Transfer), PayPal, Western Union, and Cash.
Do you provide OEM and ODM services?
Yes, we fully support OEM and ODM services to meet your customized branding and design requirements.
