2835 60LEDs/M Constant Current LED Strips with 3years Guarantee

1 / 5

2835 60LEDs/M Constant Current LED Strips with 3years Guarantee

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

F300-2835X-08

Application

Bar, Lighting, Advertising

Type

Flexible LED Strip

Voltage

DC12V/DC24V

Macadam Level

5 Step

Max.Length

10m/Roll

Warranty

3 Years

Specification

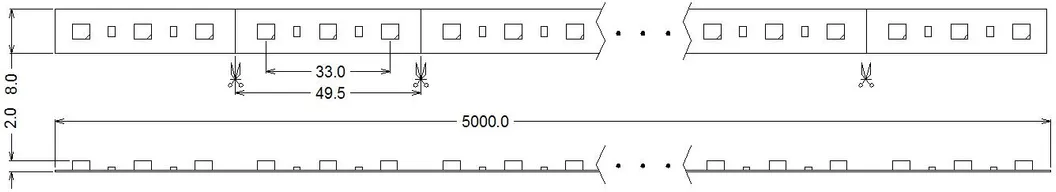

5000*8mm

Origin

China

Production Capacity

100,000m/Month

Packaging & Delivery

Package Size

45.00cm * 26.00cm * 27.00cm

Gross Weight

8.000kg

Standard Pack

5m/reel, 1 reel/bag, 40 bags/box

Product Description

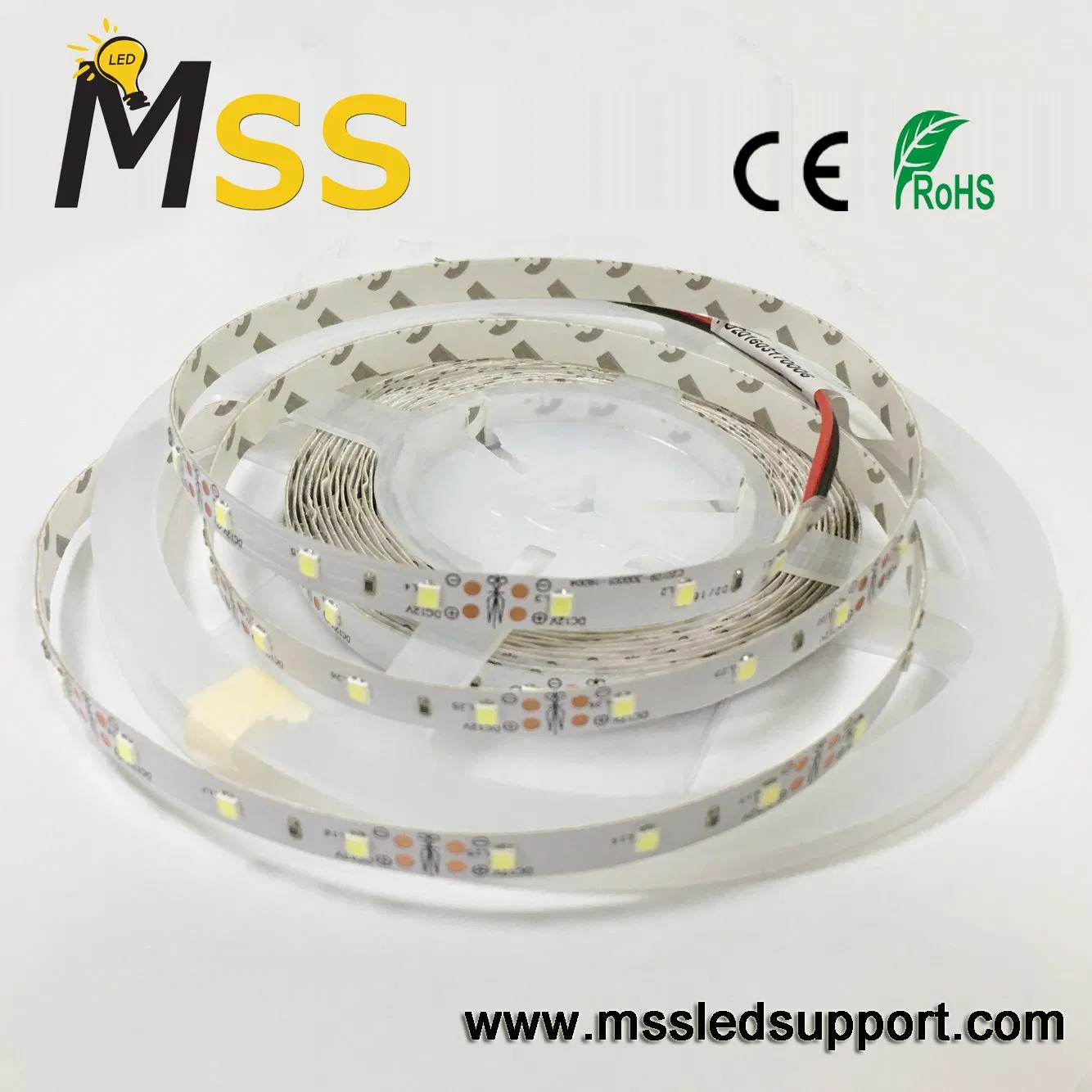

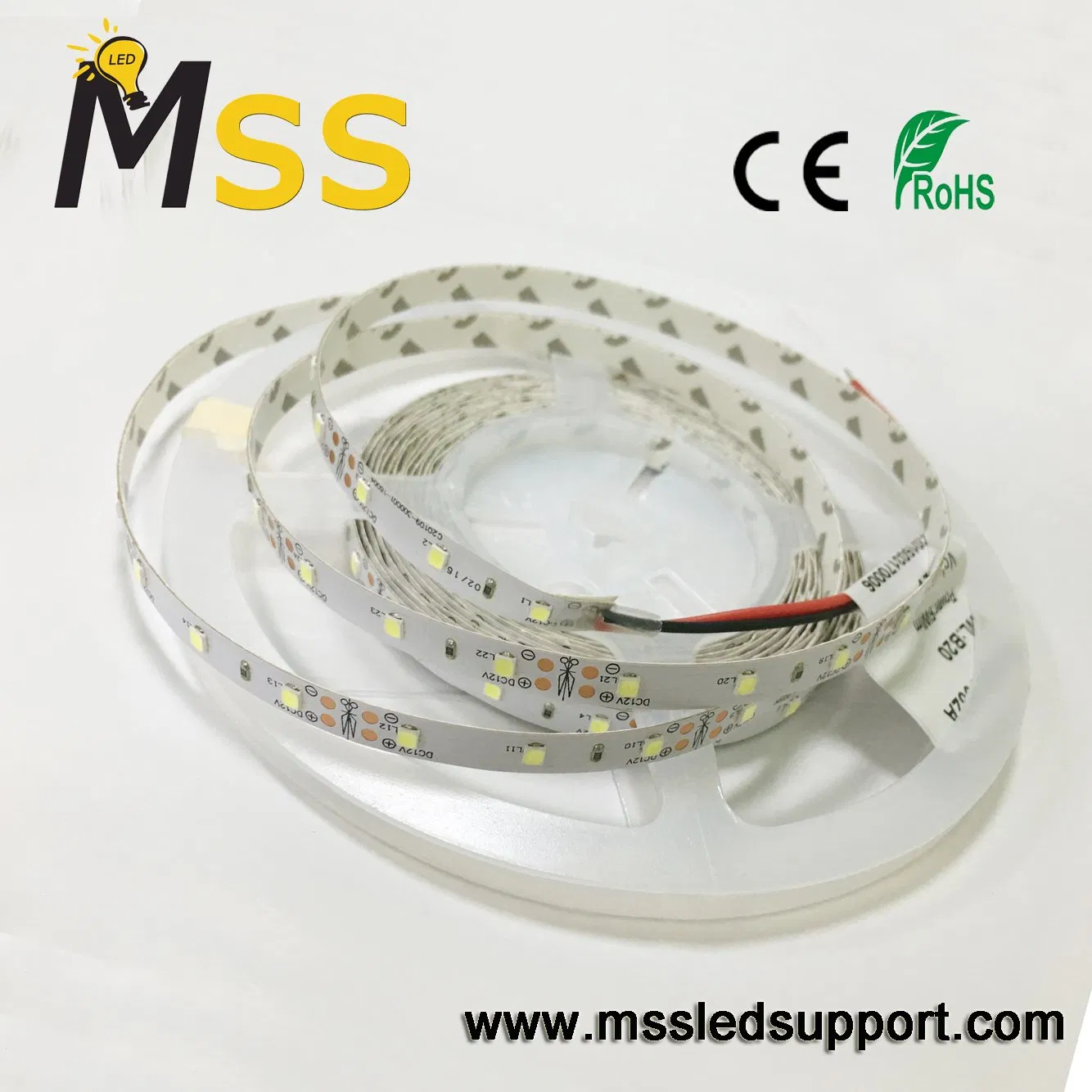

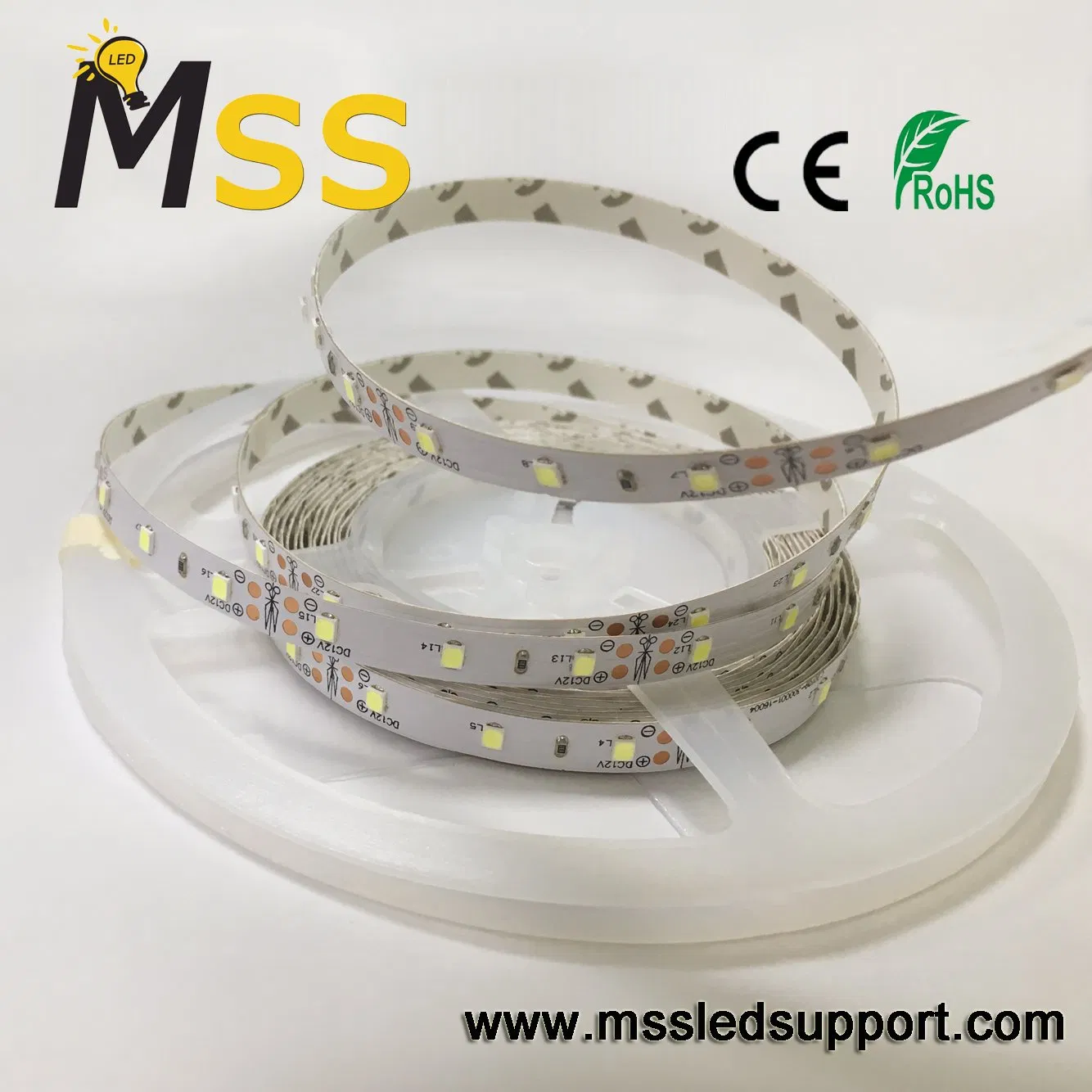

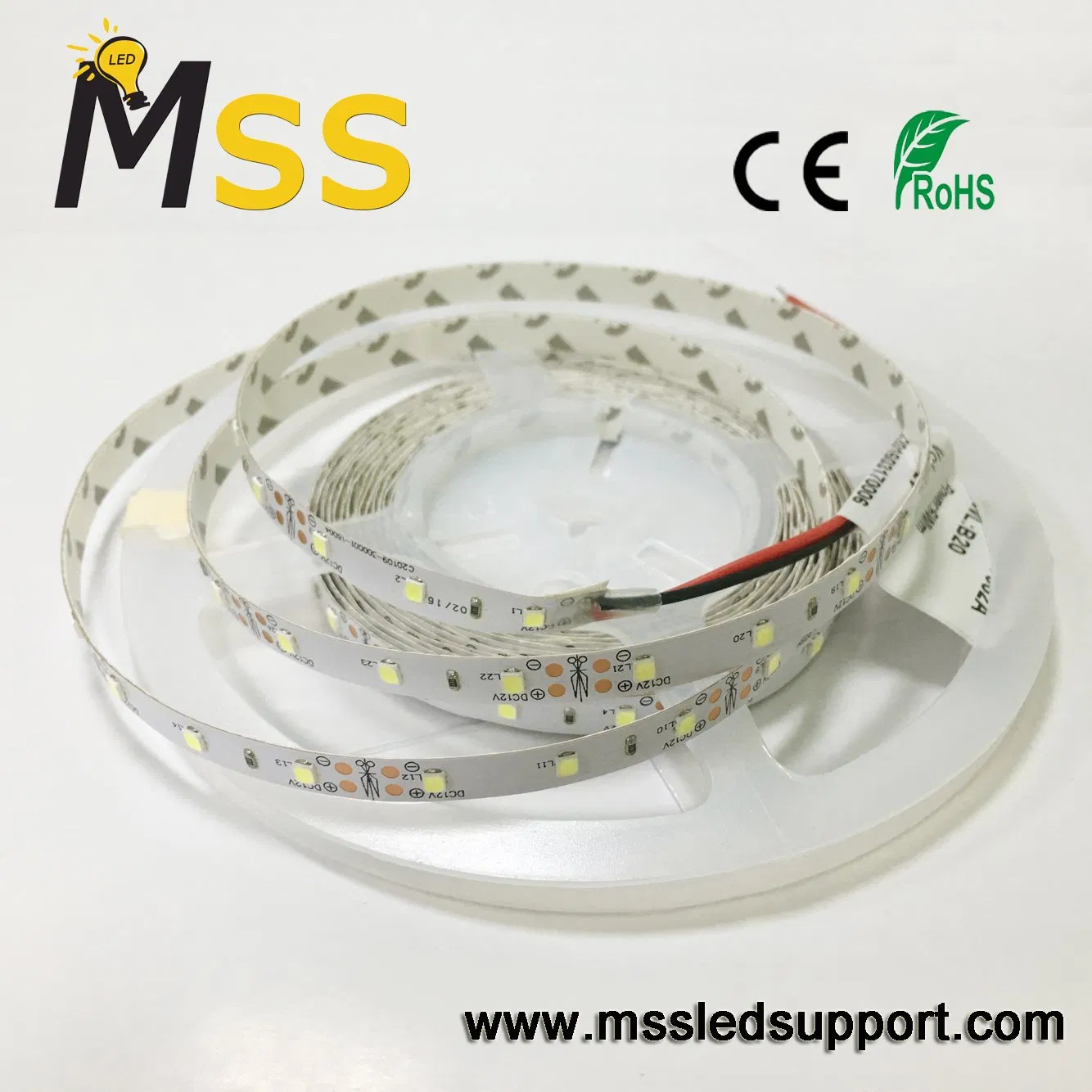

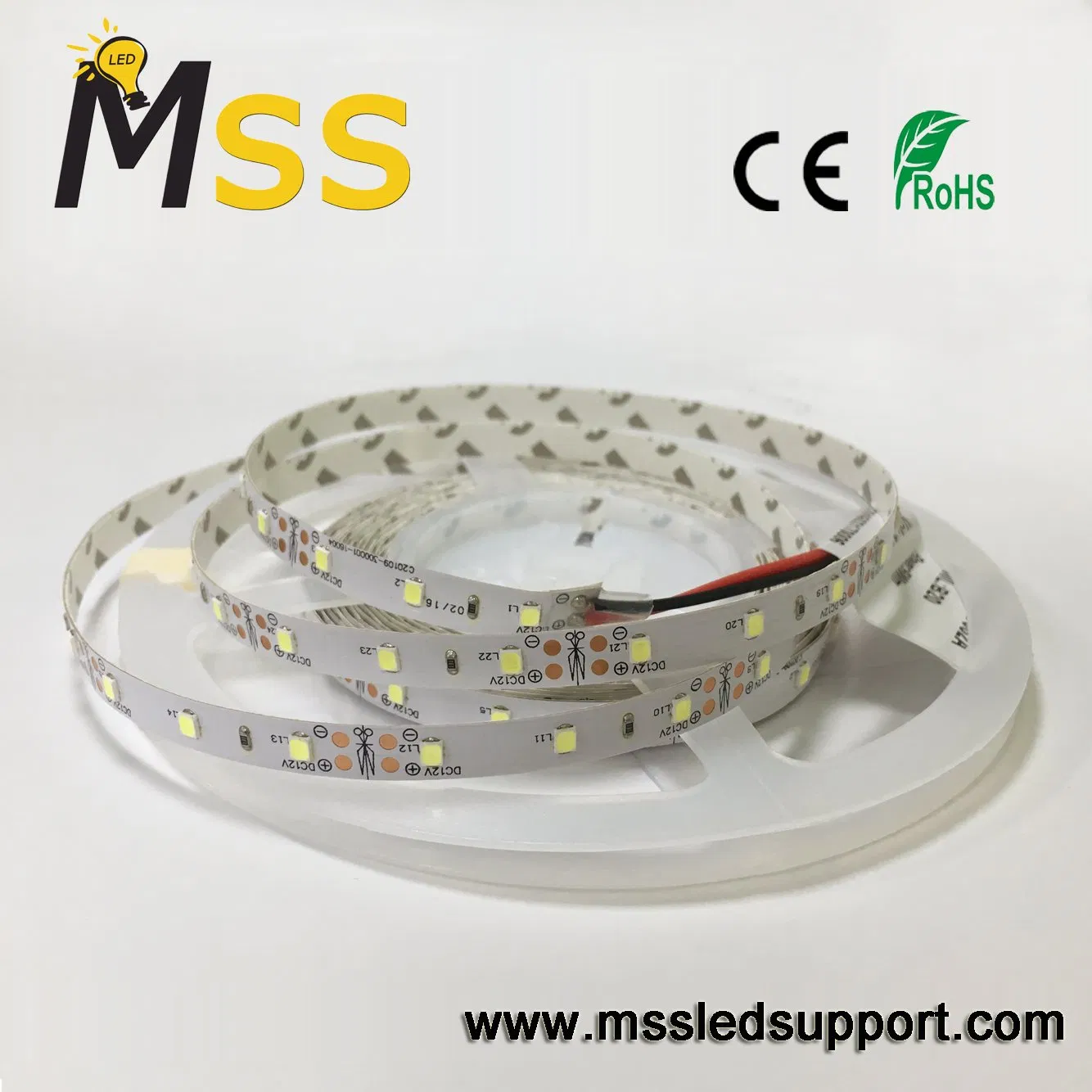

2835 60LEDs/m constant current LED strips

Rolled copper FPC for superior thermal dissipation & bend-ability.
Equipped with 20AWG or above high-quality cables.
Cuttable every 3 LEDs per unit with dedicated soldering pads.
Enhanced 2835 LED chips specifically designed for strip durability.

Environmental Conditions

Parameter	Range
Ambient temperature range (TA on free air)	-25 to +50ºC
Operating (case) temperature range (TC)	-25 to +50ºC
Storage temperature range	-25 to +60ºC
IP rating	IP65

Electrical Parameters

Supply voltage range	12.5±0.5 VDC
Supply Current range (per meter)	500mA
Power range (per meter)	6 W
LED type / Qty	2835 SMD / 60pcs per meter
ESD protection	Contact 4KV, Air 8KV

Optical Parameters

Part No.	Color	Typ. CCT/Wavelength	Typ. Lumen/m
F300-2835W-08	Pure white	7000K	480LM
F300-2835C-08	Cool white	16000K	480LM
F300-2835M-08	Warm white	3200K	480LM
F300-2835R-08	Red	625nm	150LM
F300-2835-I08	Yellow	591nm	120LM
F300-2835-08	Green	525nm	288LM
F300-2835-08	Blue	465nm	84LM

Installation & Attention

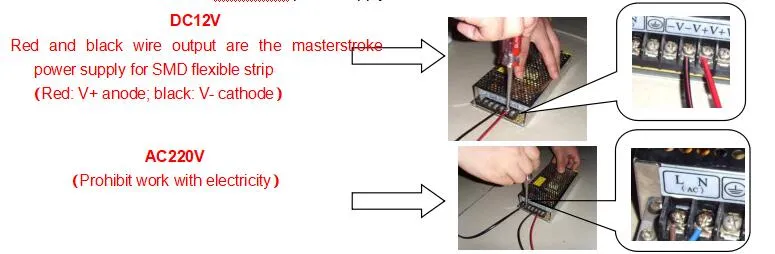

1. Power supply must include short circuit and over-voltage protection. Use only isobaric power supplies with insulated handles.

Wiring Note: Wire diameter depends on strip quantity and distance. For loads exceeding 100W, additional masterstroke wiring is required.

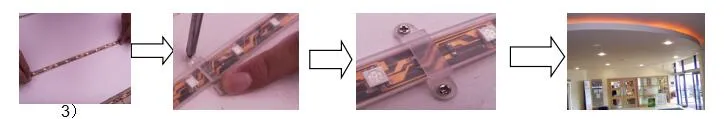

2. Fitting Instructions:

Spread the strip flatly on the target surface.
Use transparent clips (4 pcs per meter). Do not press directly on LEDs.

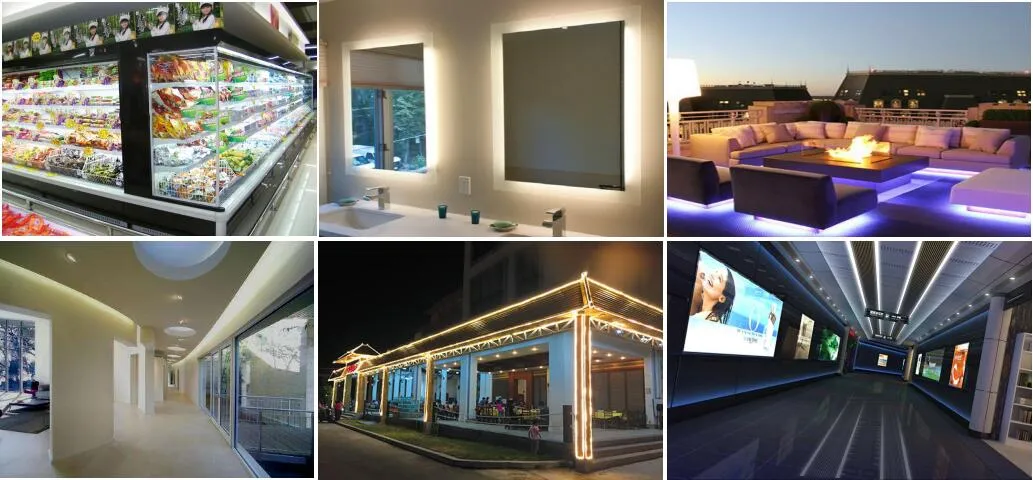

Applications

Curve and contour lighting
Freeze and cold storage lighting
Light bar source for signage
Specialized commercial displays

Frequently Asked Questions

Q1: What is the standard voltage for these LED strips? A: These strips are available in both DC12V and DC24V options to suit different power requirements.

Q2: Can the LED strip be cut to a specific length? A: Yes, the strip is designed with units of 3 LEDs, each featuring soldering pads for easy cutting and secondary operation.

Q3: What is the waterproof rating of this product? A: This specific model has an IP65 rating, making it suitable for environments where protection against dust and water splashes is needed.

Q4: What is the maximum length recommended for a single power connection? A: The maximum length from a single power supply end is 5 meters. If powering from both ends, it can support up to 10 meters.

Q5: How long is the warranty period? A: We provide a 3-year warranty for this 2835 constant current LED strip series.

Q6: What colors are available for this model? A: It comes in a wide range of colors including Pure White, Cool White, Warm White, Red, Yellow, Green, and Blue.
