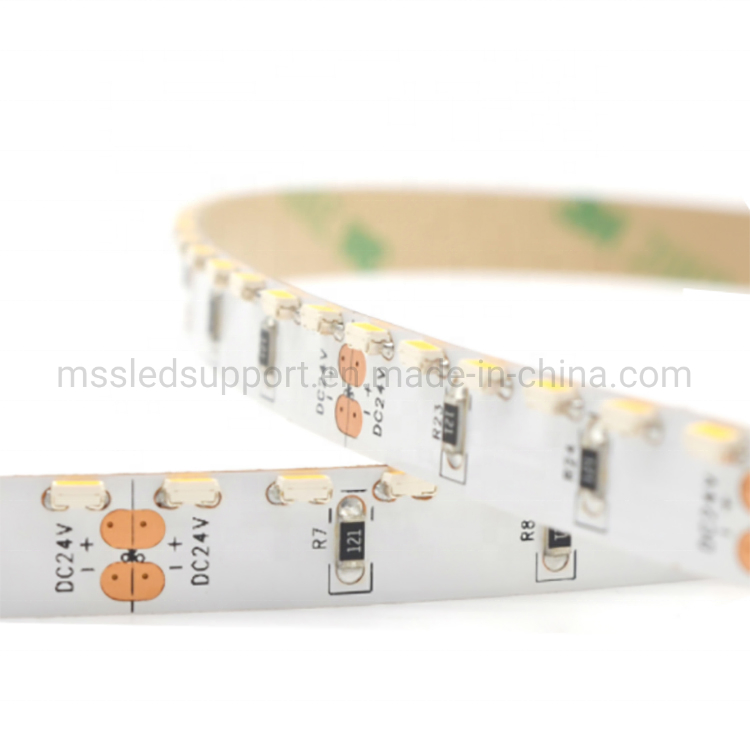

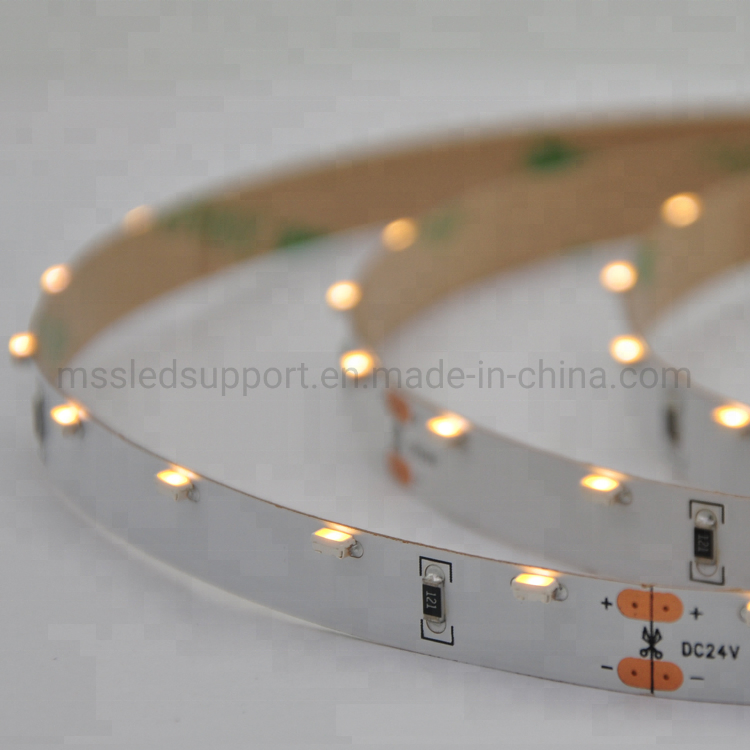

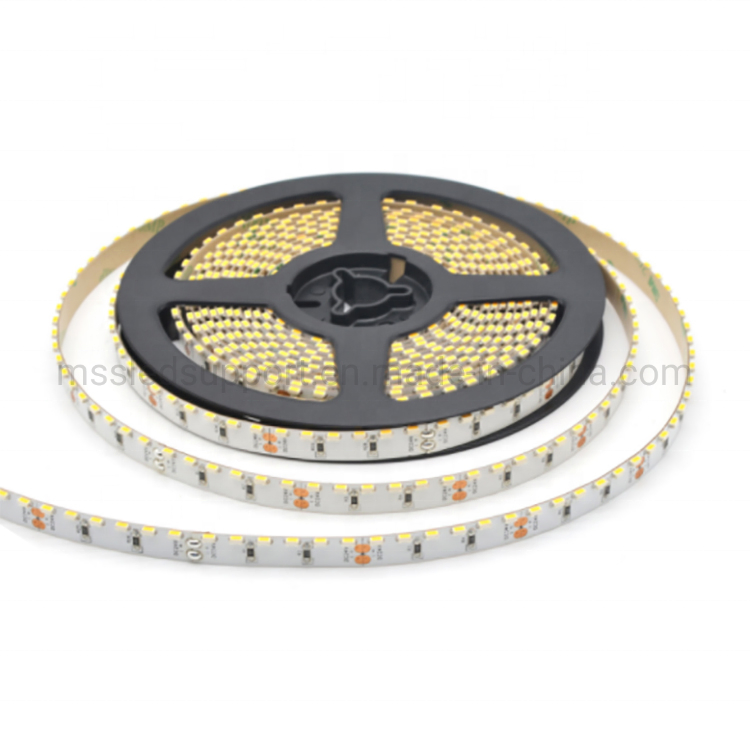

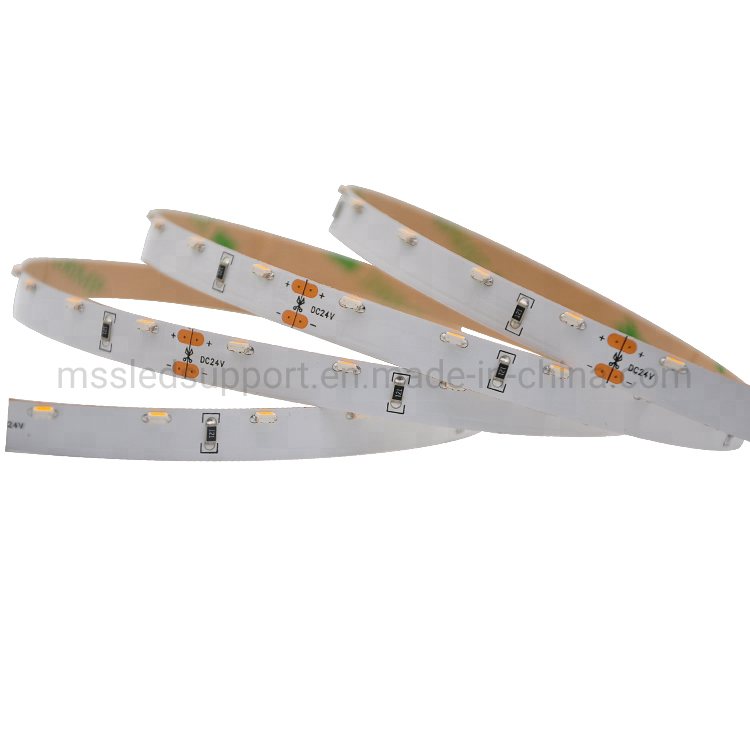

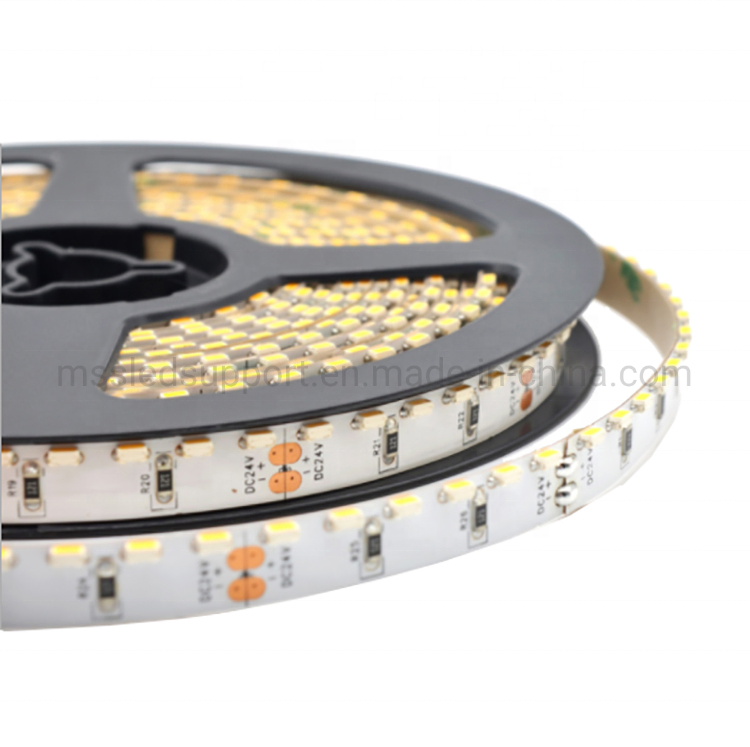

60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage
60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage
60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage
60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage
60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage
1 / 5
60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage
60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage
60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage
60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage
60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage

60LEDs 6W SMD 3014 DC24V Side Emitting LED Strip Tape with Low Voltage

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
LED Strip Light
Emitting Color
White/ Red/ Yellow/ Green/ Blue/ RGB
Voltage
DC12V/DC24V
IP Rating
IP20, IP33, IP65, IP68
Macadam Level
3-5 Step
Max.Length
5m/Roll LED Strip
Warranty
3-5 Years
Package
Anti-Static Package
Specification
5000*8mm LED STRIP
Origin
China
HS Code
9405409000
Capacity
100,000m/Month
Packaging & Delivery
Package Size
45.00cm * 26.00cm * 27.00cm
Gross Weight
8.000kg
Product Description

60leds 6w smd 3014 dc24v side emitting led strip tape with low voltage

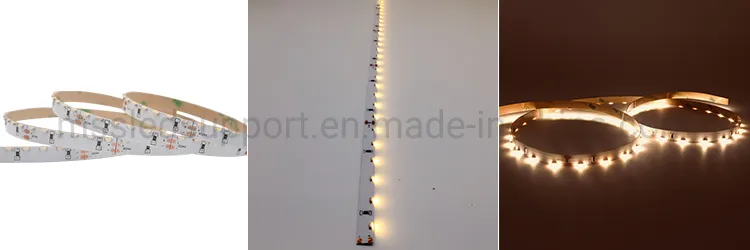

Side Emitting LED Strip

Key Features

  • Rolled copper FPC for better thermal dissipation & bend-ability
  • 20WAG or above cables
  • Each 3 LED per unit with a couple of soldering pads for secondary operation
  • Enhanced 3014 LED especially for strip products
Dimensions

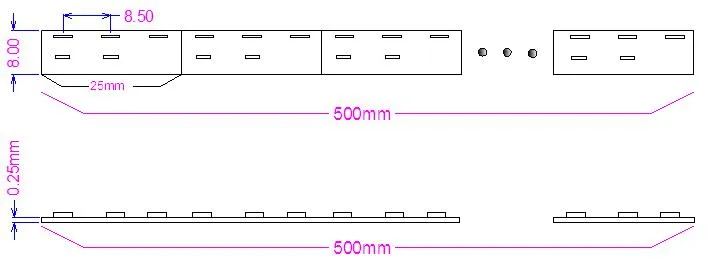

LED Strip Dimensions
Environmental & Application Conditions
Ambient temperature range (TA on free air) -25…..+50ºC
Operating (case) temperature range (TC) -25…..+50ºC
Storage temperature range -25…..+60ºC
IP rating IP33

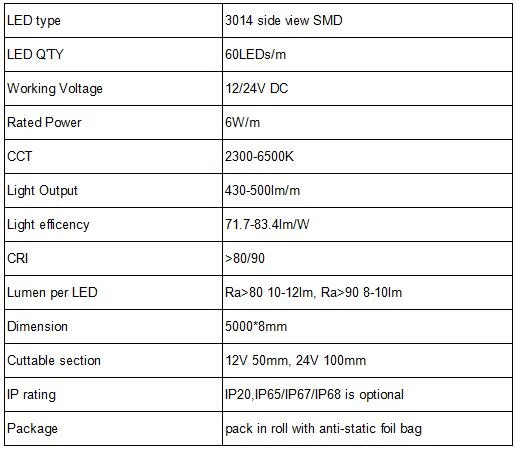

Electrical Parameters
Electrical Parameters

Important Attention:

  1. Max. Length of strip is 5 meters from power supplier to single end.
  2. The LED strip itself and all its components may not be mechanical stressed.
  3. Please ensure that the power supply has adequate power to operate the total load. Only qualified personnel should perform installations.
  4. The design of the housing should be according to the IP standards in the application.
  5. If surge protection structure is not within power supplier, a lightning protector should be needed additionally.

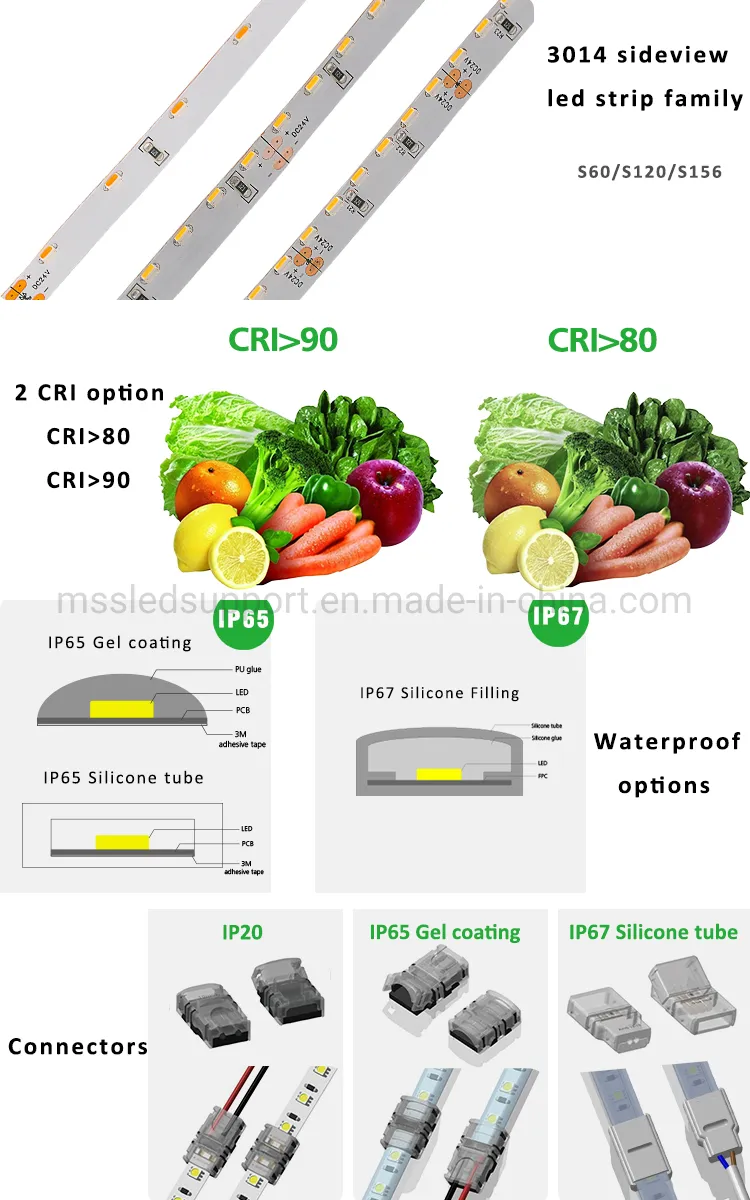

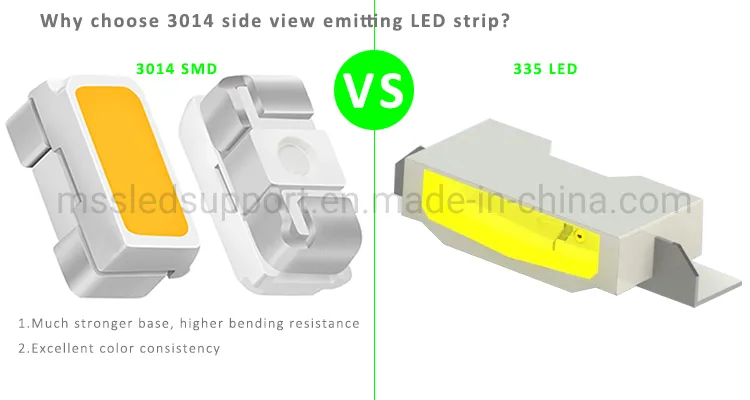

Detail 1 Detail 2
Installation Guide

1. Power supply should have necessary short circuit and over-voltage protection. Do not use un-isobaric power supply. Insulated handles are required for installation.

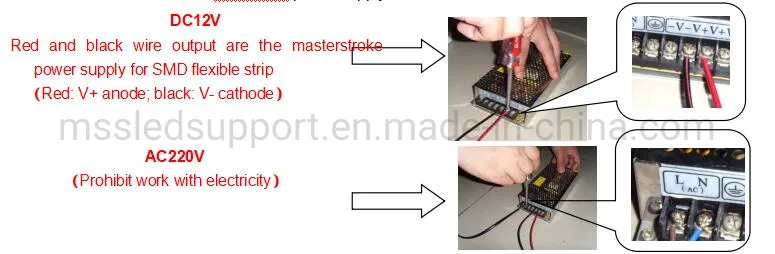

Power Supply Connection

Note: The diameter of red and black wire depends on strip quantity and distance. Suggest using RV wire as masterstroke. Use extra masterstroke if single one supports over 100W.

2. Fit the strips according to actual situation:

  • • Spread the strip flatly where you want to equip.
  • • Use transparent clips to fit strips (approx. 4 pcs per meter). Place clips between LEDs, do not press on LEDs.

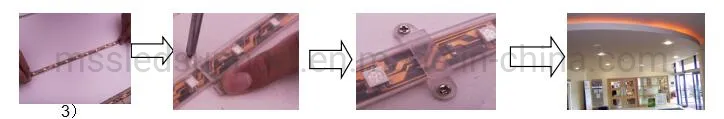

Clip Installation

3. Connect with masterstroke every 5 meters. With power supply on both ends, it can connect up to 10 meters.

Applications
  • Curve lighting
  • Freeze lighting
  • Light bar light source
  • Special signage

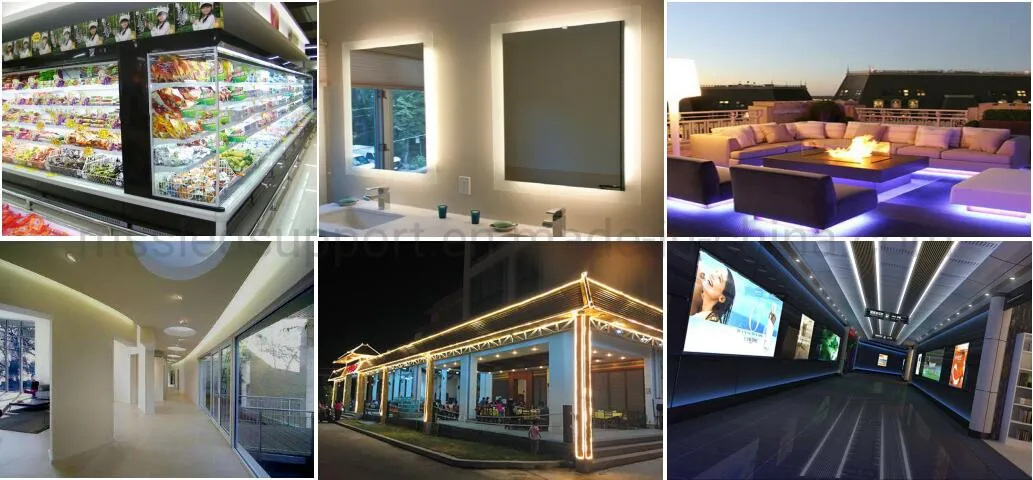

Application Scenarios
Frequently Asked Questions
What voltages are available for this side-emitting LED strip?
This LED strip is available in both DC12V and DC24V options to suit different power supply requirements.
What is the maximum recommended length for a single connection?
The standard maximum length is 5 meters from the power supplier to a single end. If powered from both ends, it can be extended up to 10 meters.
Is this LED strip waterproof?
We offer multiple IP ratings for this product, including IP20, IP33, IP65, and IP68, making it suitable for both indoor and outdoor applications.
What is the warranty period for this product?
We provide a 3 to 5-year warranty, ensuring long-term reliability and performance for your lighting projects.
Can the strip be cut for custom lengths?
Yes, the strip is designed with units of 3 LEDs, each with soldering pads, allowing for easy cutting and secondary operation.
What are the main advantages of using 3014 LEDs for this strip?
The enhanced 3014 LEDs are specifically designed for strip products, offering excellent thermal dissipation and flexibility via the rolled copper FPC.
