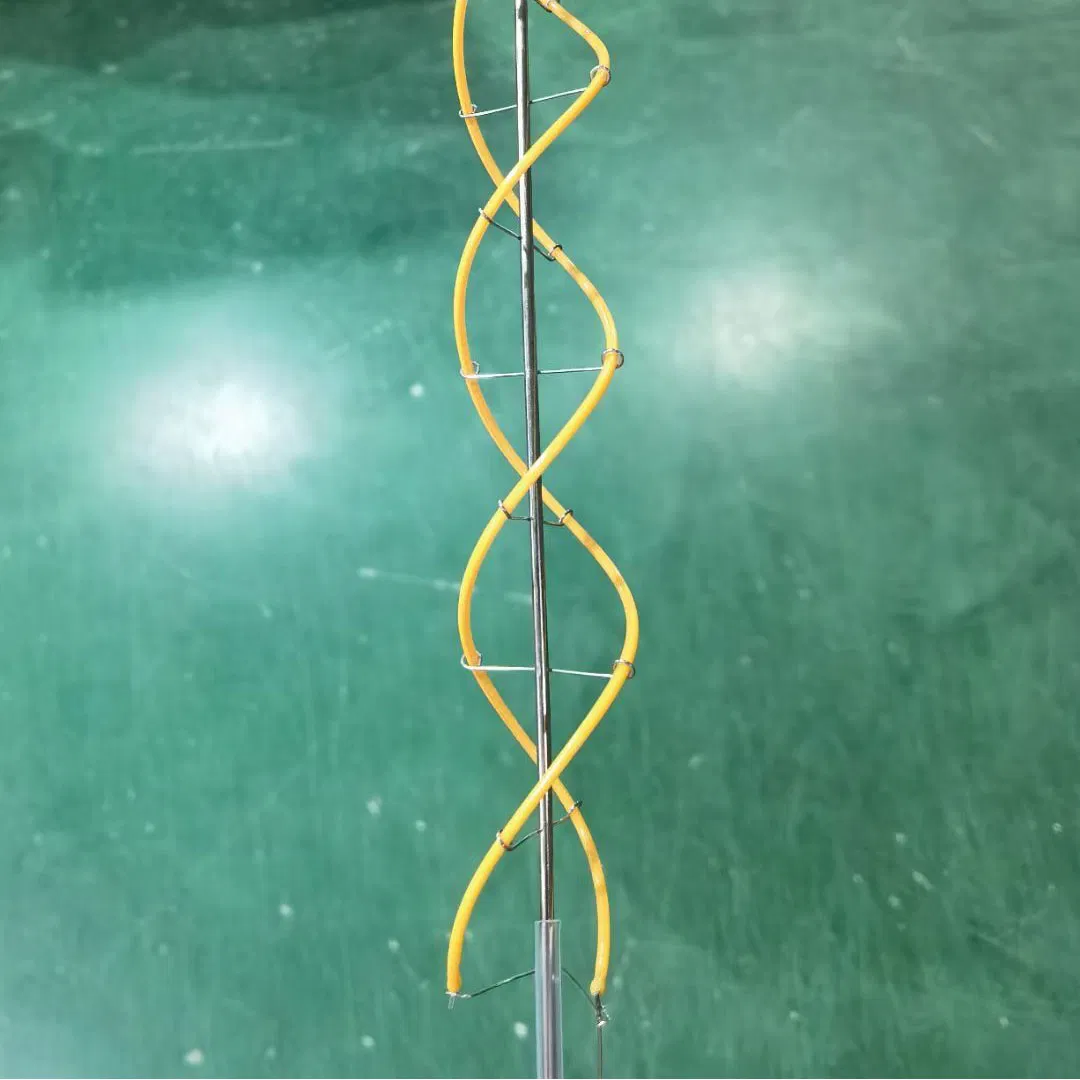

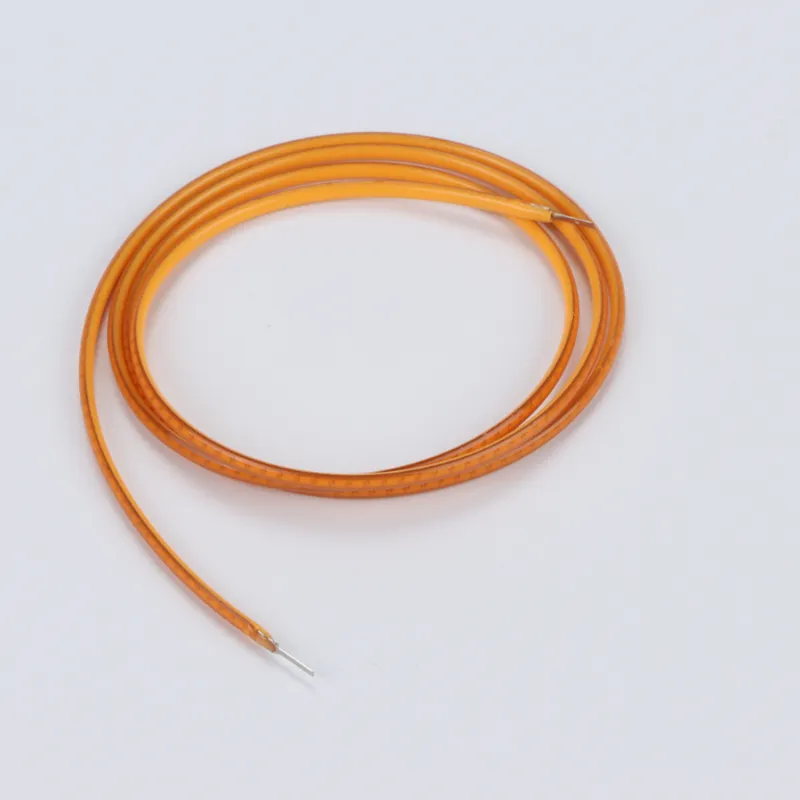

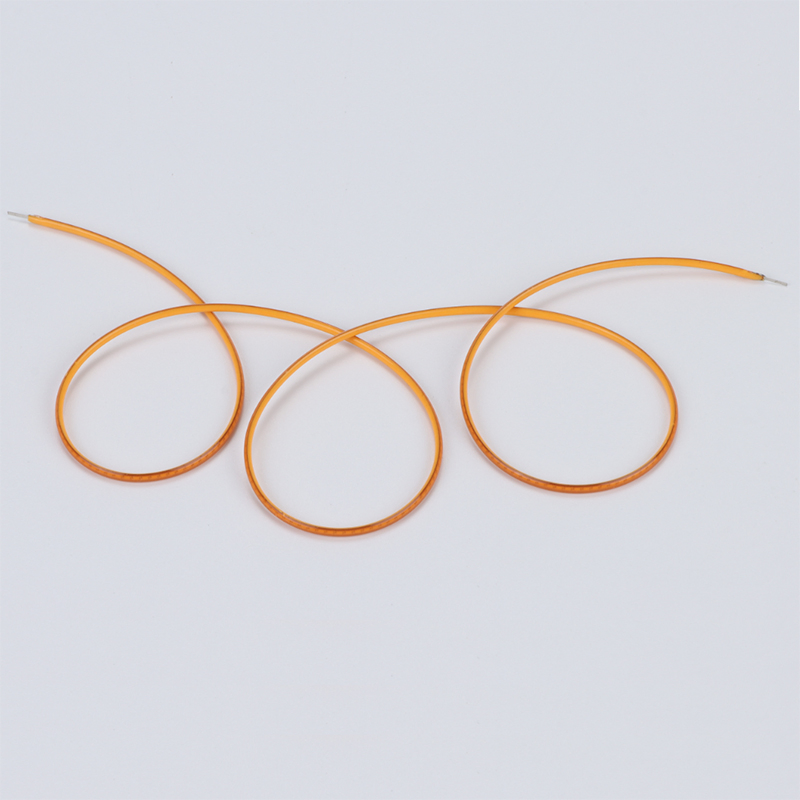

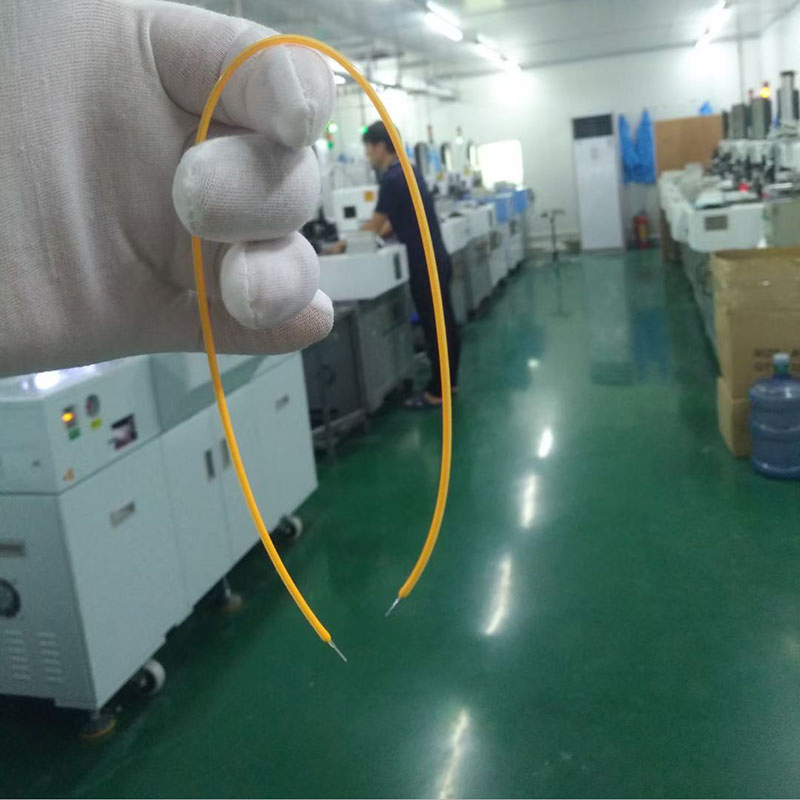

600MM FPC Flexible LED Filament 4C80B 2700K 6000K Dot Green
●Size: 600MM
●Power: 6W
●Color Temperature: Warm white 2200±100K, 2700±100K, Blue, Phosphor Converted red/green/pink, ice blue
●Application: LED bulb, LED Tungsten lamp
Handling Precautions:
Packaged LED material is silicone nature, making it soft and flexible. Avoid any pressure applied to any part of the LED. Use pneumatic nozzles for assembly to prevent reduction in reliability and impact on lifespan.
Storage & Maintenance
✓Cleaning: Recommend pure alcohol for cleaning (dipping no more than 1 minute).
✓Post-opening Storage: Room temperature < 30°C, humidity < 60% RH. Complete reflow soldering within 4 hours.
✓Dehumidification: If moisture is absorbed, perform dehumidification (75°C ± 5°C for 12H for reels).
Certifications
Packaging & Shipping
Package Size
24.00cm * 24.00cm * 5.00cm
Gross Weight
1.000kg
Specification
4000 PCS/Roll
Frequently Asked Questions
What is the primary application for this flexible LED filament?
It is primarily designed for use in LED bulbs and LED Tungsten lamps, providing a flexible and aesthetic lighting solution.
What are the recommended storage conditions?
Before opening, it should be stored at 5ºC to 30ºC with humidity below 60% RH. Once opened, it is recommended to complete soldering within 4 hours.
How should I clean the LED filament if needed?
Use pure alcohol to clean, wash, or dip the filament for no more than 1 minute after soldering. Ensure the solvent does not damage the packaging.
Why is it important to avoid pressure on the filament surface?
The LED is encapsulated in silicone, which is susceptible to mechanical damage. Pressure can affect the reliability and significantly shorten the lifespan of the LED.
What certifications does this product hold?
The product is compliant with RoHS and CE certification standards.
What is the power rating and expected lifespan?
The filament operates at 6W (12V 500mA) and has an estimated service life of up to 50,000 hours.
