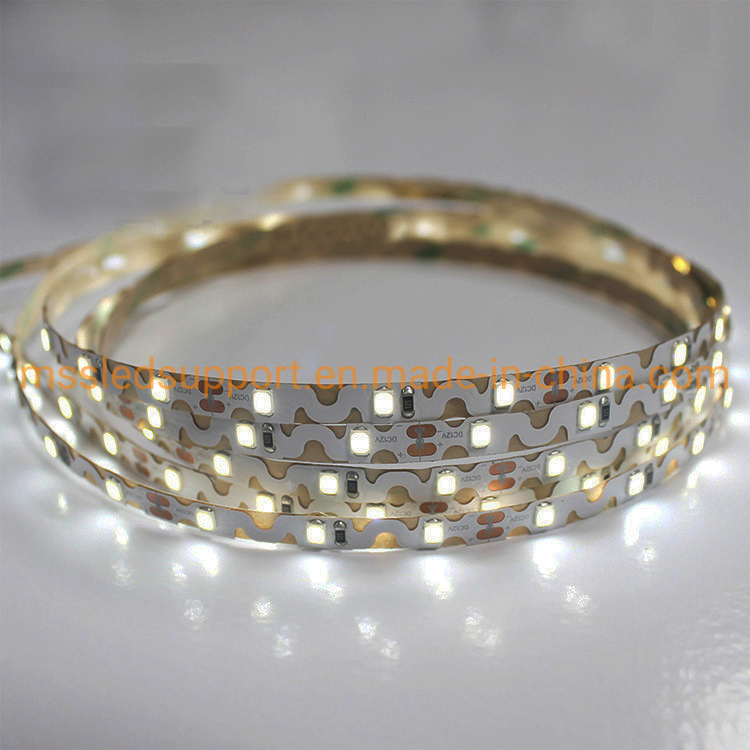

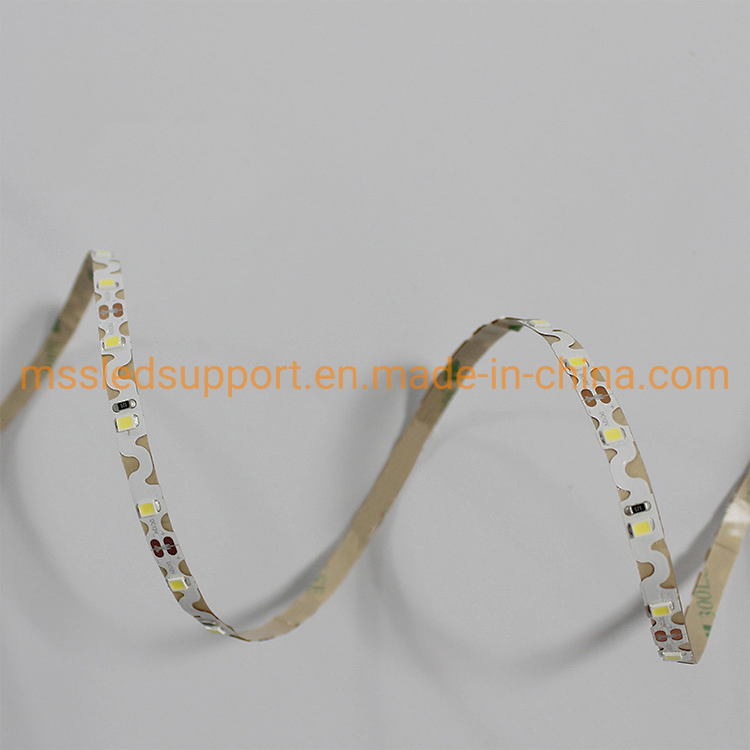

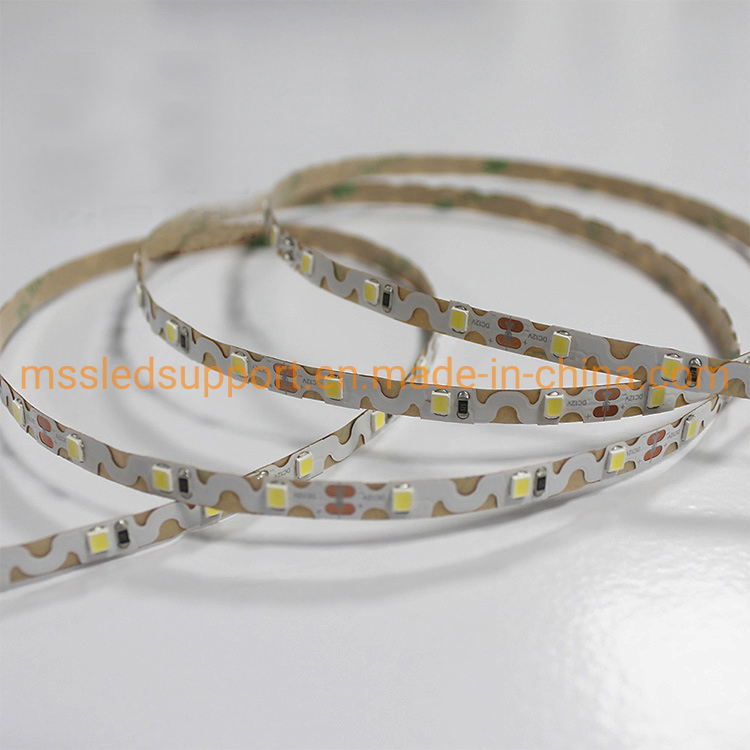

6mm 12V 60LEDs 72LEDs "S" Type Zig Zag PCB Shape LED Tape Easy Bend LED Strip light
6mm 12V 60LEDs 72LEDs "S" Type Zig Zag PCB Shape LED Tape Easy Bend LED Strip light
6mm 12V 60LEDs 72LEDs "S" Type Zig Zag PCB Shape LED Tape Easy Bend LED Strip light
6mm 12V 60LEDs 72LEDs "S" Type Zig Zag PCB Shape LED Tape Easy Bend LED Strip light
1 / 4
6mm 12V 60LEDs 72LEDs "S" Type Zig Zag PCB Shape LED Tape Easy Bend LED Strip light
6mm 12V 60LEDs 72LEDs "S" Type Zig Zag PCB Shape LED Tape Easy Bend LED Strip light
6mm 12V 60LEDs 72LEDs "S" Type Zig Zag PCB Shape LED Tape Easy Bend LED Strip light
6mm 12V 60LEDs 72LEDs "S" Type Zig Zag PCB Shape LED Tape Easy Bend LED Strip light

6mm 12V 60LEDs 72LEDs "S" Type Zig Zag PCB Shape LED Tape Easy Bend LED Strip light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Application
Bar, Lighting, Advertising
Type
Flexible LED Strip
Light Color
White/Red/Blue/Green/Yellow
Max. Length
5m/Roll
Warranty
3 Years
IP Rate
IP33, IP65, IP66
Specification
1000*6*0.3mm
Capacity
50,000m/Month
P

Product Overview

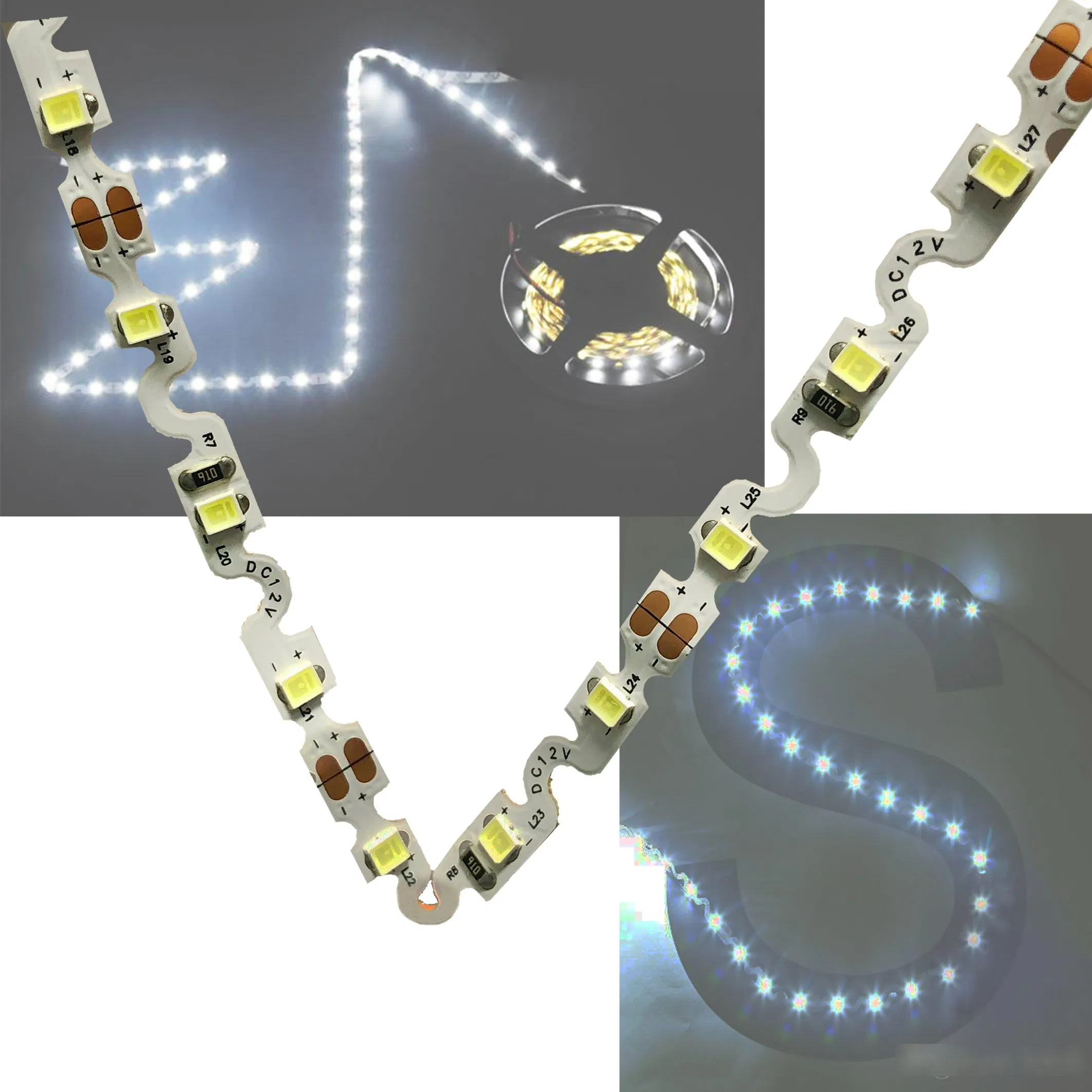

6mm 12V 60LEDs/72LEDs "S" Type Zig Zag PCB Shape LED Tape. This easy-bend LED strip light is designed for versatility and precision in creative lighting projects.

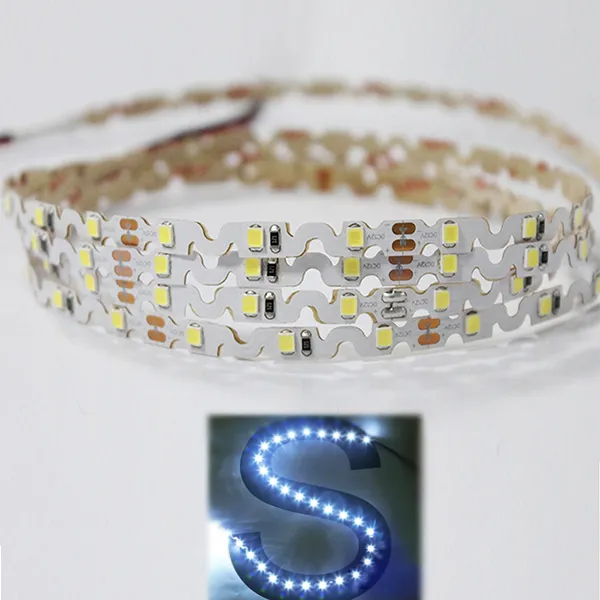

S Type LED Strip

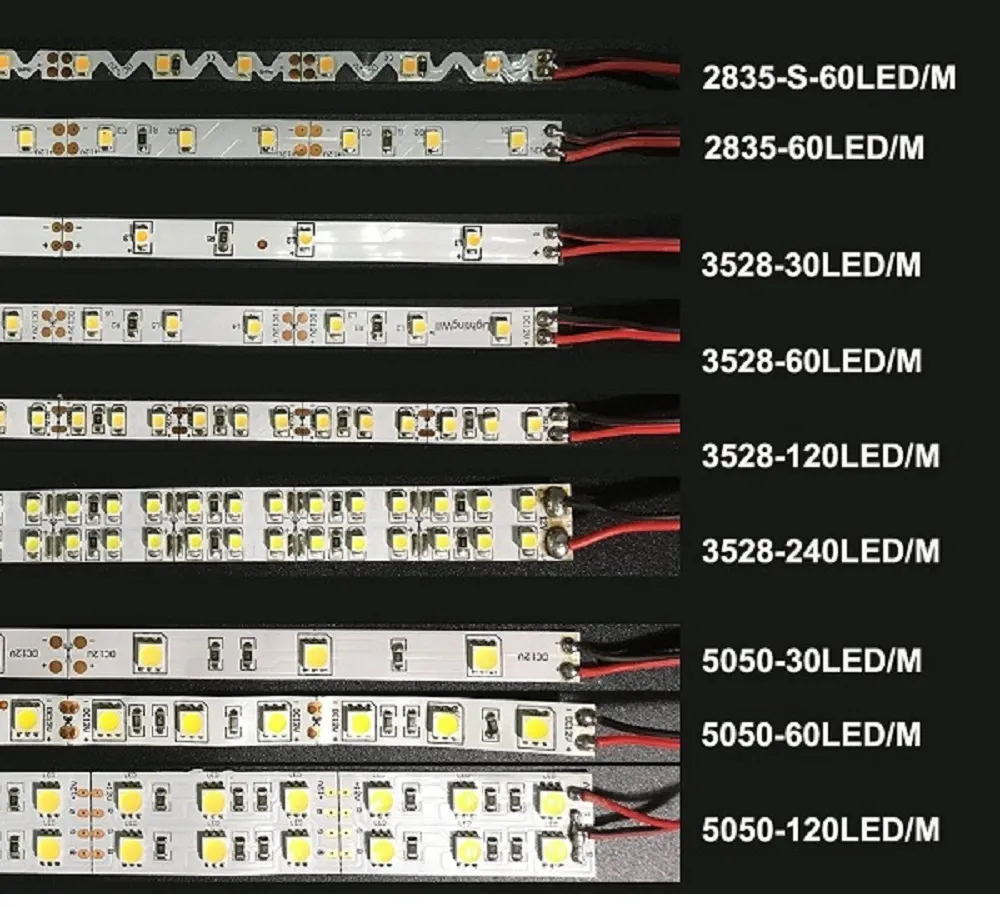

Custom LED Size
Key Features:
Bendable LED Strips provide endless possibilities! These strips can be installed on sharp corners or curved surfaces without the need for cutting and reconnecting. Designed for both professionals and lighting enthusiasts, they are ideal for bars, stained glass, cabinets, shelves, and any smooth indoor surface.
D

Dimensions

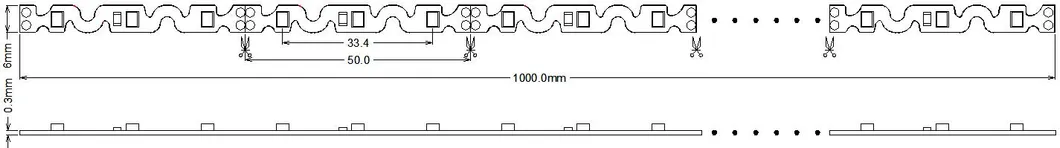

LED Strip Dimensions
T

Technical Parameters

Environmental Conditions
Ambient Temperature Range-25 to +50ºC
Operating Temperature Range-25 to +50ºC
Storage Temperature Range-25 to +60ºC
IP RatingIP33
Electrical Parameters
Supply Voltage12.5±0.5 VDC
Supply Current (per meter)700 mA
Power (per meter)8.4 W
ESD ProtectionContact 4KV, Air 8KV
O

Optical Parameters

Part No. Color Range (Typ.) Lumen (Typ.)
SF60C-283516000K (Cool White)780LM
SF60W-28357000K (White)780LM
SF60M-28353200K (Warm White)780LM
SF60R-2835625nm (Red)252LM
SF60G-2835525nm (Green)564LM
SF60B-2835465nm (Blue)168LM
SF60Y-2835590nm (Yellow)222LM
S

Installation Guide

1. Ensure the power supply has short-circuit and over-voltage protection. Use insulated handles during installation.

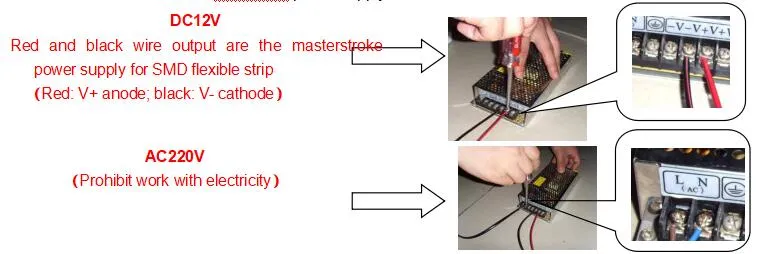

Wiring Diagram

Note: Wire diameter should match the total load and distance. For loads over 100W, use extra masterstroke lines.

2. Fitting the strips:

  • Spread the strip flatly on the target surface.
  • Use transparent clips (approx. 4 pcs per meter). Place clips between LEDs; do not press on the LED chips.

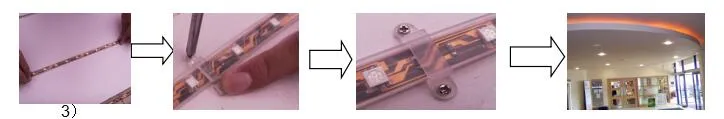

Clip Installation
A

Applications

Curve Lighting
Freeze Lighting
Light Bar Source
Special Signage

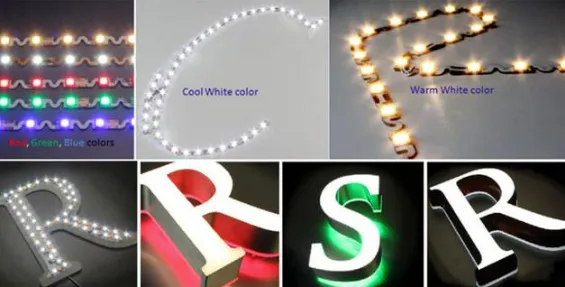

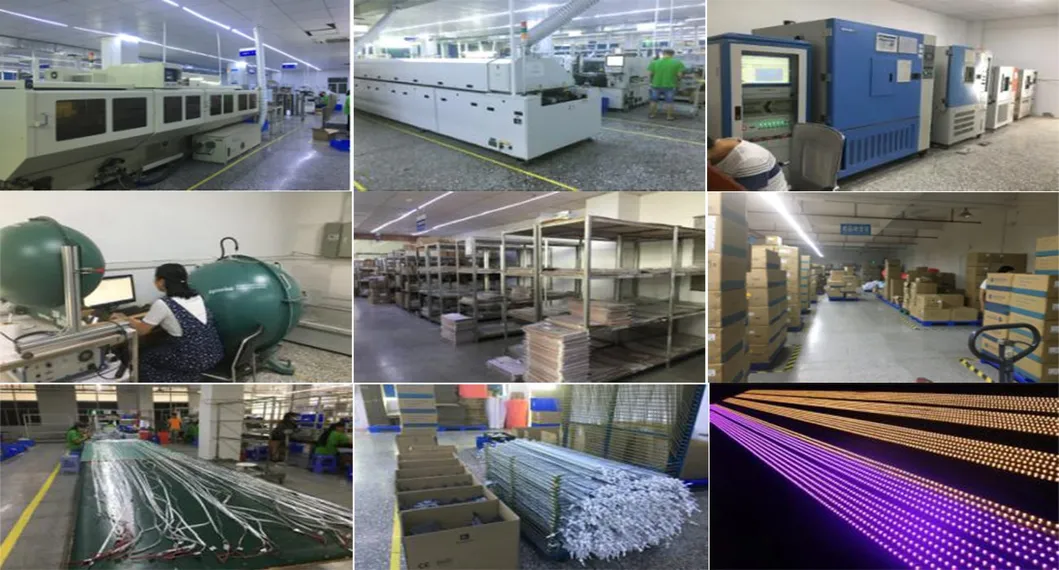

Application Example Production Quality
?

Frequently Asked Questions

What is an "S" type LED strip?
The "S" type refers to the zig-zag shape of the PCB, which allows the strip to be bent laterally. This makes it perfect for following curves or turning corners without cutting.
Can I cut the LED strip to a specific length?
Yes, the strip can be cut at designated intervals (usually every 3 LEDs for 12V systems) to fit your specific installation requirements.
What is the maximum length I can run in one series?
The maximum recommended length is 5 meters from a single power feed to avoid voltage drop. For 10-meter runs, power should be supplied from both ends.
Is this LED strip waterproof?
This product is available in different IP ratings, including IP33 (non-waterproof), IP65 (silicone coated), and IP66 (heat shrink tube), depending on your application needs.
What kind of power supply do I need?
You need a constant voltage 12V DC power supply. Ensure the wattage of the power supply is at least 20% higher than the total wattage of the strips connected.
Does the product come with a warranty?
Yes, this professional-grade LED strip comes with a 3-year warranty covering manufacturing defects.
