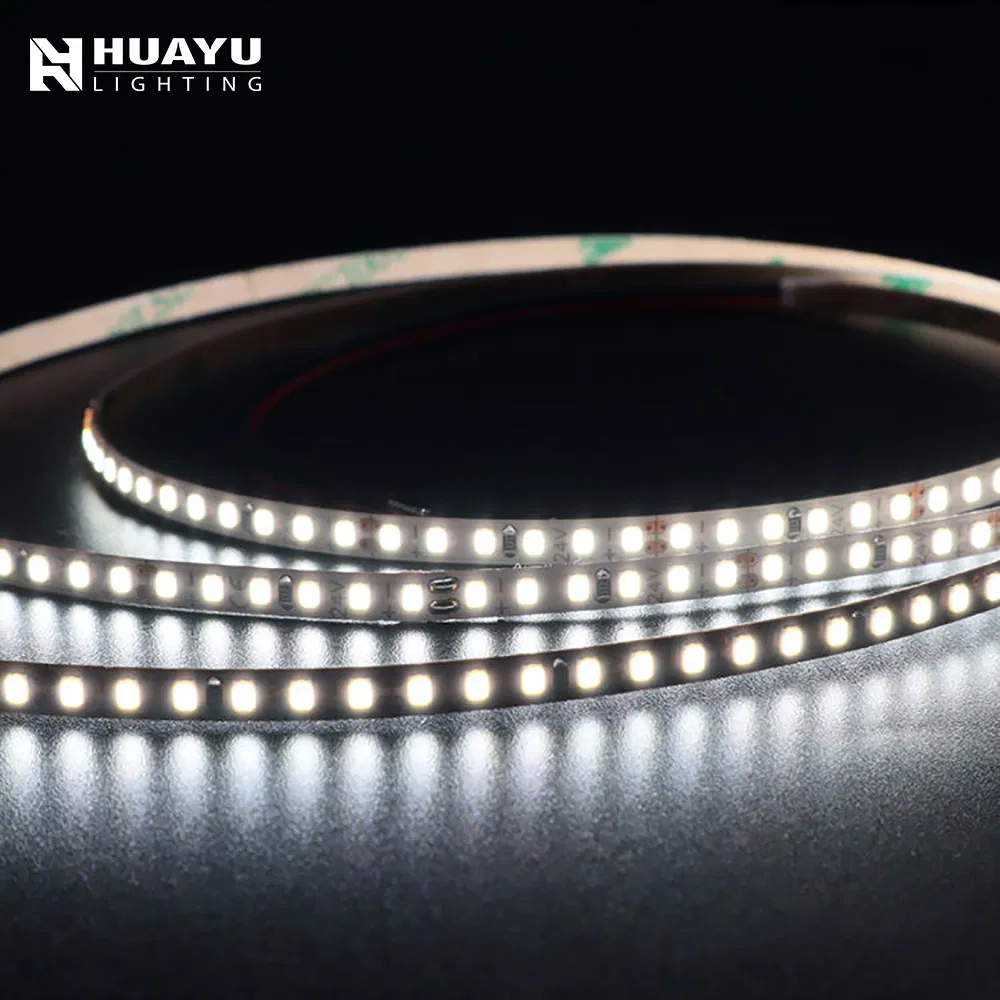

Advanced Ultra-Narrow SMD2216 Strip - 240 LEDs/M, 5mm, 8W/M, High Lumen Efficiency, Tunable CCT, High Color Accuracy LED Strip

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Emitting Color
White
Voltage
DC12V & 24V
IP Rating
IP20
LED Chip Brand
818mil Sanan
Support IP Level
IP44 IP65 IP67 IP68
Color Temperature
White 2300-6500K
PCBA
5mm 25/50 0.3-0.32um
Warranty
3 Years
Cut Line
25mm
Origin
China
Production Capacity
800,000 mtrs/Year

Product Description

Key Features

Colorjoy Series - The dual color LED strip is a perfect choice for creating stunning visual displays in various commercial environments. Whether you're looking to enhance the ambiance of a hotel, cultural tourist attraction, high-end club, luxury boutique, architectural masterpiece, or an artistic space.

The Single Color LED Strip offers a seamless lighting experience, gracefully contouring your space with a soft and uniform glow. Its versatility allows you to effortlessly highlight architectural details, showcase artwork, or create captivating lighting effects that amplify the overall aesthetic appeal.

Advanced Ultra-Narrow SMD2216 Strip

Product Parameters

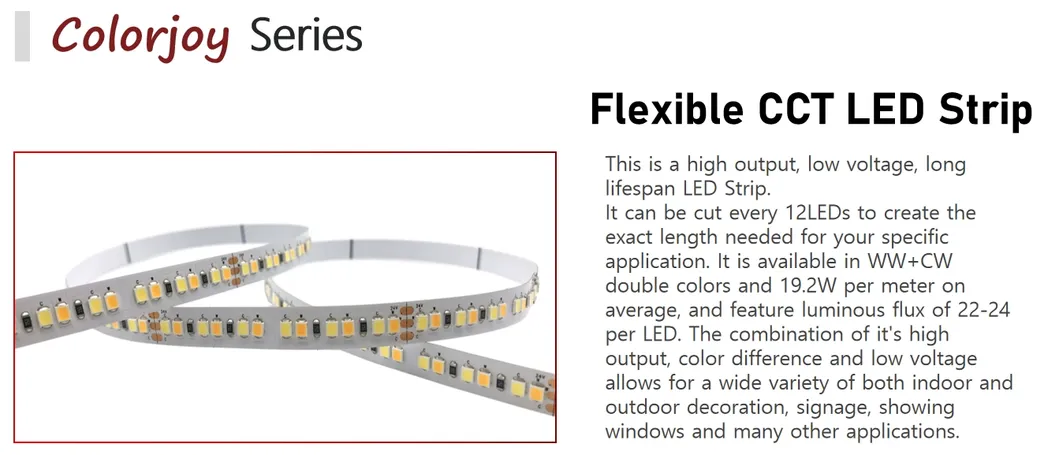

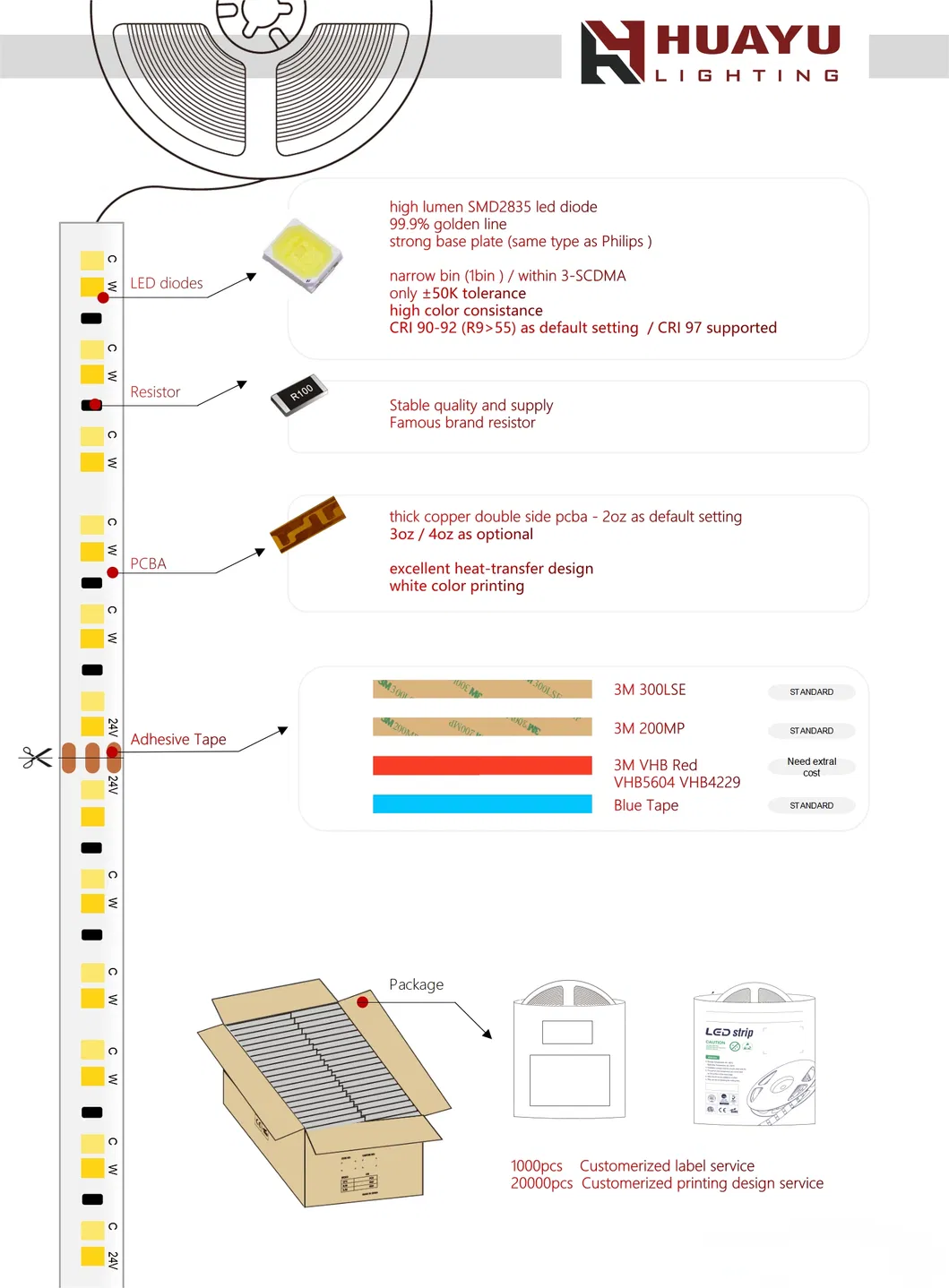

Specification Chart 1 Specification Chart 2
LED SourceSMD2216
LED Qty240LEDs per meter
Luminous Flux22-24 lm per LED
Input Voltage12V/24VDC
Power8 watts per meter
Color Temperature2700~6500K
Cut UnitEvery 3LEDs (12.5mm) / 6LEDs (25mm)
Beam Angle120°
CRIRa85+ / Ra90+ / Ra95+
PCB & Finish5mm width, white finish
Operating Temp-20ºC to 50ºC
IP RatingIP20 / IP65 / IP66 / IP67 / IP68
Warranty3 Years
CertificationsISO9001, ETL, TUV-CE, RoHS, SASO

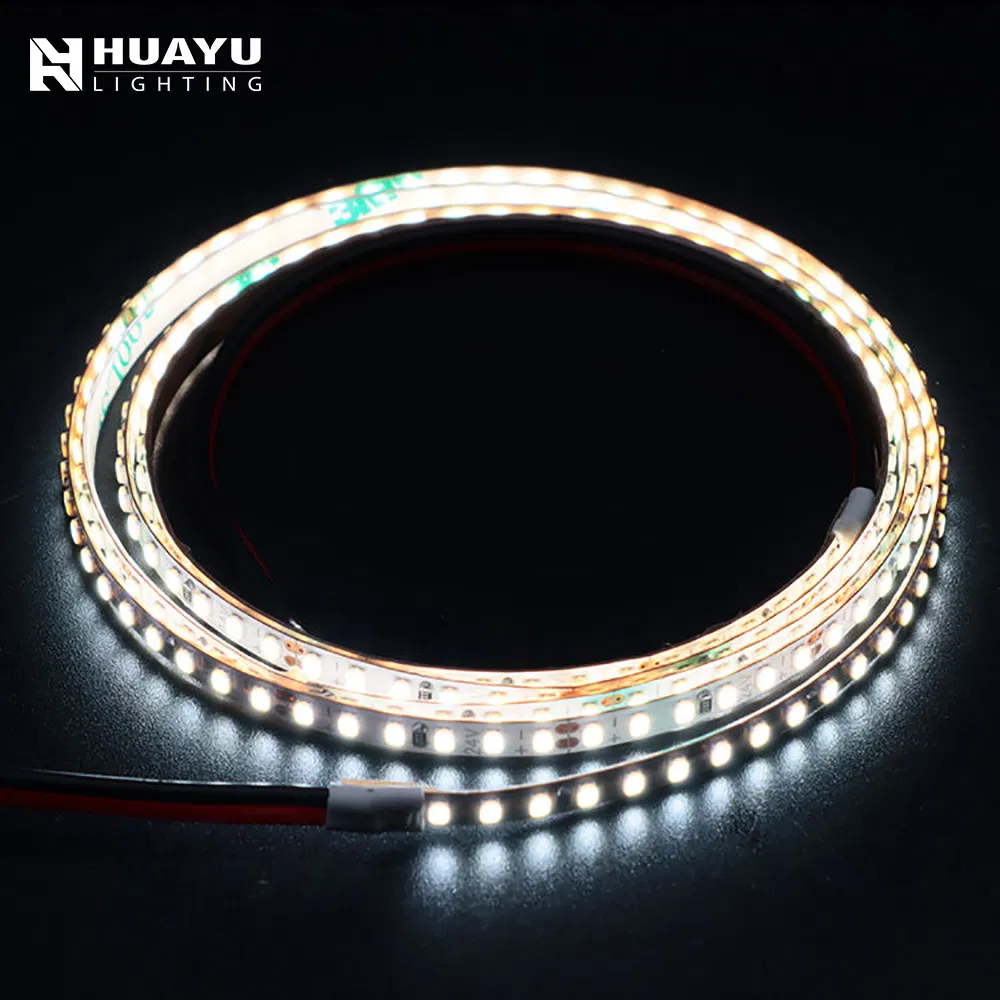

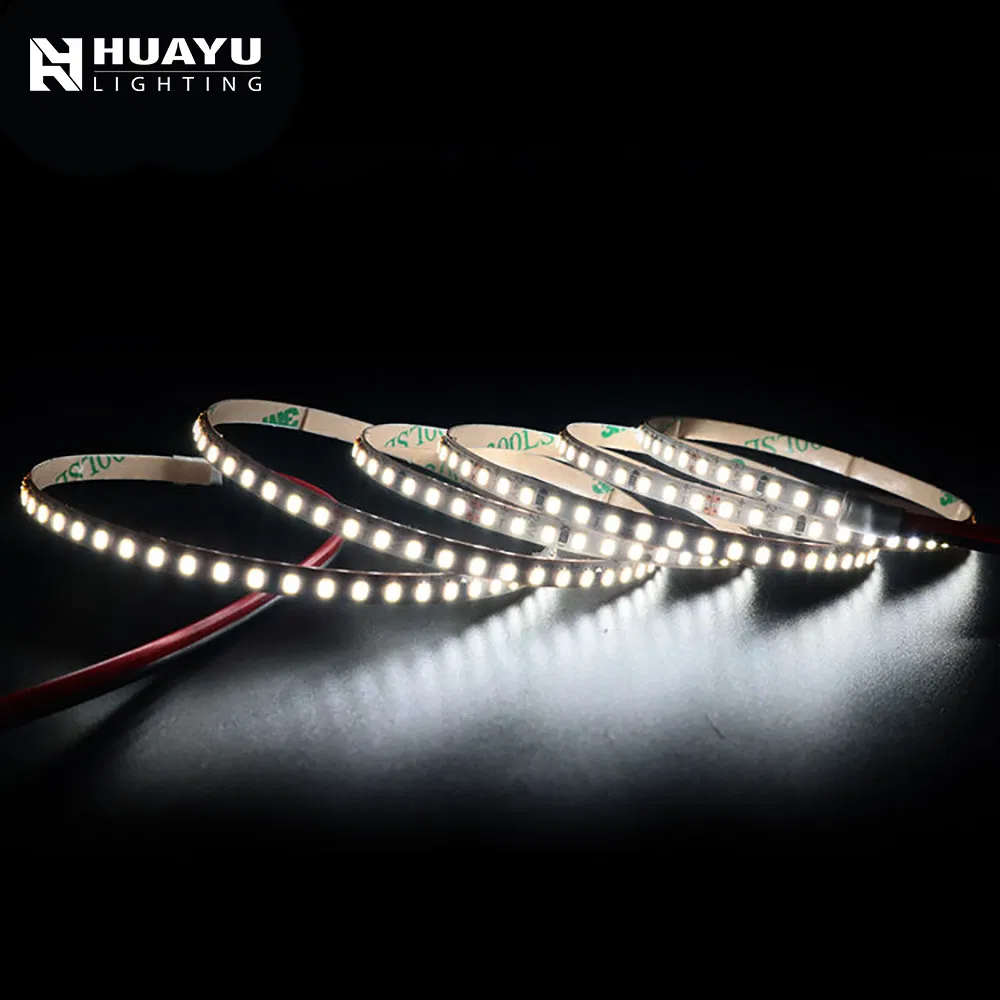

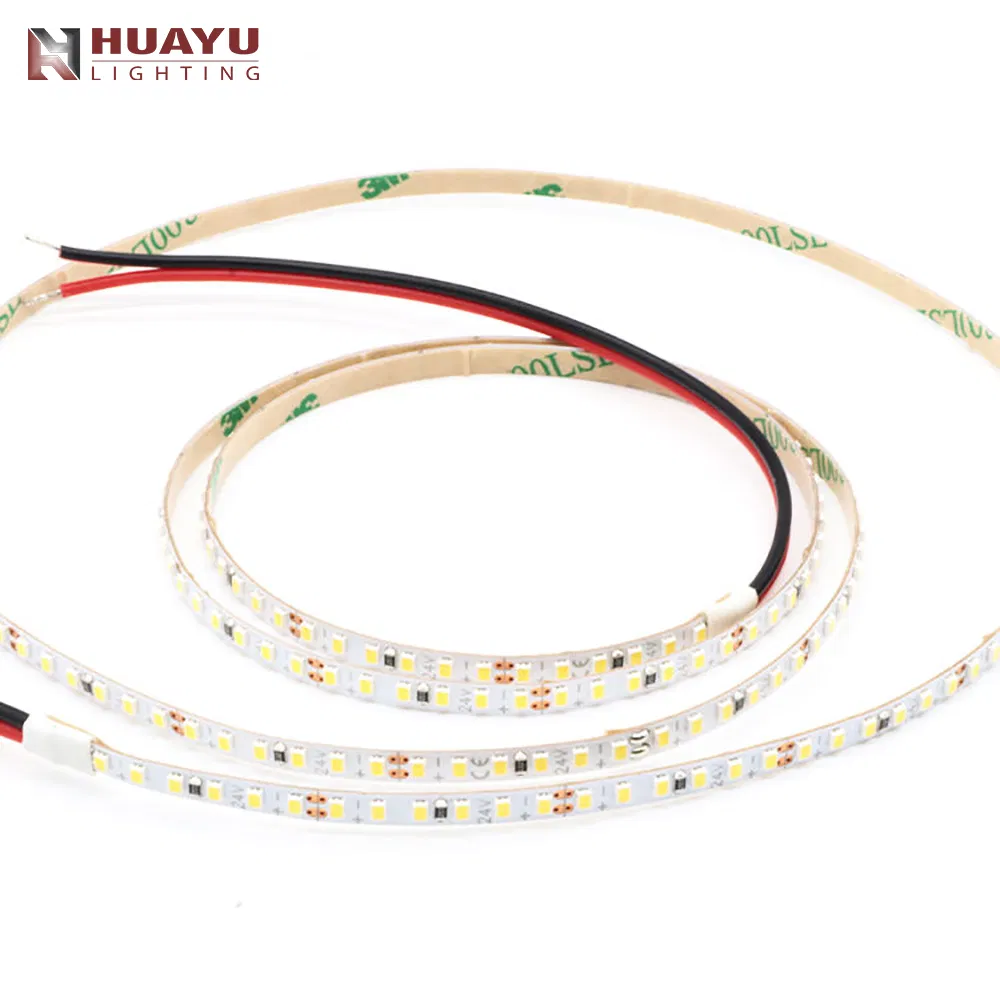

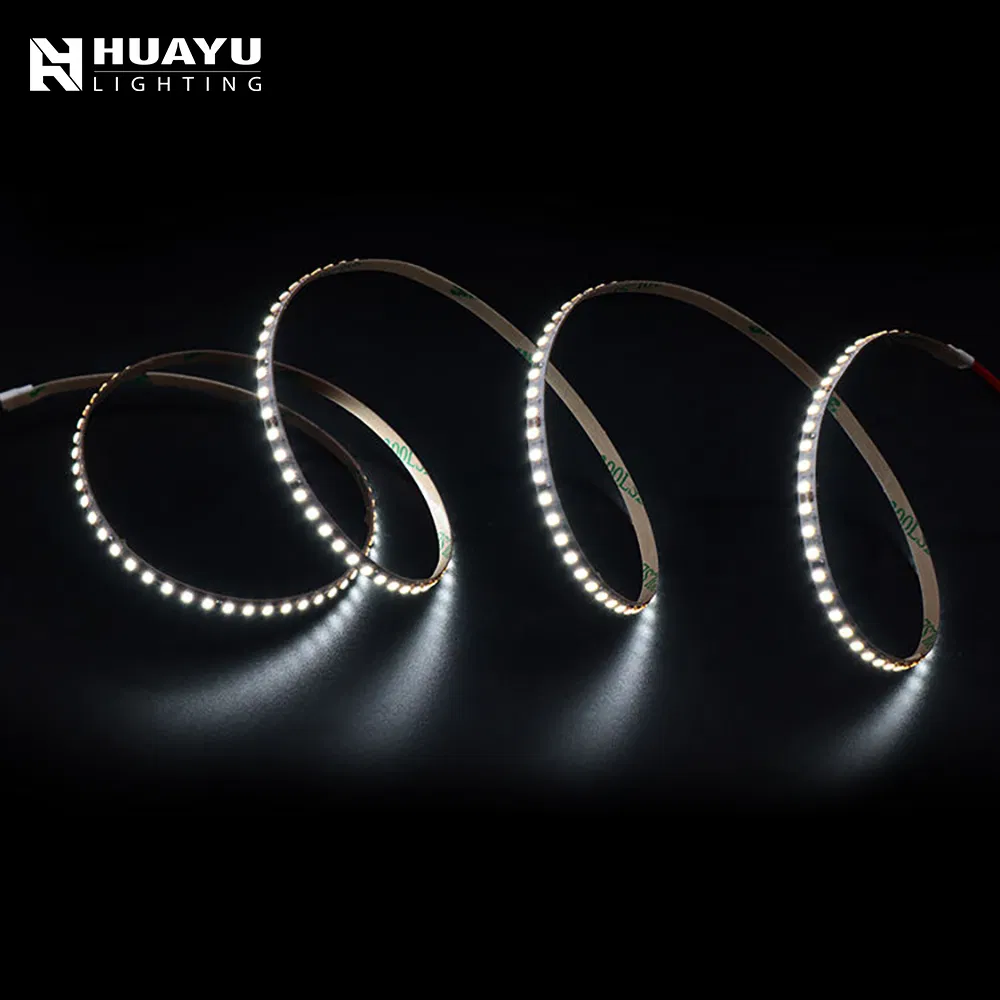

Detailed Photos

Models Selection

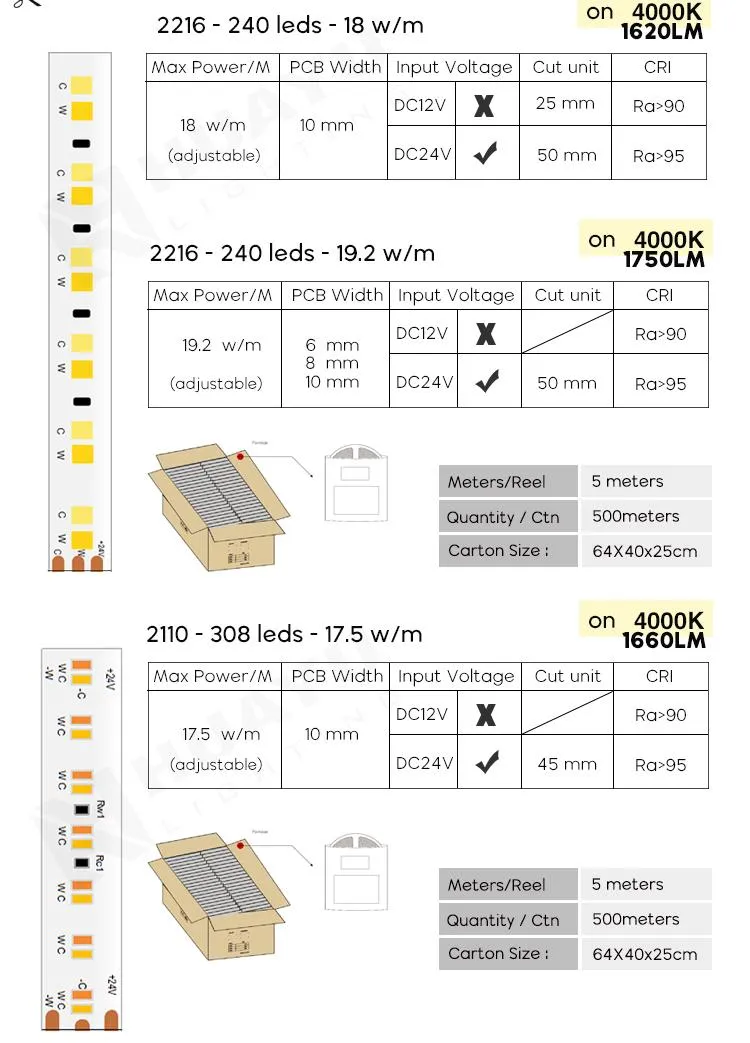

Other Models Selection

Company Profile

Our manufacturing facility was established in 2011 after identifying a gap in the market for a more comprehensive range of LED lighting products. Our extensive range of LED strip, Flex LED Neon recessed or mounting solutions offer designers and architects the essential tools to create exquisite lighting installations.

The facility covers an area of 2,200 square meters, consisting of specialized design, R&D, production, and after-sales teams. With a commitment to quality, we strive to be architectural lighting solution specialists.

To ensure sustainable development, we focus on self-improvement and excellence. Our products are exported globally, enjoying high recognition in markets such as Germany, France, Russia, United Kingdom, United States, Italy, Spain, Japan, and many others. We have obtained TUV-CB, TUV-CE, and ETL certifications, reflecting our dedication to professional standards and customer demands.

Frequently Asked Questions

What is the input voltage for these LED strips?
The LED strips support both DC12V and DC24V input voltages, providing flexibility for different power supply setups.
Can the LED strip be customized for waterproof requirements?
Yes, we support multiple IP levels including IP20 for indoor use, as well as IP44, IP65, IP67, and IP68 for various outdoor and underwater applications.
What is the cutting interval for this specific model?
The strip is designed with precise cut lines every 12.5mm (for 3LEDs) or 25mm (for 6LEDs), allowing for accurate fitting in tight spaces.
What is the width of the PCB?
This series features an ultra-narrow 5mm PCB width, making it ideal for slim architectural profiles and narrow mounting channels.
What kind of warranty do you provide?
We offer a 3-year warranty on our LED strip products, ensuring long-term reliability and performance for your lighting projects.
What certifications do your lighting products hold?
Our products have successfully gained TUV-CB, TUV-CE, ETL, RoHS, and SASO certifications, meeting international quality and safety standards.
