Product Description

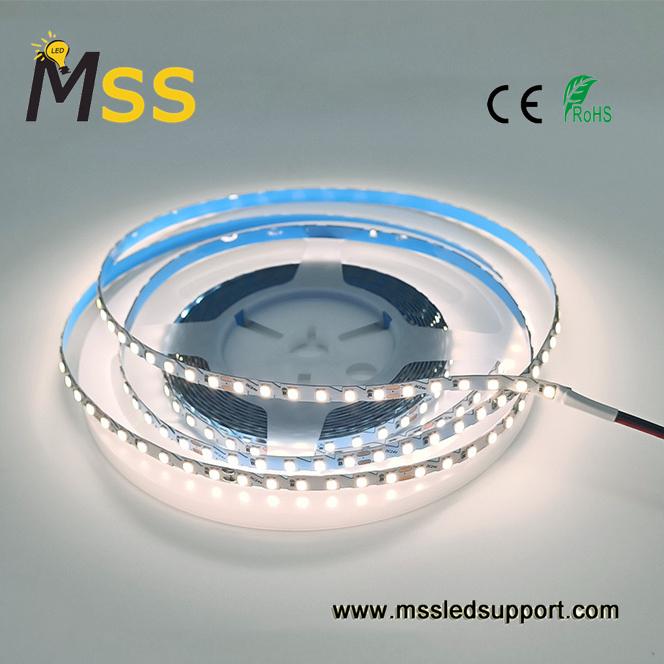

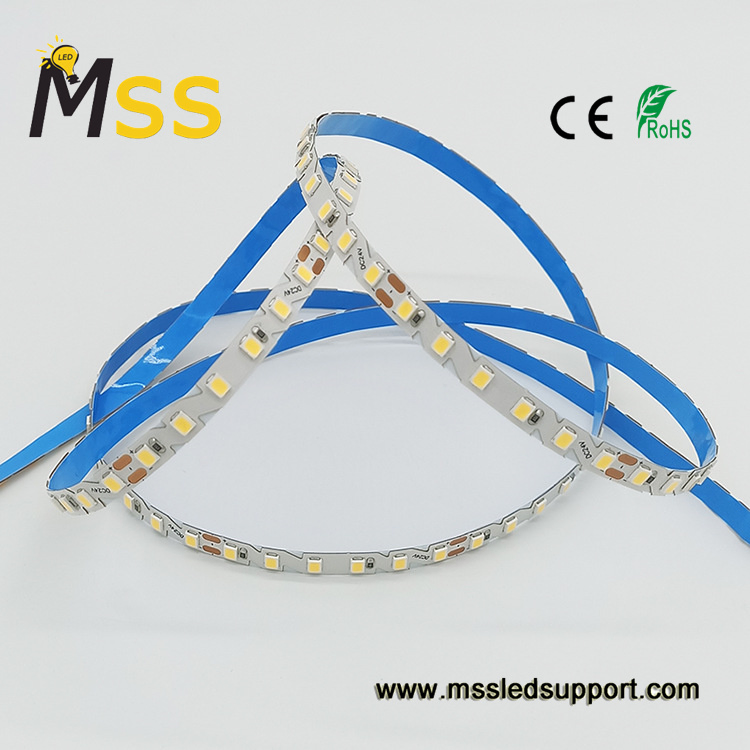

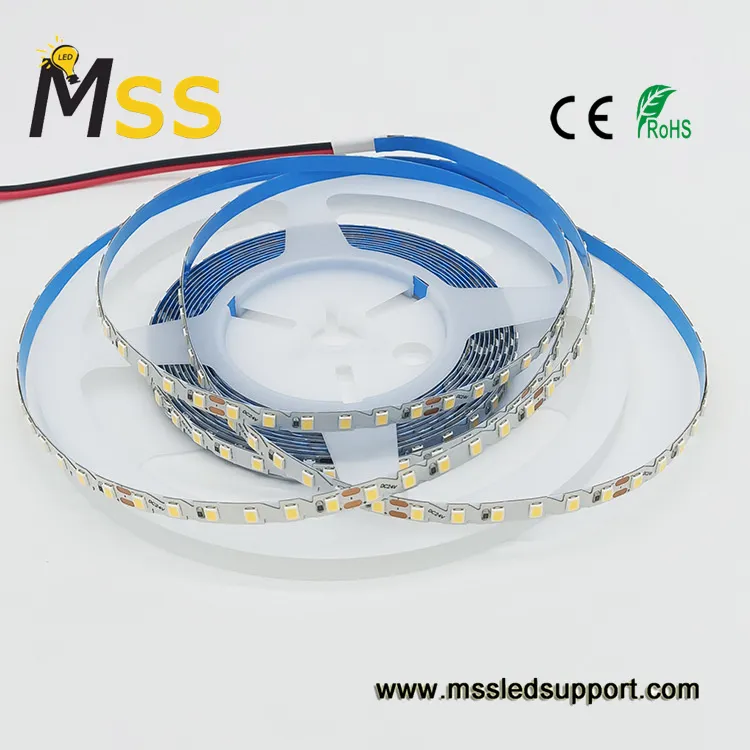

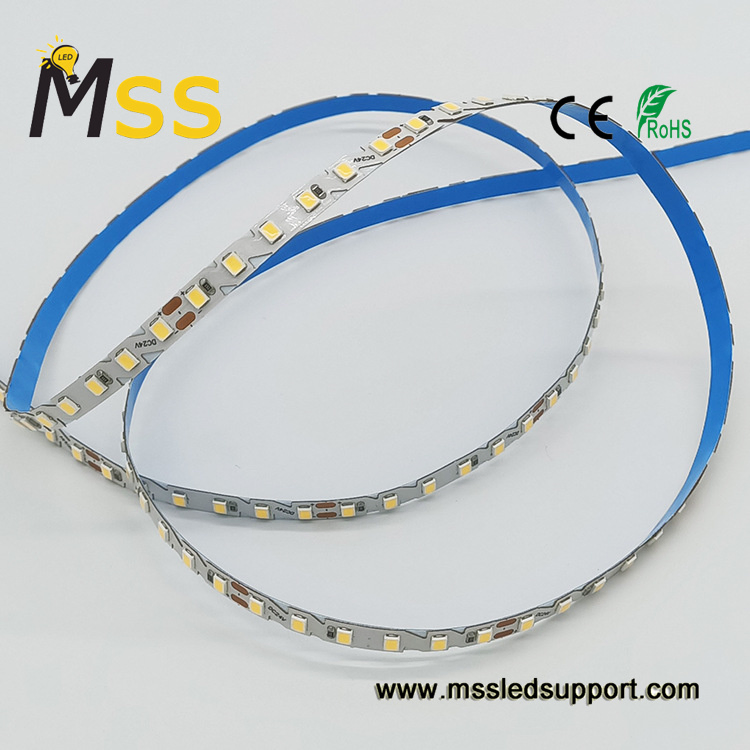

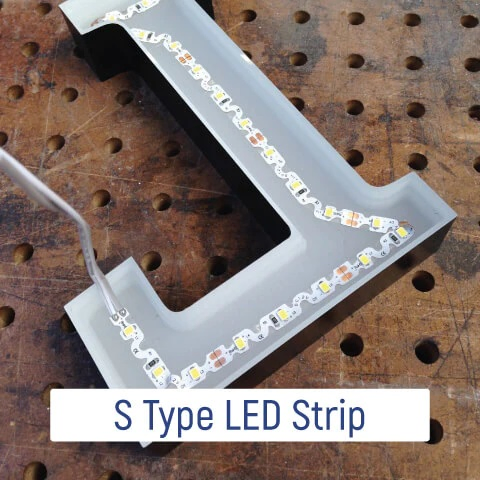

Bendable S Shape Zigzag 2835 SMD LED Strip

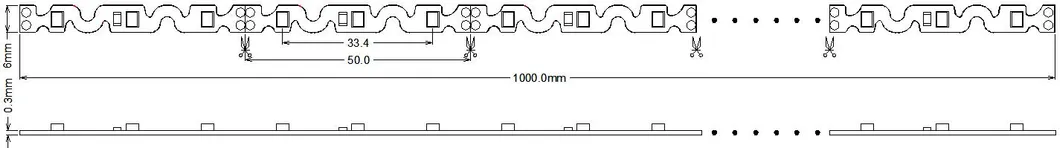

Ultra Bright LED Strip (60leds/120leds) with 6mm width, specifically designed for Channel Letters.
Bendable LED Strips provide versatile possibilities! These strips can be installed on sharp corners or curved surfaces without the need for cutting and reconnecting. Designed for both professionals and lighting enthusiasts, they are easy to use for bars, stained glass, under cabinets, shelves, and any clean indoor surface.
Installation & Attention
1. Max length of strip is 5 meters from power supplier to single end.
2. Avoid mechanical stress on the LED strip and its components.
3. Ensure power supply is adequate for the total load.
4. Only qualified personnel should perform installations.

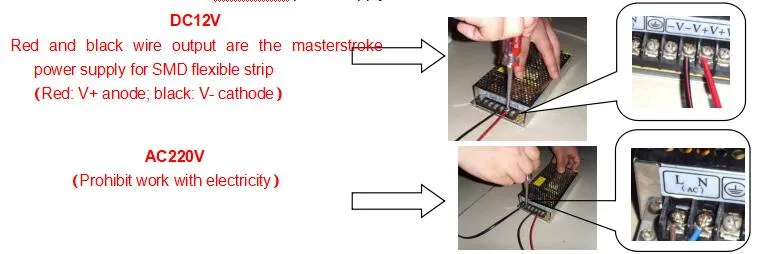

The diameter of red and black wire should be chosen according to strip quantity and distance. Suggest using RV (multi-core) wire. Please use extra masterstroke if a single line supports over 100W.
Frequently Asked Questions
1. What makes the "S Shape" LED strip different from standard strips?
The S Shape (or Zigzag) design allows the PCB to bend laterally. This means you can create curves and sharp angles on a flat surface without cutting the strip, making it perfect for channel letters and irregular signage.
2. Can I use these strips outdoors?
The standard product listed is IP33, which is suitable for indoor use. However, IP65 and IP66 versions are mentioned in the specifications for applications requiring higher moisture protection.
3. What is the maximum length I can run in a single series?
The maximum recommended length is 5 meters from the power source to a single end. If powered from both ends, you can extend the connection up to 10 meters to maintain consistent brightness.
4. What type of power supply do I need?
These strips operate on a 12.5VDC (±0.5V) range. You should use a regulated power supply with short-circuit and over-voltage protection that meets the total wattage requirement (8.4W per meter).
5. Is it possible to dim these LED strips?
Yes, as long as you use a compatible LED controller or dimmer between the power supply and the strip, or use a dimmable power supply.

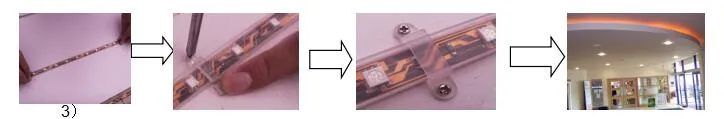

6. How should I fix the strips to a surface?
You can spread the strip flat on the surface. For secure mounting, it is recommended to use transparent clips (approximately 4 per meter). Ensure the clips are placed between the LEDs to avoid damaging the chips.
