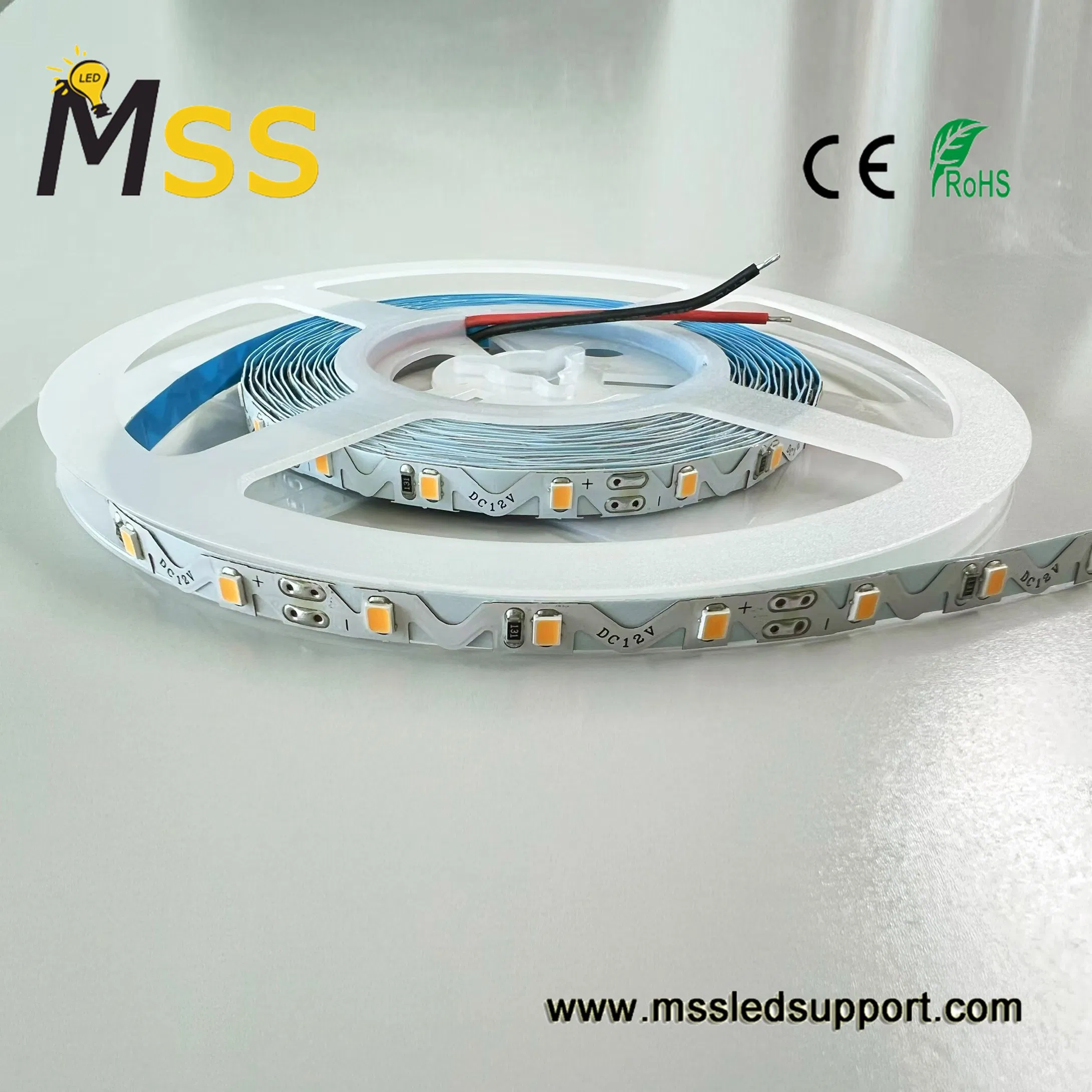

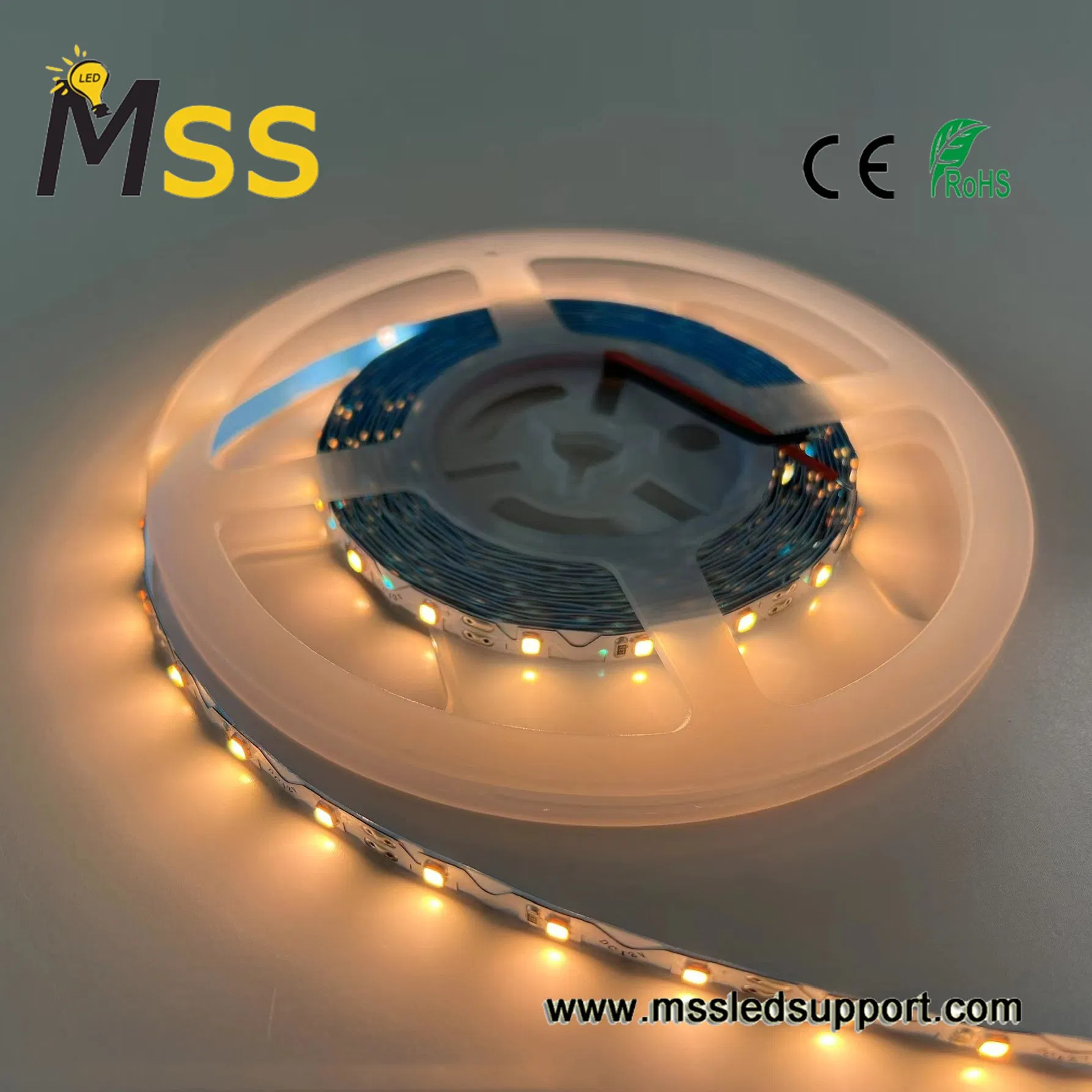

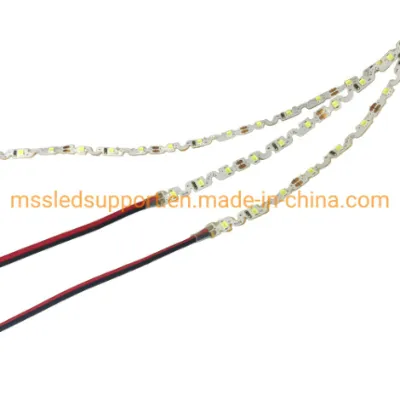

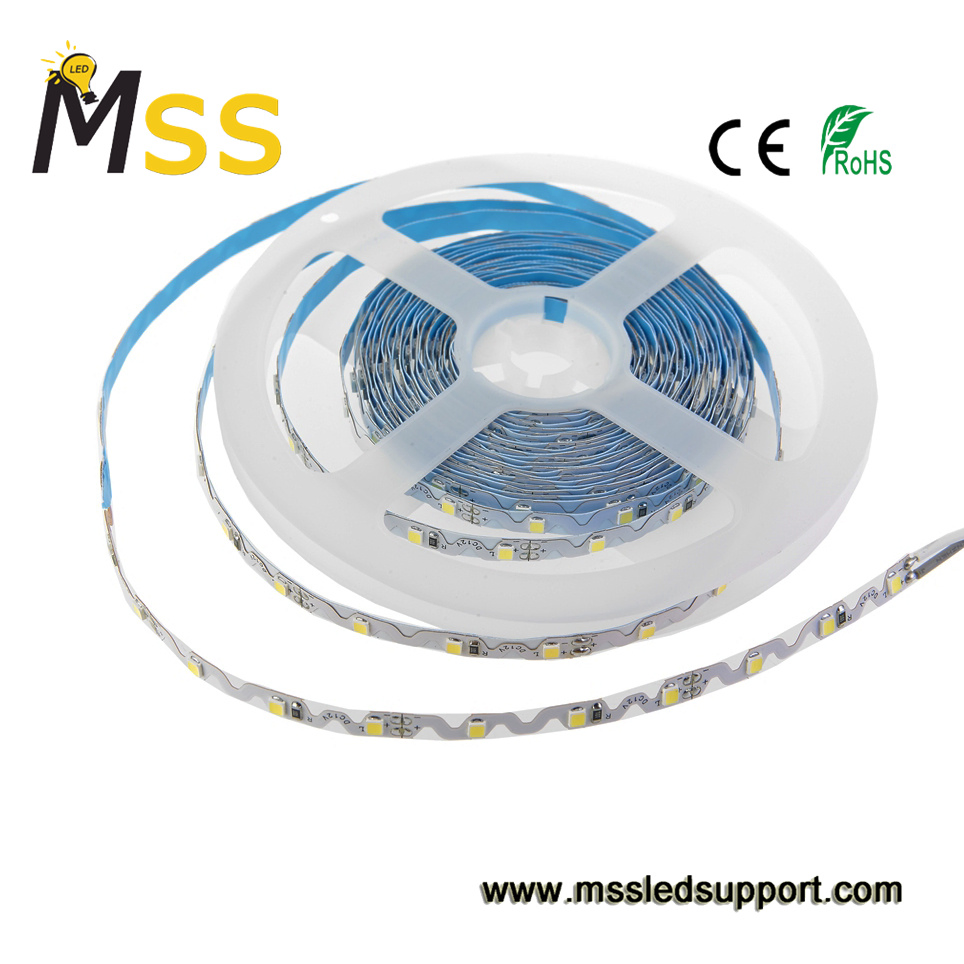

Advanced 20meters/roll S Shape Flexible 12V IP66 6mm Width 60LEDS SMD2835 Zigzag PCB designed specifically for Mini Letters and intricate signage lighting.
Key Features

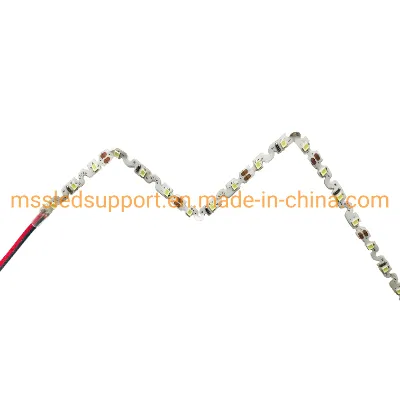

Bendable LED Strips provide enhanced versatility for creative lighting projects. These strips can be seamlessly installed on sharp corners or curved surfaces without the need for cutting and reconnecting. Ideal for both professional installers and DIY enthusiasts, they are perfect for bars, stained glass, cabinets, shelves, and any smooth indoor surface.

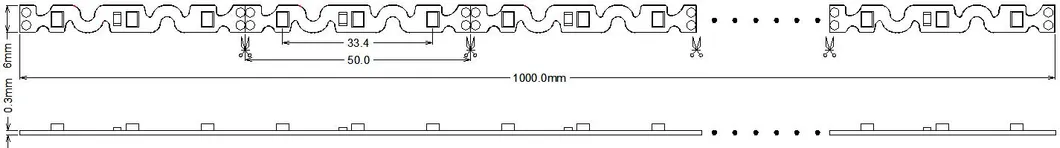

Dimensions
Technical Parameters
Environmental & Application Conditions
Ambient Temperature Range (TA)
-25 ~ +50ºC
Operating (Case) Temperature Range (TC)
-25 ~ +50ºC
Storage Temperature Range
-25 ~ +60ºC
IP Rating
IP33
Electrical Parameters
Supply Voltage Range
12.5±0.5 VDC
Supply Current (per meter)
700 mA
Power Consumption (per meter)
8.4 W
ESD Protection
Contact 4KV, Air 8KV
Optical Parameters
Part No.
Color Range (CCT/Wavelength)
Typ. Lumen (per meter)
SF60C-2835
10000K - 22000K
780LM
SF60W-2835
6000K - 8000K
780LM
SF60M-2835
3000K - 3400K
780LM
SF60R-2835
620nm - 630nm
252LM
SF60G-2835
520nm - 530nm
564LM
SF60B-2835
460nm - 470nm
168LM
SF60Y-2835
588nm - 594nm
222LM
Installation & Handling
The maximum length for a single power feed is 5 meters to avoid voltage drop.
Avoid mechanical stress on the LED components and PCB during installation.
Ensure the power supply capacity exceeds the total load power by at least 20%.
Use surge protection if the power supply does not have built-in protectors.

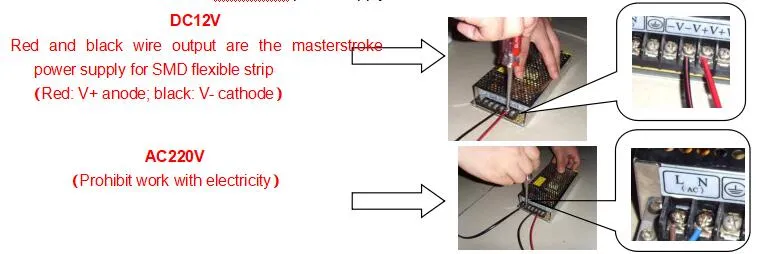

Wiring Note: The wire gauge (red/black) should be selected based on the total current and distance. For runs exceeding 100W, use a master bus line to maintain consistent brightness.

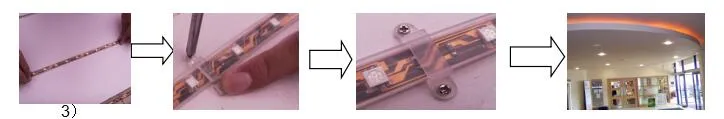

Mounting Tip: Use transparent clips (approx. 4 pcs per meter). Place clips between LEDs; do not apply pressure directly on the LED chips.

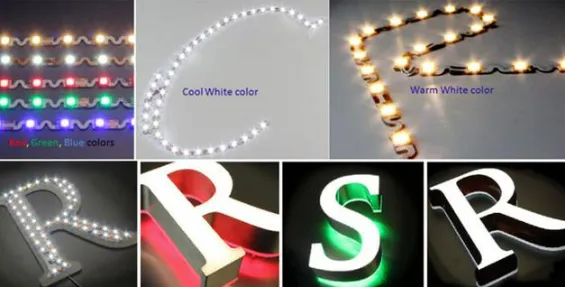

Applications
Curved and Contour Lighting
Commercial Display & Freezer Lighting

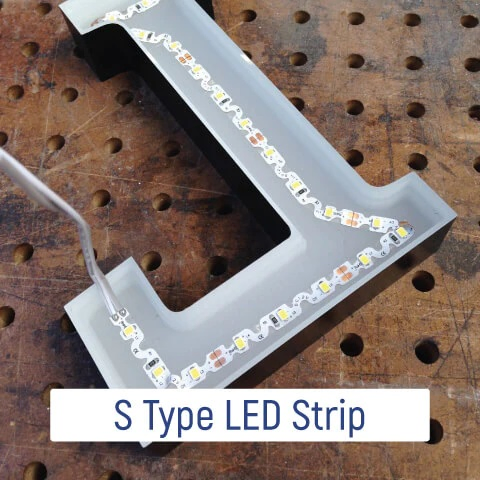

Light Bar Source for Signage

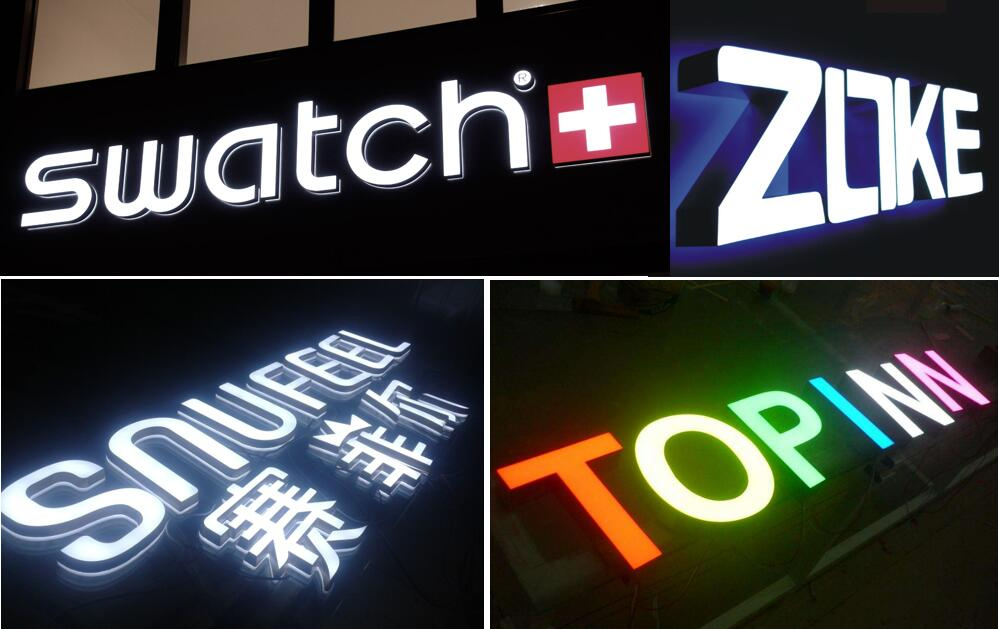

Special Mini Letter Signs
Frequently Asked Questions
What makes the "S Shape" or "Zigzag" LED strip unique?
The S-shaped PCB design allows the strip to bend laterally, making it ideal for wrapping around corners or following tight curves in mini-letters and signage without cutting the strip.
Can I connect more than 5 meters in a single series?
We recommend a maximum length of 5 meters for a single-end power feed. However, if you provide power from both ends, you can connect up to 10 meters while maintaining brightness consistency.
Is this LED strip suitable for outdoor use?
The product is available in IP33, IP65, and IP66 ratings. For outdoor or wet locations, please ensure you select the IP65 or IP66 version and use appropriate waterproof housings.
What are the power requirements for this strip?
This strip operates on a stable 12V DC power supply. It consumes approximately 8.4 Watts per meter. Always use a constant voltage LED driver.
What color temperatures are available?
We offer a wide range from Warm White (3000K), Neutral White (6000K-7000K), up to Cool White (10000K+), as well as Red, Green, Blue, and Yellow options.
How should the strip be mounted on surfaces?
The strip can be fixed using transparent mounting clips (4 per meter) or adhesive backing. Ensure the surface is clean and smooth, and avoid any mechanical pressure on the LED chips themselves.
