Basic Specifications
Model NO.
KDY-COB784RGBNW-Pixel
Product Name
COB Rgbnw Pixel 784LEDs
PCB Material
Double-Sided Coated Pure Copper
Package Size
48.00cm * 28.00cm * 25.00cm
💡
Product Description

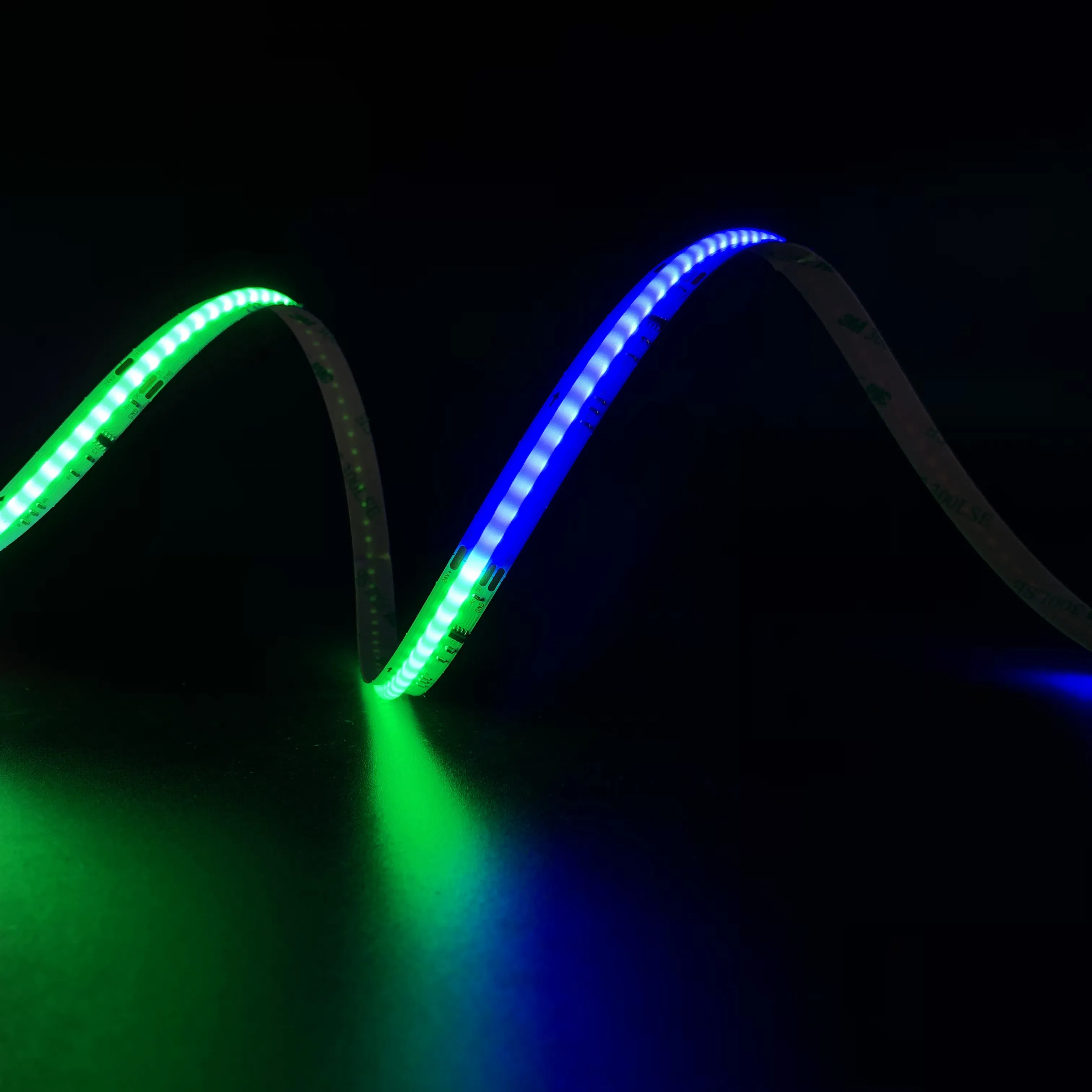

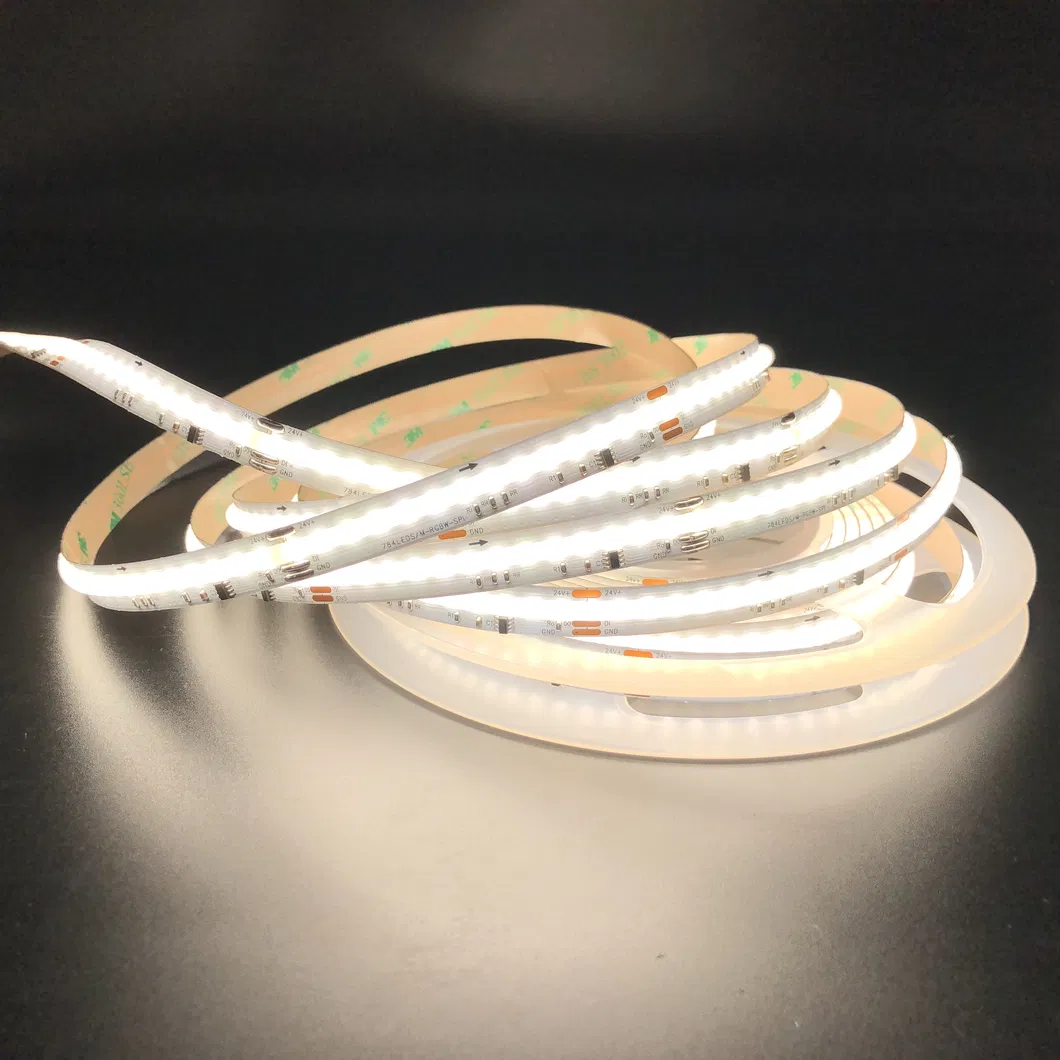

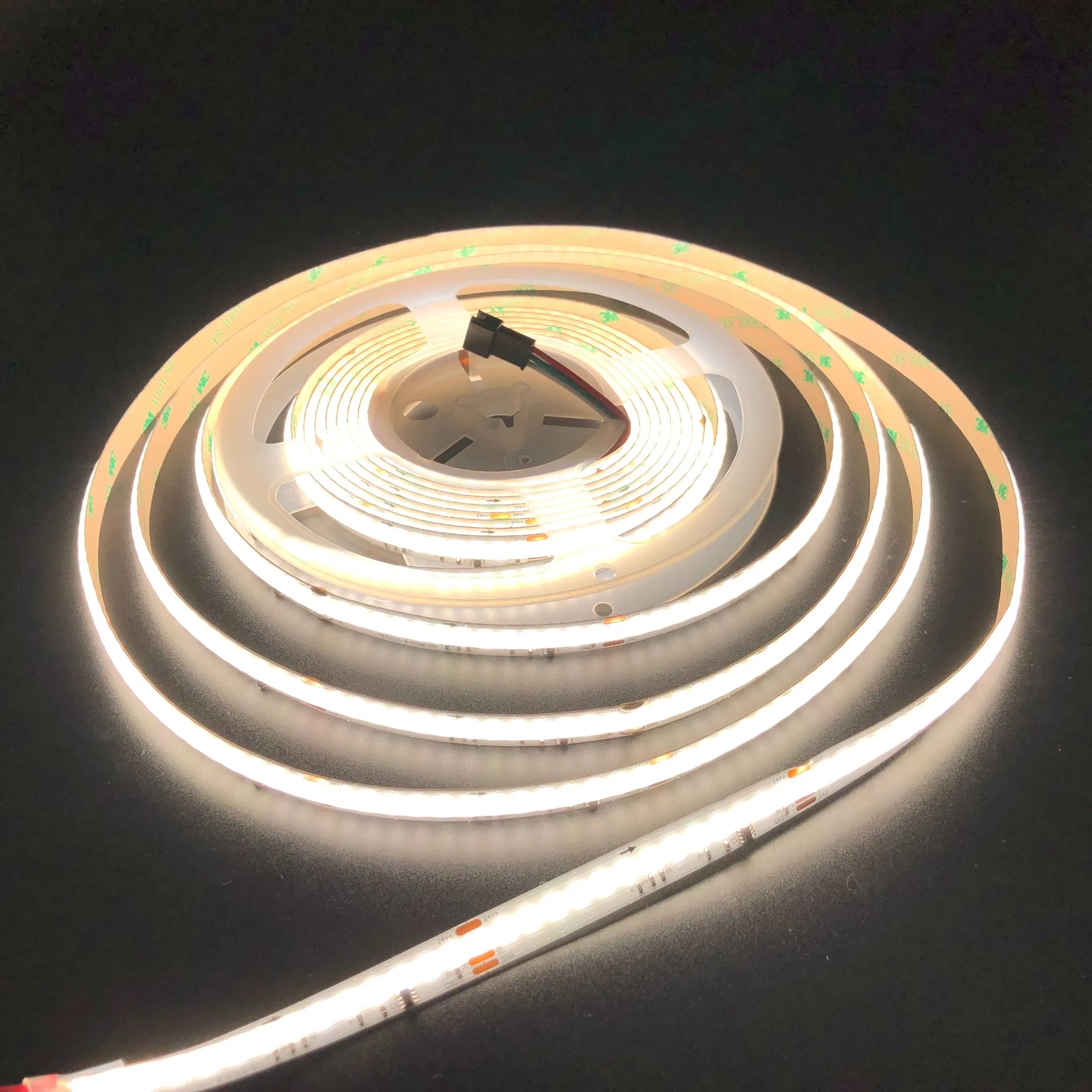

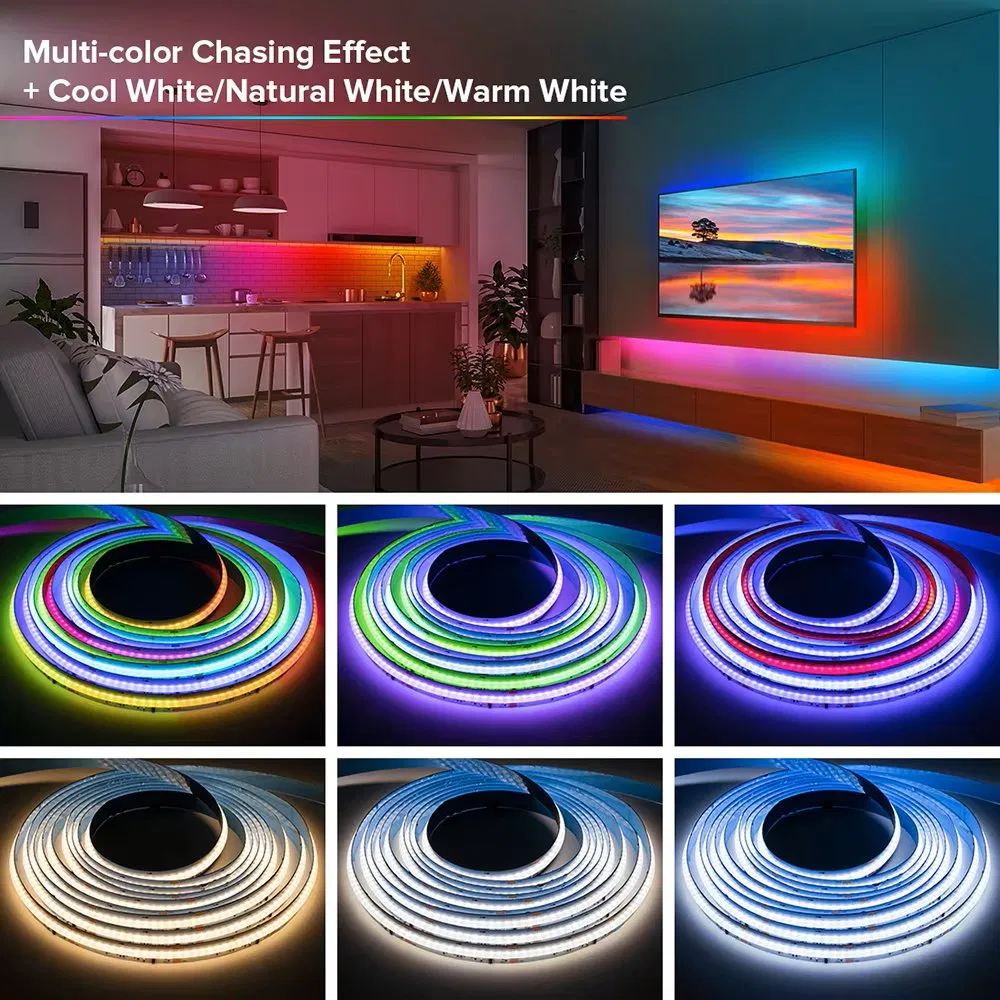

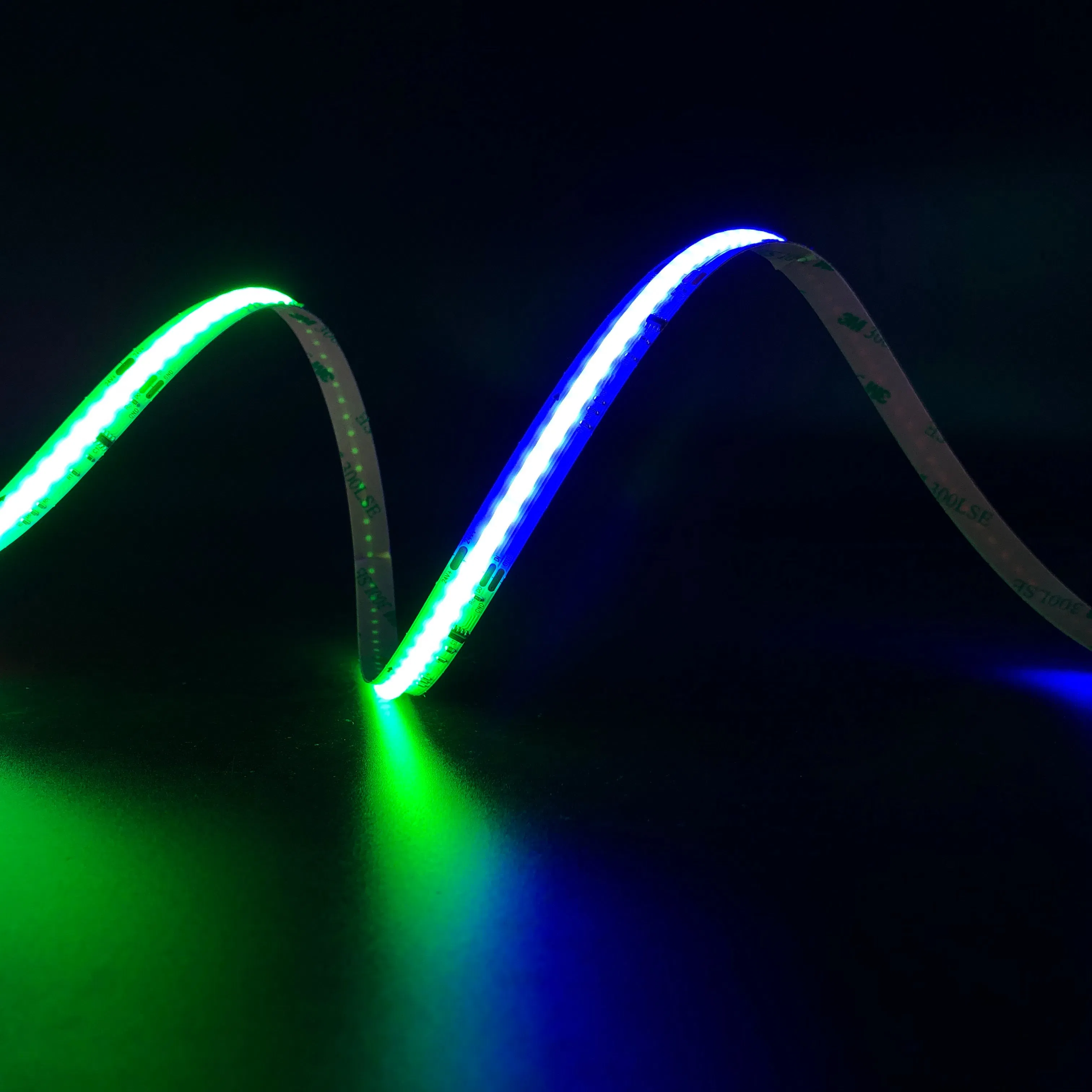

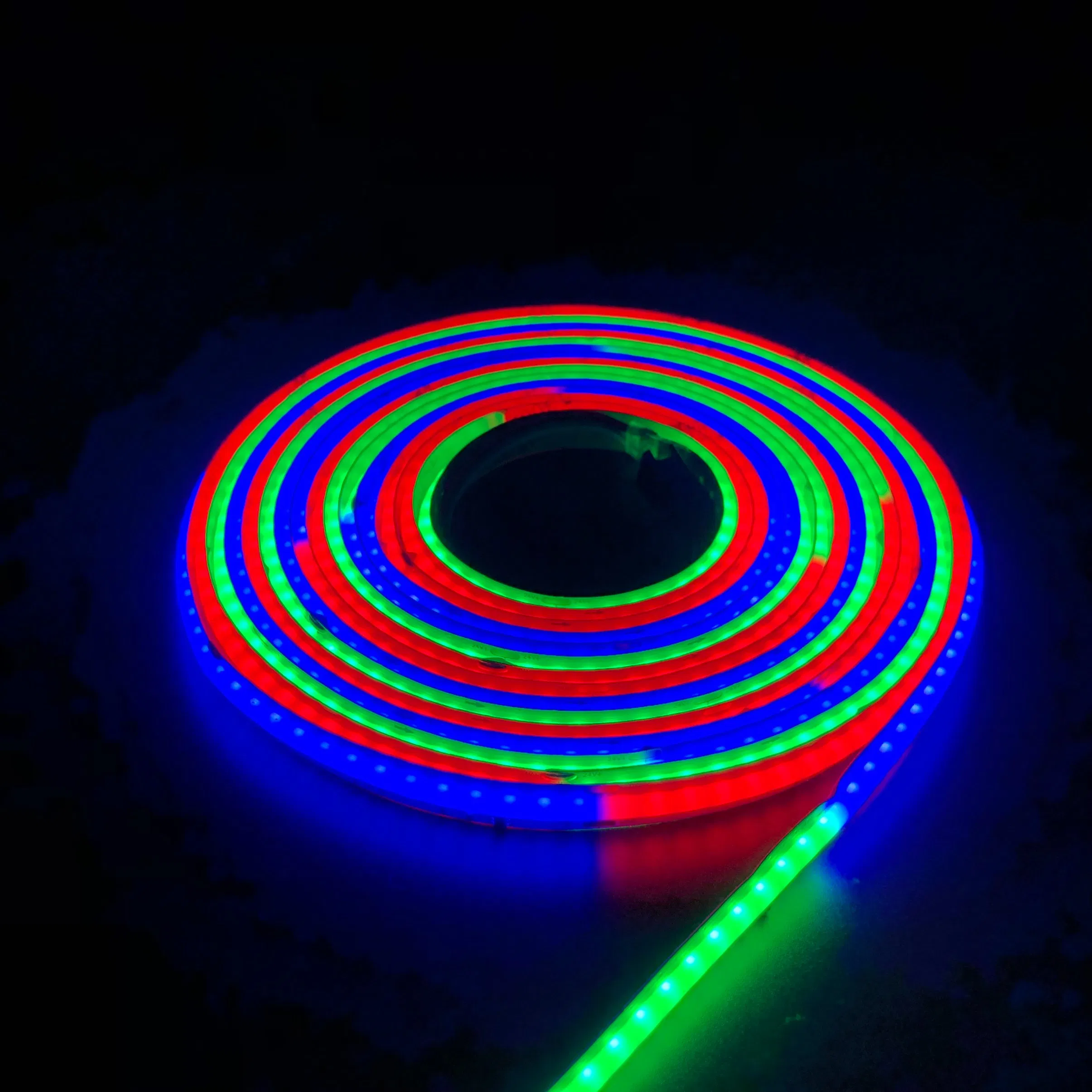

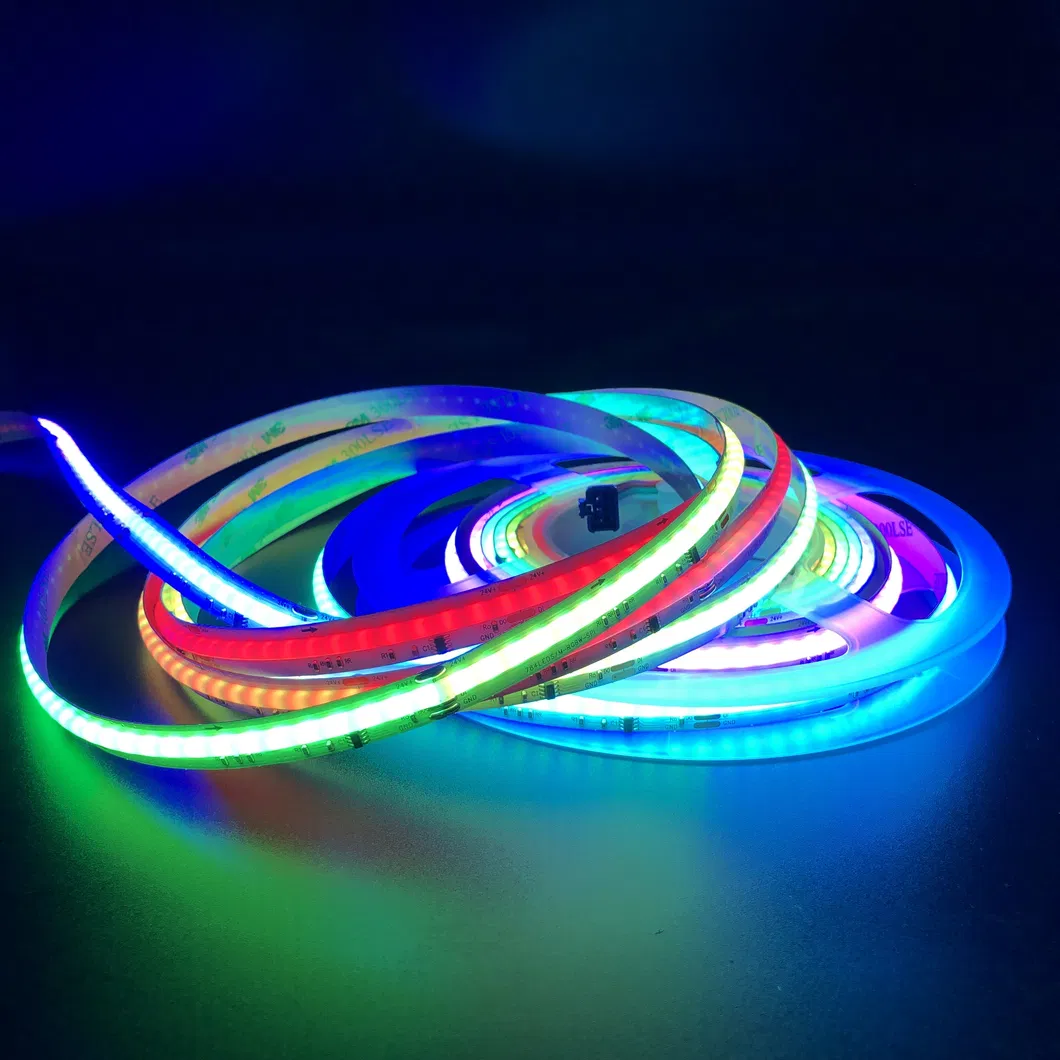

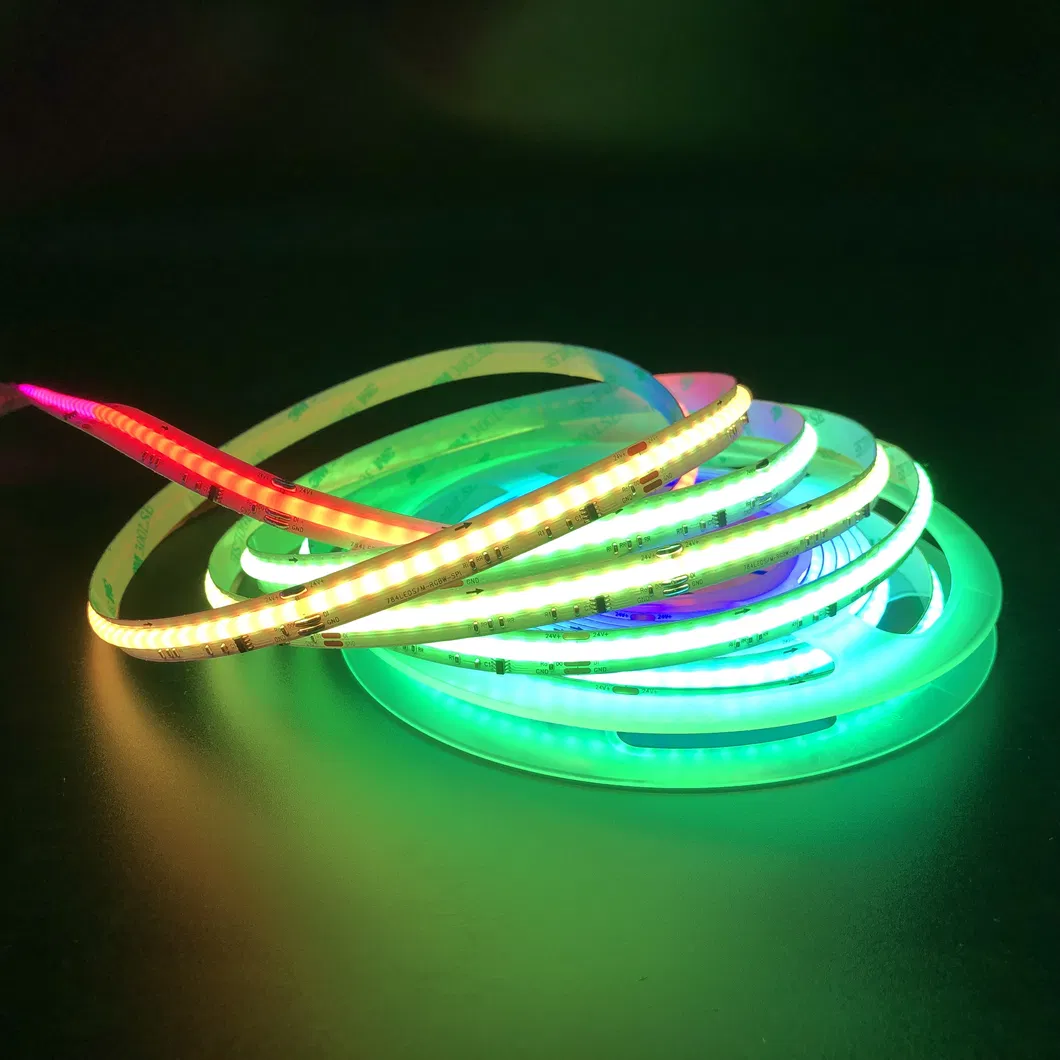

This COB Addressable RGBCCT LED Strip Light features a high-density 784 LEDs per meter addressable COB pixel design, enabling stunning dream color effects and smooth continuous lighting. Using WS2814 IC protocols, each segment can be individually controlled for dynamic lighting, gradients, chasing, and custom animations. The flexible COB LED tape supports both RGB color change and tunable white providing versatile lighting for homes, commercial displays, architectural accents, and smart installations.
| Parameter |
Specification |
| Product Name | Addressable RGBCCT COB LED Strip |
| LED Type | FCOB RGBNW Pixel |

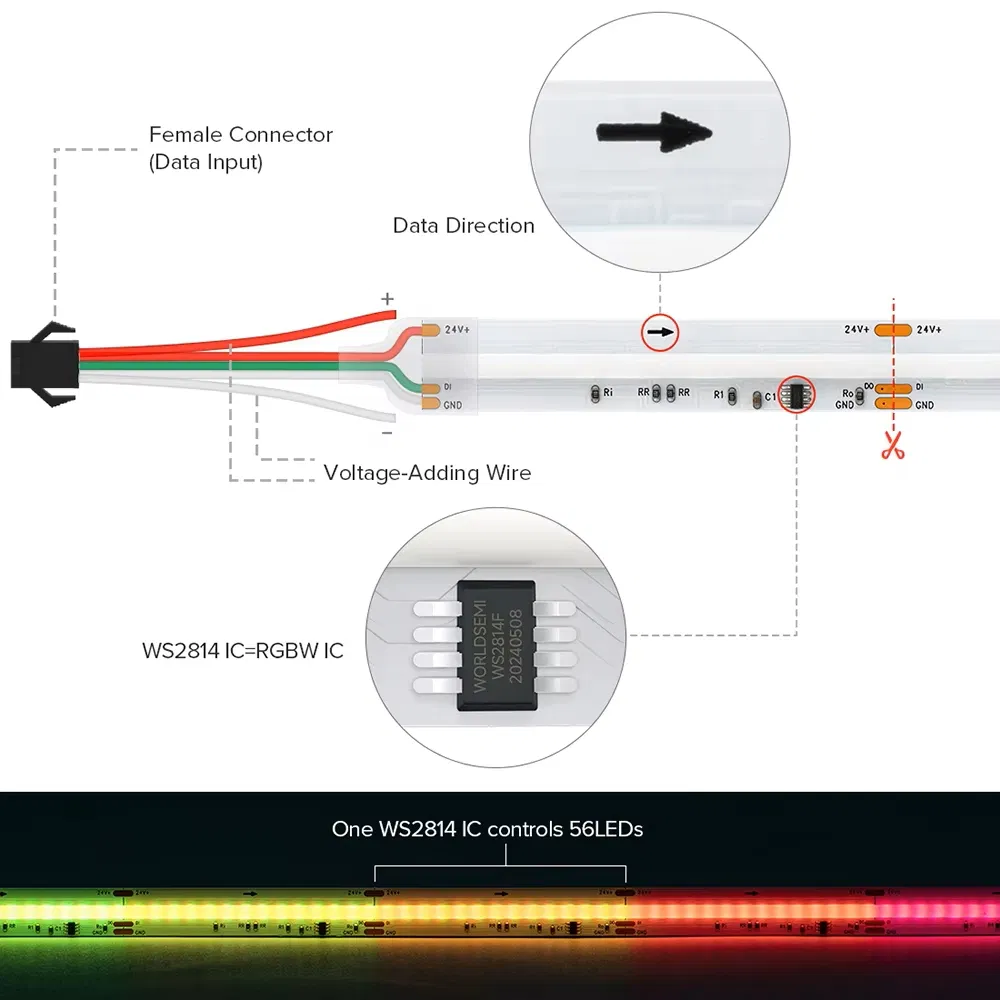

| IC Protocol | WS2814 |
| LED Density | 784 LEDs per meter |
| Input Voltage | DC 24V |

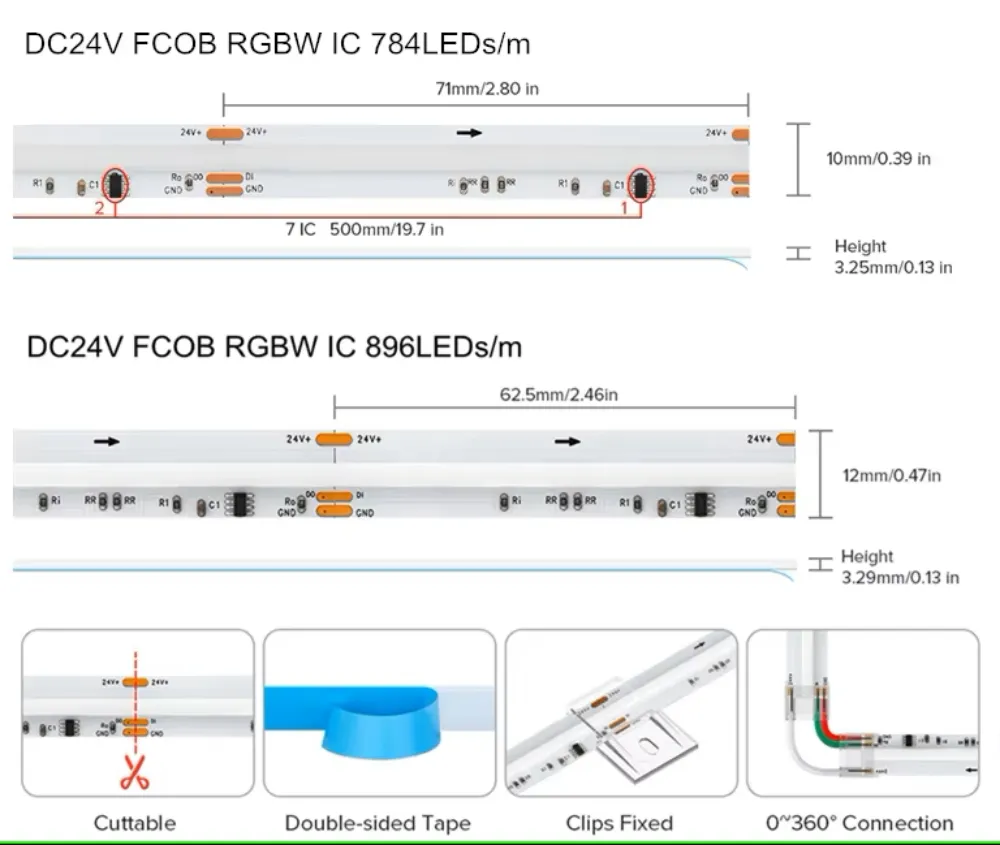

| Cutting Length | Every IC segment (≈70 mm) |
| Beam Angle | 180° |
| PCB Width | 10 mm / 12 mm |
| Certifications | CE, RoHS, FCC, EPR |
🌟
Key Features
Led Lighting New Trend—COB Strip
- Easy to Bend: Highly flexible for various shapes and contours.
- Spot-free Lighting: Achieves a seamless linear effect without extra accessories.
- Indoor & Outdoor Versatility: Multiple waterproof options (IP65 Silicone/Heat shrink, IP67 Tube, IP68 Full Injecting).
- Premium Material: Packaged with 99.99% Pure Gold Wire for stability.
🛠️
Installation Instructions

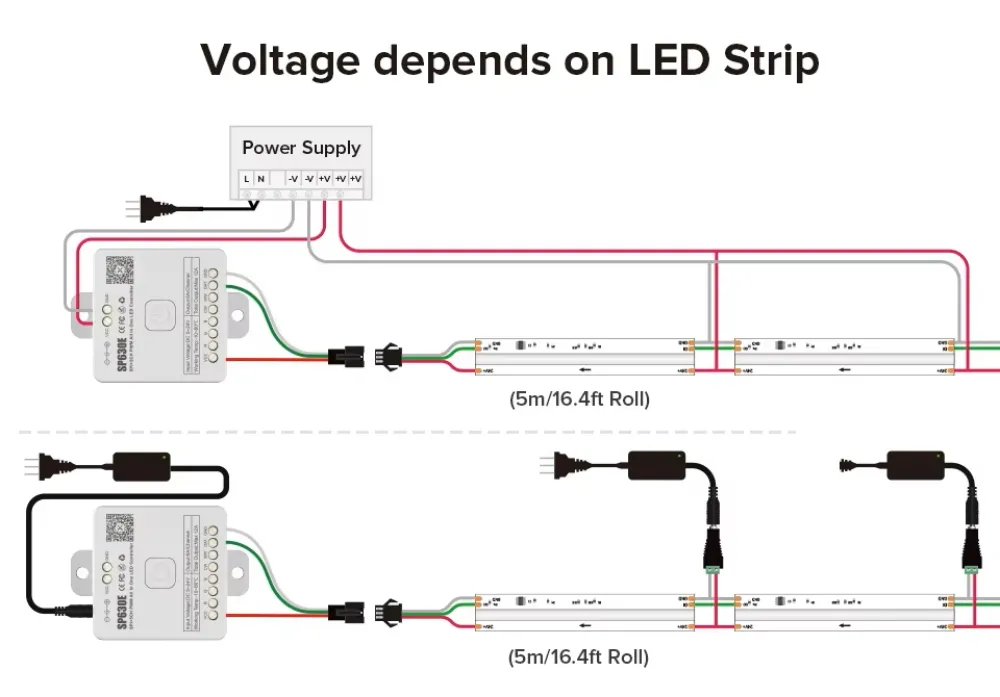

- Choose a power supply where the strip's total power is approximately 80% of the supply's capacity.
- Recommended length is 5 meters per roll to avoid brightness variance.
- Adhesive tape works best on glass, metal, and plastic; test adhesion on wood or cloth before final install.
- Minimum bending diameter is 60mm to avoid damaging FPC components.

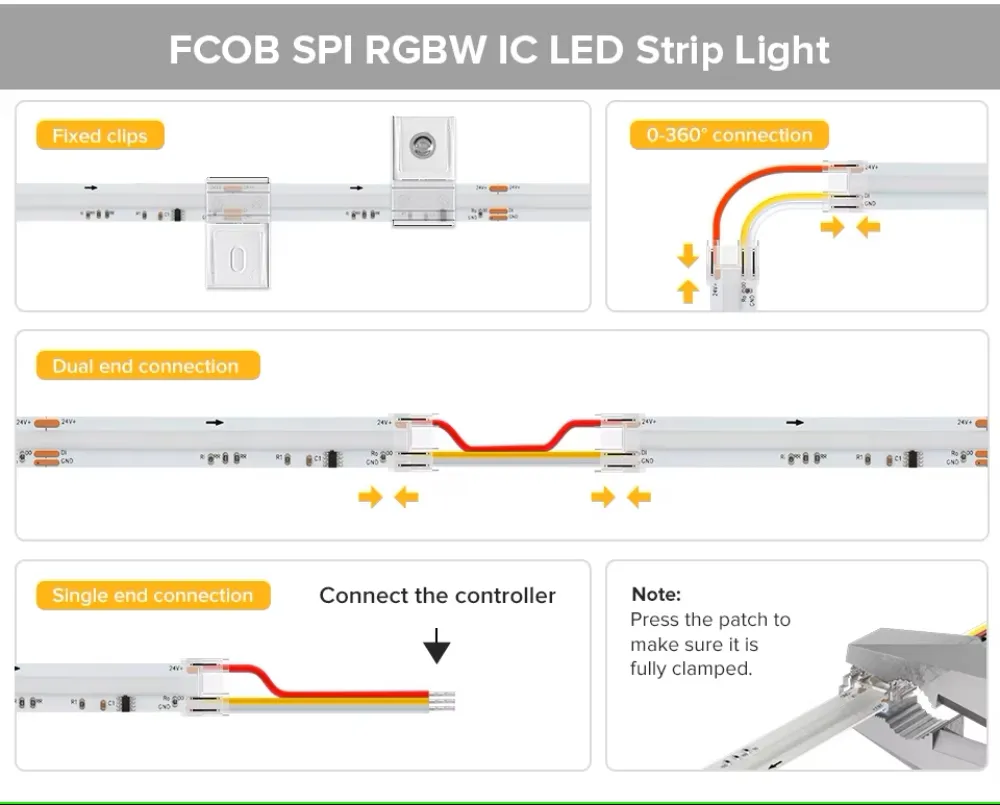

- Ensure all joints are correctly connected and use neutral adhesives only.
- Cut off power during installation and debugging to avoid electric shock.
🏠

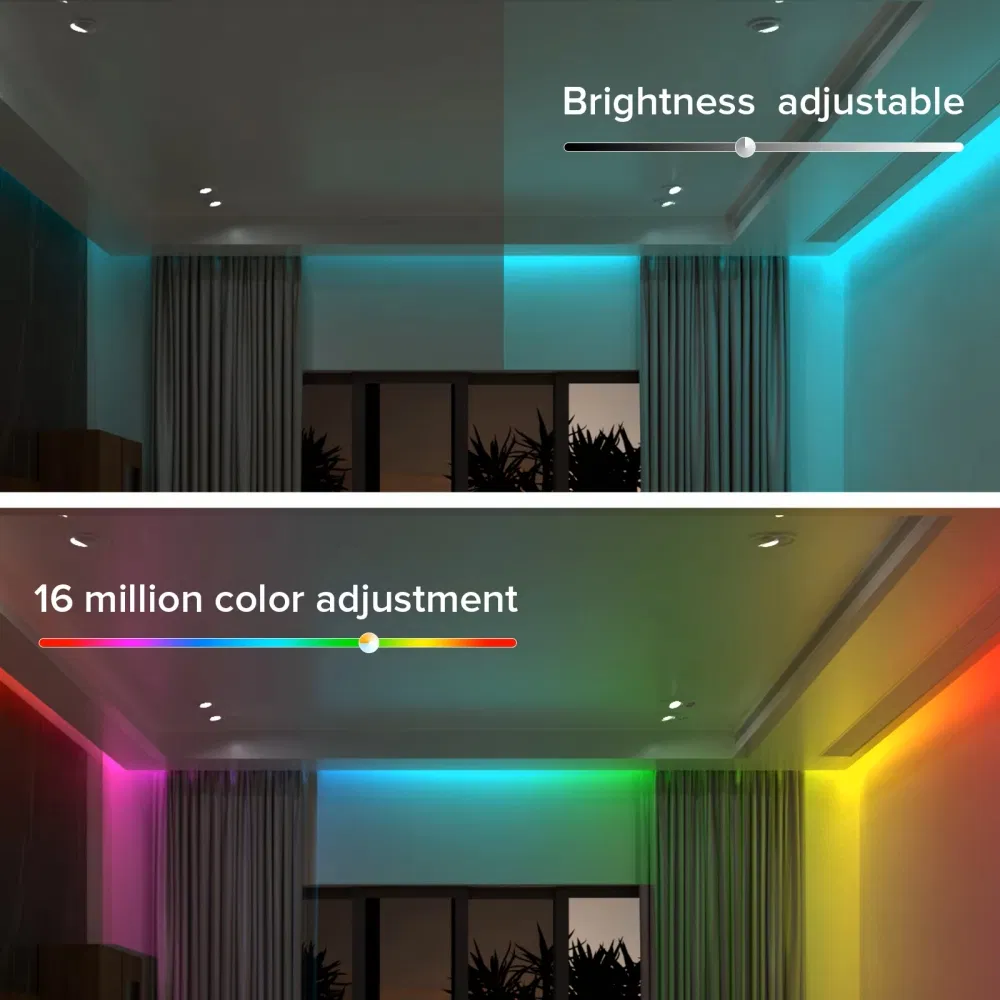

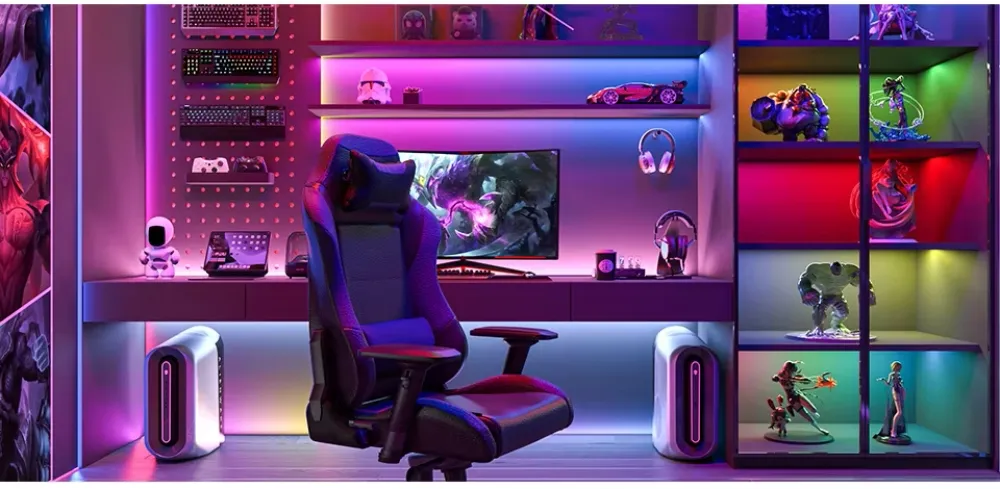

Applications
- Architectural decorative lighting
- Archway, canopy and bridge edge lighting
- Amusement park and theater mood lighting
- Emergency hallway and exit path lighting
- Stairway accent and Cove lighting
- Backlighting for signage and channel letters
🏭

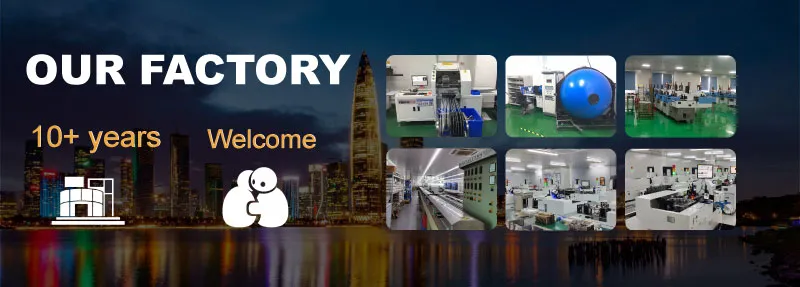

Production Excellence

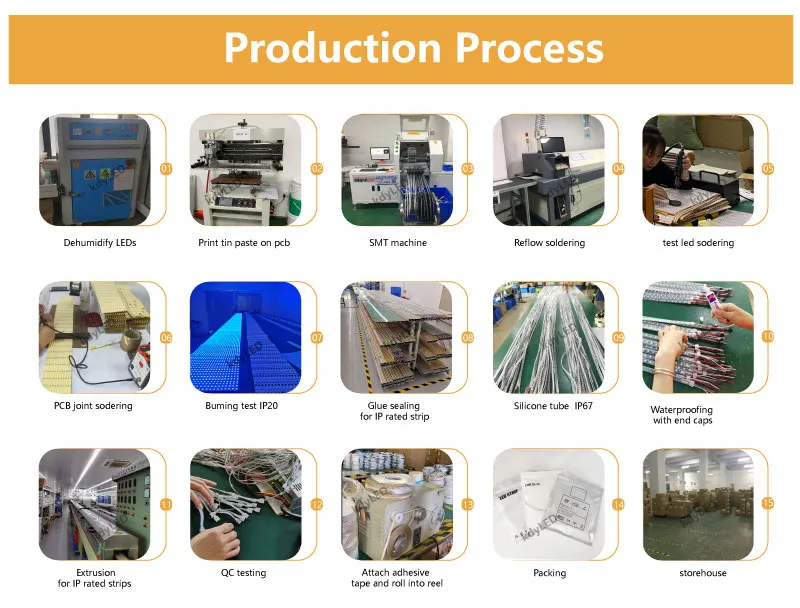

Our facility spans 1500 square meters with over 60 skilled workers and 5+ R&D engineers. We utilize 6 auto SMD production lines and 7 assembly lines, achieving a daily output of 350,000 meters. Equipped with advanced wave soldering, reflow soldering, and integrating spheres, we ensure every product meets rigorous quality standards.
❓
Frequently Asked Questions
How do you ensure high quality?
We maintain a 100% QC on-line and final inspection process. Our workers are professionally trained, and we hold certifications such as ISO9001:2015, ISO14001:2015, and SGS to ensure no defective products leave the factory.
Can I get a sample for testing?
Yes, we can supply samples for free. Customers are only responsible for the delivery charges. Providing an International Express Account for freight collect is appreciated.
Do you provide custom services?
Absolutely! We have professional designers who can provide free design services based on your specific requirements.
What is your shipping method and delivery time?
We typically ship via DHL, UPS, FedEx, or TNT, taking 3-5 days to arrive. Air and sea shipping are also available. Sample orders take 3-5 days, while small batches take 10-15 days.
What is the warranty period for your products?
We offer a 2-5 year warranty. During this period, any quality issues will be addressed through free repair or replacement.
