| Model NO. | cob 320 | Emitting Color | Warm White/Natural White/Cool White |
| Voltage | 12V/24V | IP Rating | IP20/IP65/IP67/IP68 |
| Product Name | COB LED Strip | LEDs Material | Packaged by 99.99% Pure Gold Wire |
| Wattage | 8W/M | CRI (Ra>) | >90 |
| Luminous Flux | 980-1100 Lm | PCB Material | Double-Sided Coated Pure Copper |
| LED Qty | 320LEDs/M | Beam Angle | 180 degree |
| PCB Width | 8mm | Warranty | 3-5 Years |

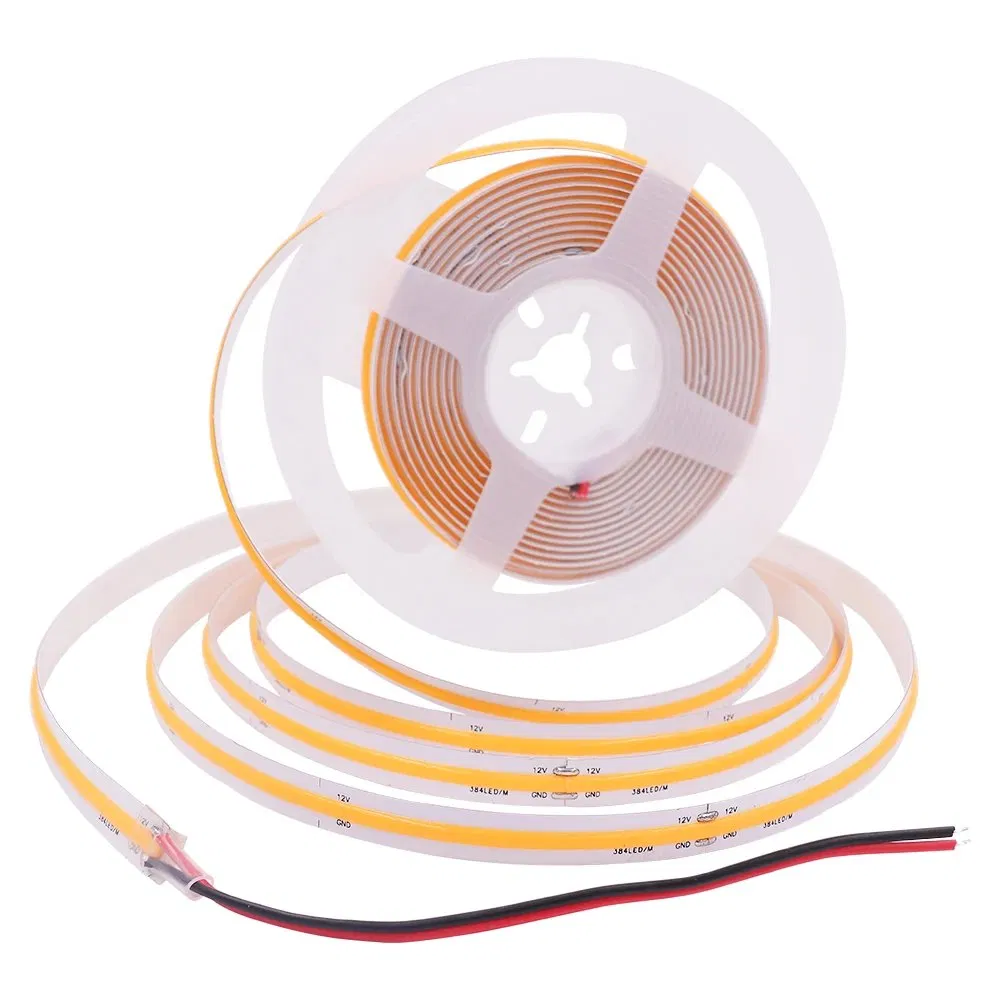

| Lifespan | 50000 Hours | Specification | 5000*8mm/roll |

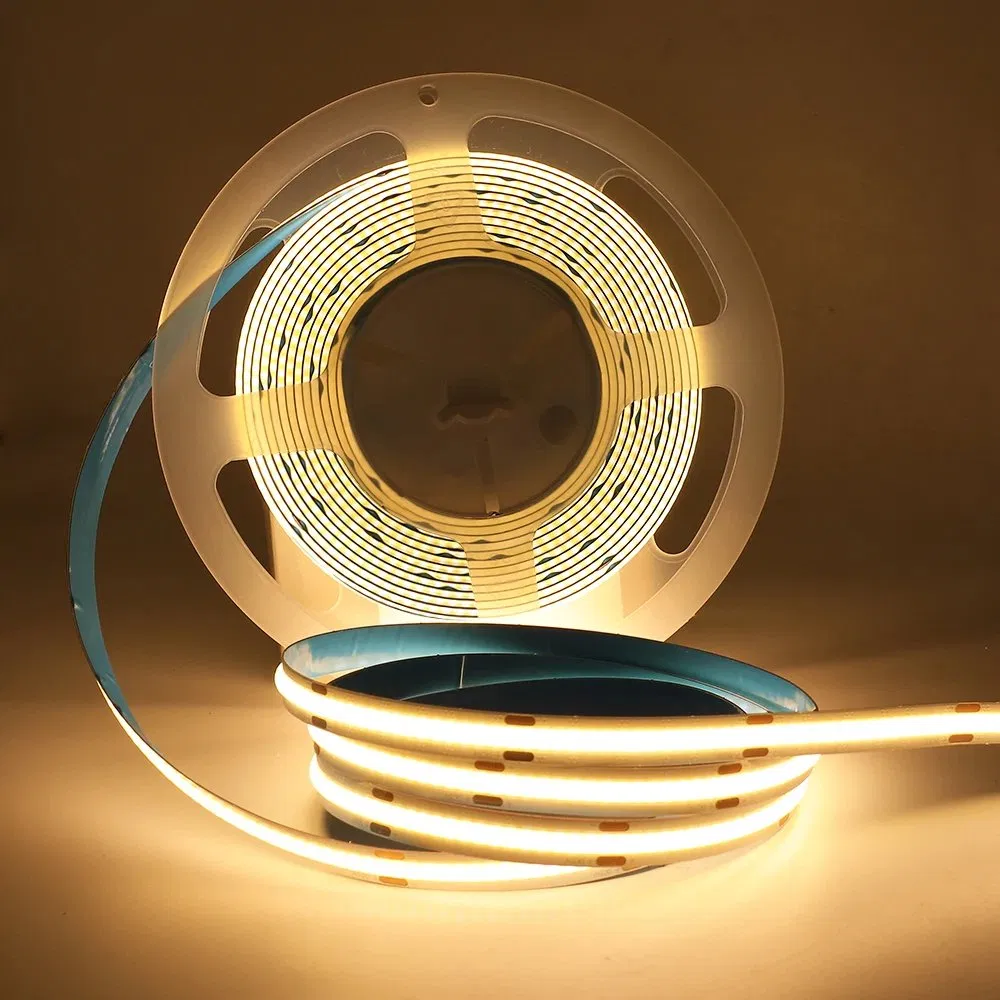

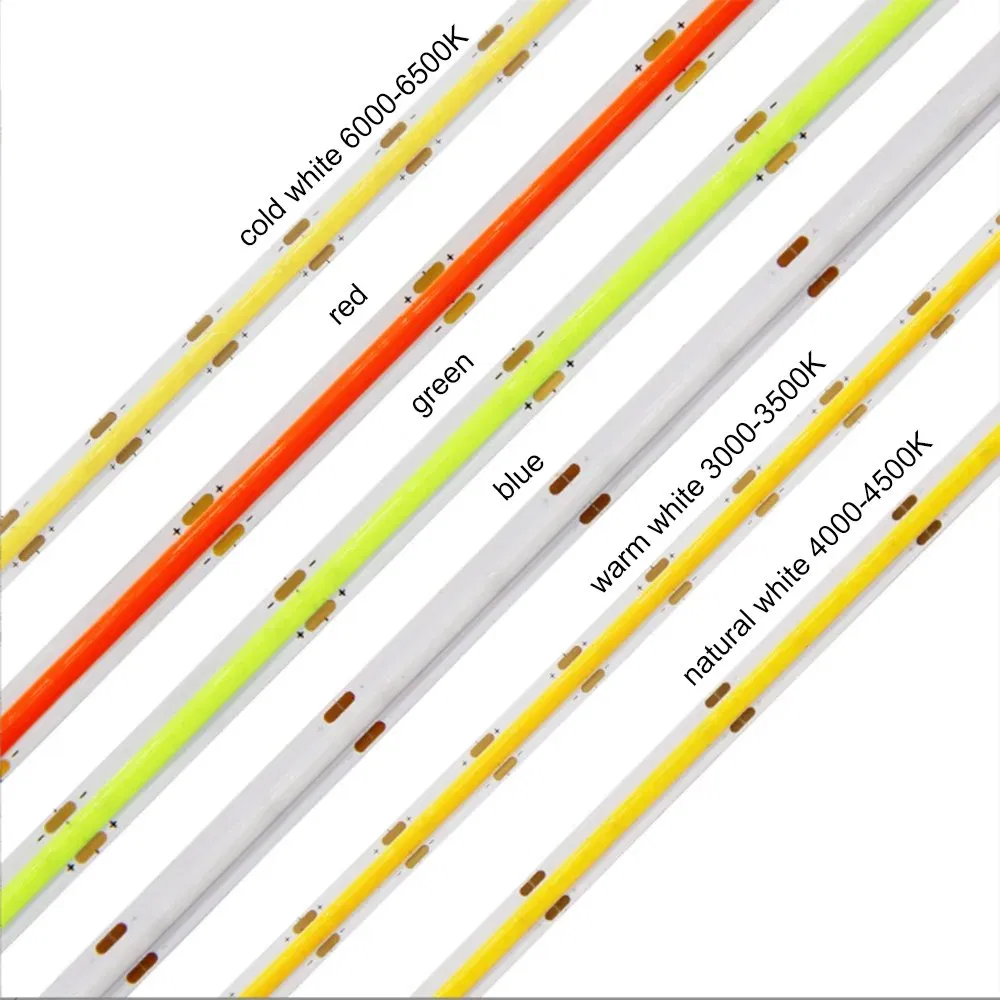

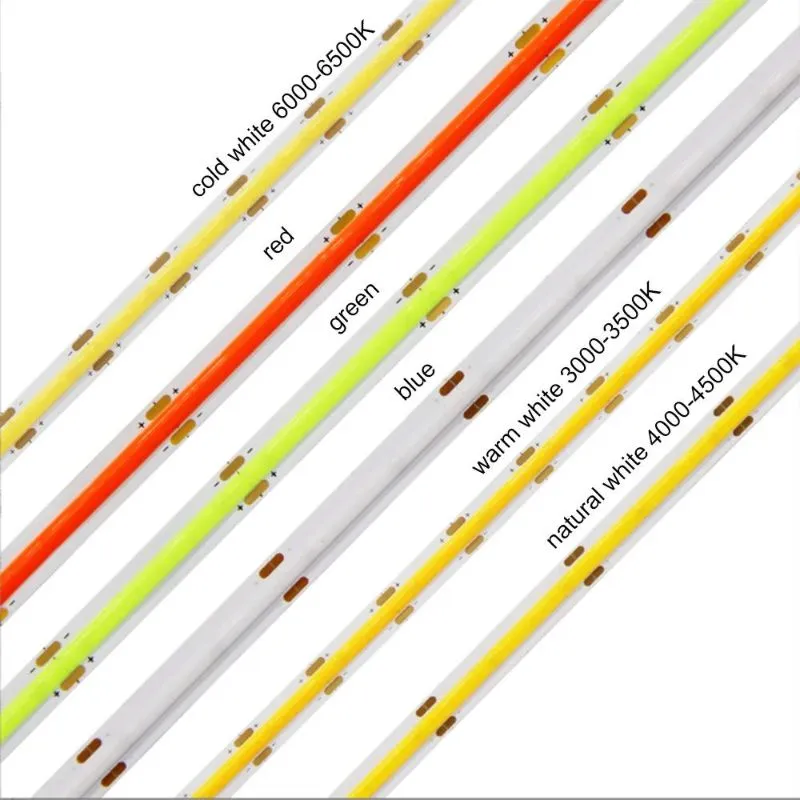

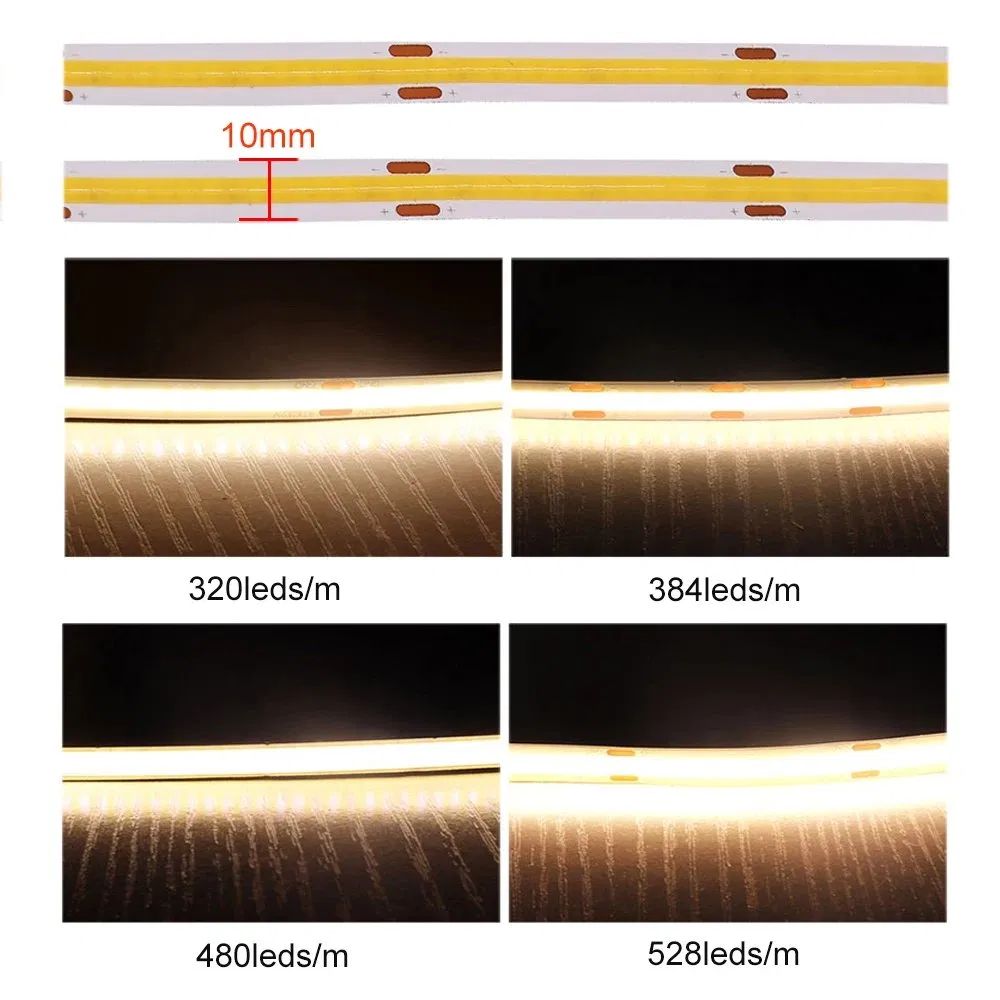

High-density flexible FCOB LED lights available in DC12V and 24V. Features RA90 color rendering and multiple color temperatures (3000K, 4000K, 6000K). Dimmable tape design for seamless lighting effects.

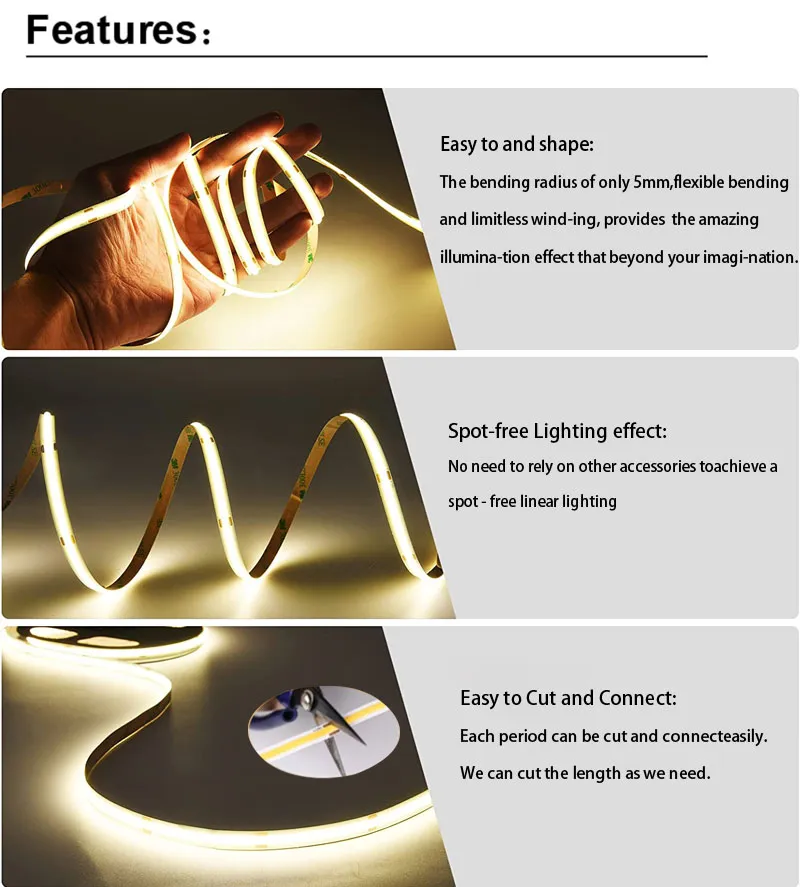

Achieve a perfectly linear lighting effect without the need for additional accessories. The high-density COB design eliminates visible dark spots.

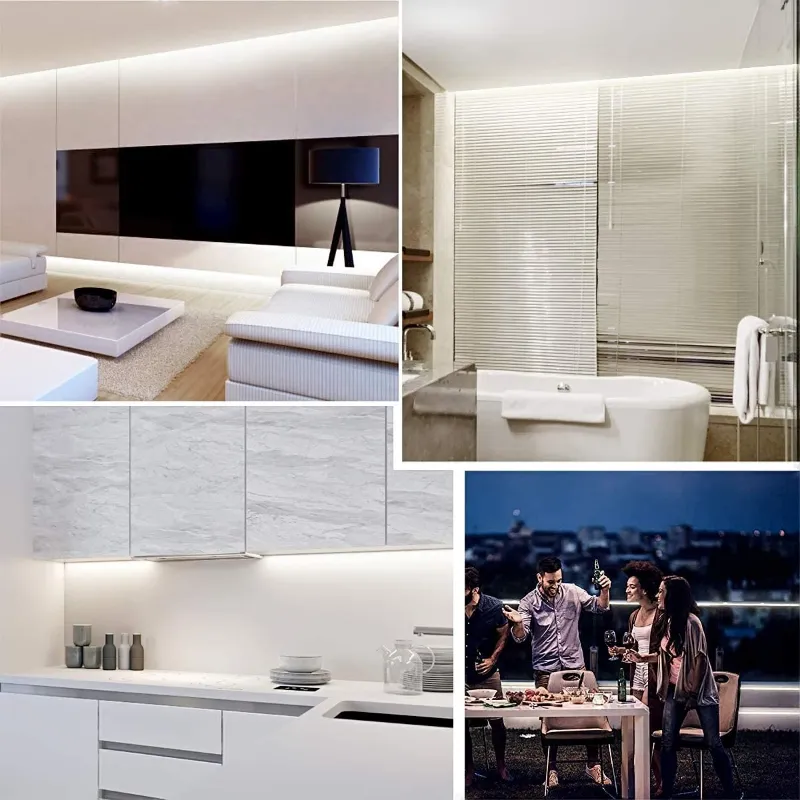

Easy to bend and shape for any architectural requirement. Various waterproof ratings (IP65, IP67, IP68) available for both indoor and outdoor applications.
| No. | Test Item | Test Conditions | Note | Result |
|---|---|---|---|---|
| 01 | Thermal Shock | -25ºC 15min / 100ºC 15min | 300 cycles | 0/22 |
| 02 | Life Test | Ta=25ºC | 1000 hrs | 0/22 |
| 03 | Temp & Humidity Storage | Ta=85ºC, RH=85% | 1000 hrs | 0/22 |
