CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips
CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips
CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips
CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips
CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips
1 / 5
CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips
CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips
CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips
CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips
CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips

CREE 3535SMD Constant Current Design 24V LED Rigid Bars LED Strips

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview
Model NO.
ZCT018TD/ZCT010TD/ZCT004TD
Emitting Color
White
Voltage
24V / 12V
IP Rating
IP20
LED Qty
18/10/4 PCS
LED Light Source
3535 SMD
Beam Angle
15*35°
Warranty
5 Years
Application
8-30cm Thickness Single Side Light Boxes
Certificates
UL, TUV-CE, RoHS
HS Code
9405409000
Capacity
300,000PCS/Month
Product Description

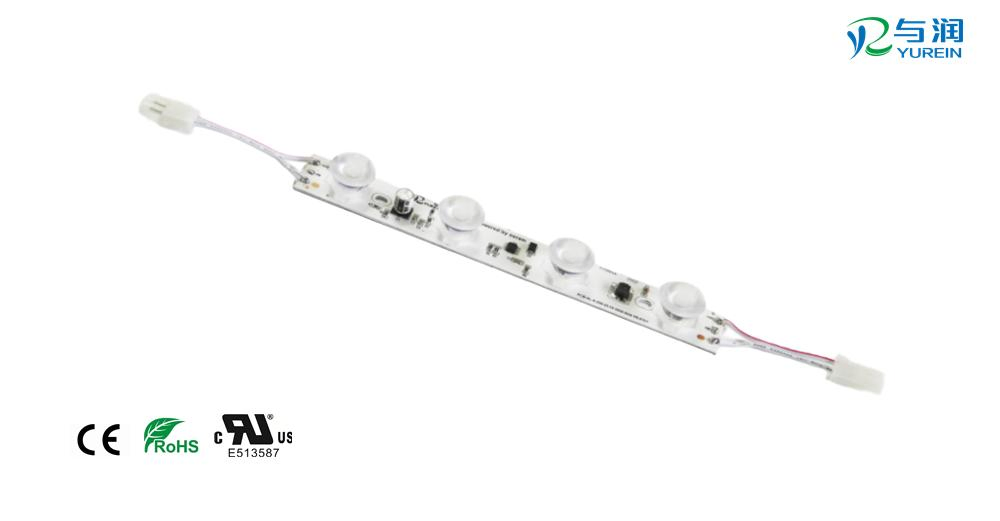

💡 CREE 3535SMD Constant Current Design 24V LED Rigid Bars

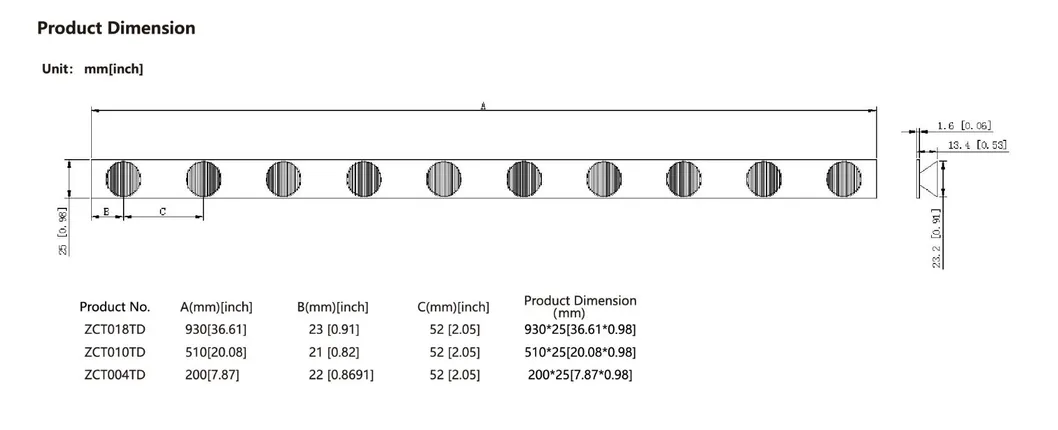

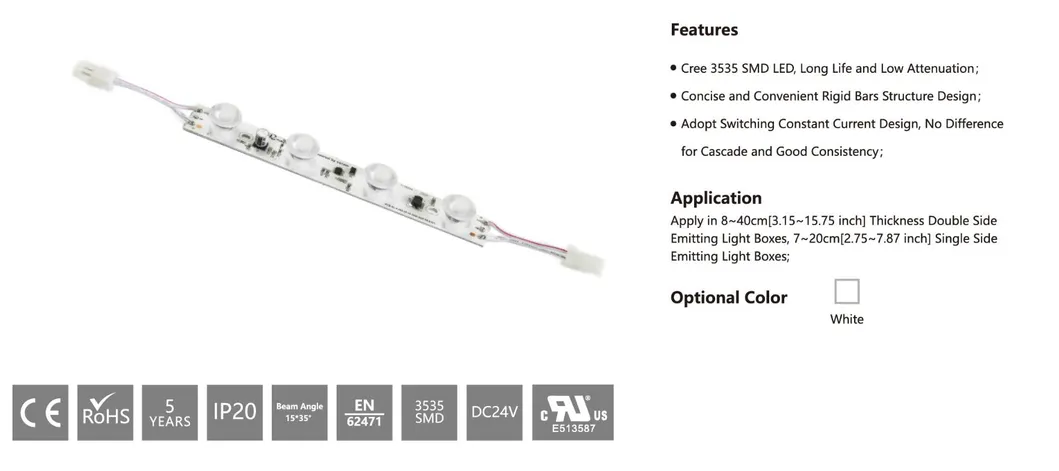

LED Rigid Bar Banner 1 LED Rigid Bar Banner 2
Product Parameters
Product No. LED Color LED Qty(pcs) Beam Angle(°) Voltage(VDC) Current(mA) Power(W) CCT(k) Luminous(LM) Efficiency(Lm/W)
ZCT018TD White 18 15*35 24 1875 45 1800-12000 4050-4500 90-100
ZCT010TD 10 1000 24 2160-2400
ZCT004TD 4 490 11.8 1060-1180

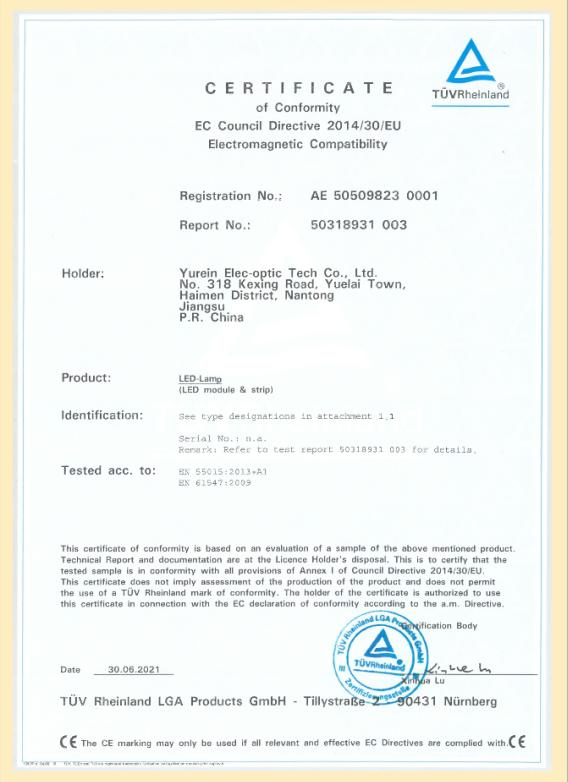

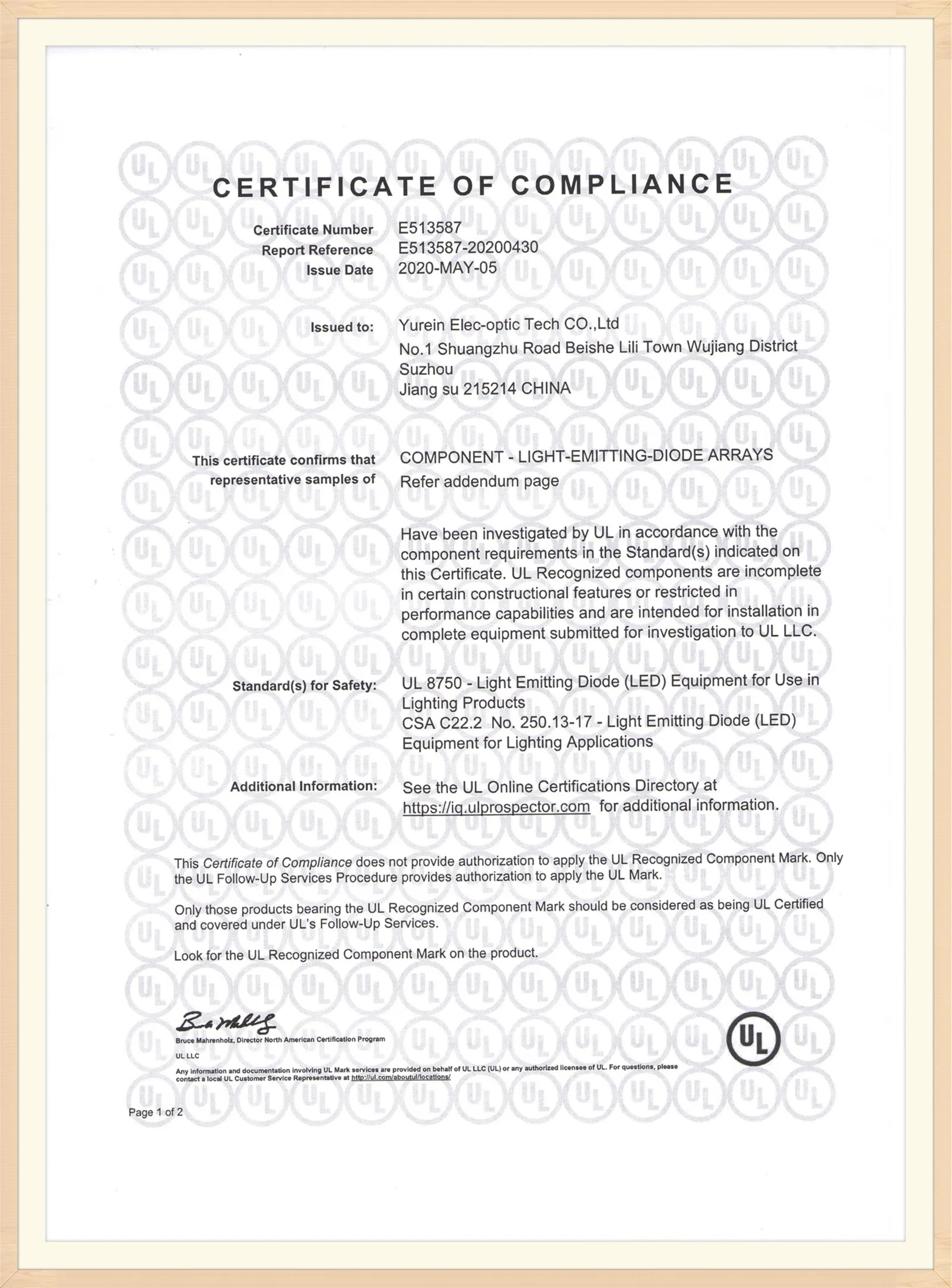

Certifications
Certification 1
Certification 2

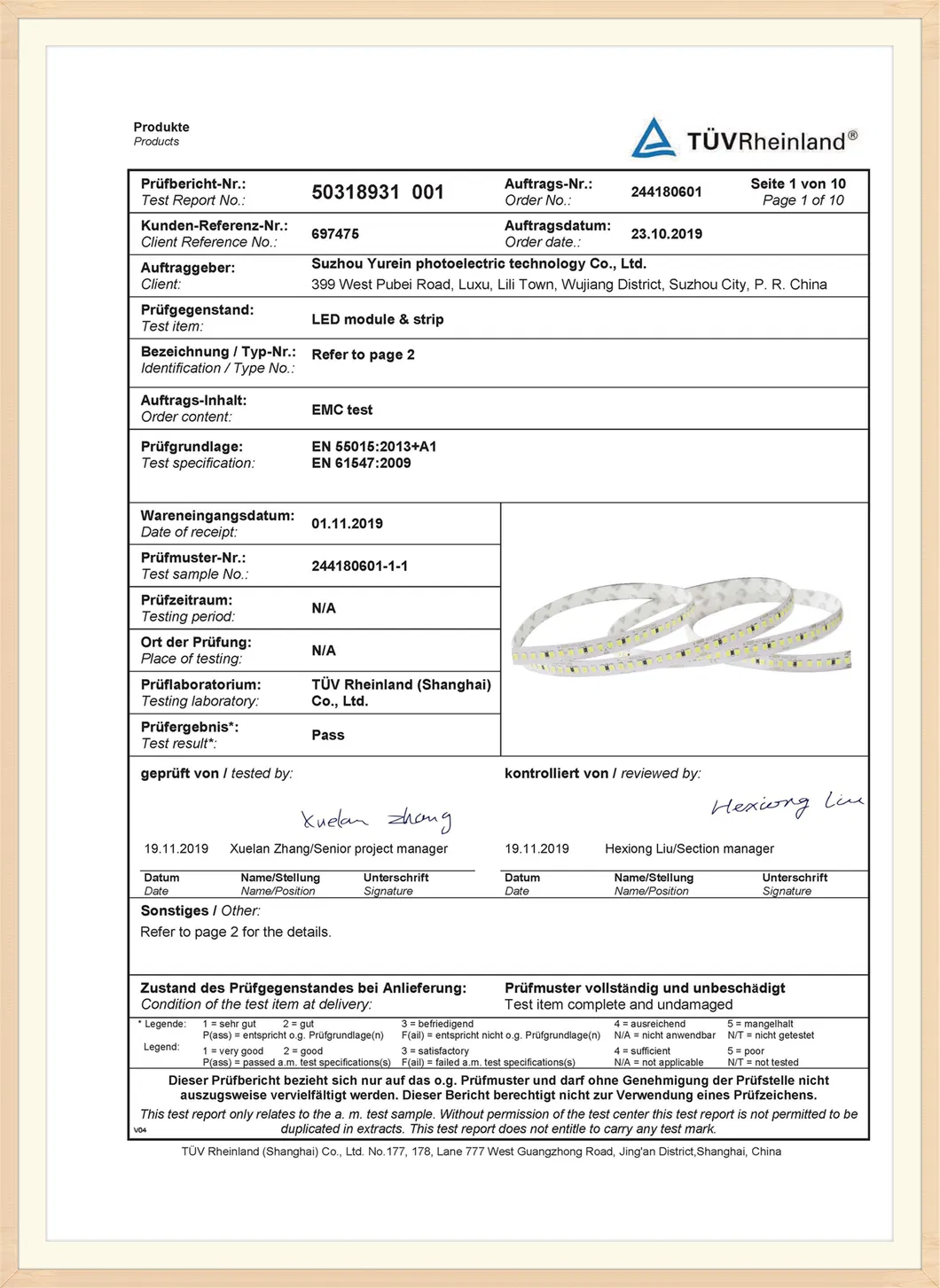

Certification 3

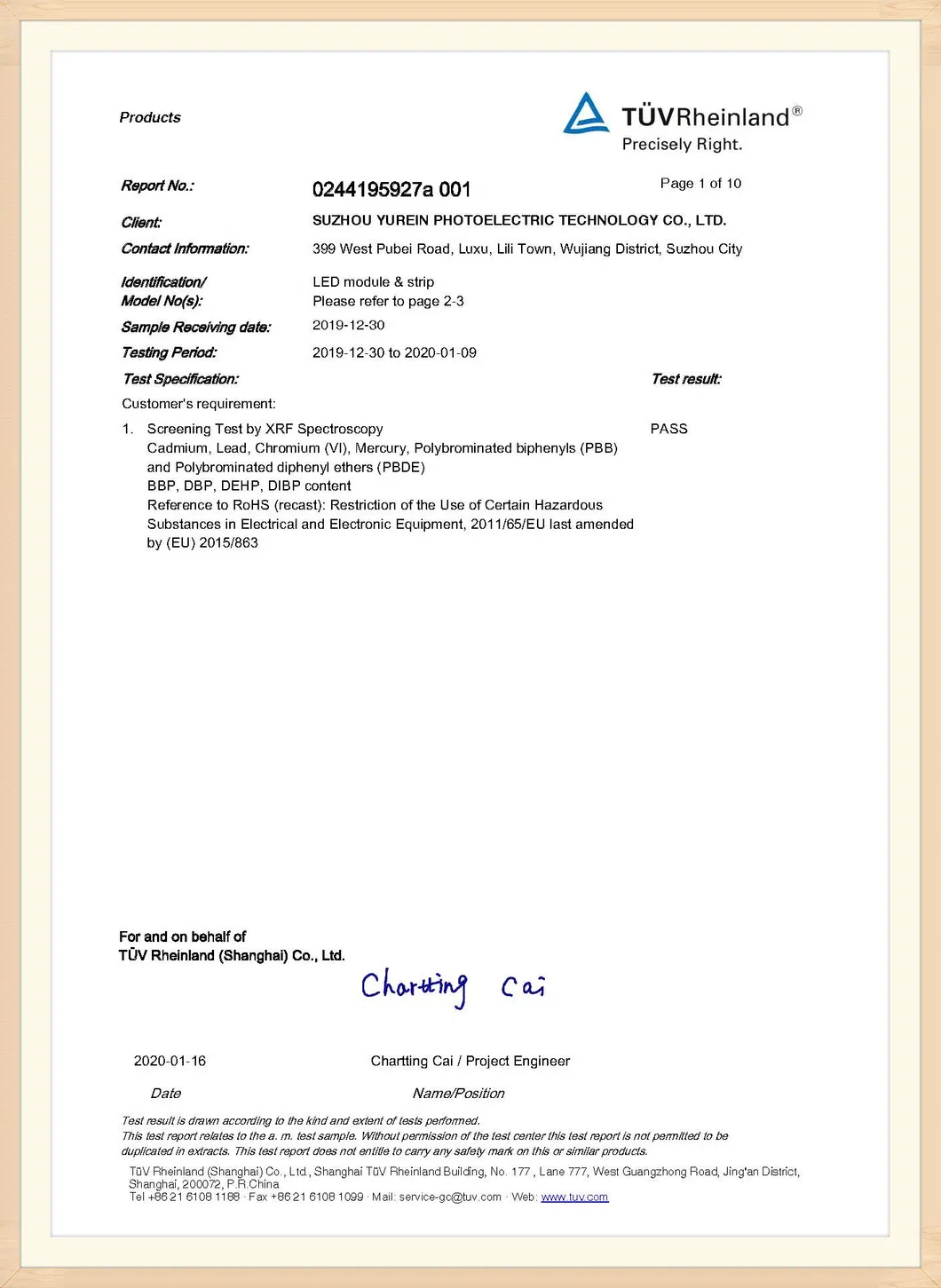

Certification 4

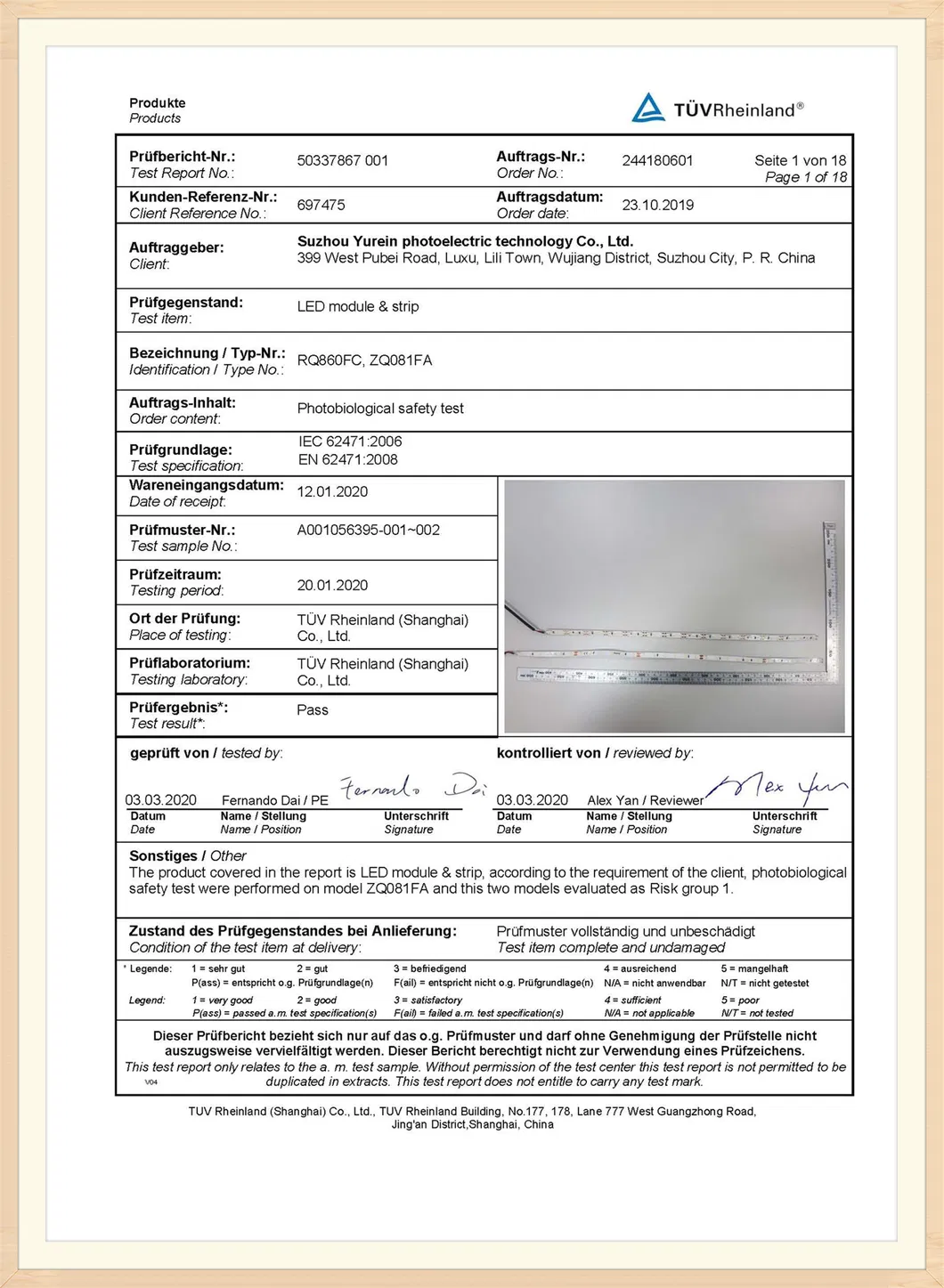

Certification 5

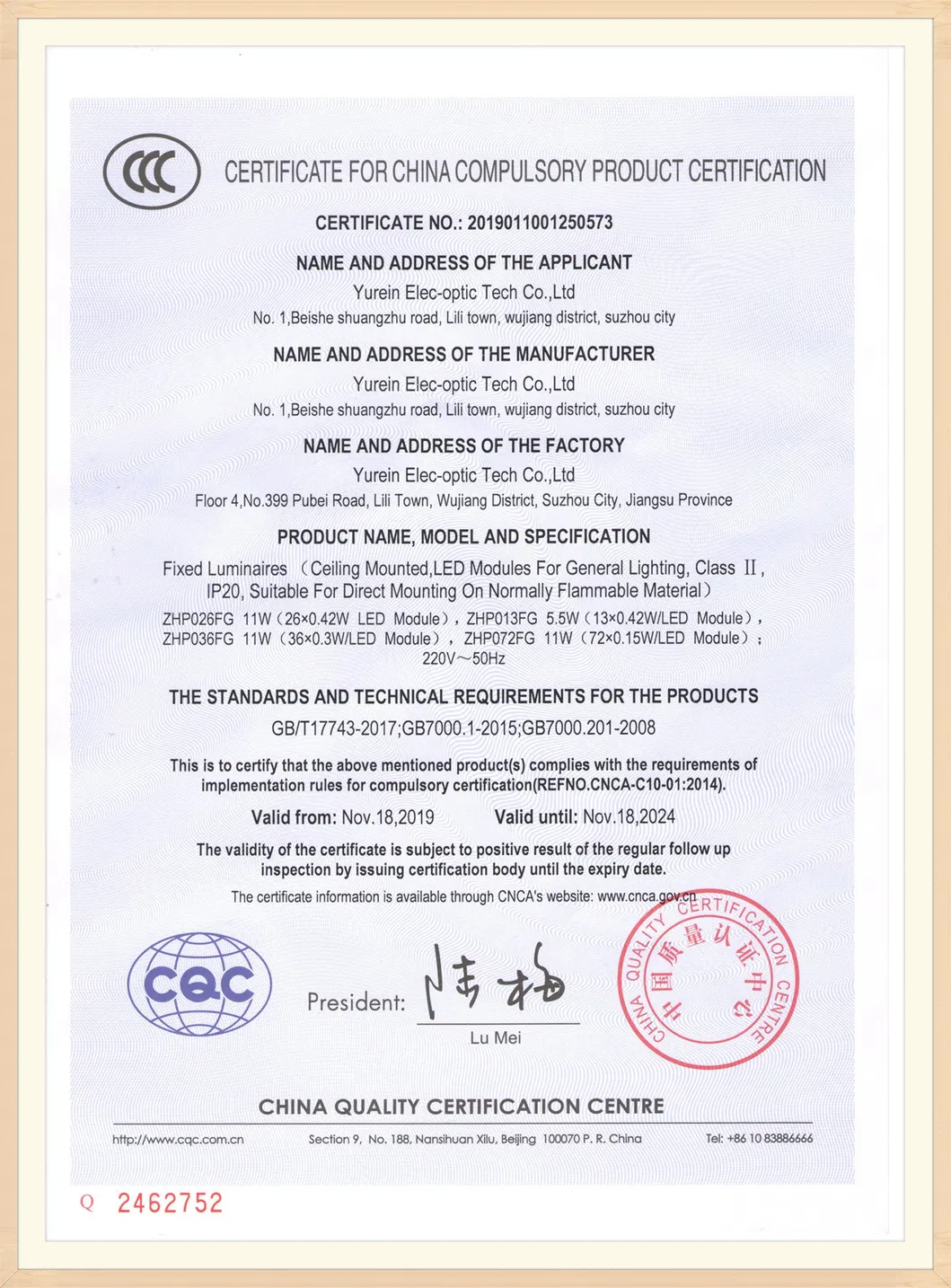

Certification 6
Quality Control & Factory

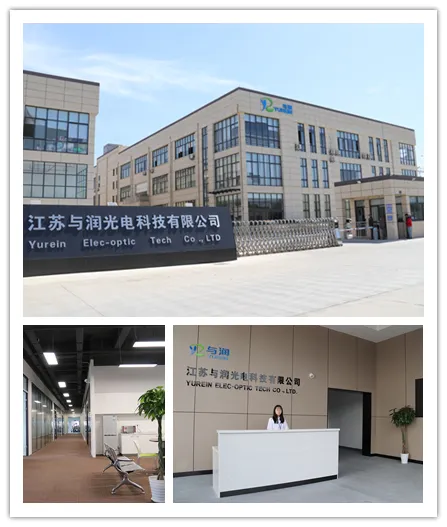

Factory Image 1

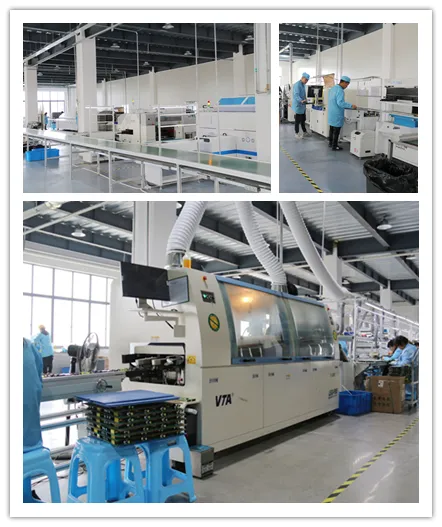

Factory Image 2

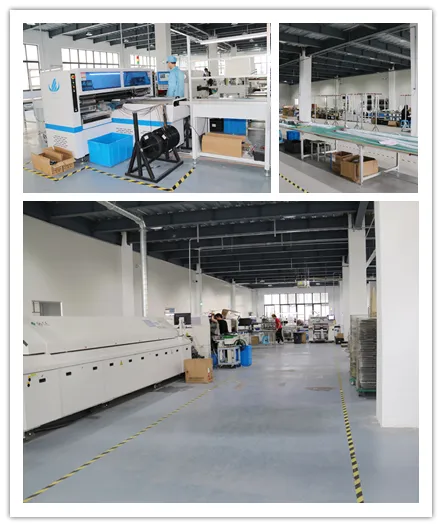

Factory Image 3

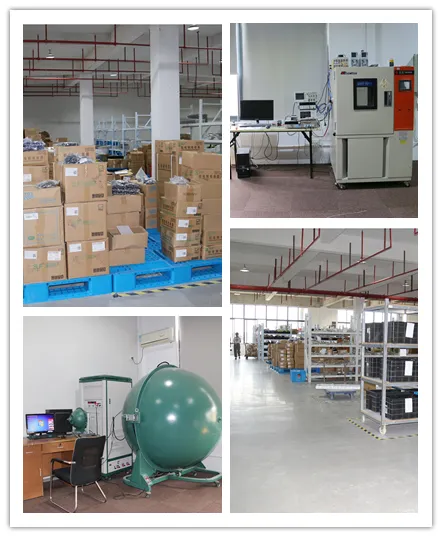

Factory Image 4
Frequently Asked Questions
What type of LEDs are used in these rigid bars?
We use high-quality CREE 3535 SMD LEDs for superior brightness and long-term stability.
What is the recommended application for this product?
These LED rigid bars are specially designed for single-side light boxes with a thickness of 8cm to 30cm.
Does the product come with a warranty?
Yes, we provide a 5-year warranty for these LED rigid bars, ensuring professional performance.
What certifications do your LED products hold?
Our products are fully certified with UL, TUV-CE, and RoHS standards for international safety and quality.
Can I use these bars for outdoor lighting?
This specific model is rated IP20, which is suitable for indoor use or within sealed outdoor light boxes.
What is the beam angle of the light?
The beam angle is 15*35 degrees, optimized for uniform illumination in light box applications.
