Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting
Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting
Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting
Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting
Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting
1 / 5
Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting
Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting
Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting
Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting
Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting

Custom High CRI 90 95 98 COB 2700K 3000K 4000K 6000K Ultra Narrow 5mm 4mm 3mm COB LED Strip for Cove Lighting

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
FCOB-384X-005
Emitting Color
White 3000K-7000K
Voltage
DC24V
IP Rating
IP33
Macadam Level
3~5 Step
Max Length
5m/Roll
Warranty
3 Years
LED Type
COB/Fob
PCB Width
8mm / 10mm / 12mm
Production Capacity
60,000m/Month
Product Overview
Ultra Narrow 5mm 4mm 3mm Cob Led Strip For Cove Lighting

COB LED Strip Light series creates a seamless line of light from start to finish. The flip-chip design eliminates visible LED dots (hot spots), improving light quality, thermal management, and flexibility. Ideal for narrow applications like display cases, backlighting, or reflective surfaces like granite and tile.

  • New chips packing tech., without hot spots
  • Smooth continuous light emitting at 180 degrees
  • Single color/CCT tunable/RGB multicolor options
  • Ideal for narrow applications like display cases and backlighting
Detailed Photos

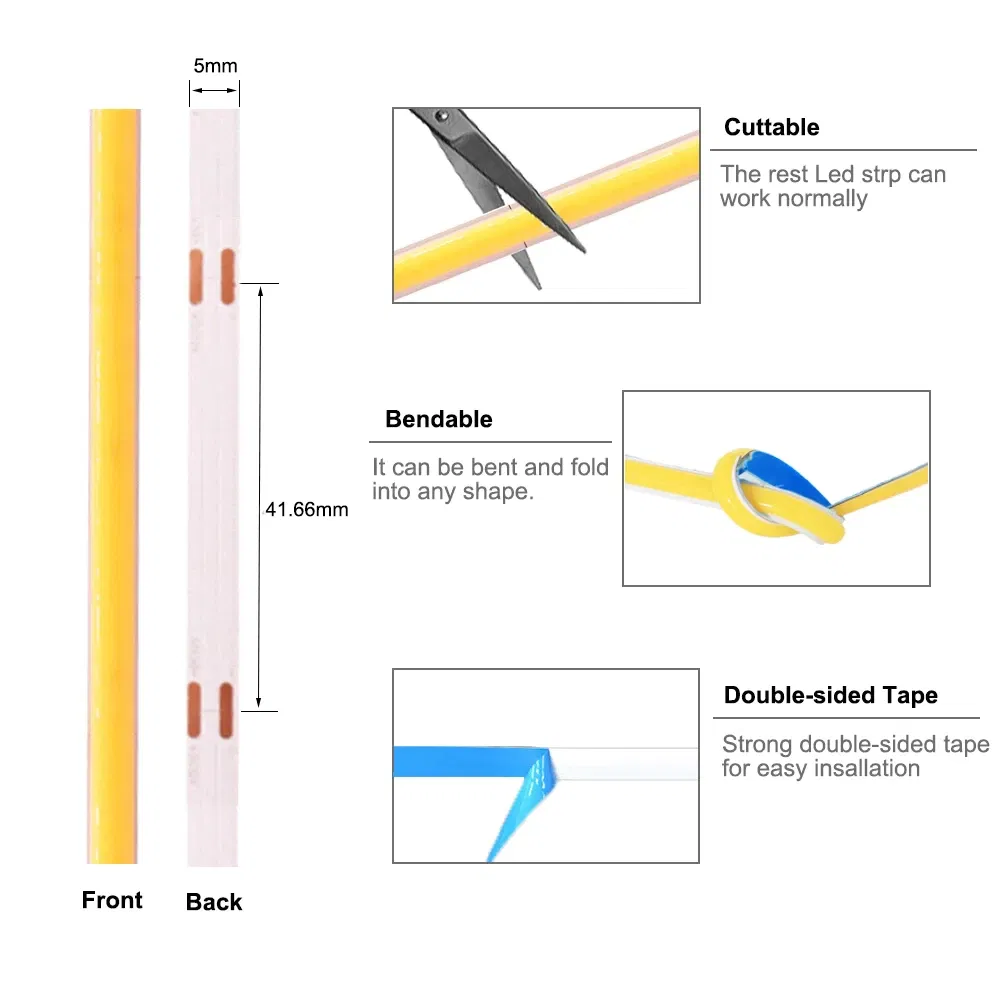

Narrow COB LED Strip Detail

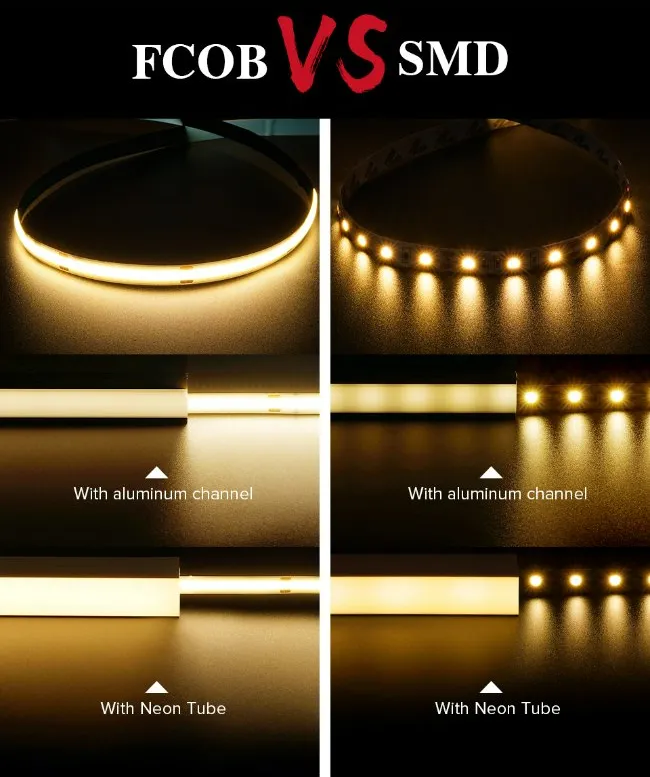

Narrow COB LED Strip Overview
Product Parameters
Part NO. Leds/M Color Input Width Cutting Unit RA Power Efficiency IP Rate
FCOB-320X-010320White5V10mm50mm≥9011W/M>80Lm/WIP20
FCOB-320X-008320White/2700K-6000K12V8mm25mm≥908W/M>100Lm/WIP20
FCOB-384X-00838412V/24V8mm41.66mm≥9010W/M>100Lm/WIP20
FCOB-384X-00538412V/24V5mm41.66mm≥9010W/M>100Lm/WIP20
FCOB-480X-00848012V/24V8mm25/50mm≥9010W/M>100Lm/WIP20
FCOB-600CCT-005600Tunable White12V/24V5mm10/20mm≥907W+7W>100Lm/WIP20
FCOB-576RGB-010576RGB24V10mm--14W/M>100Lm/WIP21

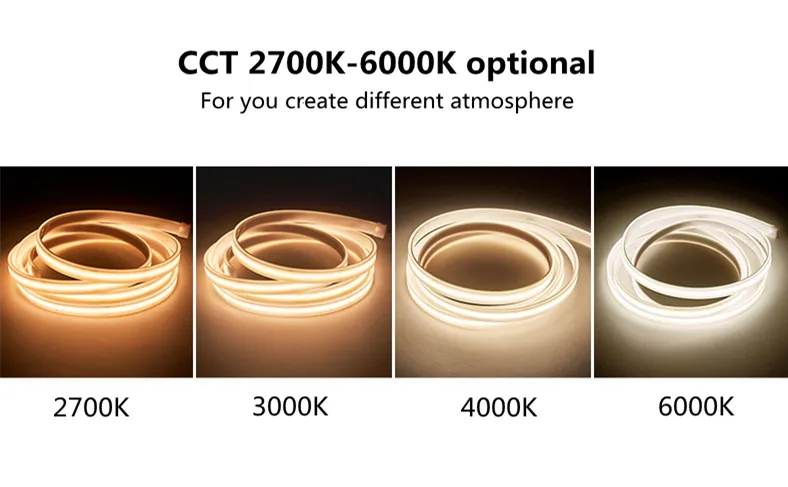

COB Parameters Diagram

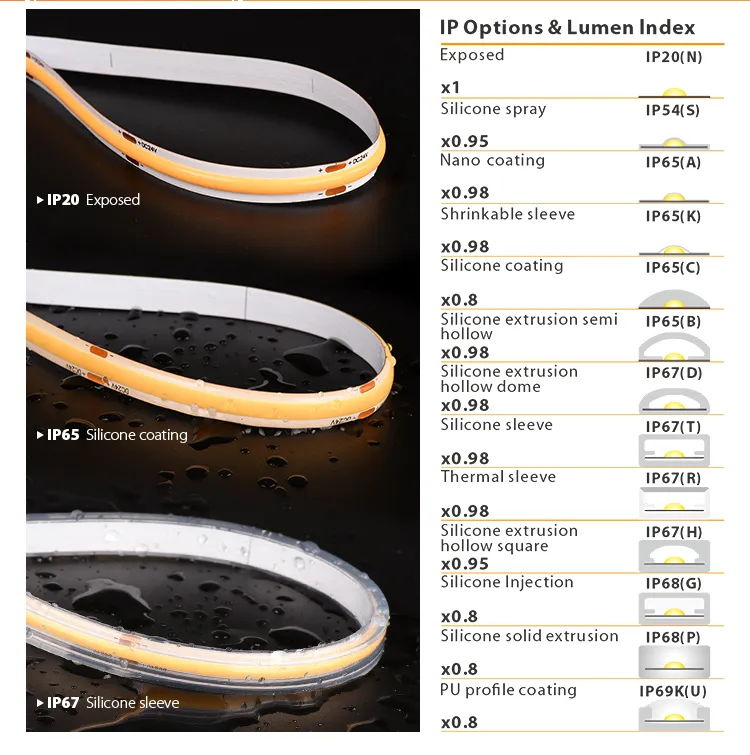

COB Dimensions
Accessories & Installation

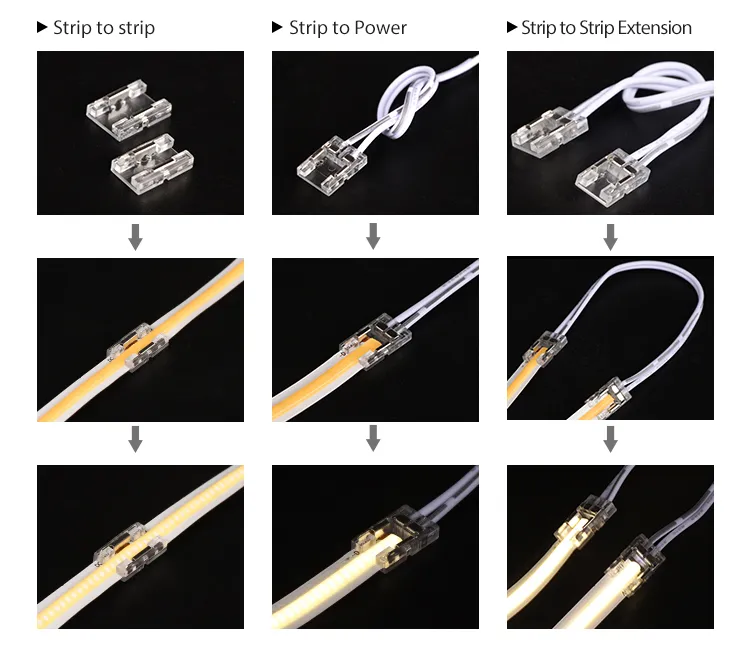

Accessories

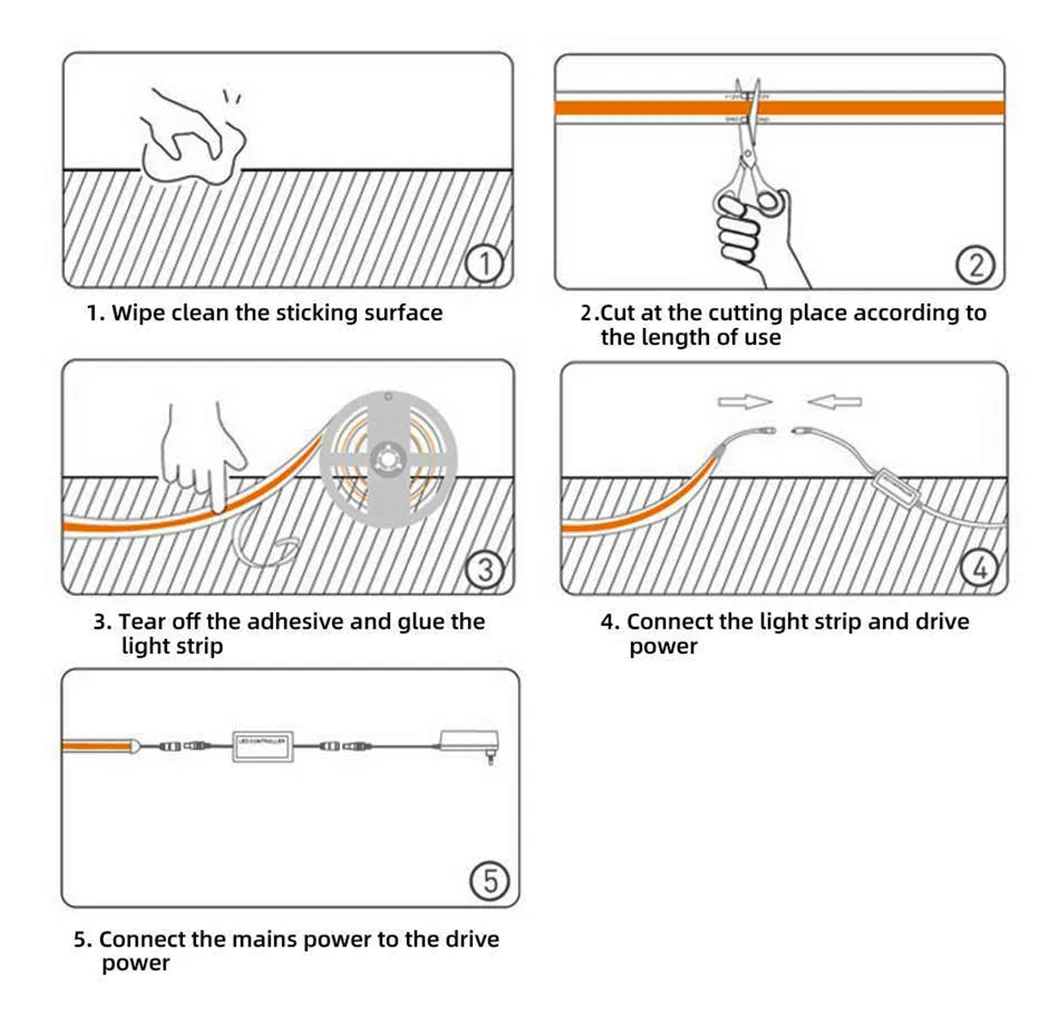

Installation Guide
Certifications & Packaging

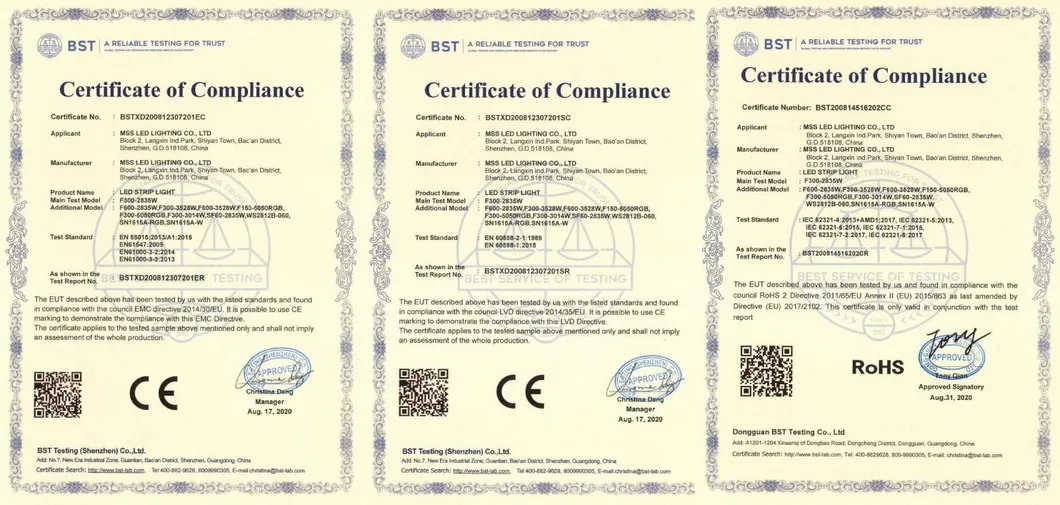

Certifications
Packaging Box
Shipping Info
Applications

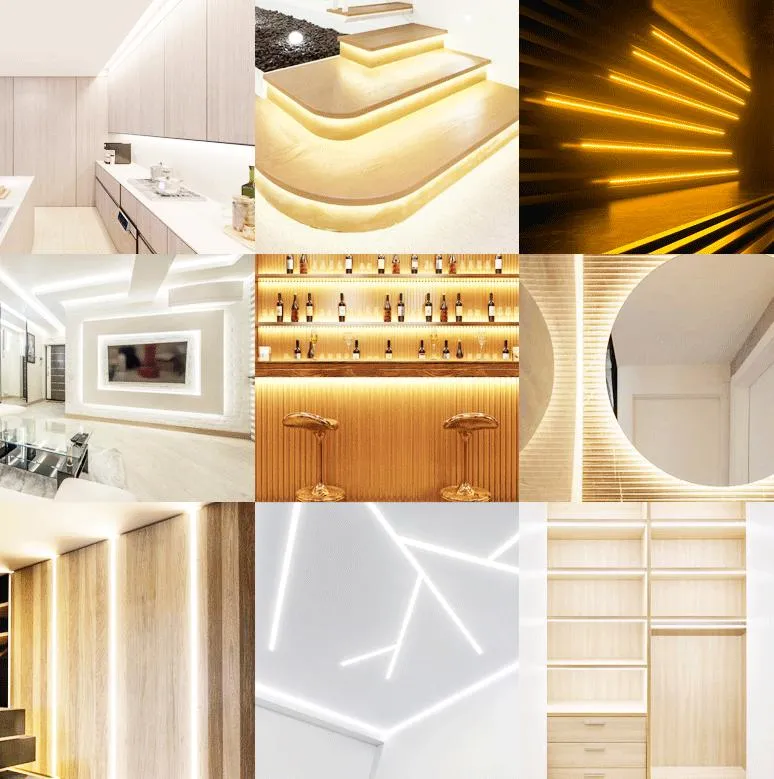

Application Examples
Frequently Asked Questions
What are the advantages of COB LED strips?
COB (Chip on Board) LED strips provide a seamless, dot-free linear light output, better thermal efficiency, and higher flexibility compared to traditional SMD strips.
Can these ultra-narrow strips be cut?
Yes, the strips feature designated cutting units (e.g., every 25mm or 41.66mm depending on the model) allowing you to customize the length for your specific application.
What is the warranty period for the COB LED strips?
We provide a 3-year warranty on our COB LED strip products, ensuring long-term reliability and performance.
Are these strips dimmable?
Yes, these DC12V/24V strips are compatible with most standard PWM LED dimmers and controllers.
Is it suitable for use in display cases?
Absolutely. The ultra-narrow 3mm to 5mm width and spotless light output make them perfect for tight spaces like display cases, shelves, and cove lighting.
What is the CRI (Color Rendering Index) of these strips?
Our COB strips typically feature a high CRI of RA≥90, ensuring that colors are rendered accurately and naturally.
