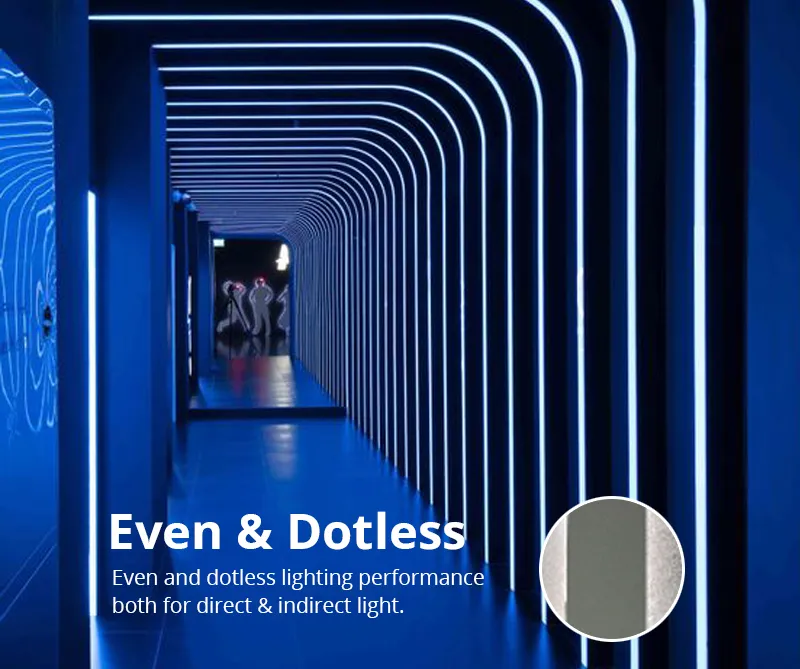

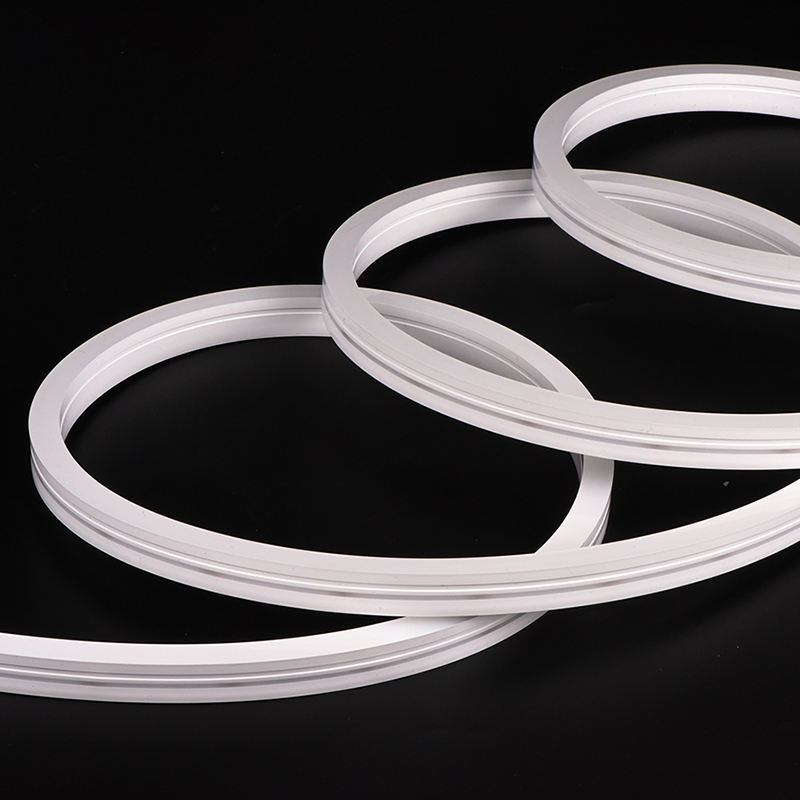

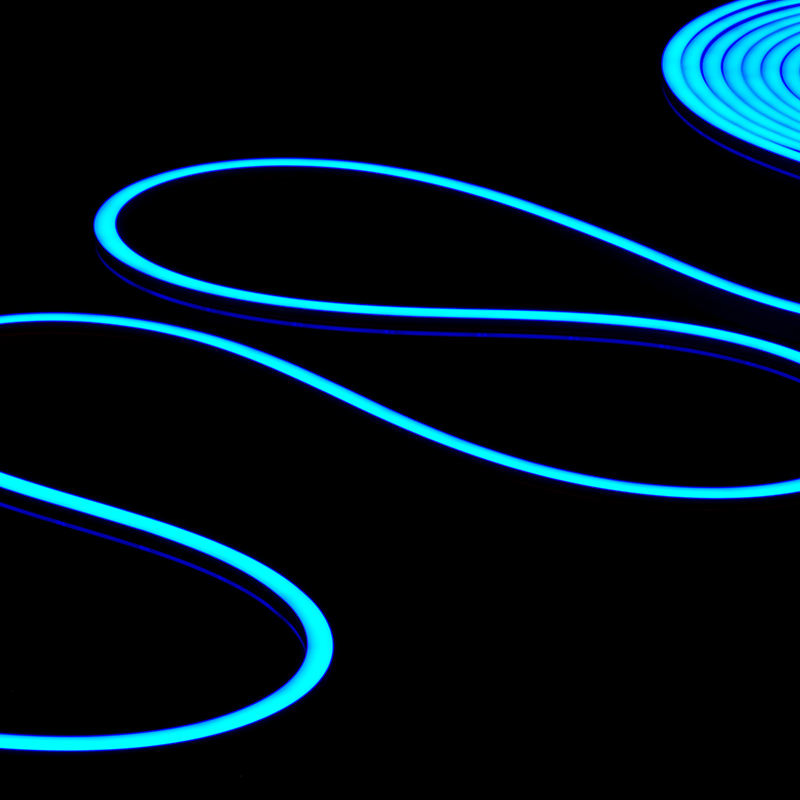

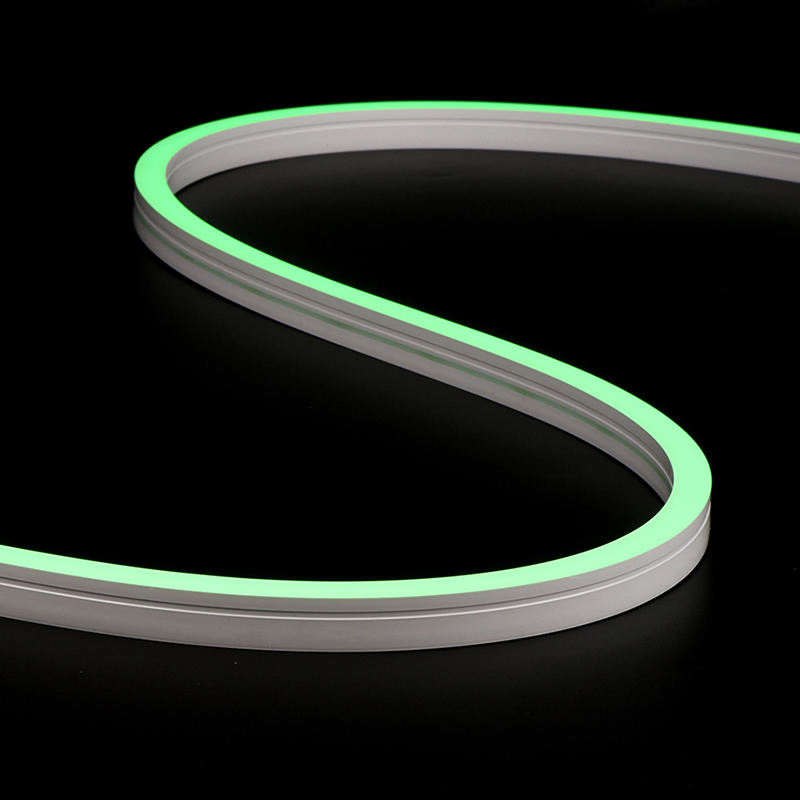

The LED neon strip features dot-free lighting, longer lifespan, and high efficacy. It is designed to provide consistent linear lighting for a wide variety of applications including cove lighting and indirect lighting in hotels, restaurants, shops, offices, and homes.
Key Features:

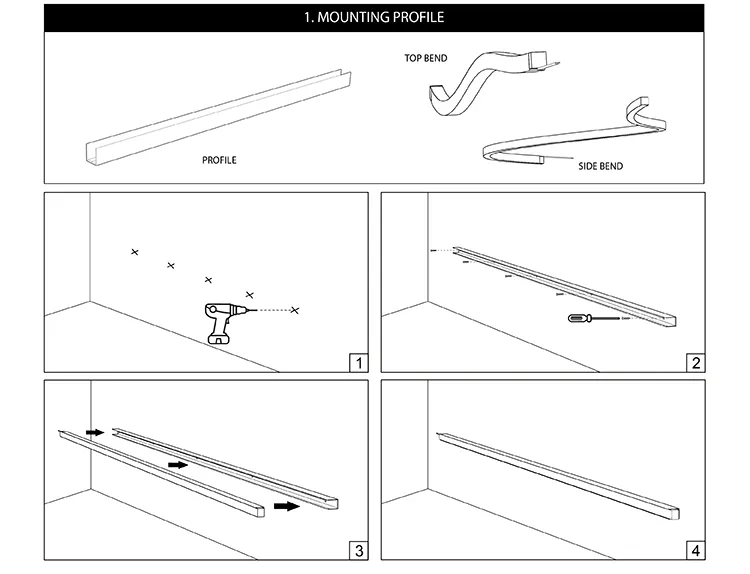

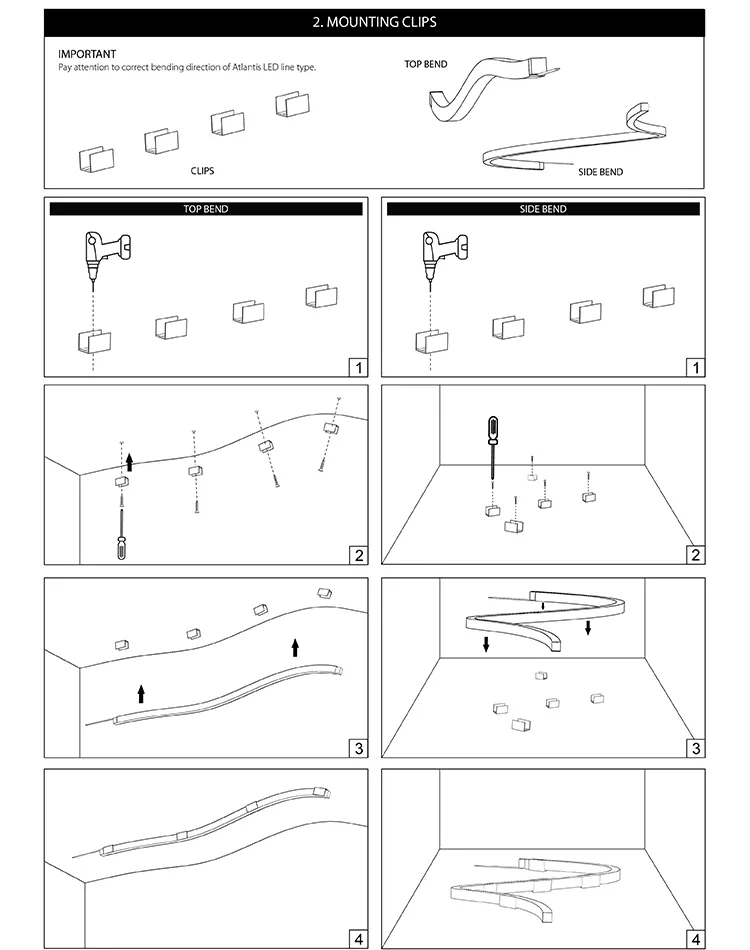

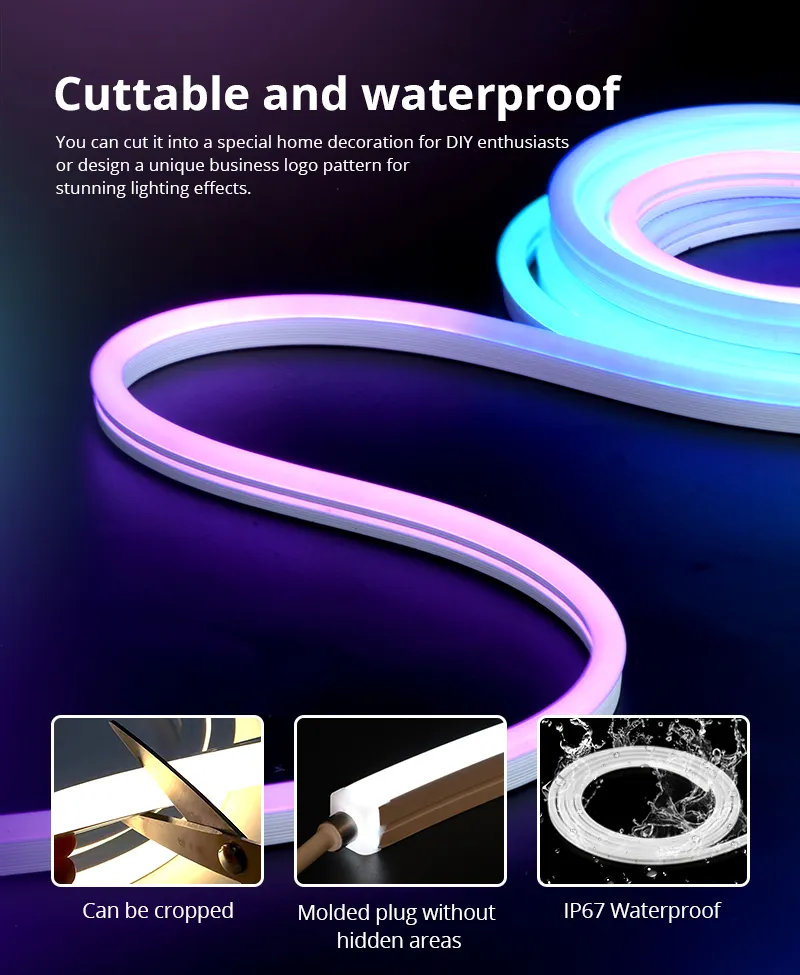

1. Side view / Horizontal bending
2. Silicone extrusion 12*18mm Flat
3. IP67 UV resistant
4. Dimmable with suitable control system (0-10V/PWM/TRIAC)
| Electrical Technical Data | |||
|---|---|---|---|
| Nominal Voltage | 24V DC | Voltage Range | 23-25V DC |

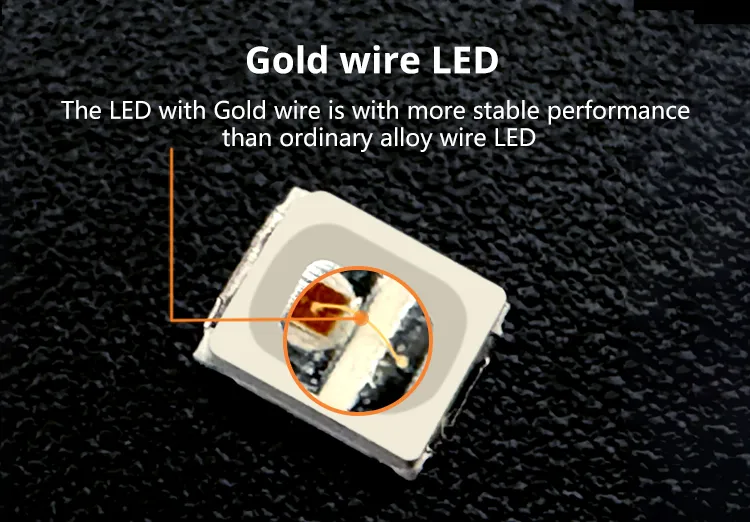

| LED Type | 2835 SMD | Dimensions | L5000*W12*H18mm |
| LED QTY/m | 140pcs | PCB | 10mm x 3oz |
| IP Rating | IP67 | Cut Points | 50mm |
| Beam Angle | 120° | Bend Radius | R < 60mm |
| Light Technical Data | |
|---|---|
| Power Consumption/m | 10 W/m |

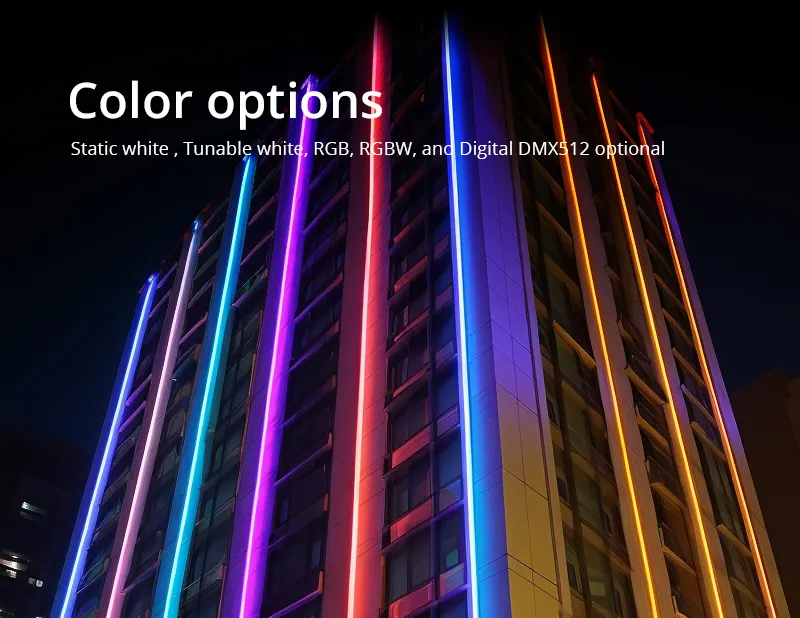

| Color/CCT | 1800~5700K |
| Lumen Output | 300-450LM |
| Luminous Efficacy | 30-45 Lm/w |
| CRI (White) | Ra+92; R9+68 |

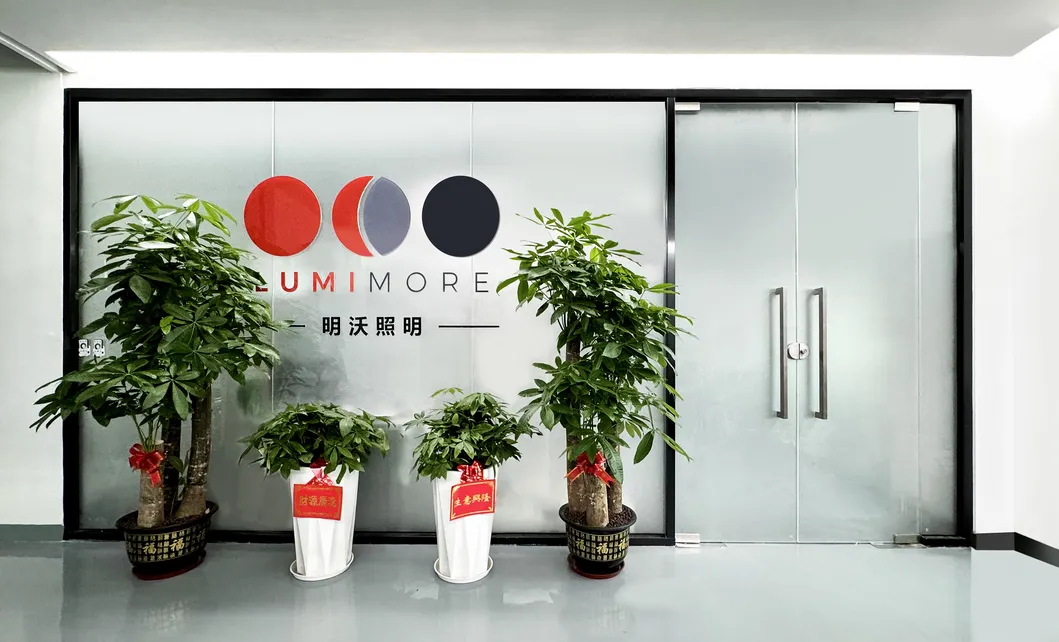

Founded in 2013, the facility has been a beacon of innovation in the lighting industry for 11 years. Specializing in SMD/COB LED strip light and Neon flex solutions, the commitment to quality and cutting-edge technology is paramount.
