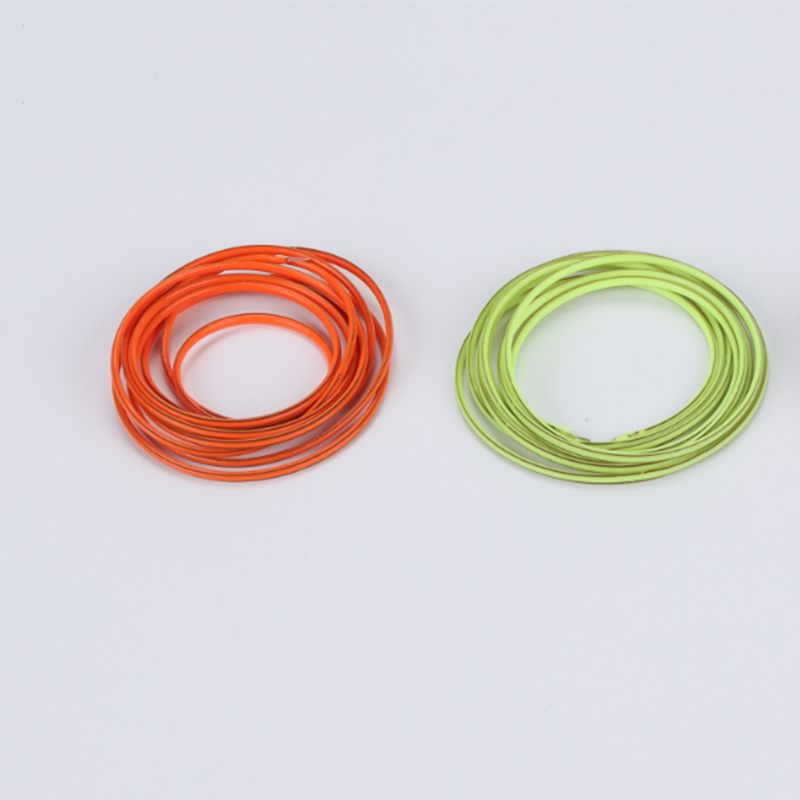

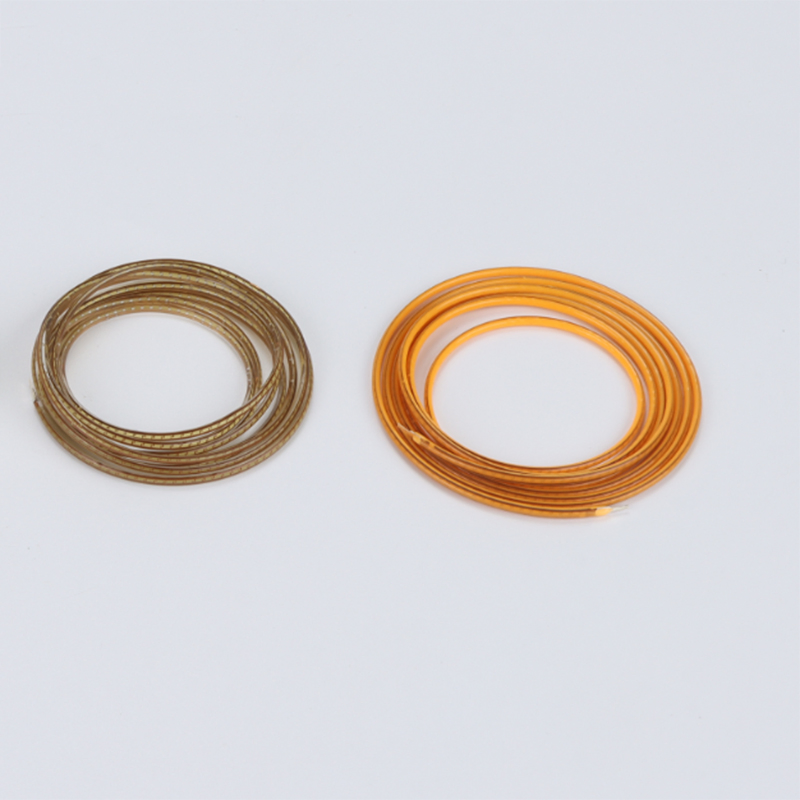

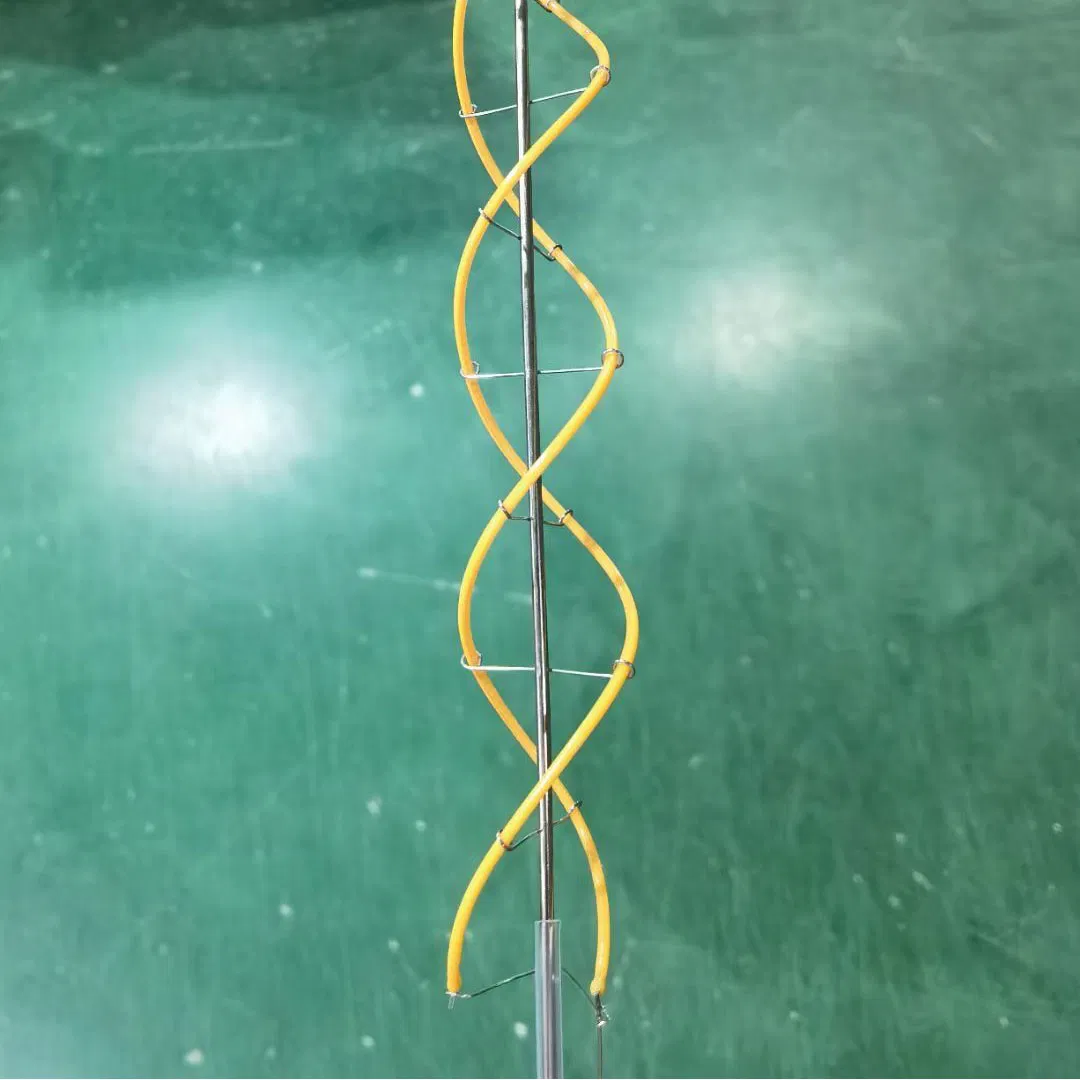

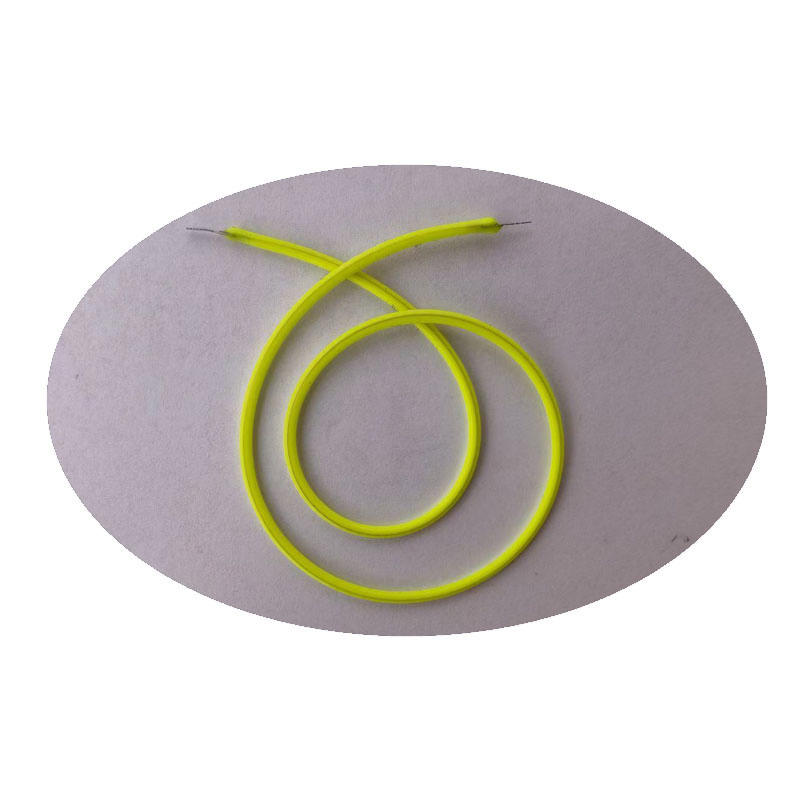

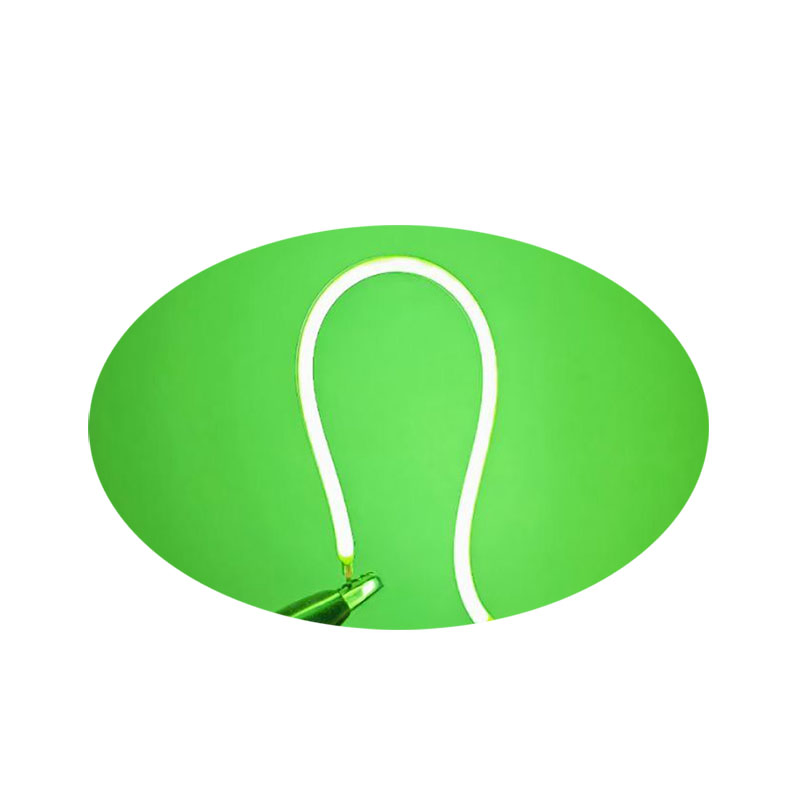

Customized 1200mm 24V LED Flexible Filament Phosphor Converted Blue Green Soft LED Filament

Customization:	Available
LED Packaging Type:	SMD LED
Emitting Color:	Warm White

Basic Information

LED Chips

China Chip

Power

1W / 8W

Life

50000h

Certification

RoHS, CE

Item

LED Filament

Package Size

24.00cm * 24.00cm * 5.00cm

Specification

4000 PCS/Roll

Origin

China

HS Code

8541410090

Product Description

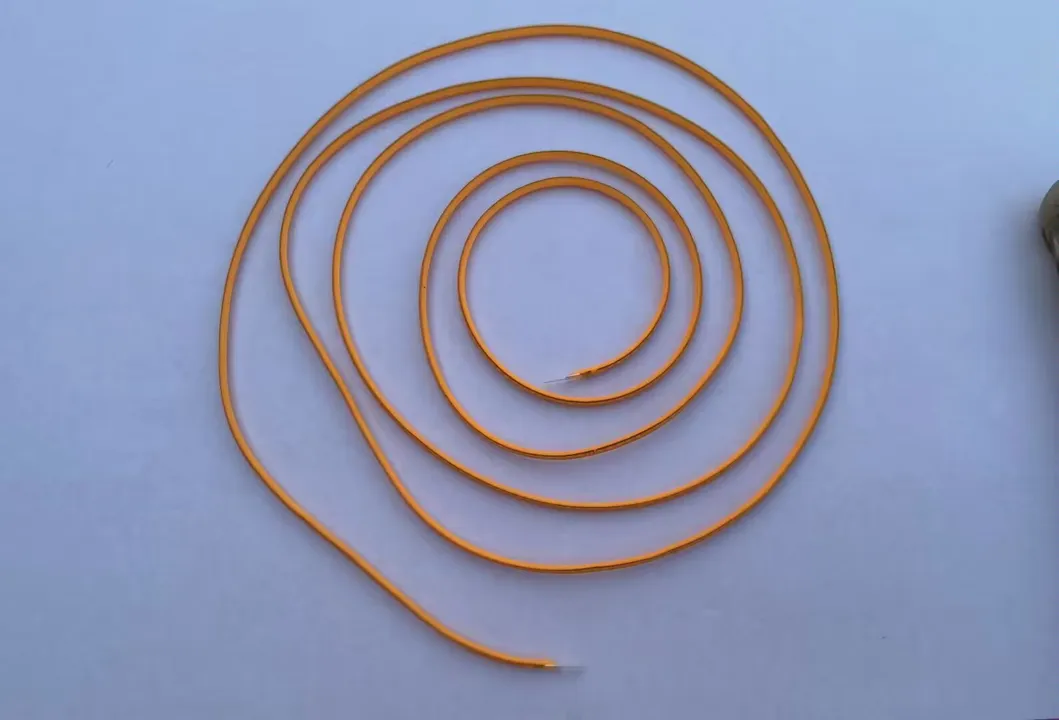

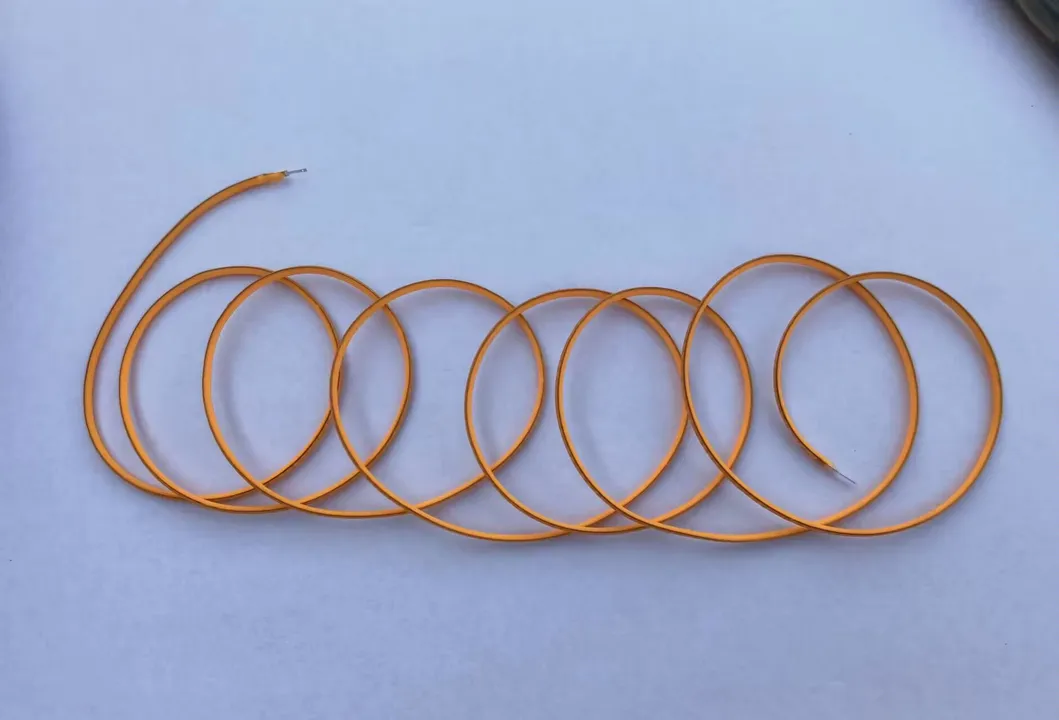

Quality Soft Filament Warm White 2200K 1200mm Length Flexible Filament LED Chip

Size: 1200MM

Power: 8W

Color Temperature: Warm white 2200±100K, 2700±100K, Phosphor Converted red/green

Voltage: 24V

Application: LED bulb, LED Tungsten lamp

Handling & Storage Guidelines

Note: Packaged LED material is silicone nature, providing a soft and flexible surface. While silicone reduces thermal stress, it is susceptible to mechanical damage. Avoid any pressure applied to the LED surface to ensure reliability and lifespan.

Cleaning: Recommend the use of pure alcohol to clean or dip for no more than 1 minute after soldering. Ensure solvents do not damage the packaging.

Storage Conditions:

Before opening: 5ºC - 30ºC / < 60% RH (Retention period: 1 year).

After opening: Room temperature < 30°C, humidity < 60% RH.

Reflow soldering should be completed within 4 hours of opening.

If moisture is absorbed, perform dehumidification (75°C ± 5°C for 12H for reels).

Certifications

Packaging & Shipping

Frequently Asked Questions

What is the primary application for this flexible LED filament?

This flexible LED filament is specifically designed for use in LED bulbs and LED tungsten lamps, providing a vintage aesthetic with modern efficiency.

What are the available color temperatures?

The filament comes in Warm White (2200K ± 100K and 2700K ± 100K), as well as phosphor-converted red and green options.

How should I store the filaments before use?

Unopened packaging should be stored between 5ºC and 30ºC with humidity below 60% RH. It can be kept for up to one year under these conditions.

Can I clean the LED filament after soldering?

Yes, it is recommended to use pure alcohol for cleaning. You may wipe or dip the component for no more than 1 minute.

Why is it important to avoid pressure on the filament surface?

The filament is encapsulated in silicone, which is soft. Mechanical pressure can damage the internal structure, reducing the reliability and overall lifespan of the LED.

What is the voltage requirement for the 1200mm model?

The 1200mm flexible filament operates at a standard voltage of 24V with a power consumption of 8W.
