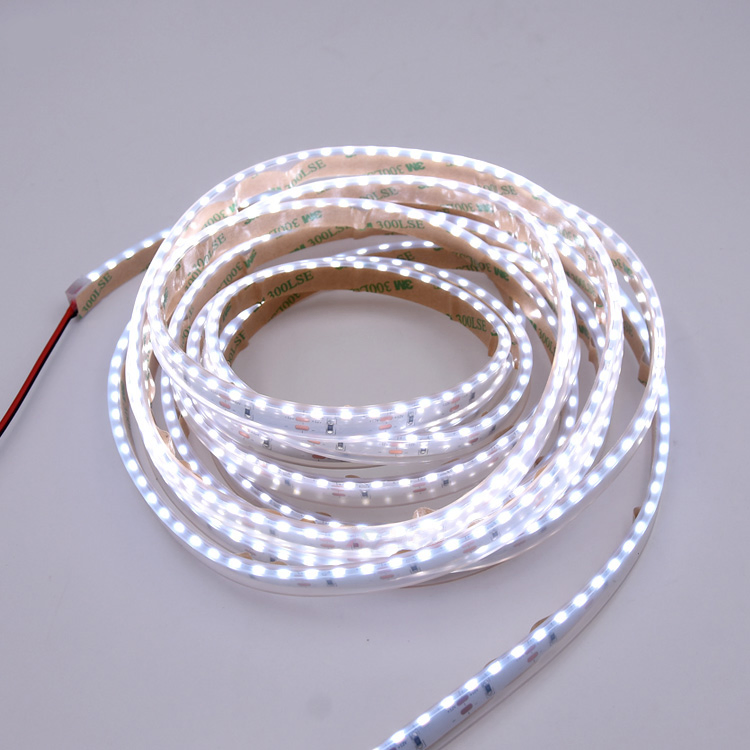

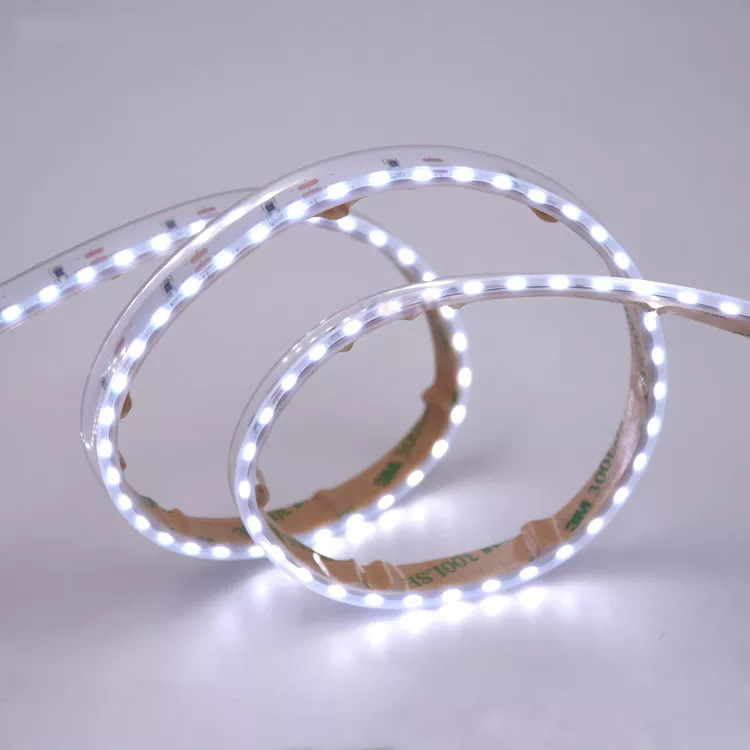

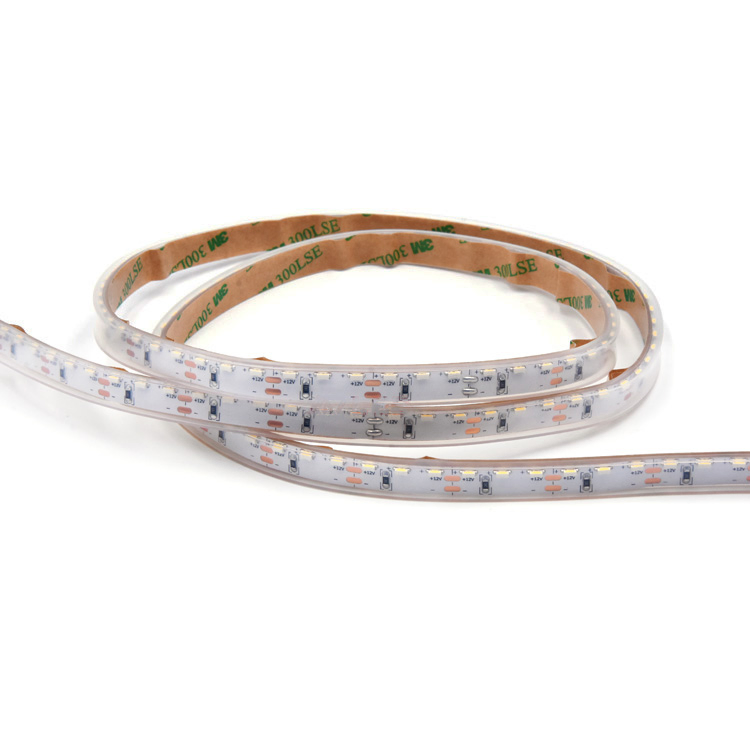

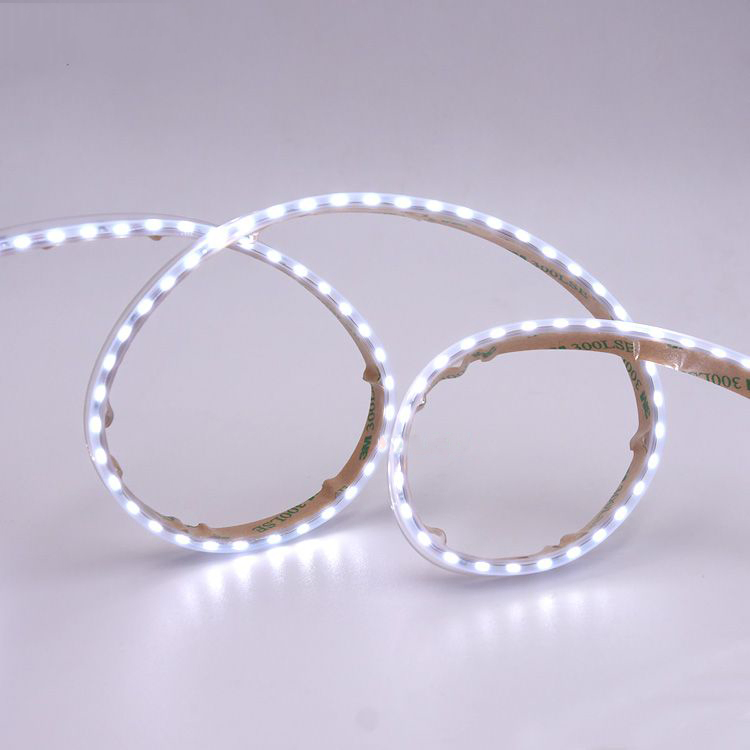

DC 24V 8mm Width PCB Side View Emitting LED Light Strip for Interior or Exterior Decoration Lighting
DC 24V 8mm Width PCB Side View Emitting LED Light Strip for Interior or Exterior Decoration Lighting
DC 24V 8mm Width PCB Side View Emitting LED Light Strip for Interior or Exterior Decoration Lighting
DC 24V 8mm Width PCB Side View Emitting LED Light Strip for Interior or Exterior Decoration Lighting
1 / 4
DC 24V 8mm Width PCB Side View Emitting LED Light Strip for Interior or Exterior Decoration Lighting
DC 24V 8mm Width PCB Side View Emitting LED Light Strip for Interior or Exterior Decoration Lighting
DC 24V 8mm Width PCB Side View Emitting LED Light Strip for Interior or Exterior Decoration Lighting
DC 24V 8mm Width PCB Side View Emitting LED Light Strip for Interior or Exterior Decoration Lighting

DC 24V 8mm Width PCB Side View Emitting LED Light Strip for Interior or Exterior Decoration Lighting

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Basic Specifications

Emitting Color:
White/ Red/ Yellow/ Green/ Blue/ RGB
Voltage:
DC12V/DC24V
IP Rating:
IP20, IP33, IP65, IP68
Macadam Level:
3-5 Step
Max. Length:
5m/Roll LED Strip
Warranty:
3-5 Years
Specification:
5000*8mm LED STRIP
Transport Package:
Anti-Static Package
HS Code:
9405409000
Capacity:
100,000m/Month

Key Features

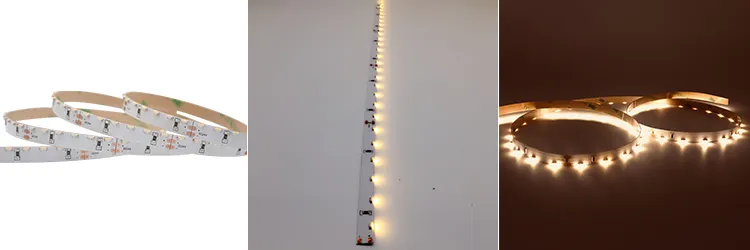

Side View LED Strip
  • Rolled copper FPC for superior thermal dissipation and bend-ability.
  • High-quality 20WAG or above cables for stable power delivery.
  • Modular design: Each 3 LED per unit with soldering pads for secondary operation.
  • Enhanced 3014 LEDs specifically optimized for strip lighting products.

Technical Dimensions

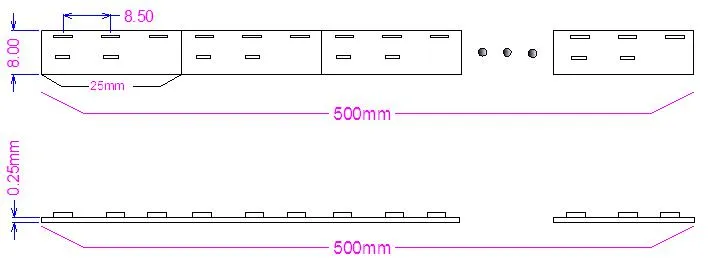

Dimensions Diagram

Environmental Conditions

Ambient temperature range (TA on free air)-25…..+50ºC
Operating (case) temperature range (TC)-25…..+50ºC
Storage temperature range-25…..+60ºC
Standard IP ratingIP33

Electrical Parameters & Attention

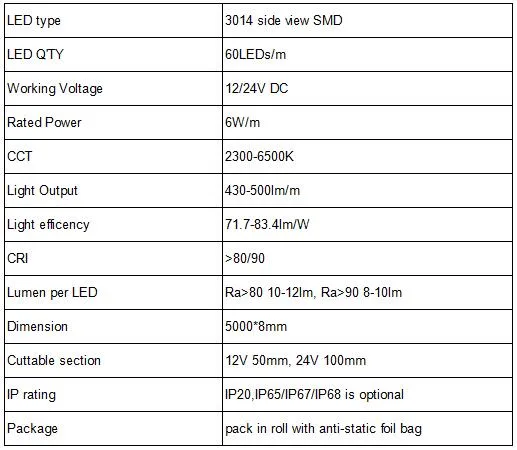

Electrical parameters
Important Operating Guidelines:
1. Maximum strip length is 5 meters from power supplier to single end.
2. Avoid mechanical stress on the LED strip and its components.
3. Ensure power supply capacity matches total load. Installations should be done by qualified personnel.
4. Housing design must comply with IP standards for the specific application.
5. Use external lightning protection if surge protection is not built into the power supply.

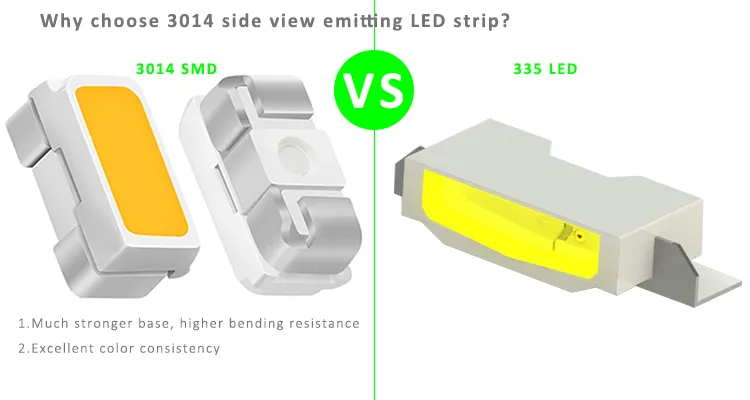

Diagram 1

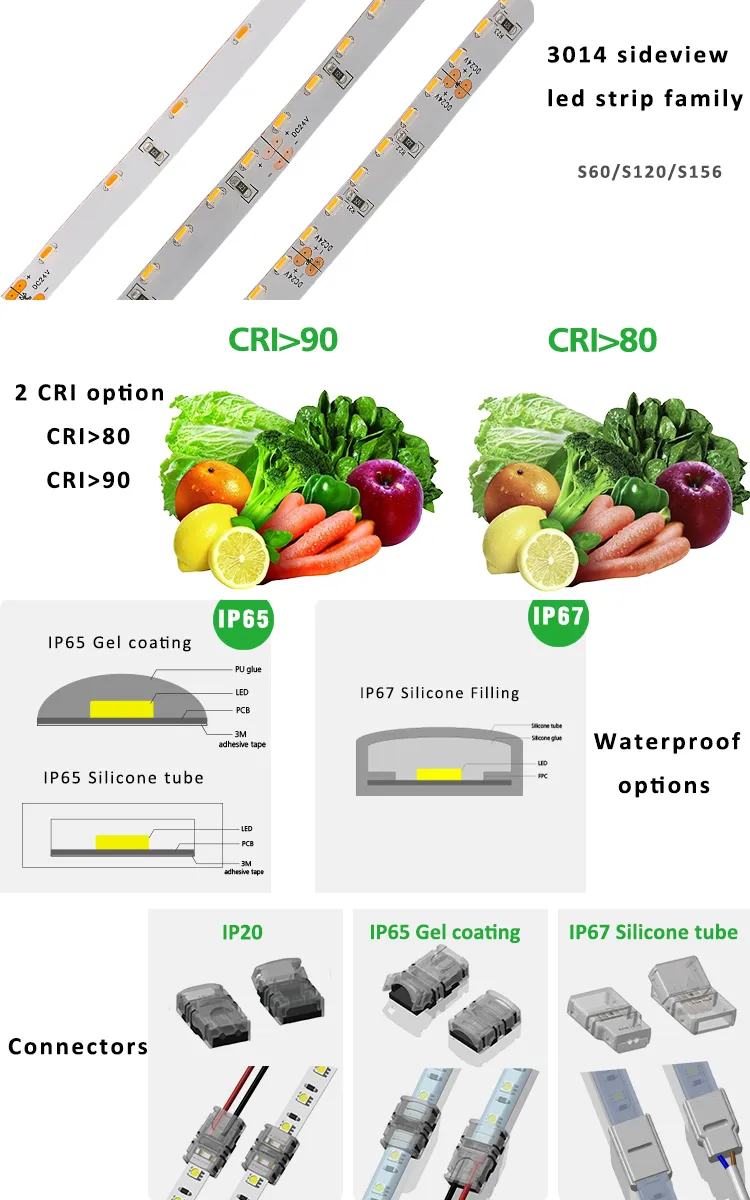

Diagram 2

Installation Guide

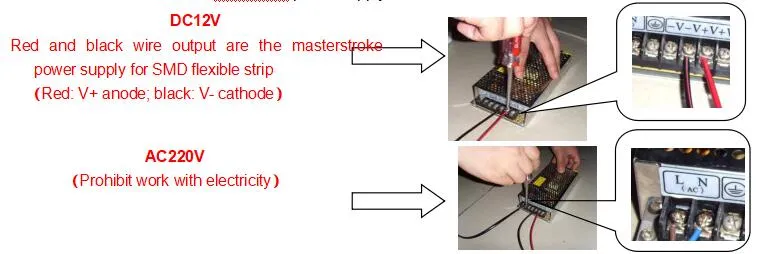

Power connection

Note: Wire diameter (red/black) depends on strip quantity and distance. Use RV flexible multi-core wire for easier connection. Add extra master lines if total power exceeds 100W.

  • Spread the strip flatly at the desired location.
  • Use transparent clips (4 pcs per meter). Place clips between LEDs; do not press on the LEDs.
  • Connect to the master line every 5 meters. If powered from both ends, up to 10 meters can be connected.

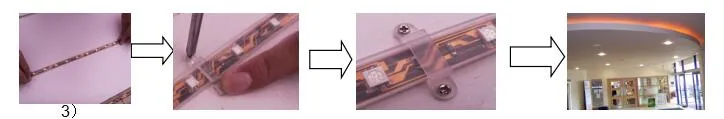

Installation Diagram

Typical Applications

  • Curve lighting for architectural features
  • Freeze lighting and display cases
  • Light bar source for signage
  • Special advertising signs and backlighting

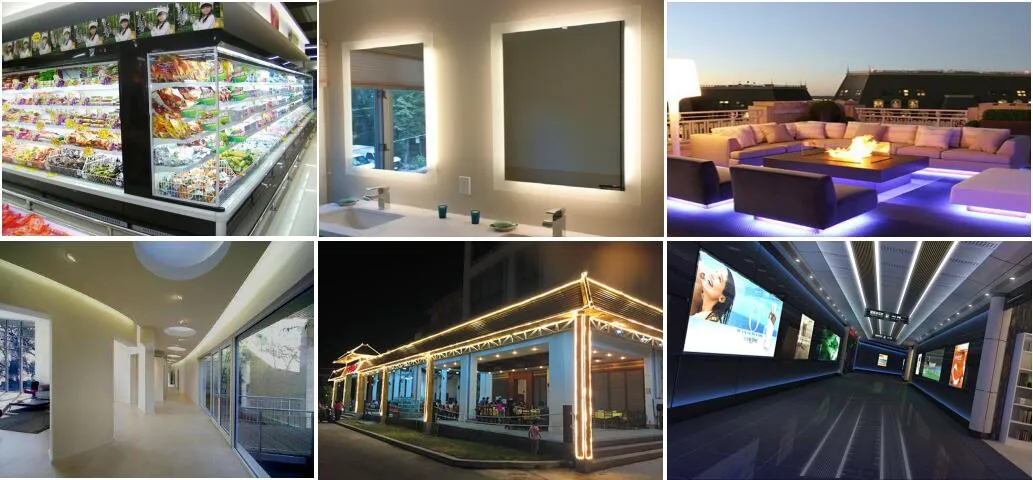

Application view
Project view

Frequently Asked Questions

What is the input voltage for this side-view LED strip?
The strip is available in both DC12V and DC24V versions to suit different power supply requirements.
Can the LED strip be cut for custom lengths?
Yes, the strip is designed with soldering pads every 3 LEDs, allowing it to be cut and reconnected as needed for your specific project.
What is the standard warranty period?
We provide a 3 to 5-year warranty depending on the specific model and application environment.
Is this LED strip waterproof?
We offer multiple IP ratings ranging from IP20/IP33 for indoor use to IP65/IP68 for exterior or wet-area decoration.
What is the maximum run length from a single power feed?
To avoid voltage drop, the maximum recommended length is 5 meters for a single-end power feed. This can be extended to 10 meters if powered from both ends.
What are the main advantages of 3014 side-emitting LEDs?
Side-emitting LEDs are perfect for curve lighting and thin edge-lit applications where space is limited and light needs to be projected horizontally.
