Basic Information
Model NO.
KDY-COB608CCT-24V
Emitting Color
CCT (Tunable White)
IP Rating
IP20/IP65/IP67/IP68
PCB Material
Double-Sided Coated Pure Copper
Product Description

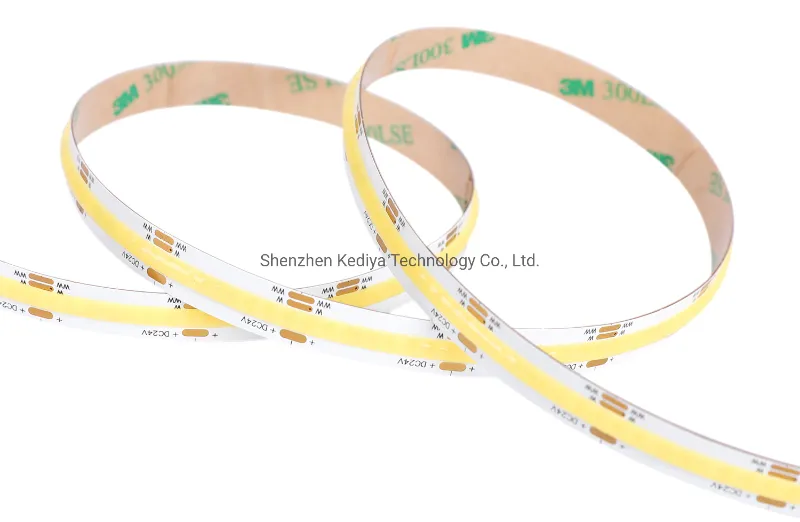

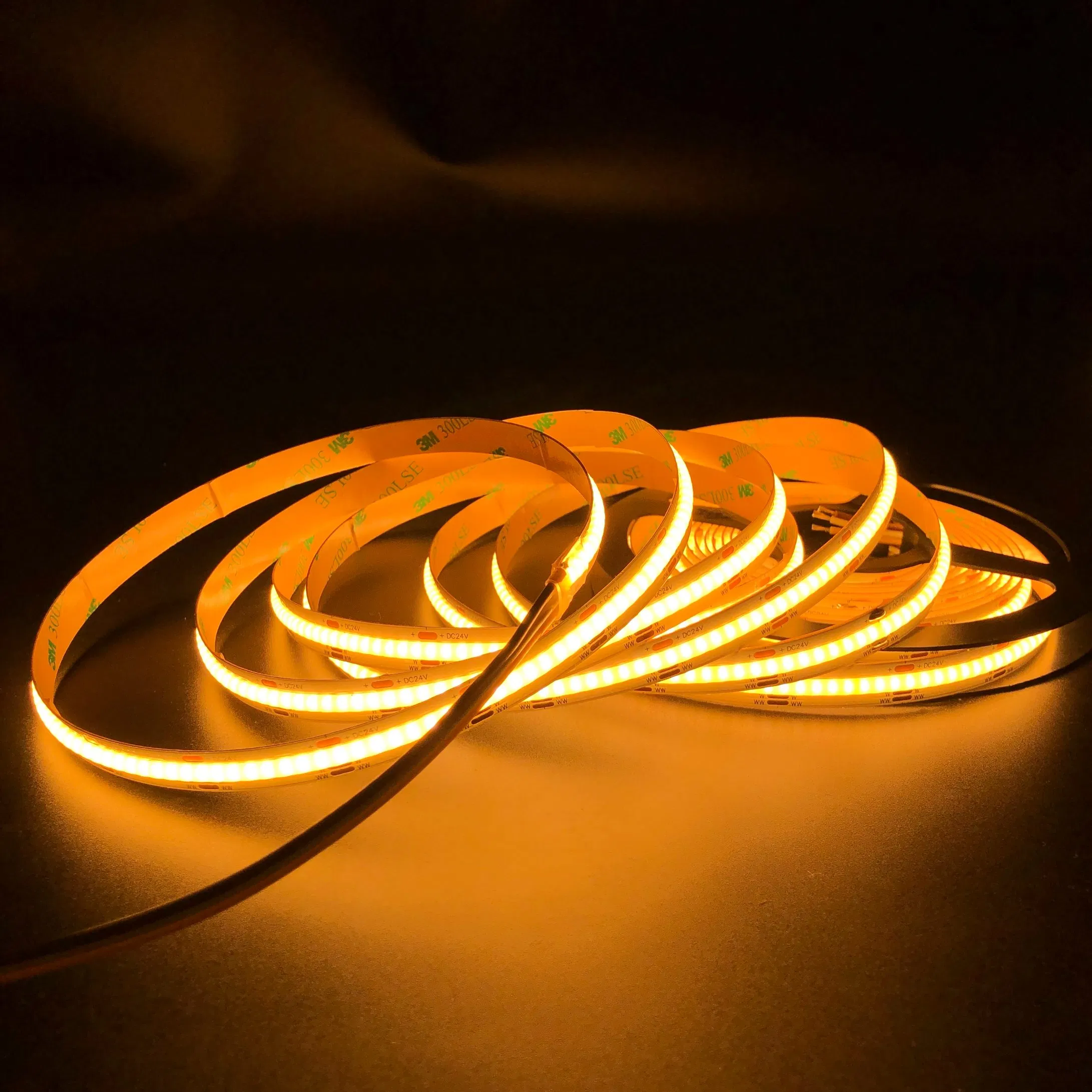

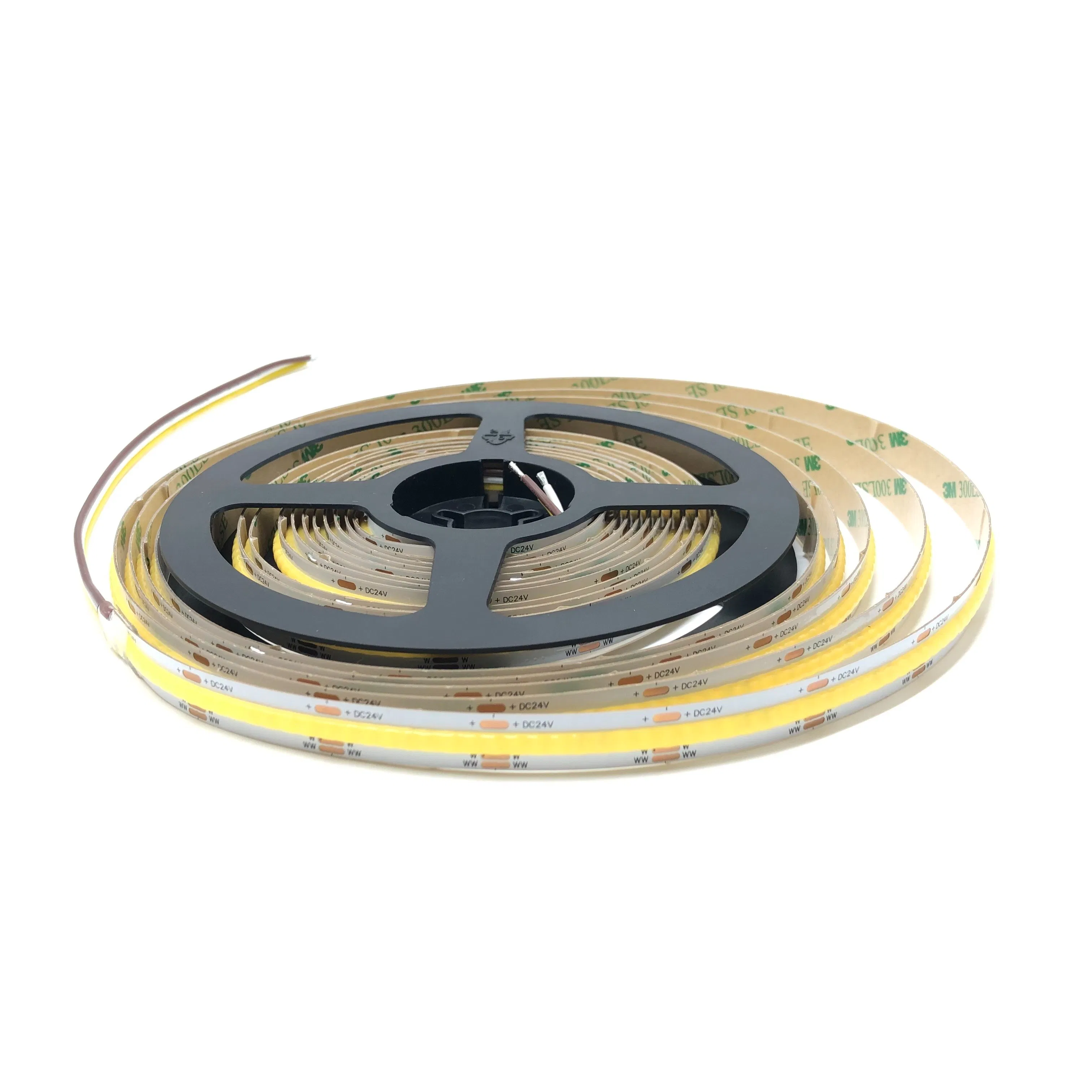

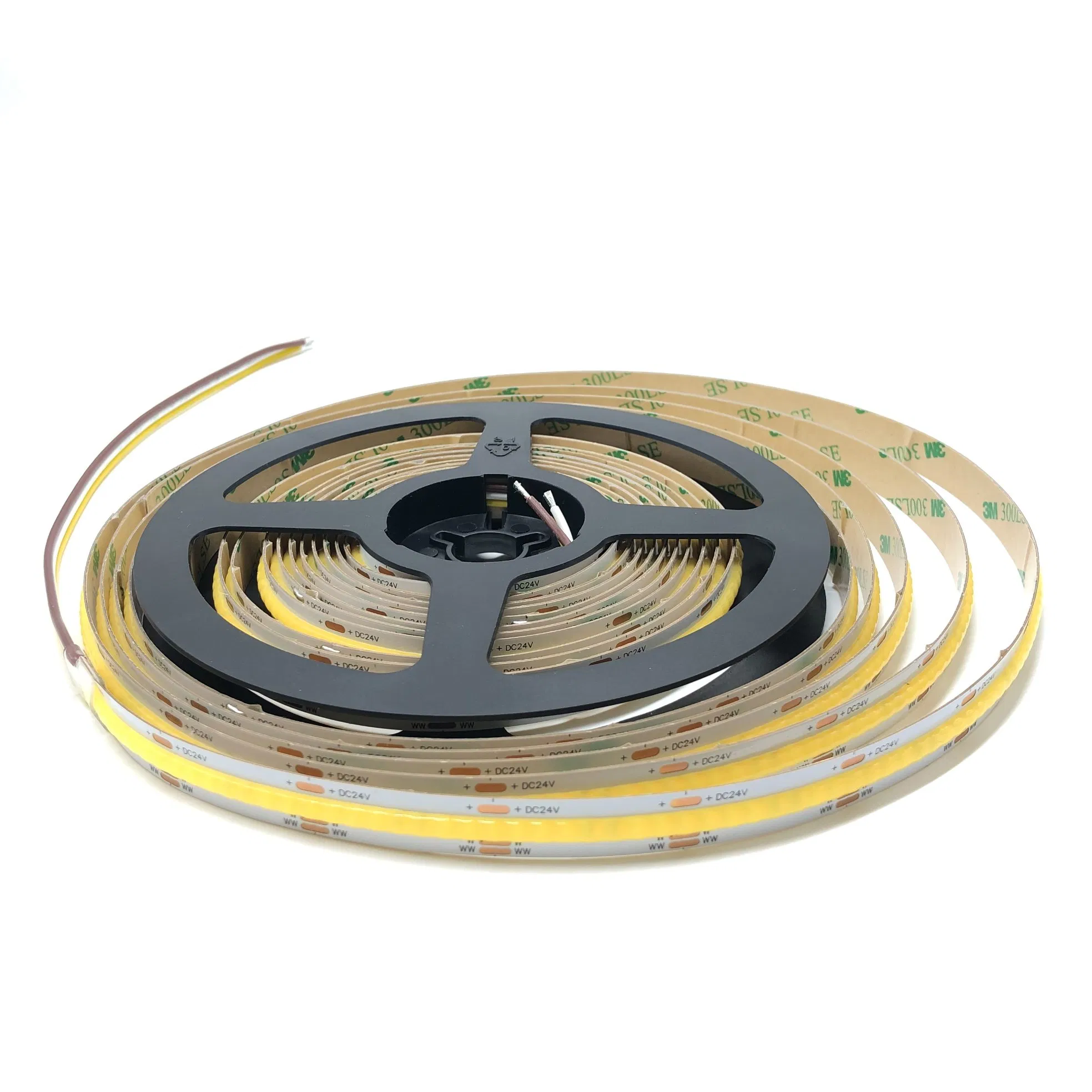

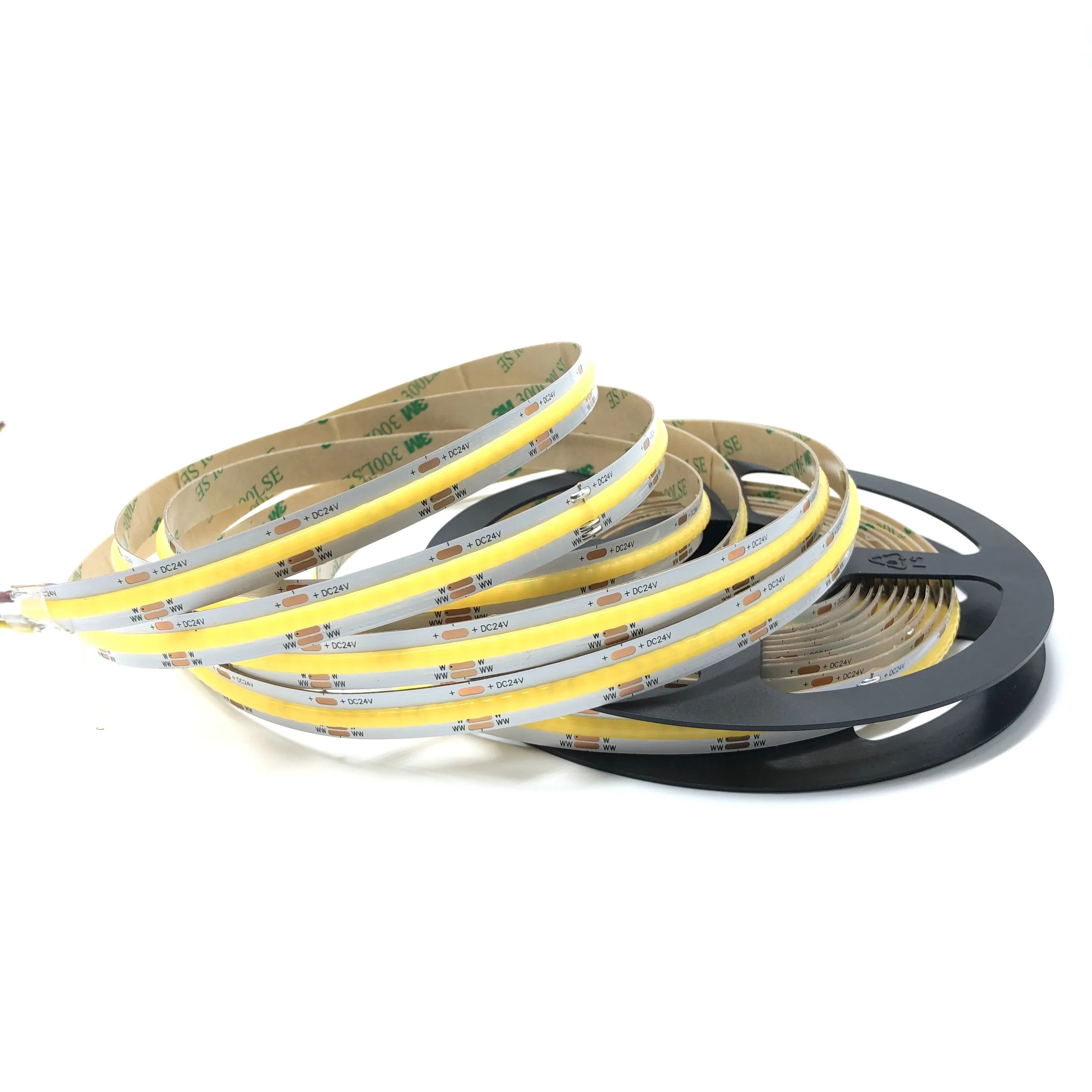

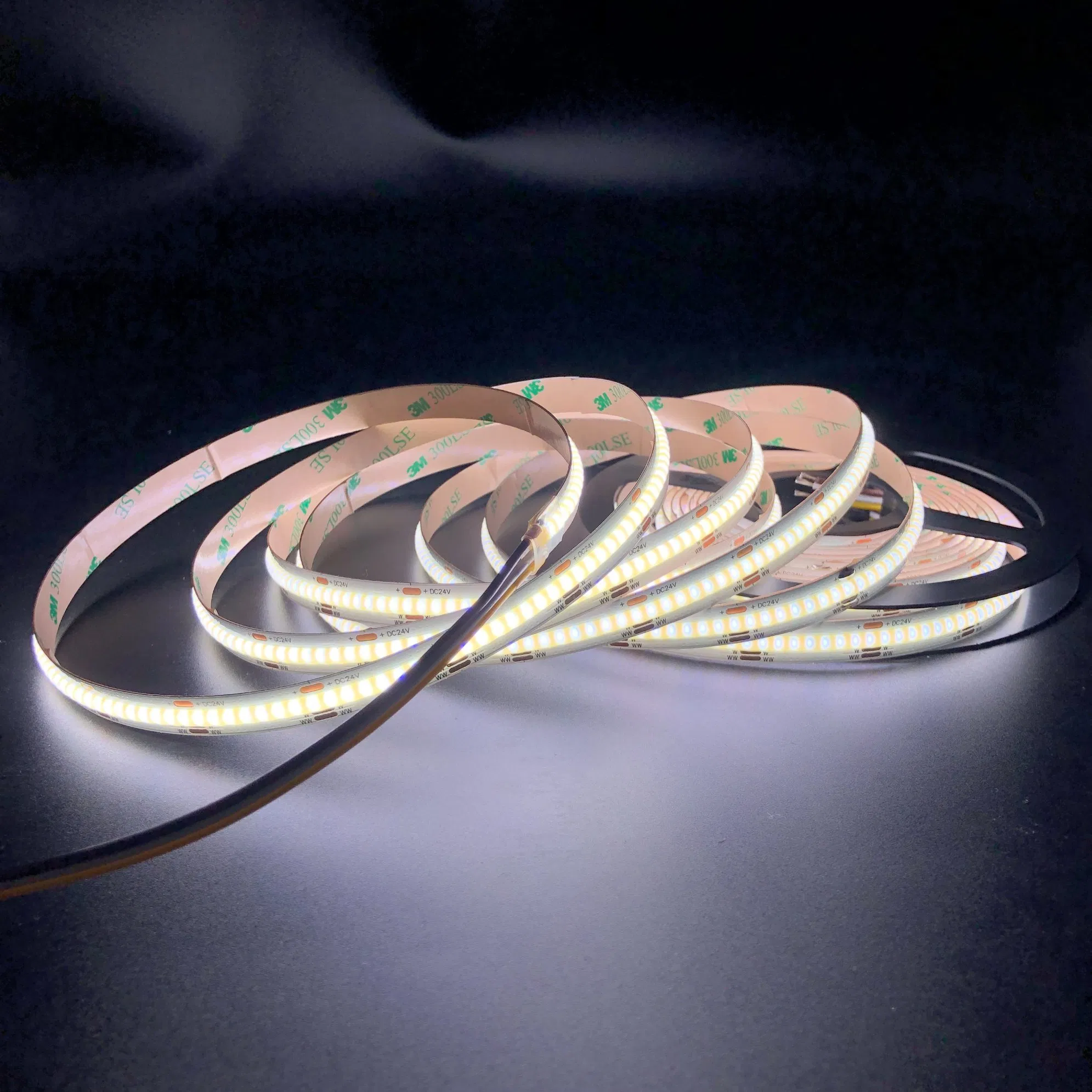

The COB CCT LED Strip Light is a high-density, dot-free lighting solution designed for modern residential and commercial applications. With 608 LEDs per meter, advanced COB (Chip on Board) technology, and tunable white color temperature from 2700K to 6500K, this LED strip delivers smooth, uniform illumination with no visible light spots.

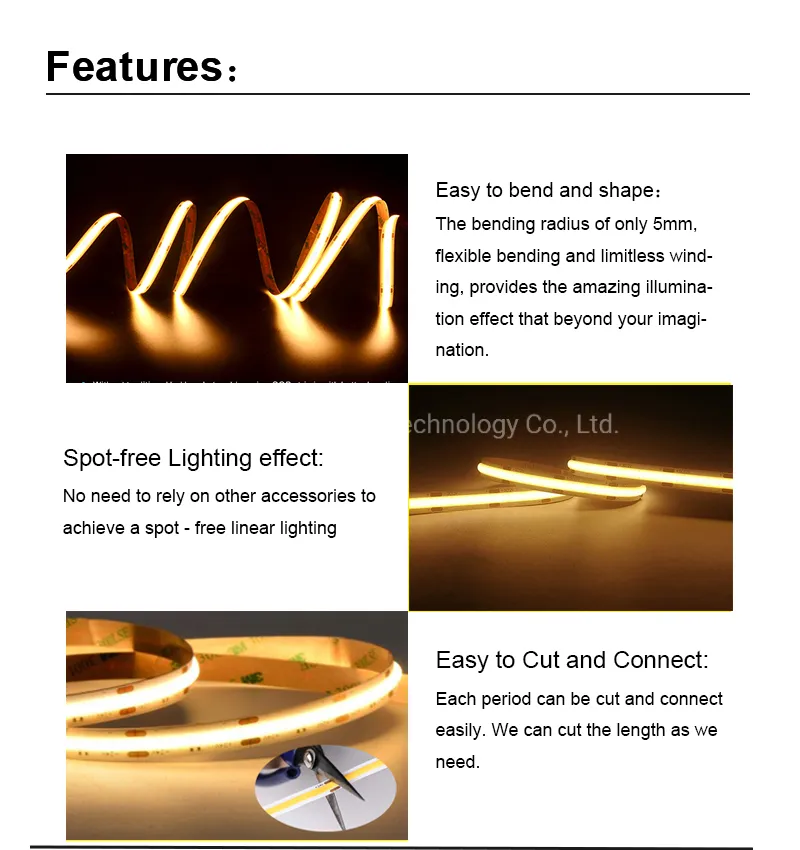

Key Features & Advantages
- ✔

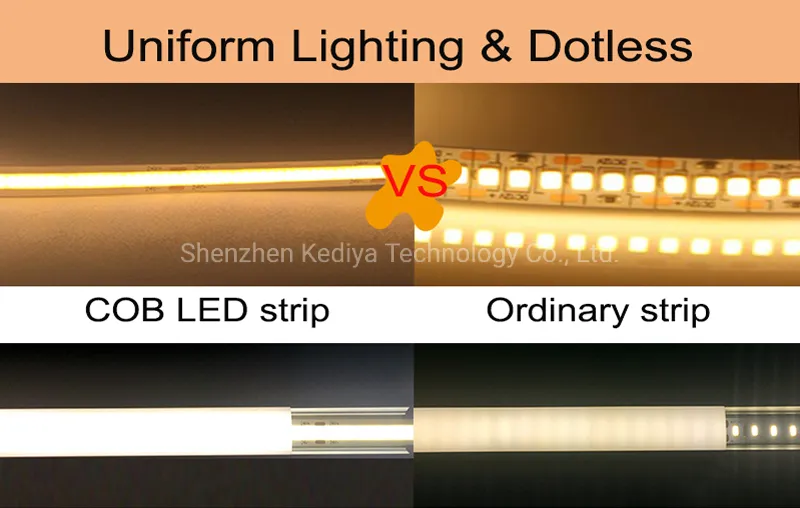

Dot-Free COB Technology: 608 LEDs/m ultra-high density ensures no hotspots or shadows.
- ✔
Tunable White CCT: Adjustable from 2700K to 6500K to suit different moods and environments.
- ✔
High Color Rendering: CRI ≥90 for accurate color representation in professional projects.
- ✔

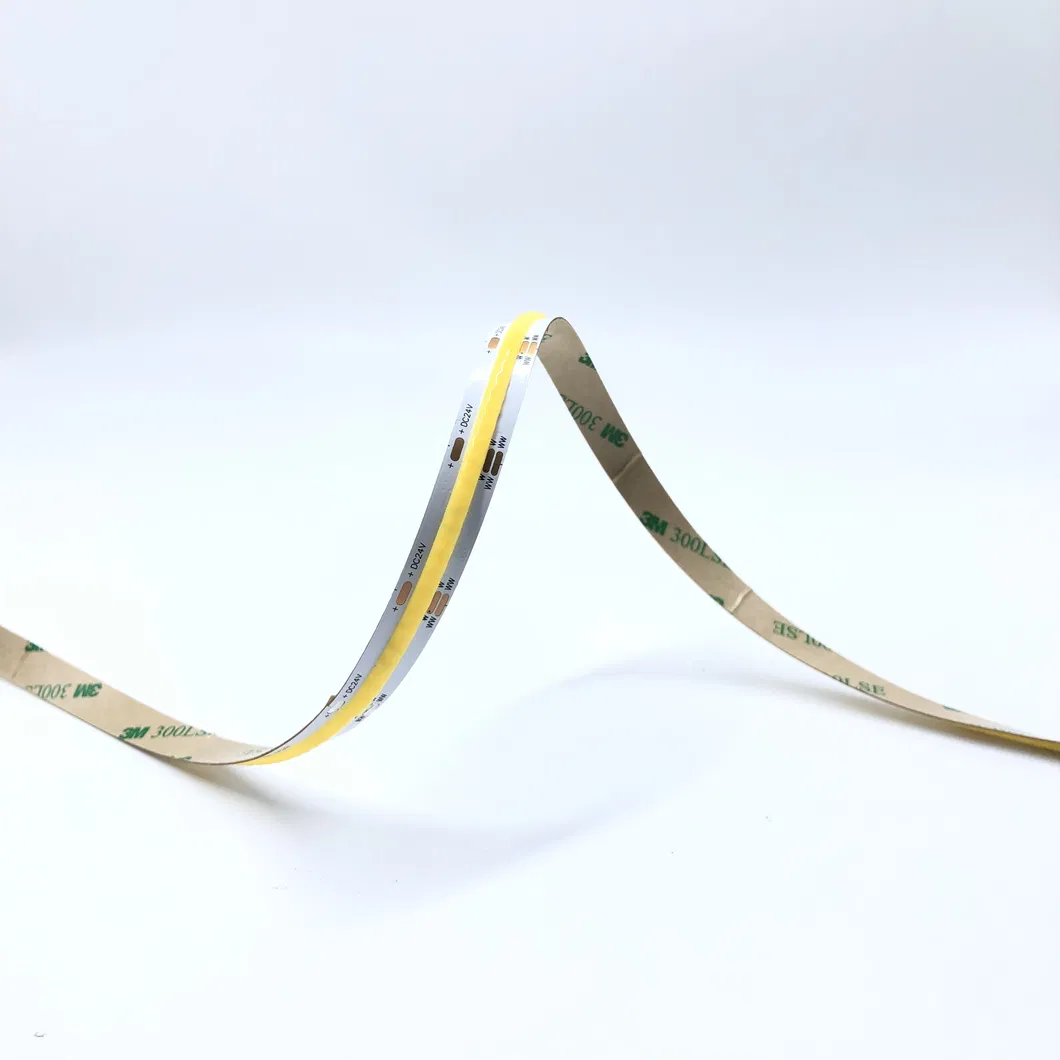

Flexible Installation: Flexible PCB for curved spaces with strong adhesive backing.
Technical Specifications
| Item |
Specification |
| Product Name | COB CCT LED Strip Light |
| LED Density | 608 LEDs/m |
| Color Temperature | 2700K - 6500K |
| CRI | ≥90 |
| Voltage | DC 12V / DC 24V |
| Beam Angle | 160° - 180° |
| IP Rating | IP20 / IP65 / IP67 / IP68 |
| Adhesive | 3M adhesive backing |

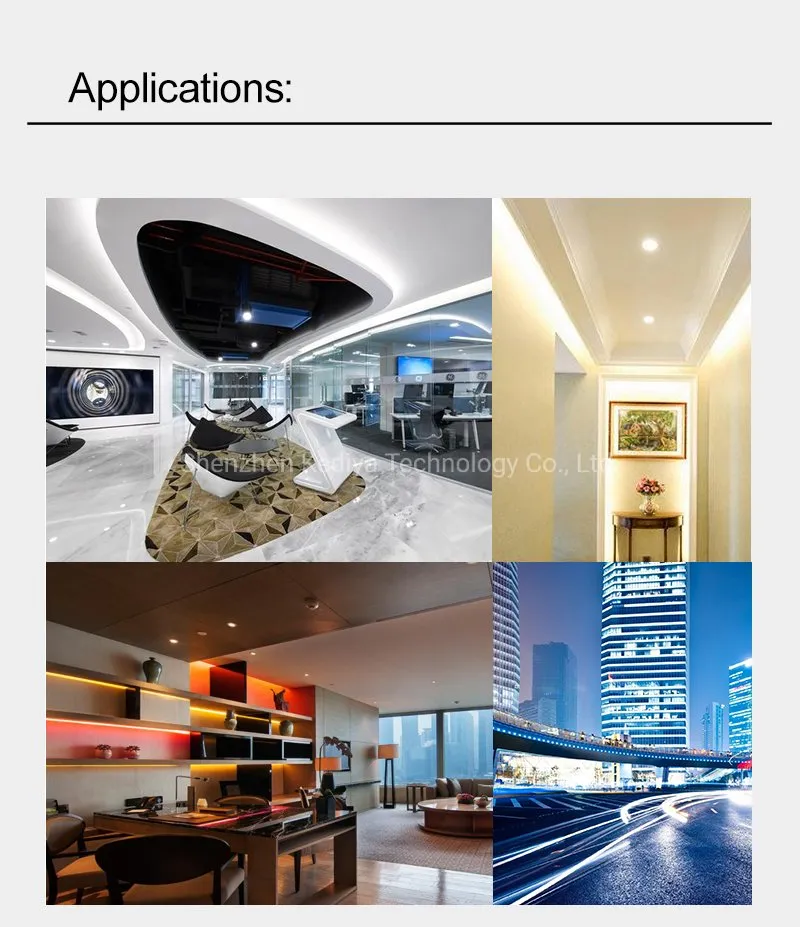

Applications
- ◈Architectural decorative lighting
- ◈Archway, canopy and bridge edge lighting
- ◈Hotel, theater and aircraft cabin mood lighting
- ◈Concealed and Cove lighting
- ◈Retail shops & display lighting
Reliability & Installation
| Test Item |
Test Conditions |
Note |
| Thermal Shock | -25ºC to 100ºC | 300 cycles |
| Life Test | Ta=25ºC | 1000 hrs |
| Temperature Humidity | Ta=85ºC, RH=85% | 1000 hrs |
Frequently Asked Questions
How do you ensure high quality?
We maintain strict quality control with 100% on-line and final inspections. Our production processes are certified under ISO9001:2015 and ISO14001:2015 standards.
Can I get a sample for testing?
Yes, we can provide samples for quality evaluation. Please contact us with your express account details for freight collection.
Do you offer customization services?
Yes, we provide professional OEM and ODM services, including custom lengths, power ratings, PCB widths, and personalized packaging.
What is the typical shipping time?
Standard orders are typically delivered within 3-5 working days via express carriers like DHL, FedEx, or UPS. Large orders are negotiable.
What is the warranty period?
We offer a 2-5 year warranty on our COB LED strip products. During this period, any quality issues will be addressed through repair or replacement.
What are the installation requirements?
Ensure the power supply is 80% of the strip's total power. Pay attention to polarity and avoid bending the strip at a diameter less than 60mm to prevent PCB damage.
