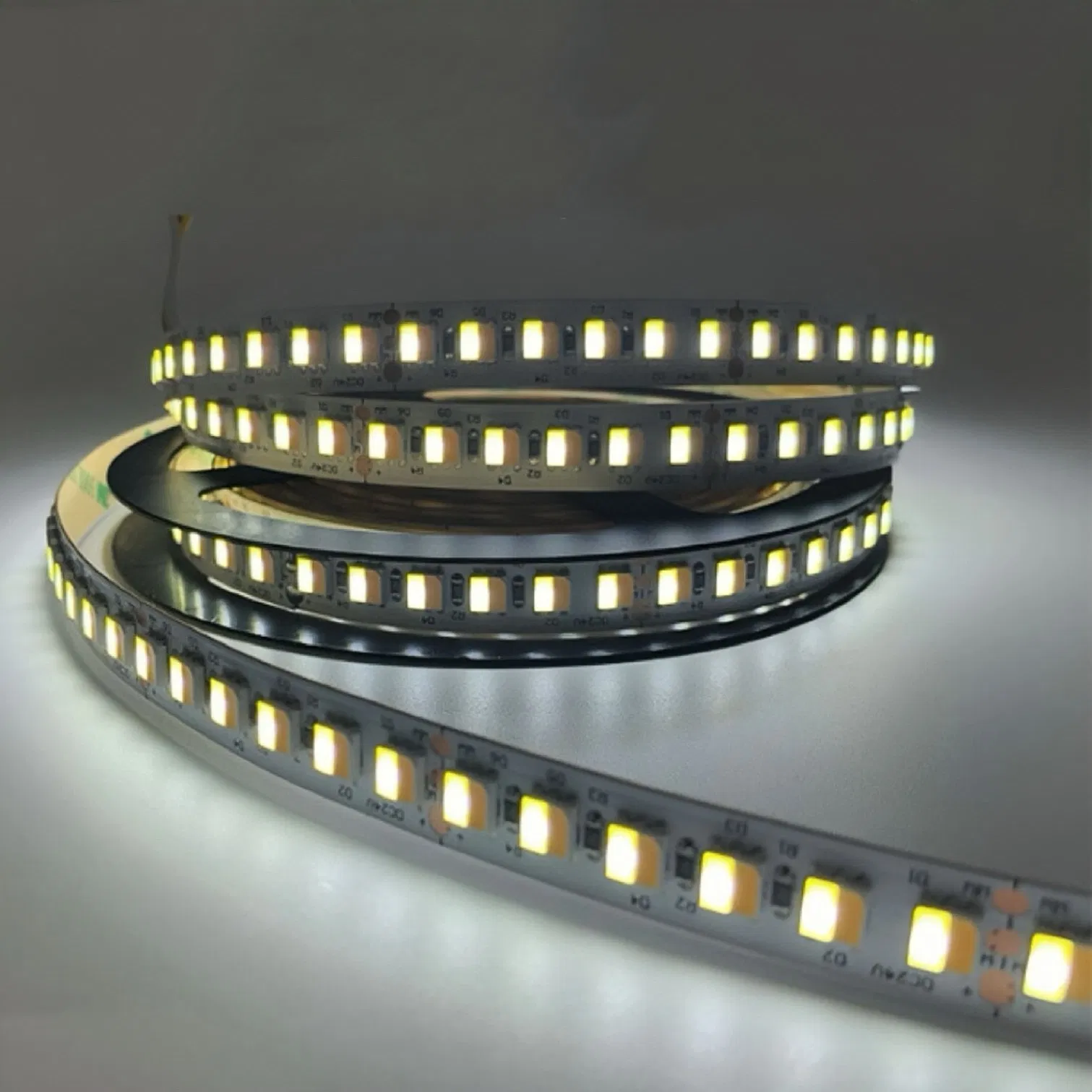

| Model NO. | Dual Color SMD 5050 LED Strip |
| Voltage | 12V/24V |
| IP Rating | IP65/IP67/IP68 |
| LED Quantity | 60LEDs/120LEDs/140LEDs/240LEDs/Customizable |
| Working Lifetime | 50,000 Hours |
| Warranty | 3 Years |
| Working Temp | -25° to 45°C |
| Ra | Ra90 |
| PCB Width | 8mm/10mm |
| Production Capacity | 500,000m/Month |

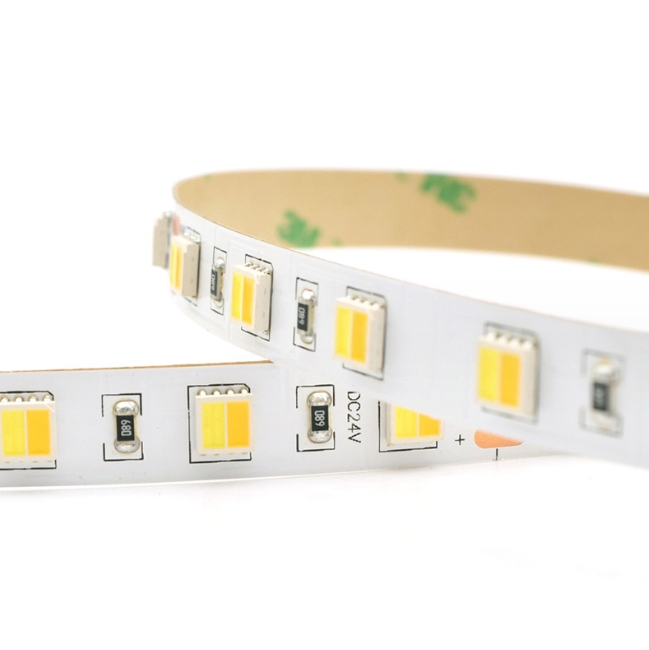

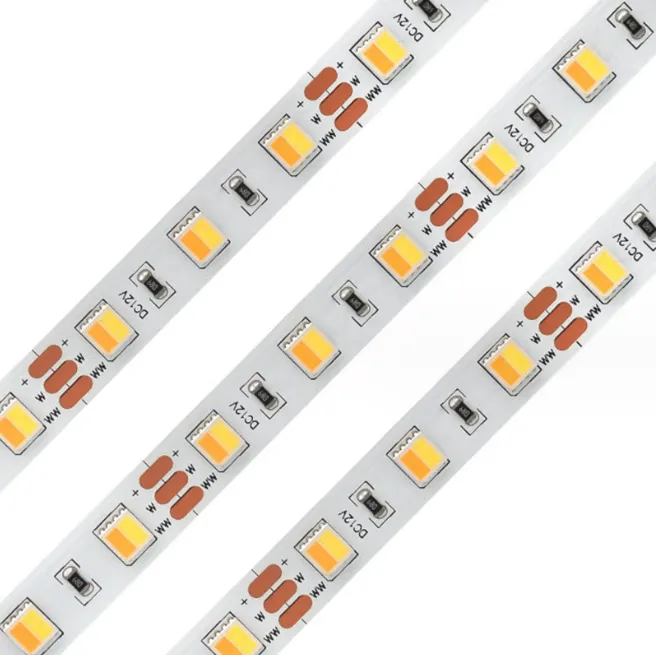

Using high-quality resistors, the light strip is flexible. The resistor is arranged horizontally and welded to avoid falling off damage caused by bending. The light strip can be bent at will without deformation.

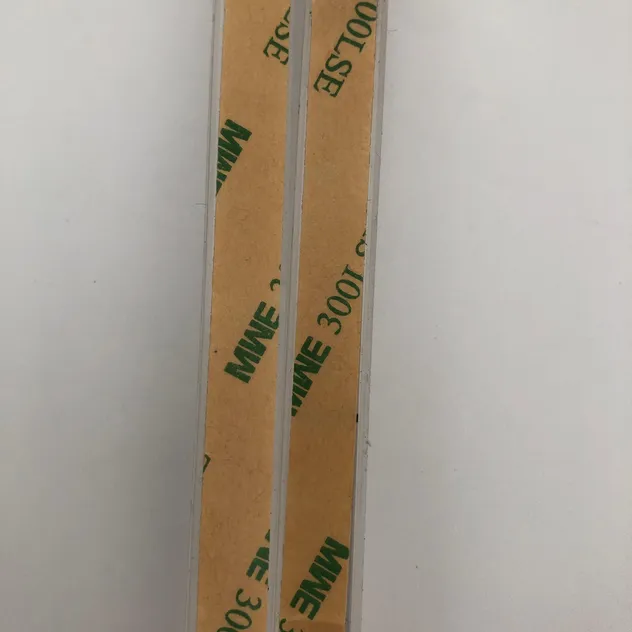

The 3M adhesive backing has industrial-grade adhesion, stable and durable (-40°C to +120°C). Easy to install without professional tools.

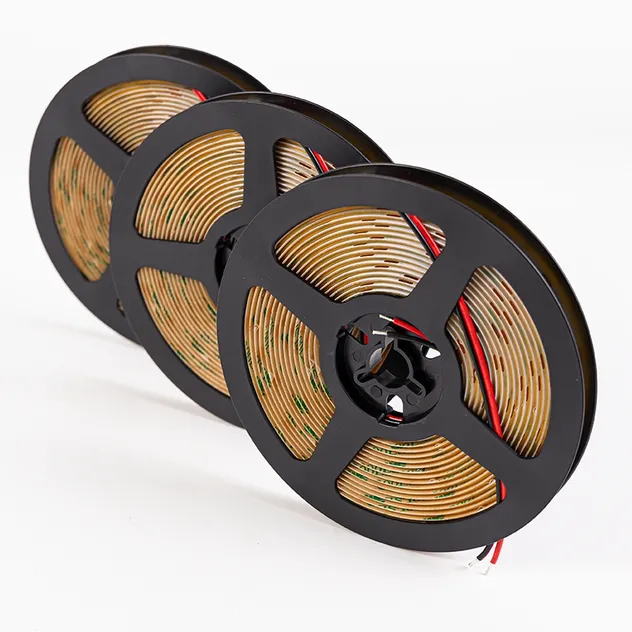

Packaged in an electrostatic bag + reel for all-round protection of the LED chip and driver circuit, ensuring dustproof and moisture-proof storage.

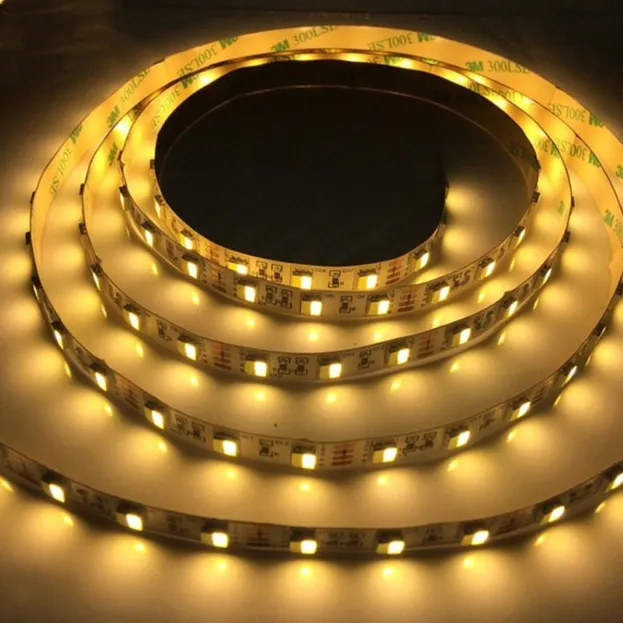

Delivers 20-24 lumens per chip (up to 1800LM/m) with consistent color mixing, eliminating hotspots.
Integrated copper-core PCB reduces thermal resistance by 40%, extending lifespan to 50,000 hours.
Supports PWM/DALI/Zigbee protocols for seamless dimming and tunable white (2700K-6500K).
| Feature | Specification |
| Product Name | 5050 Dual Color LED Strip Light |
| IP Grade | IP20/IP65/IP67/IP68 |
| Power | 10-22W/M & Customizable |
| Material | LED + FPCB |
| Voltage | 12V/24V |
| PCB Width | 8MM/10MM |
| Light Efficiency | 160LM/W |

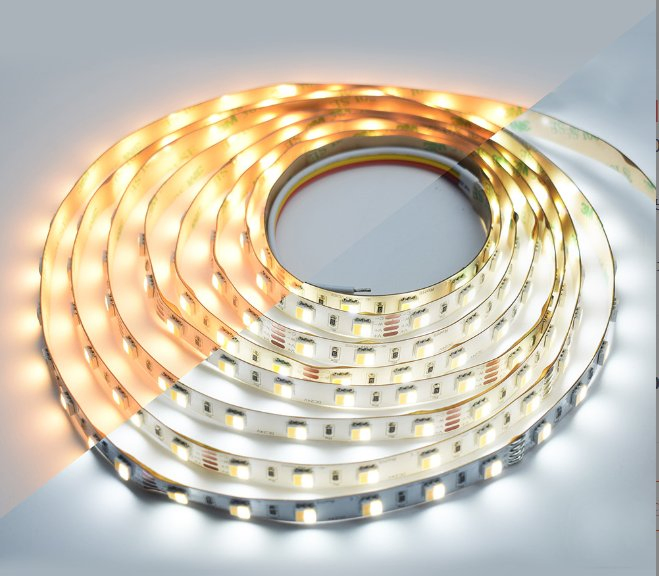

The color temperature can be customized between 1800K and 6500K. It can be dimmed through a controller to meet various lighting requirements for different environments.

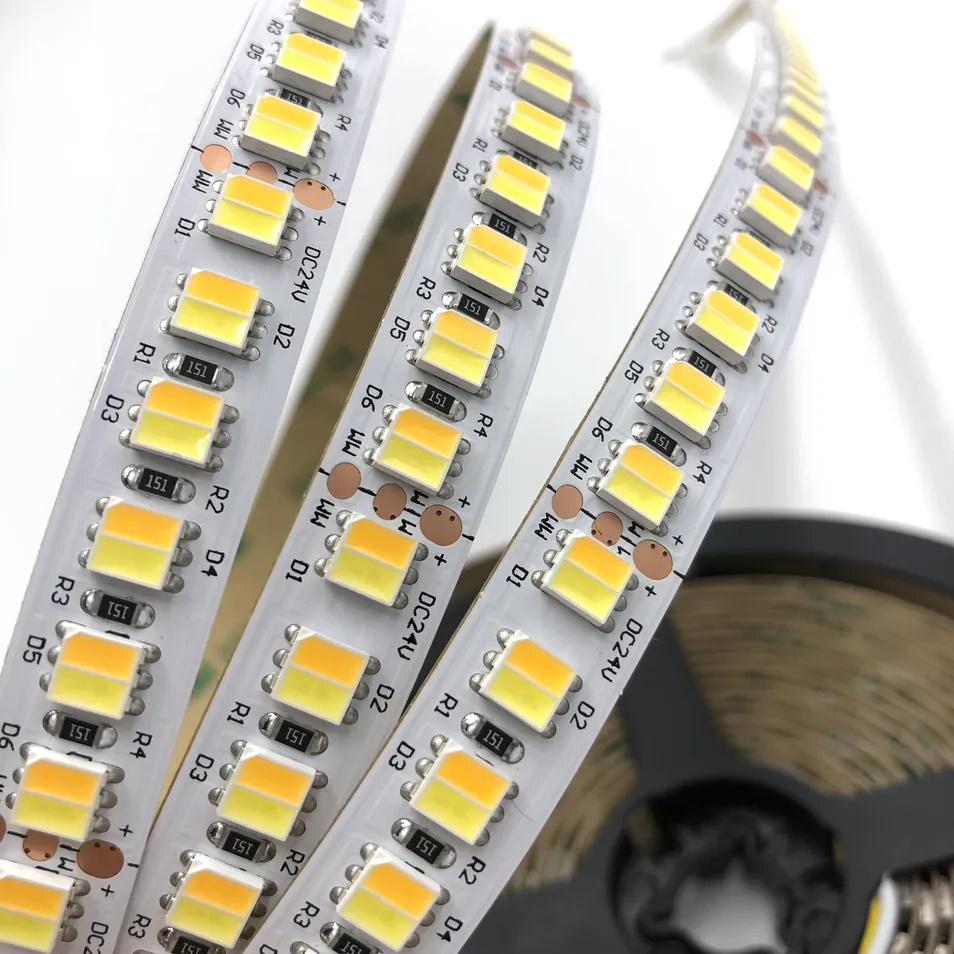

High-Brightness Lamp Beads

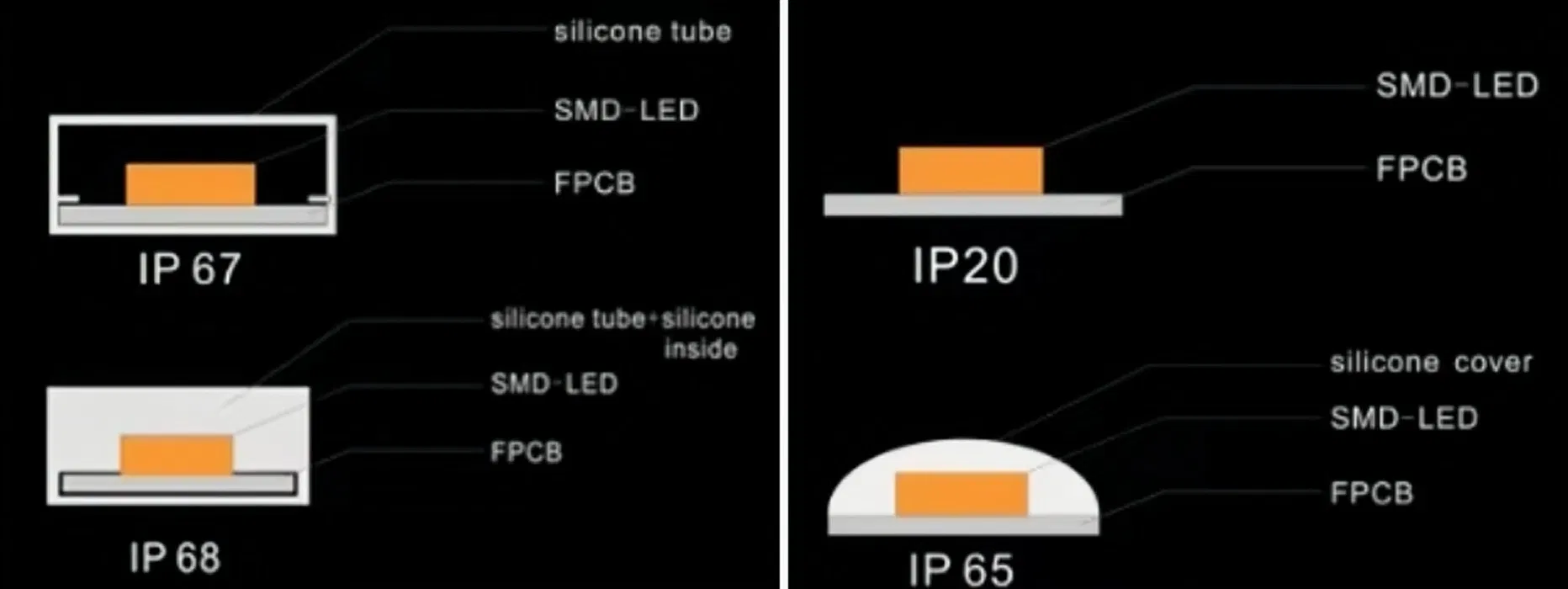

Versatile IP Ratings
Copper purity ≥99.95%, providing 15% higher conductivity than ordinary wires. UV resistant and adaptable to harsh environments, ensuring safe and stable electricity conduction.

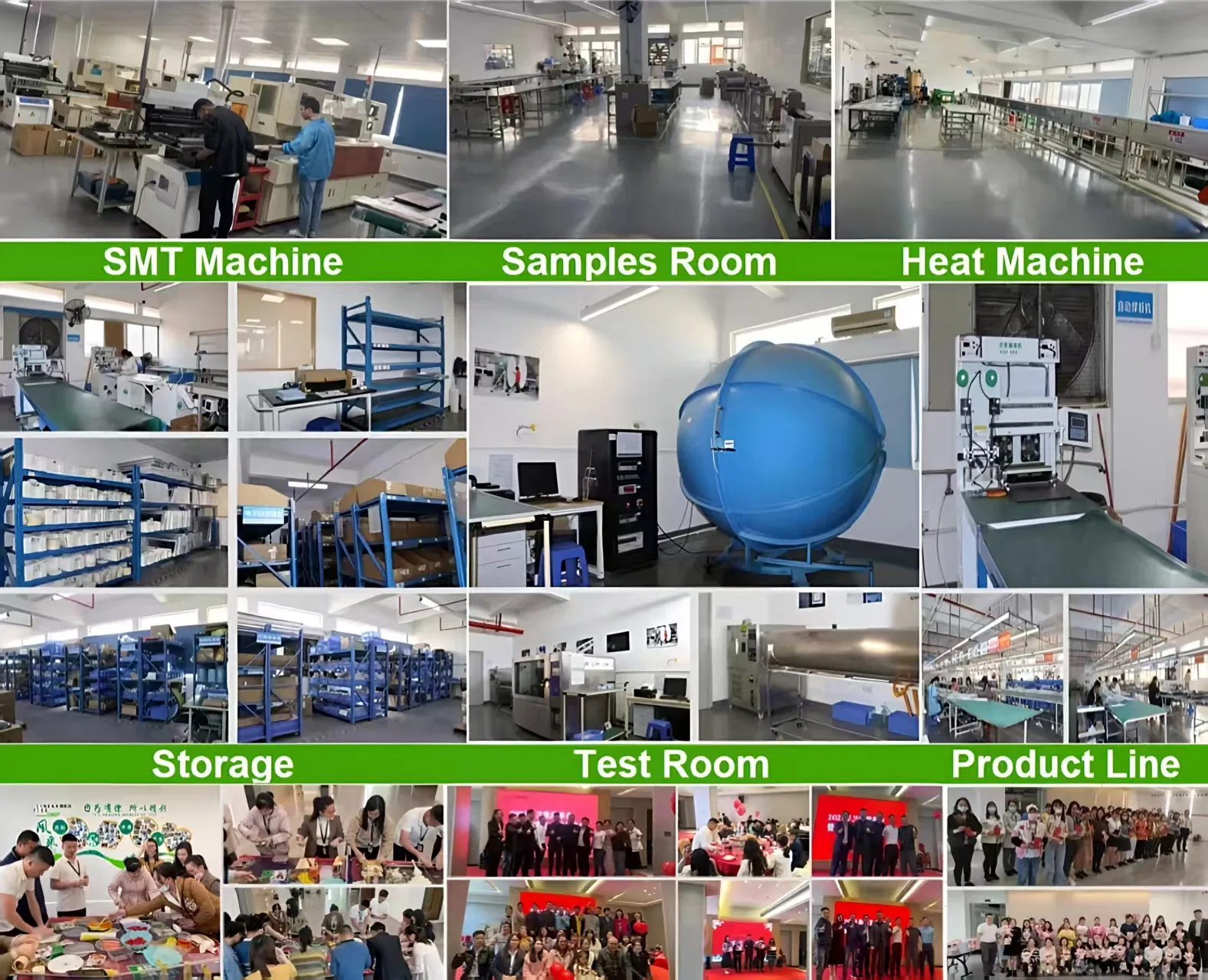

Our production base is equipped with industry-advanced manufacturing equipment and is ISO9001 certified. More than 40 products hold national patents. All products pass CCC, CQC, CE, and RoHS inspections. We focus on LED technology innovation, providing integrated solutions for outdoor, indoor, neon, and intelligent lighting.
