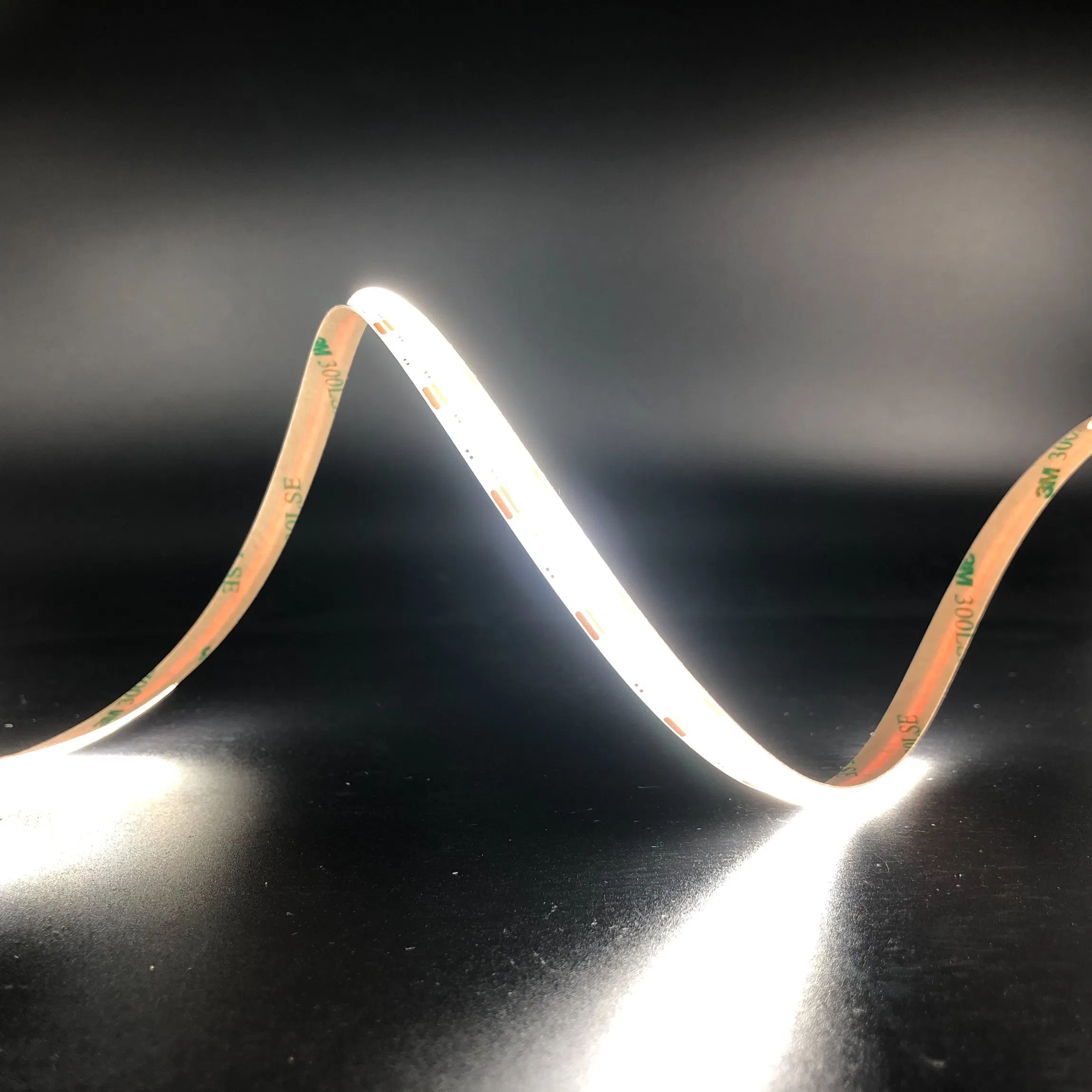

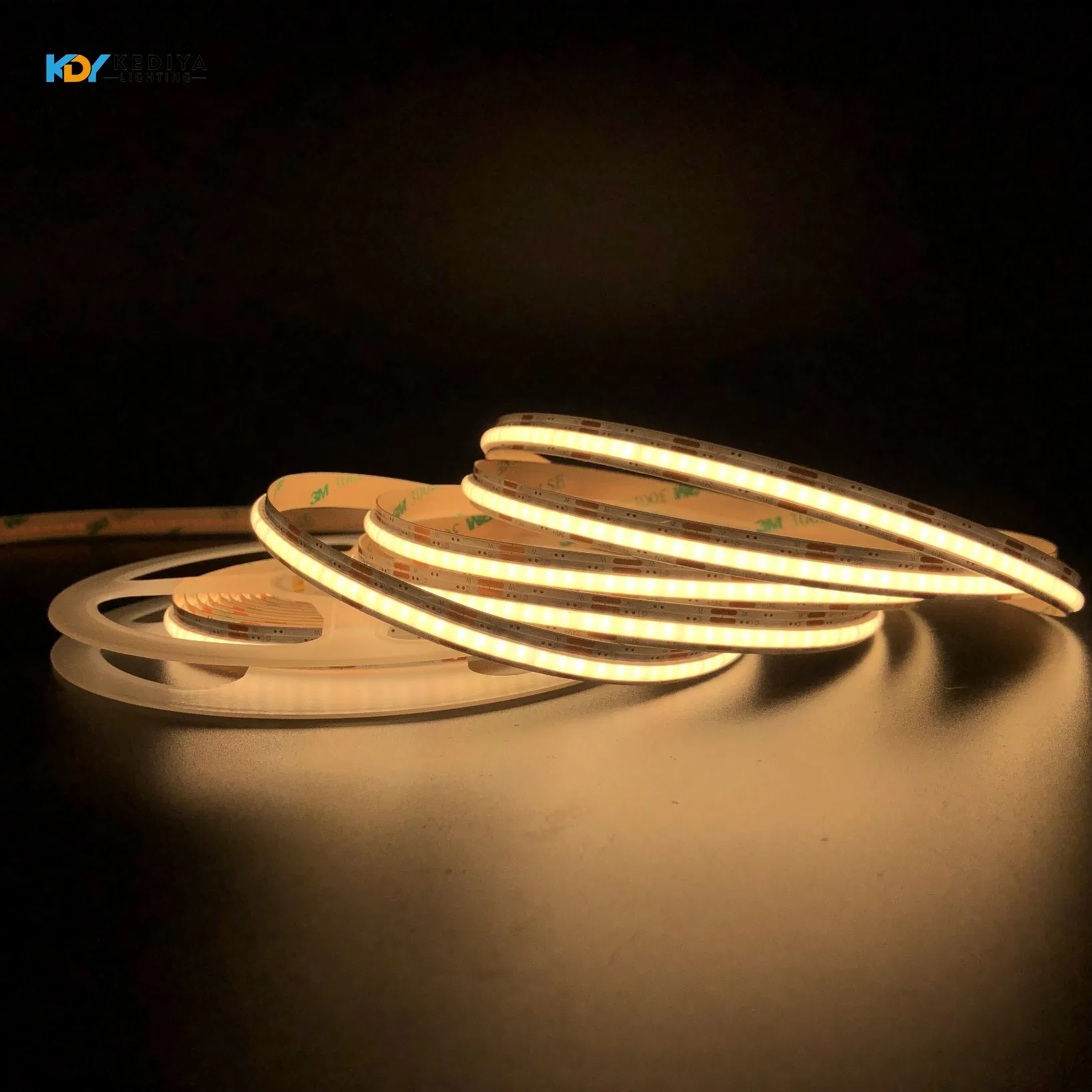

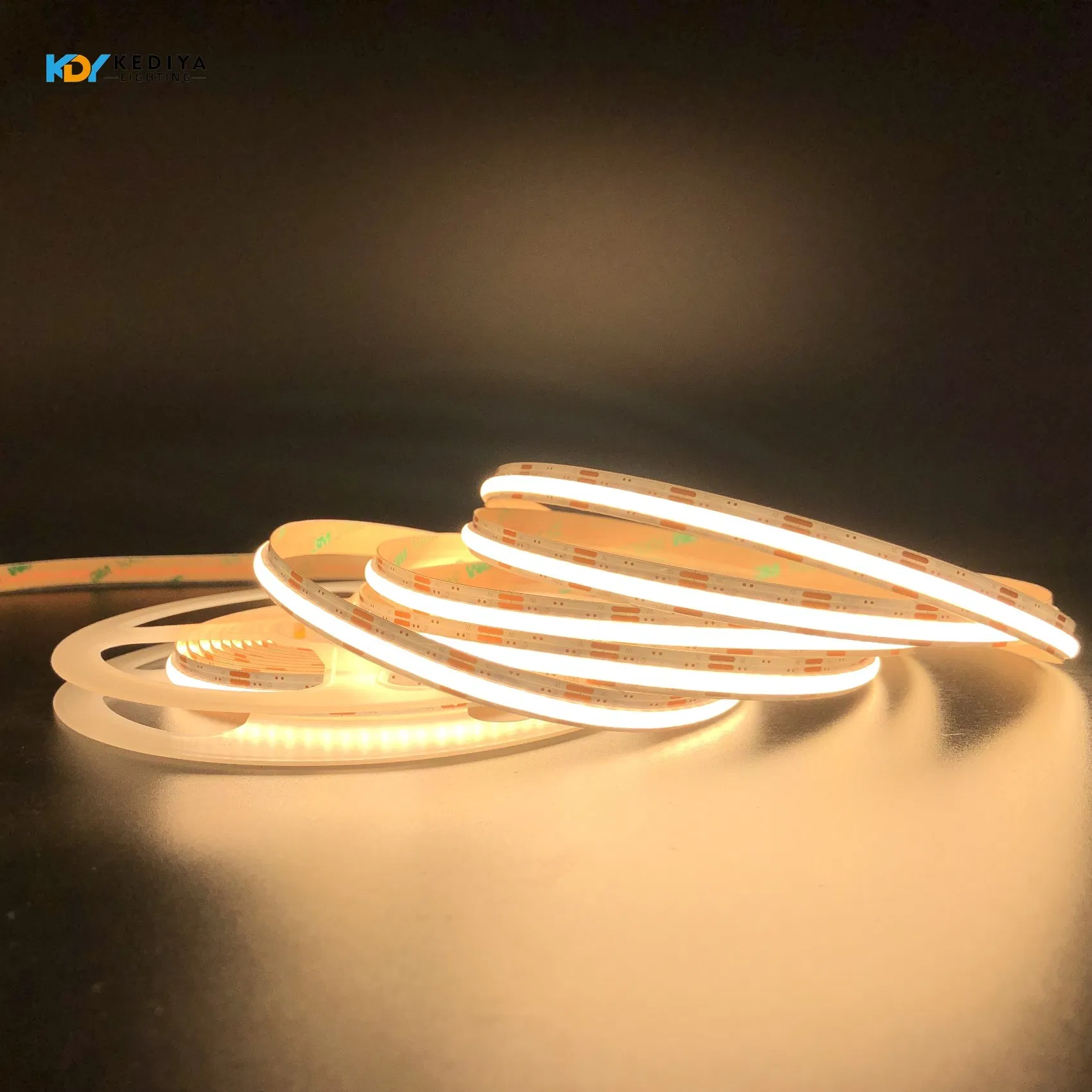

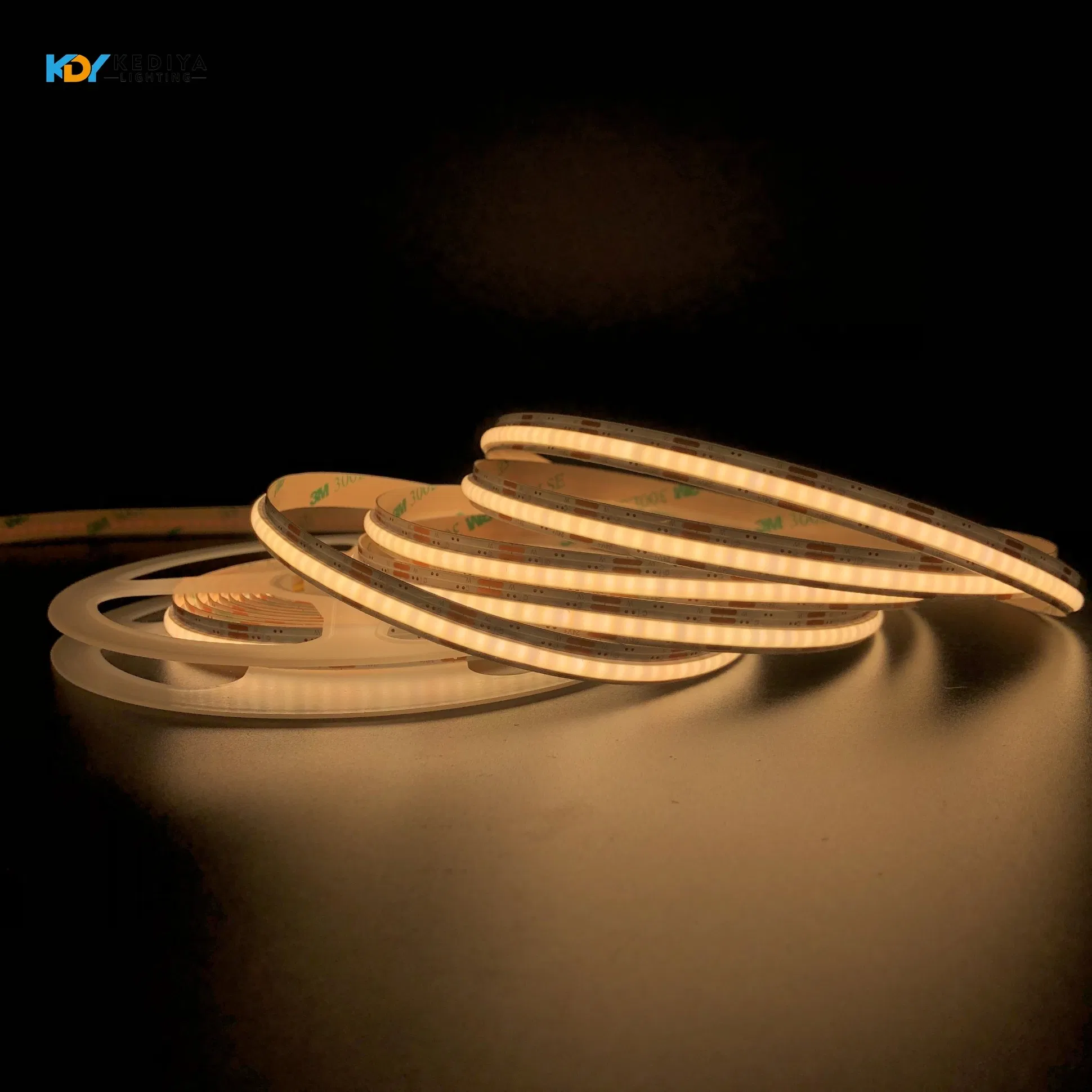

Flexible Tunable White LED Strip Light 24V CCT 2700K-6500K Dimmable LED Tape Roll

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
KDY-COB576CCT
Emitting Color
CCT (Tunable White)
Voltage
12V / 24V
IP Rating
IP20/IP65/IP67/IP68
Wattage
14W/M
CRI (Ra)
>90
LED Quantity
576 LEDs/M
Beam Angle
180 Degree
PCB Material
Double-Sided Coated Pure Copper
Warranty
3-5 Years
Lifespan
50,000 Hours
Specification
5000*8mm/roll
Product Description

This CCT LED Strip Light features adjustable color temperature from 2700K warm white to 6500K cool white, allowing users to freely switch lighting ambience for different environments. Designed with a flexible, cuttable LED tape structure, it is suitable for home, commercial, retail, and architectural lighting projects. With smooth dimming control and stable performance, it delivers a comfortable and uniform lighting experience.

Tunable CCT 2700K-6500K Easily adjust from warm white to cool white lighting for any mood.
Smooth Dimming Fully compatible with PWM dimmers and CCT controllers for flicker-free control.

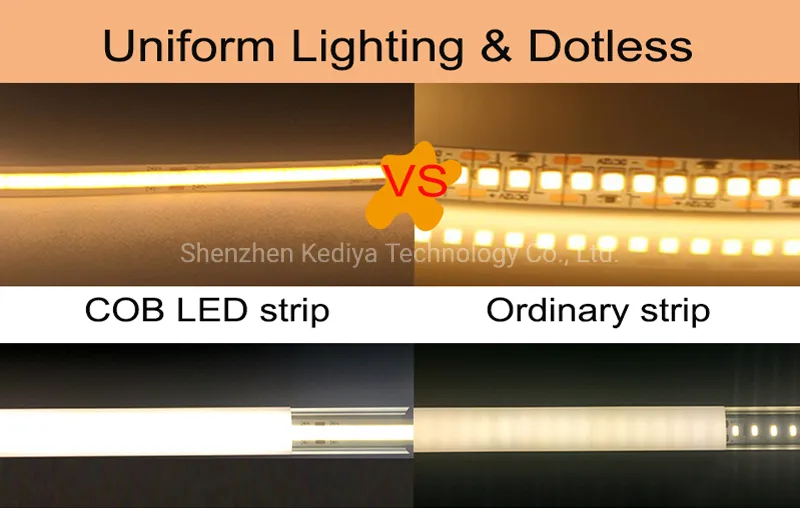

High Quality COB Uniform, dotless lighting effect with high luminous efficiency and 99.99% pure gold wire.

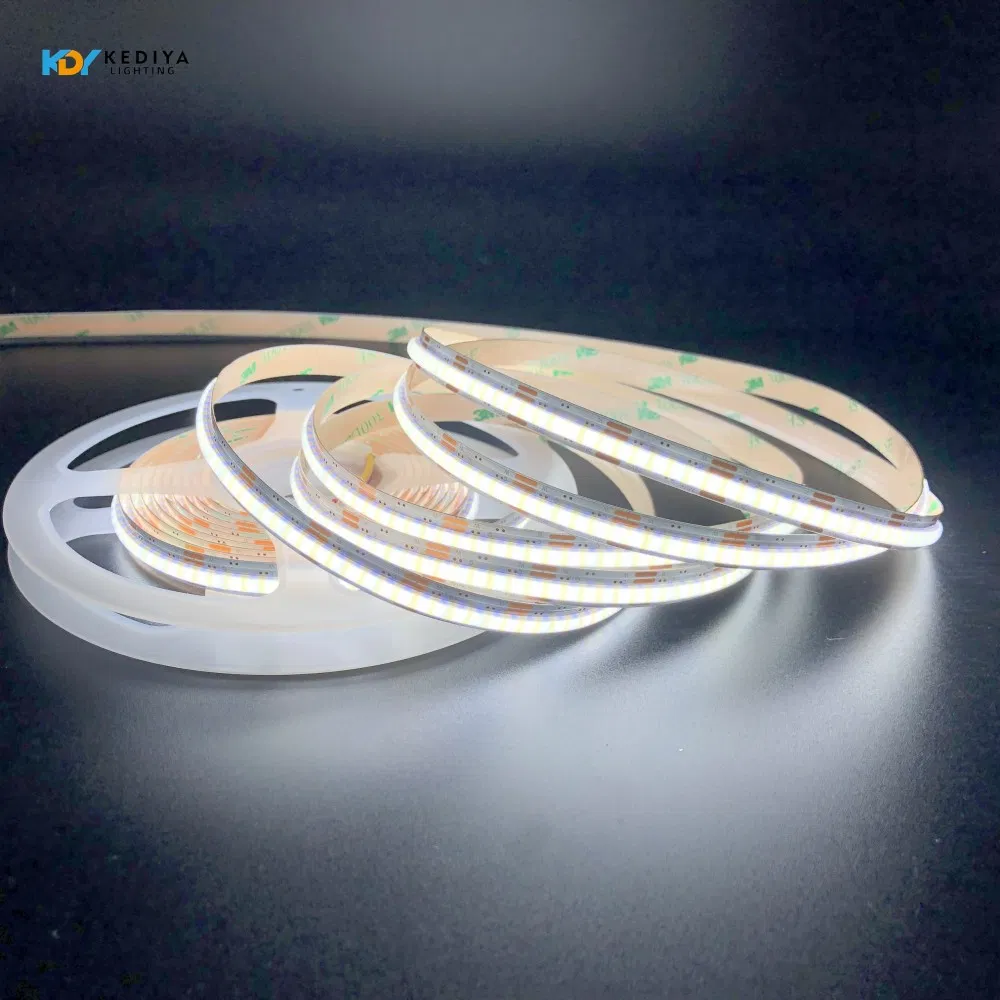

Tunable White LED Strip
Technical Parameters
Parameter Specification
Product NameCCT LED Strip Light
VoltageDC 24V
Color Temperature2700K - 6500K
LED TypeCOB
CRIRa ≥90
Beam Angle180°
Power14W per meter
LED Density576 LEDs per meter
PCB Width8mm
Cutting UnitEvery 25mm
IP RatingIP20 / IP65 / IP67 / IP68
Lifespan≥50,000 hours

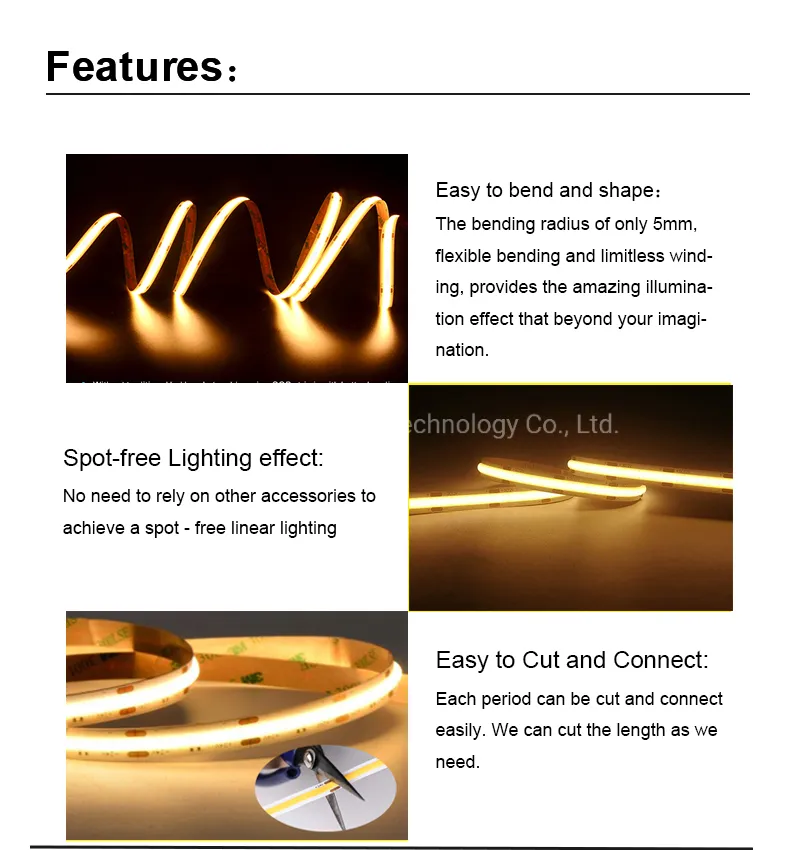

Key Features

Spot-free Lighting Effect: No need for additional accessories to achieve a seamless linear lighting effect.

Flexibility: Extremely easy to bend and shape for creative installations.

Versatile Protection: Available in multiple waterproof methods: Silicone coating (IP65), Heat shrink (IP65), Silicone tube (IP67), and Full injection (IP68).

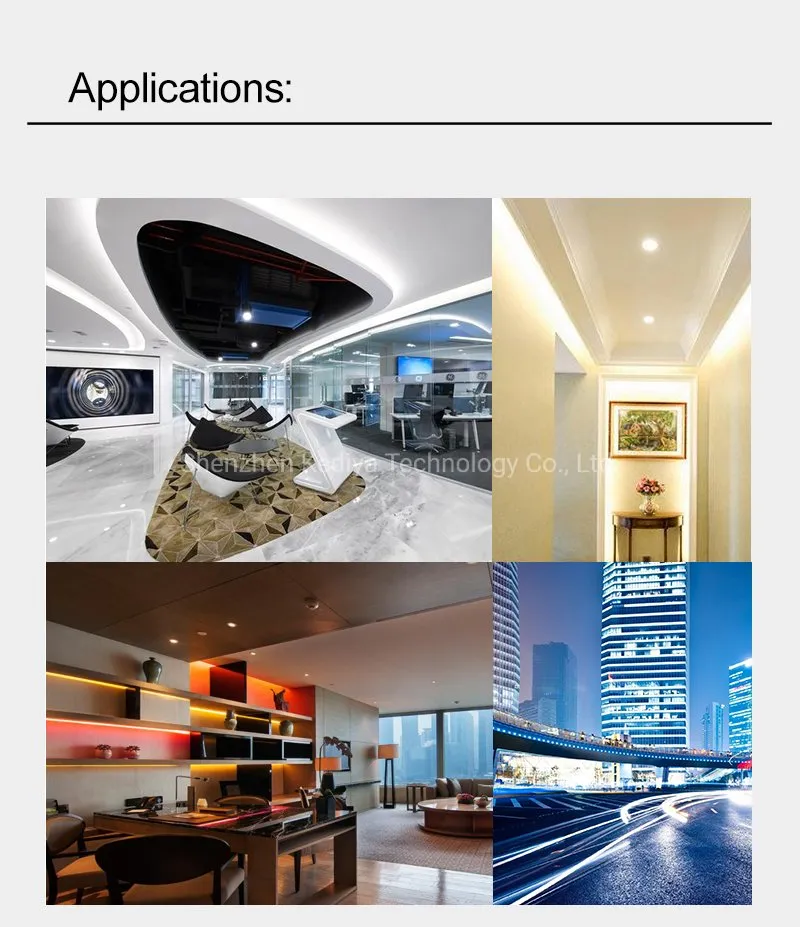

Applications
Application 1
Application 2
Application 3
Application 4
Application 5
  • Architectural decorative lighting
  • Archway, canopy and bridge edge lighting
  • Amusement park and theater mood lighting
  • Emergency hallway and walkway lighting
  • Stairway accent lighting
  • Concealed and Cove lighting
  • Backlighting for signage letters
  • Edge-lit acrylic panel lighting
Installation Guidelines
  1. Choose a power supply where the total strip power is approximately 80% of the supply's capacity.
  2. Standard length is 5 meters/roll to ensure uniform brightness.
  3. The adhesive tape on the back works best on glass, metal, and plastic; test adhesion on wood or cloth first.
  4. Maintain a minimum bending diameter of 60mm to avoid damaging the FPC.
  5. Ensure all connections are waterproofed with silica gel if used in damp environments.
  6. Always cut off power during installation or debugging to avoid electric shock.
Frequently Asked Questions
Q1: How do you ensure the high quality of your LED strips?
We maintain our own material production and die workshops. All workers undergo rigorous training, and we implement 100% on-line QC and final inspections. Our quality is backed by ISO9001:2015 and SGS certifications.
Q2: Can I get samples before placing a bulk order?
Yes, we can provide samples for free. Customers are only responsible for the delivery charges. Providing an International Express Account for freight collect is recommended.
Q3: Do you offer customization services?
Absolutely. We have professional designers who can provide free design services based on your specific requirements. Just send us your project details.
Q4: How long is the product warranty?
We offer a 2 to 5-year warranty on our products. During this period, any quality issues will be addressed through free repairs or replacements.
Q5: What is the typical lead time for orders?
Sample orders typically take 3-5 days. Small batch orders take 10-15 days, while delivery times for large orders are negotiable.
Q6: How are the goods shipped and how long does it take?
We usually ship via DHL, UPS, FedEx, or TNT, which typically takes 3-5 days to arrive. Air and sea freight options are also available for larger shipments.
