Basic Specifications
Model NO.
KDY-COB784RGBNW-Pixel
Product Name
COB Rgbnw Pixel 784LEDs
PCB Material
Double-Sided Coated Pure Copper
Product Description

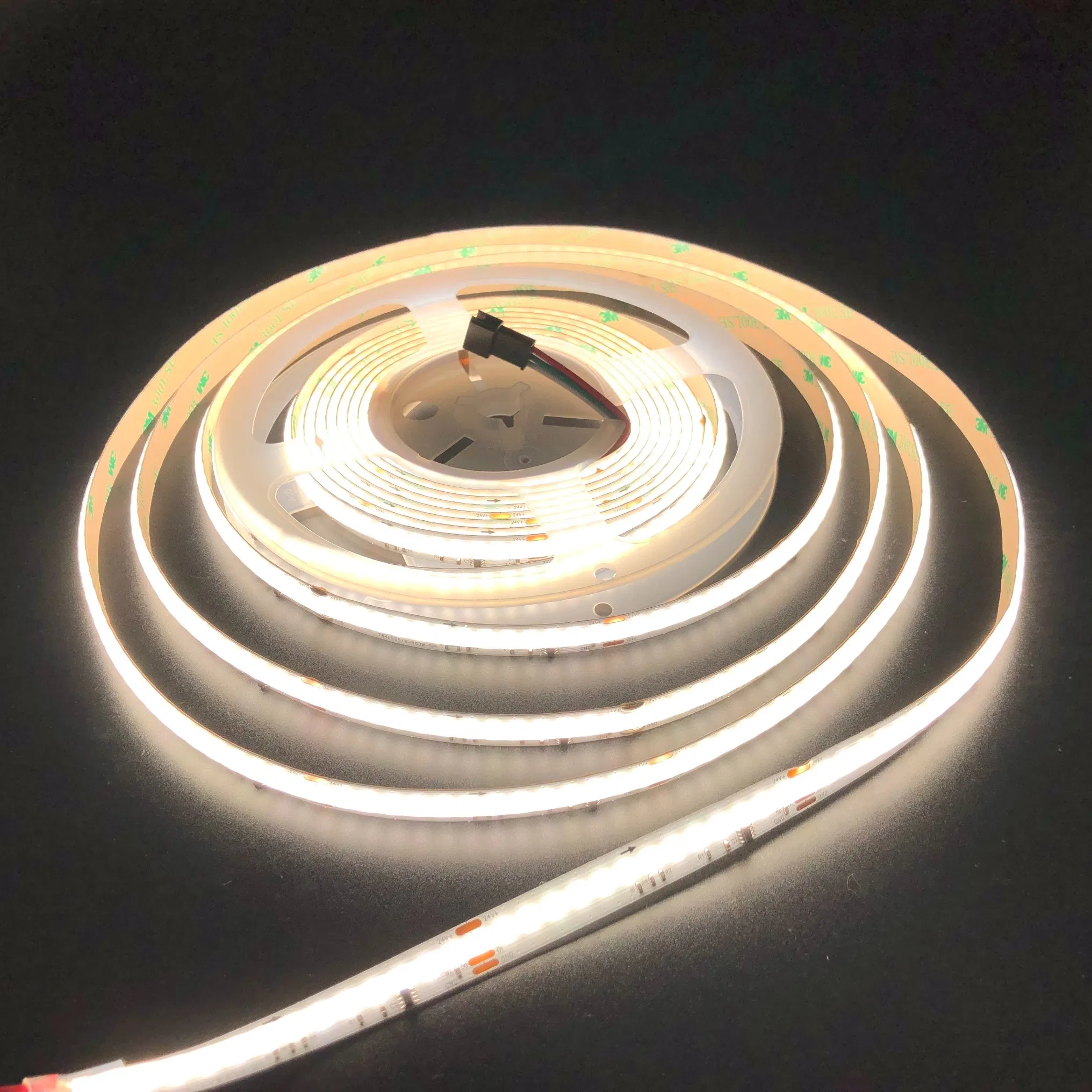

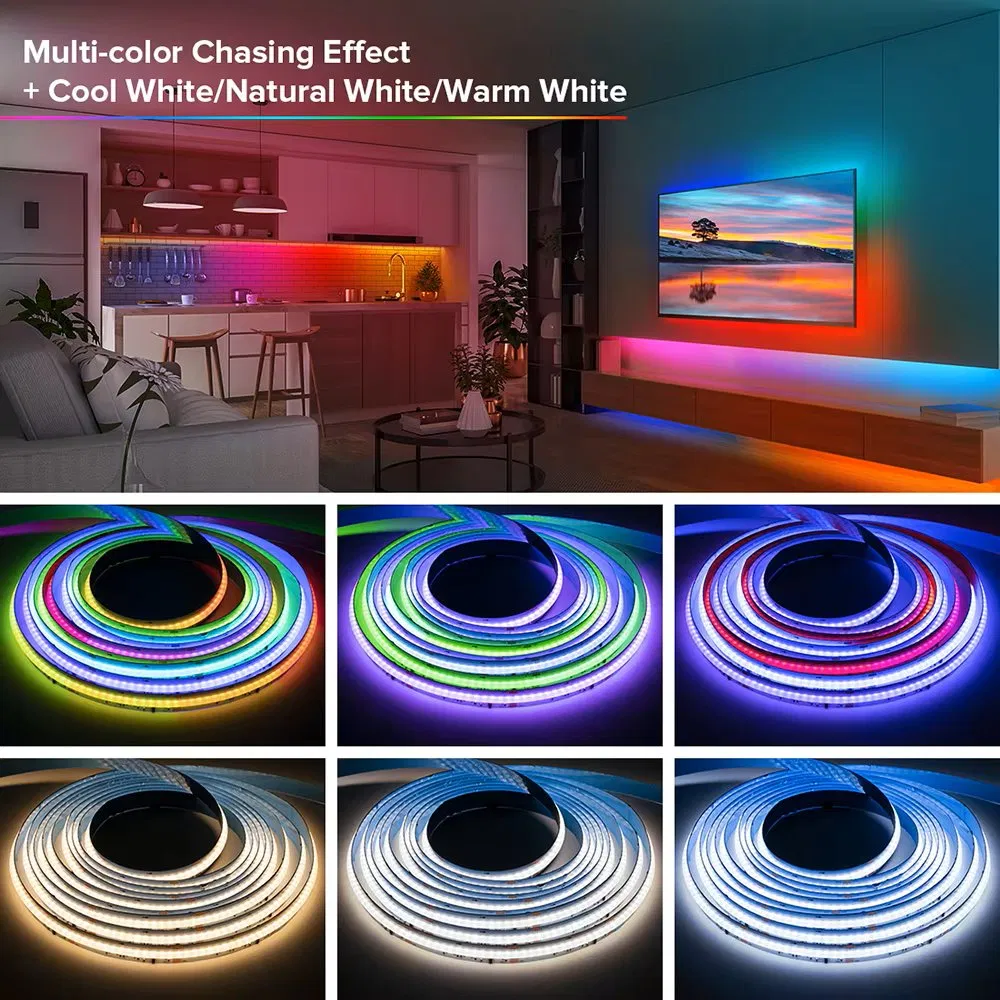

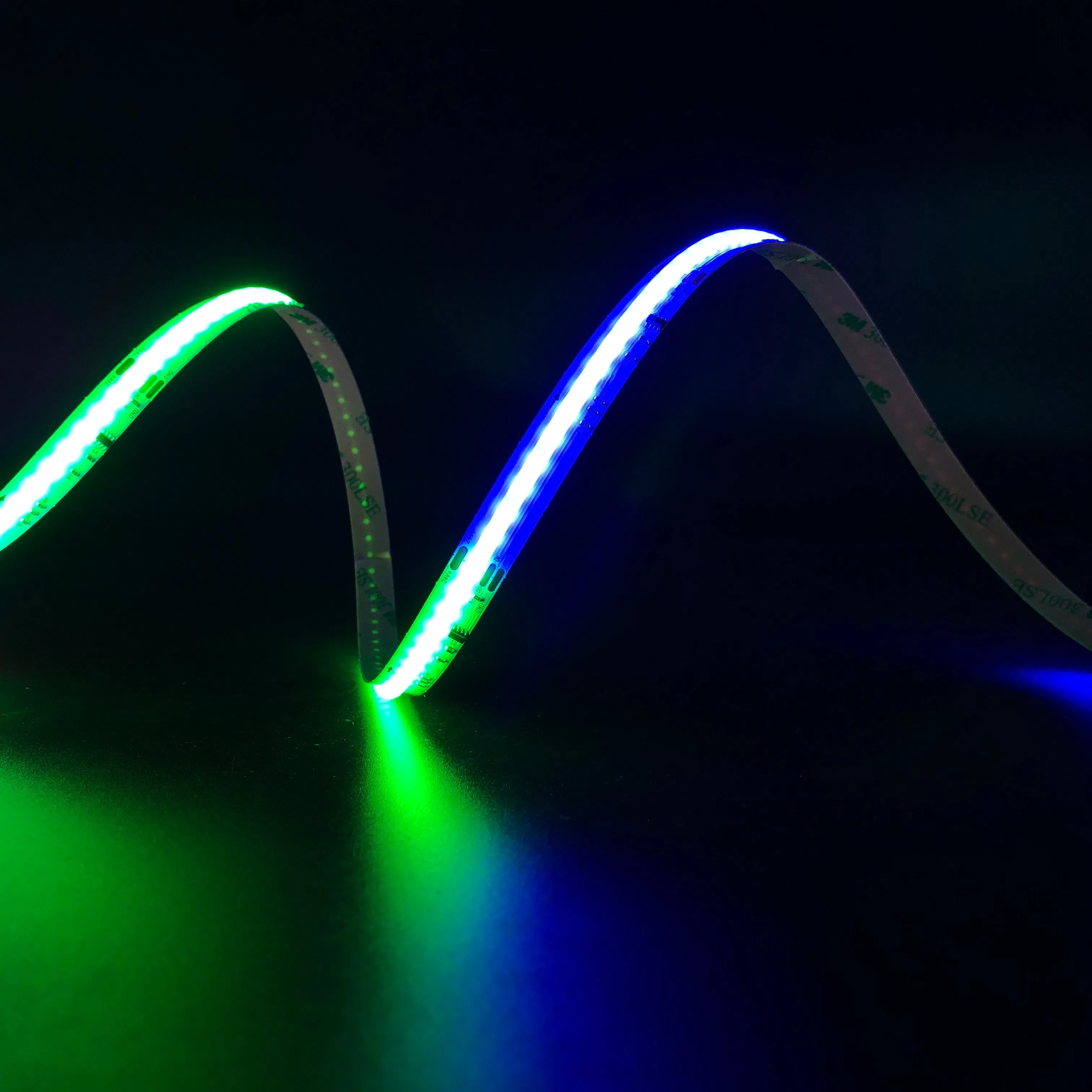

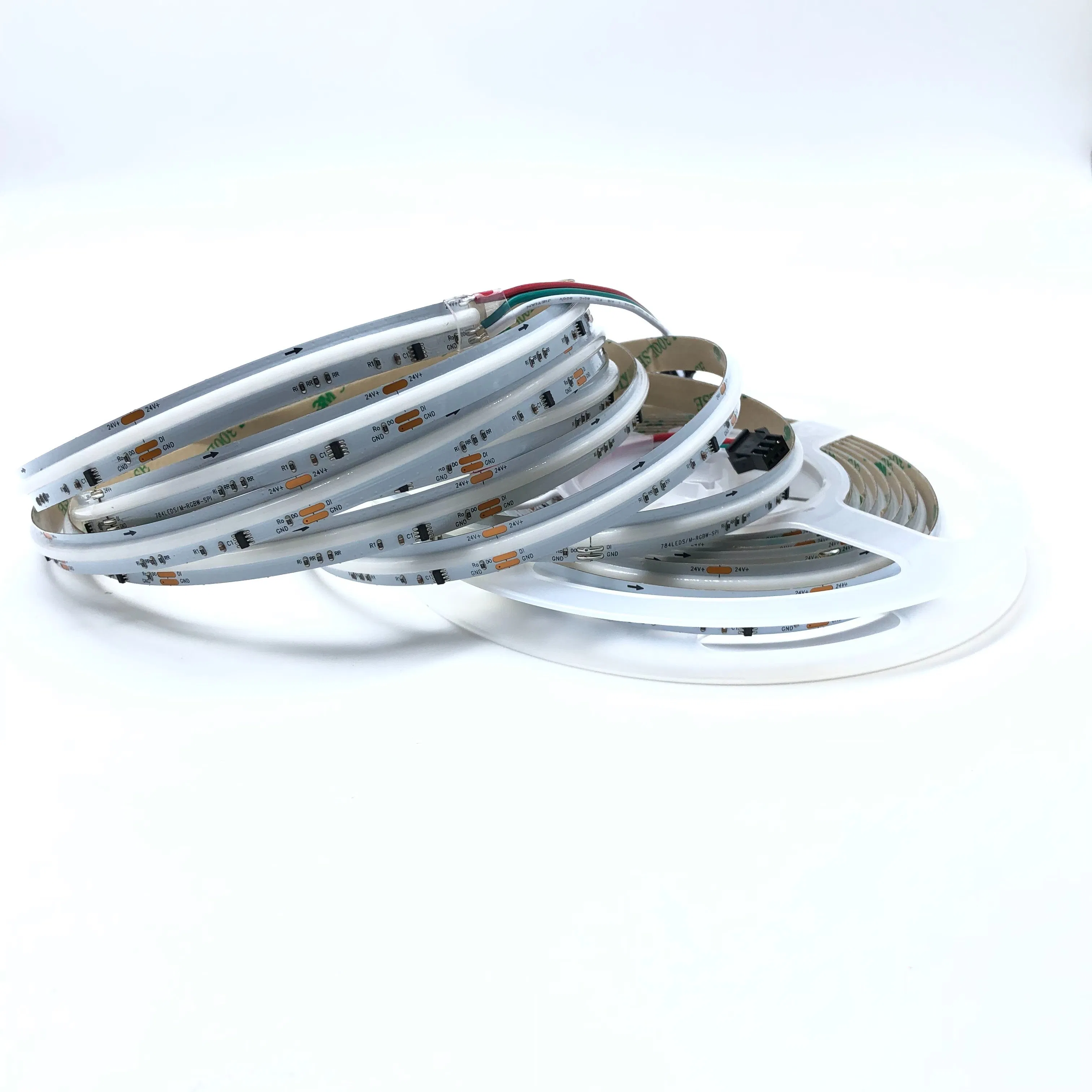

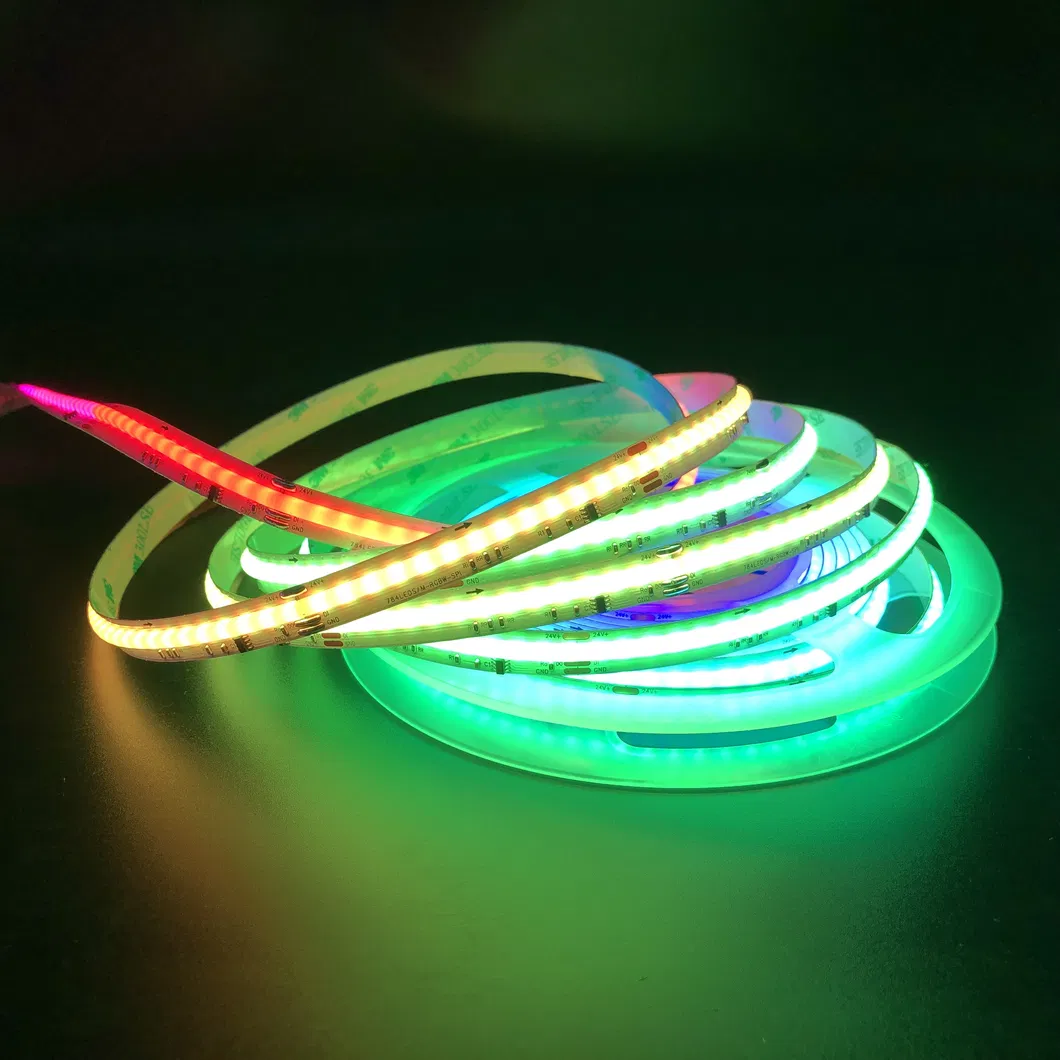

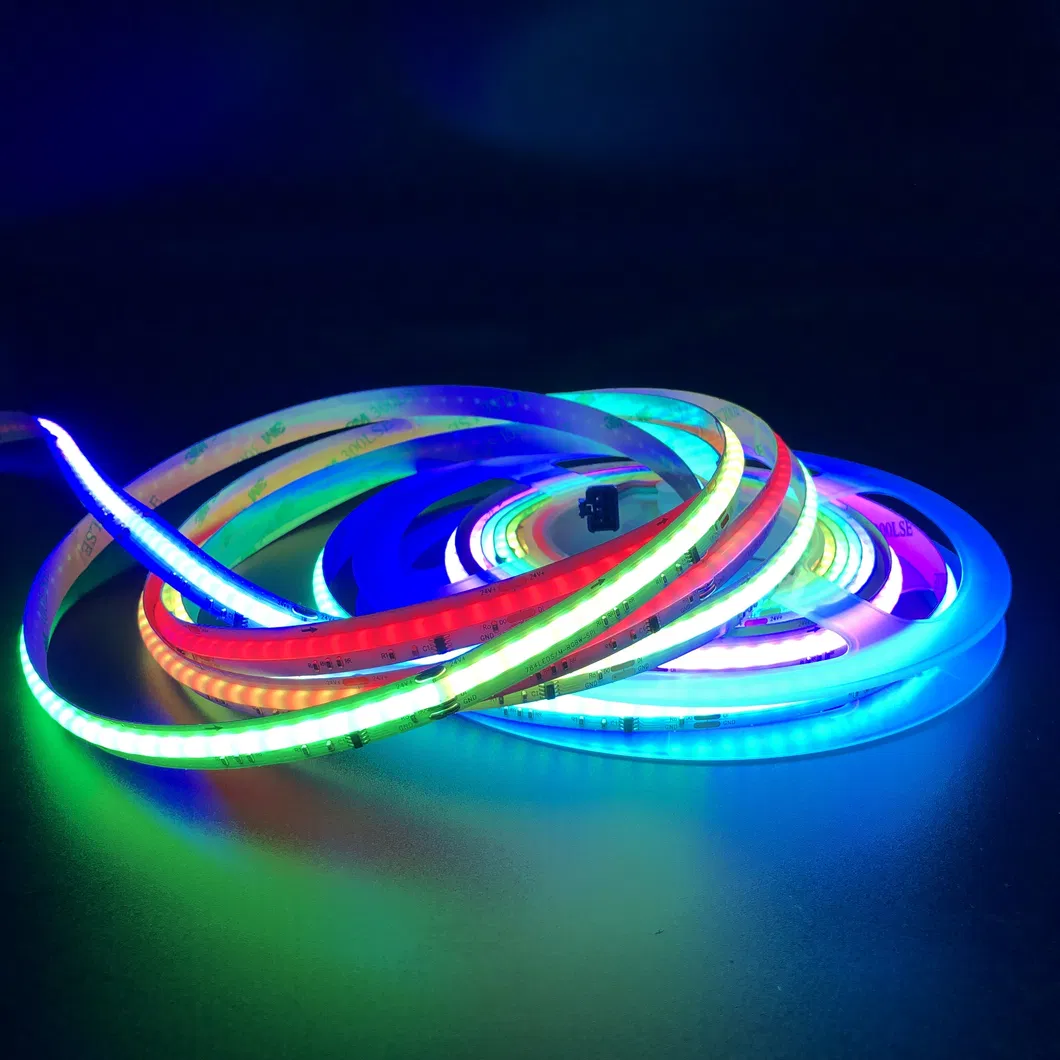

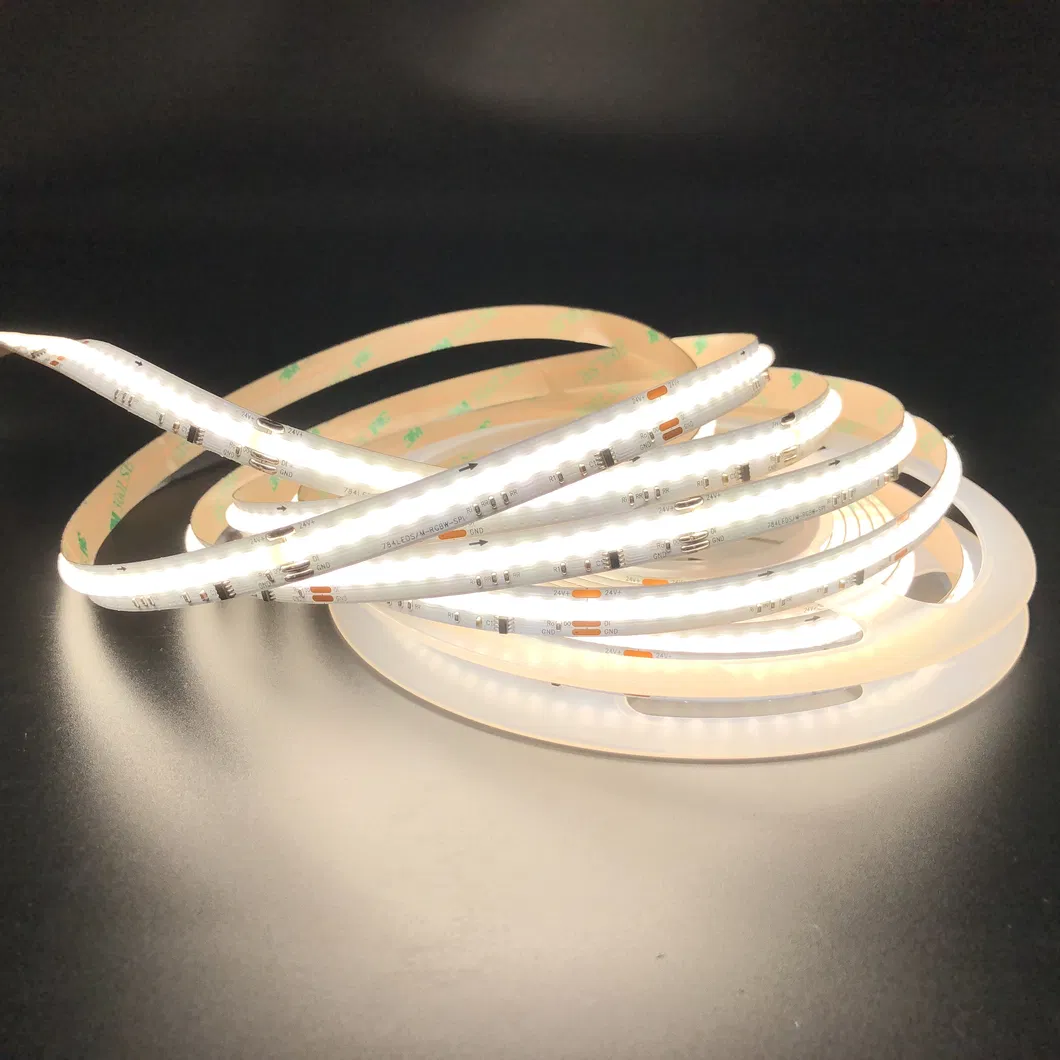

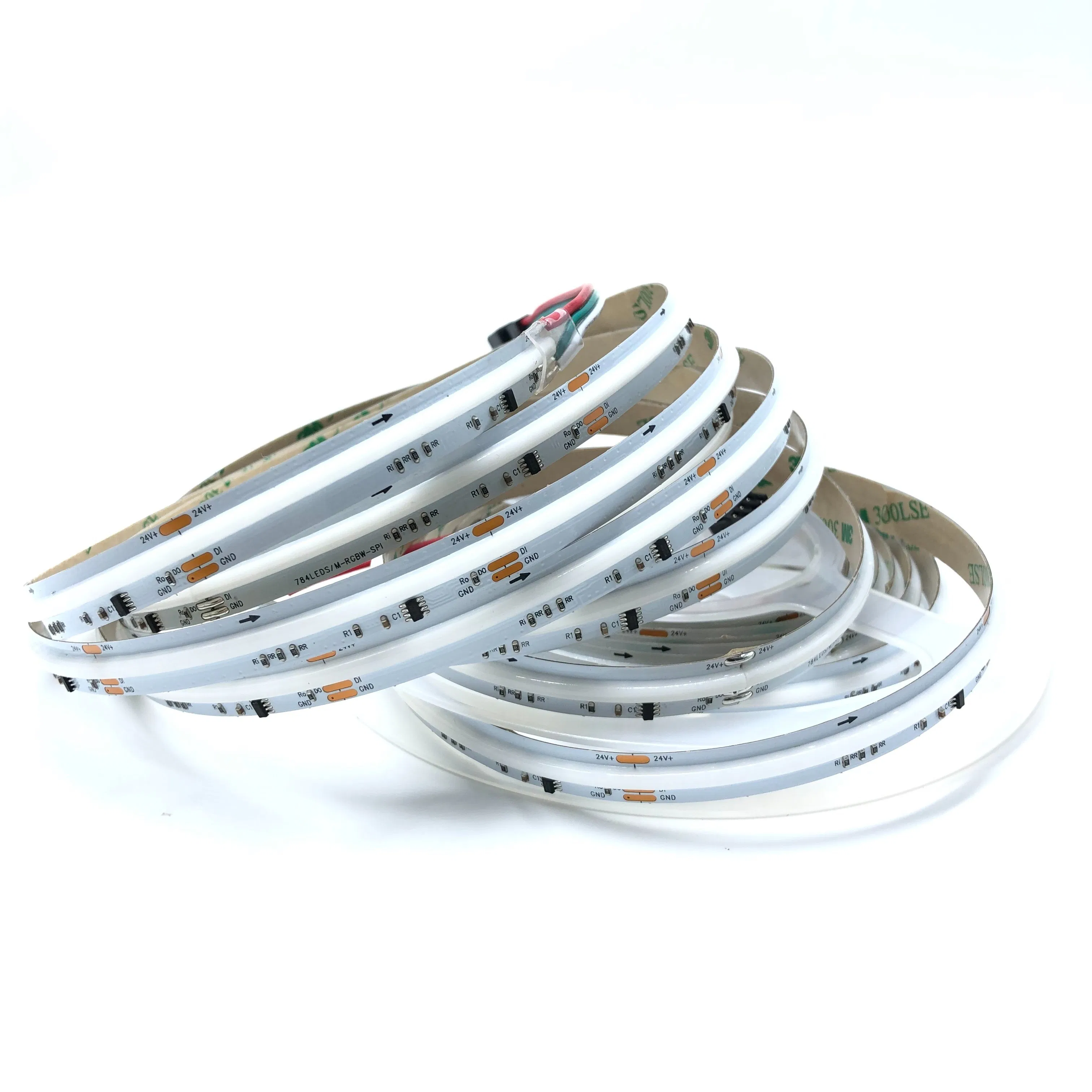

This COB Addressable RGBCCT LED Strip Light features a high-density 784 LEDs per meter addressable COB pixel design, enabling stunning dream color effects and smooth continuous lighting. Using WS2814 IC protocols, each segment can be individually controlled for dynamic lighting, gradients, chasing, and custom animations. The flexible COB LED tape supports both RGB color change and tunable white providing versatile lighting for homes, commercial displays, architectural accents, and smart installations.
| Parameter |
Specification |
| Product Name | Addressable RGBCCT COB LED Strip |
| LED Type | FCOB RGBNW Pixel |

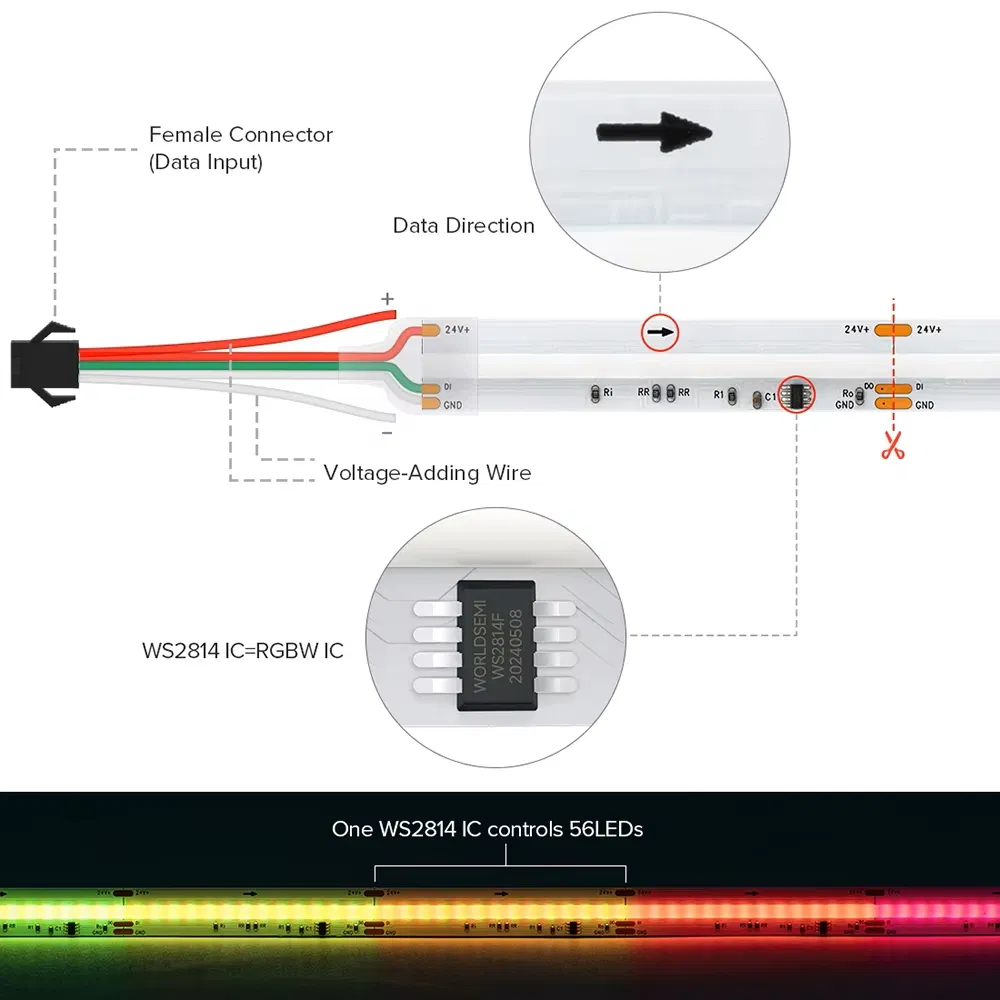

| IC Protocol | WS2814 |
| LED Density | 784 LEDs per meter |
| Input Voltage | DC 24V |
| Power | ~18-24 W per meter |

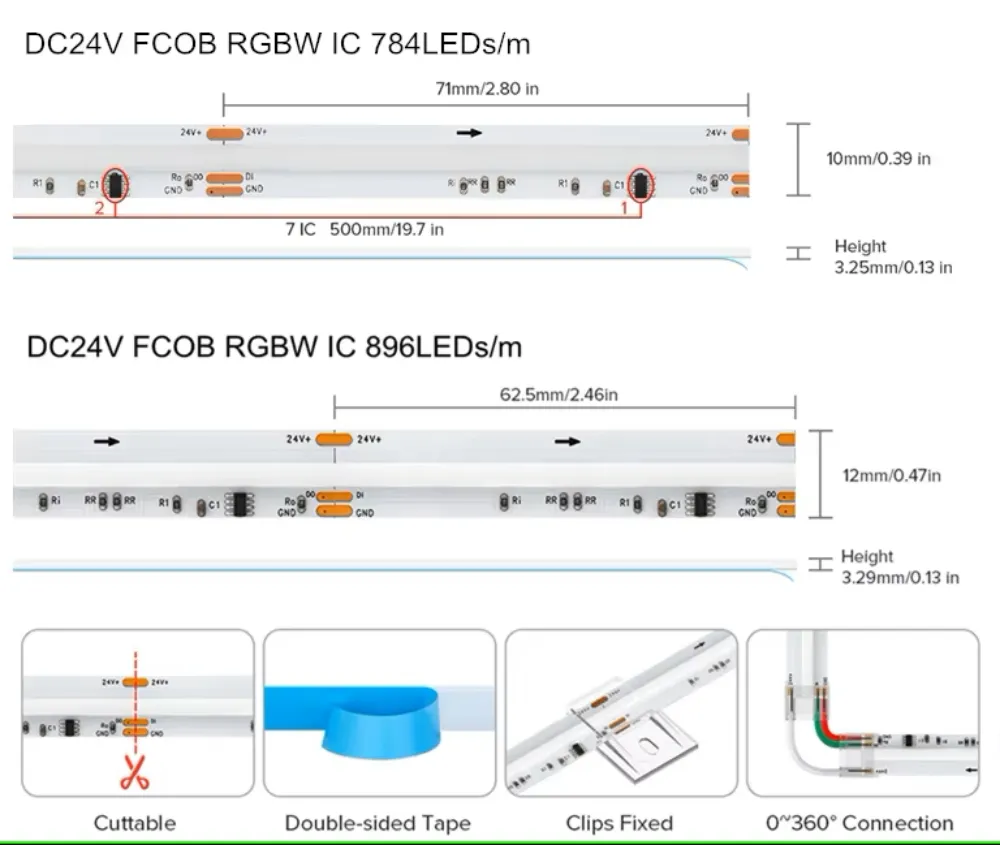

| Cutting Length | Every IC segment (≈70 mm) |
| Beam Angle | 180° |
| PCB Width | 10 mm / 12 mm |
| Waterproof | IP30 / IP65 / IP67 optional |
Key Features
✨
Led Lighting New Trend: COB strip is easy to bend and shape, providing a seamless linear light source.
🚫
Spot-free Lighting Effect: No need for extra accessories to achieve a uniform, dot-free linear lighting effect.
🏠
Indoor & Outdoor Versatility: Various waterproof methods available: IP65 Silicone coating, IP67 Silicone tube, or IP68 Full injection.
Installation Instructions
- Choose a correct power supply (Total power should be ~80% of supply capacity).
- Standard length is 5 meters/roll to maintain brightness consistency.
- Back-side adhesive tape works best on glass, metal, and plastic surfaces.
- Minimum bending diameter is 60mm to avoid FPC damage.
- Ensure waterproof protection for connectors in outdoor applications.
- Always cut off power during installation and debugging.
Applications
- Architectural decorative lighting
- Archway, canopy and bridge edge lighting
- Amusement park and theater mood lighting
- Emergency hallway and walkway lighting
- Backlighting for signage letters
- Cove and concealed lighting
- Stairway accent lighting
- Edge-lit acrylic panel lighting
Frequently Asked Questions
Q1: Are you a factory or a trading company?
We are a professional manufacturer of LED strip lights, COB strip lights, and digital pixel lights with factory-direct pricing.
Q2: How do you ensure the high quality of your LED products?
We maintain strict quality control with 100% online QC and final inspections. Our production follows ISO9001:2015 standards and our products hold CE, RoHS, and FCC certifications.
Q3: Can I get samples before placing a bulk order?
Yes, we can provide free samples for quality testing, while delivery charges are typically covered by the customer.
Q4: Do you offer custom (OEM/ODM) services?
Absolutely! We have a professional R&D team that can provide free design services and customized solutions based on your specific requirements.
Q5: What is the typical lead time for orders?
Sample orders take 3-5 days, small batch orders take 10-15 days, and large orders are subject to negotiation.
Q6: What is the warranty period for your LED strips?
We offer a 2 to 5-year warranty. During this period, any quality issues will be handled with free repairs or replacements.
