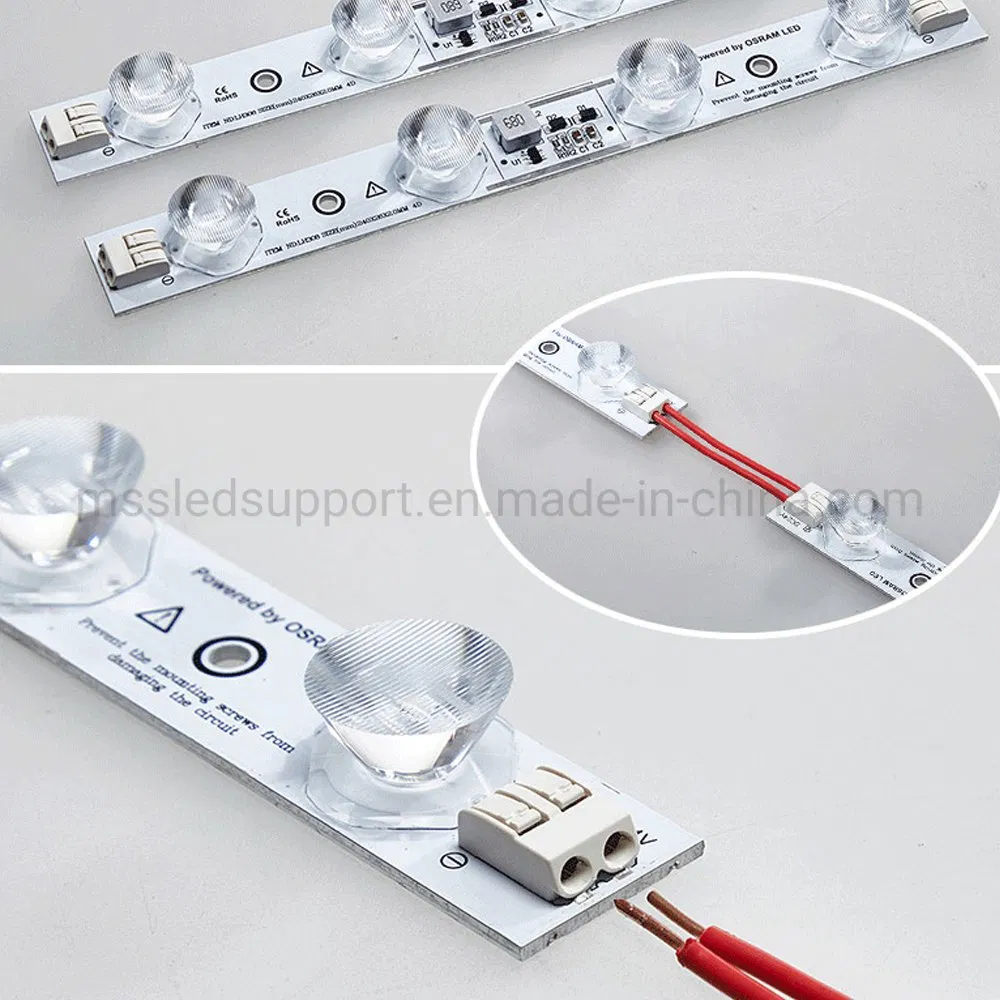

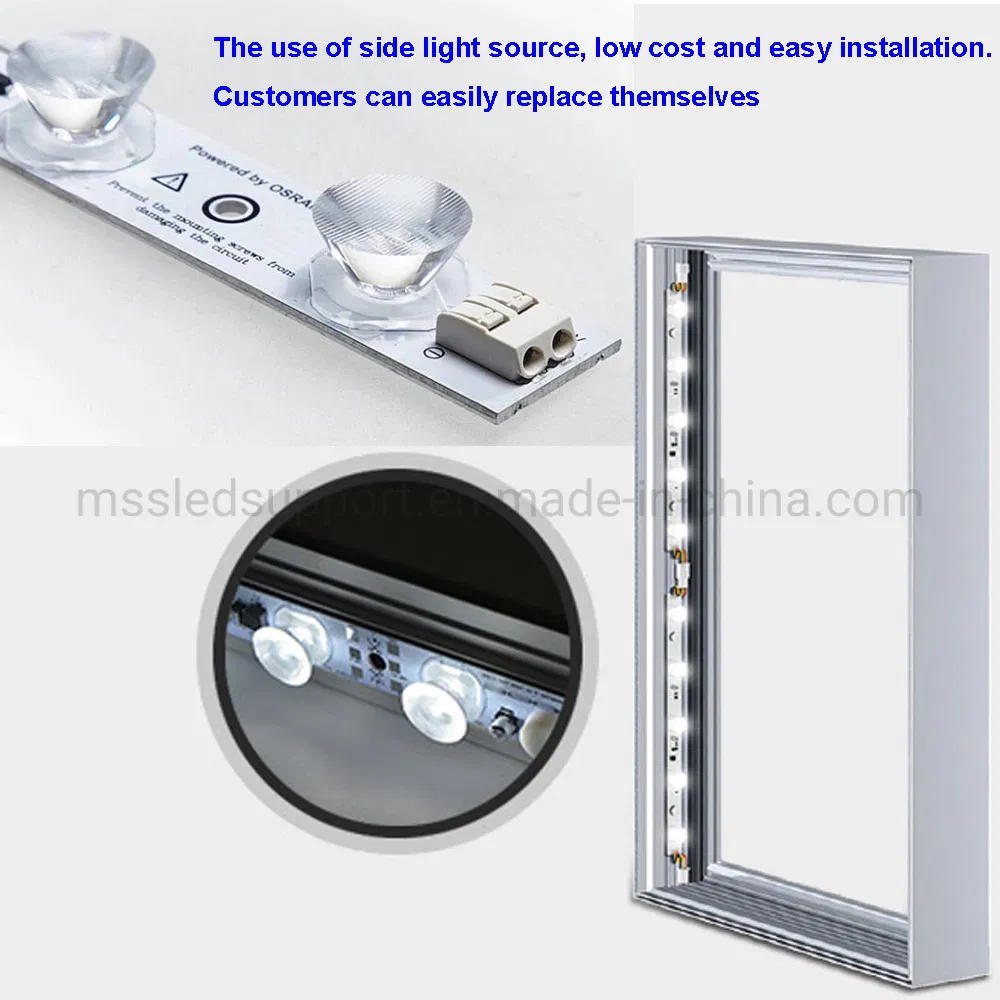

High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm
High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm
High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm
High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm
High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm
1 / 5
High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm
High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm
High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm
High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm
High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm

High Power 0sram LED Lightbar 24V 21W LED Edge Light Rigid Bars for Double Side Light Box Whose Depth +5cm

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

■Basic Specifications
Model NO.
double side led bar
Emitting Color
White
Voltage
12V / 24V
IP Rating
IP33 / IP44
1 LED Power
0.3-0.5W
Waterproof
Not Waterproof
LED Light Source
3030/3535
Material
Acrylic / Aluminum
Type
Scrolling Light Box
Usage
Advertising, Decoration
Guarantee
5 Years
Luminous Flux
1900lm
Production Capacity
30000 PCS/Month
Package Size
115.00cm * 21.00cm * 21.00cm
■Product Description

High power LED edge light rigid bars for double side light box (Depth >5cm)

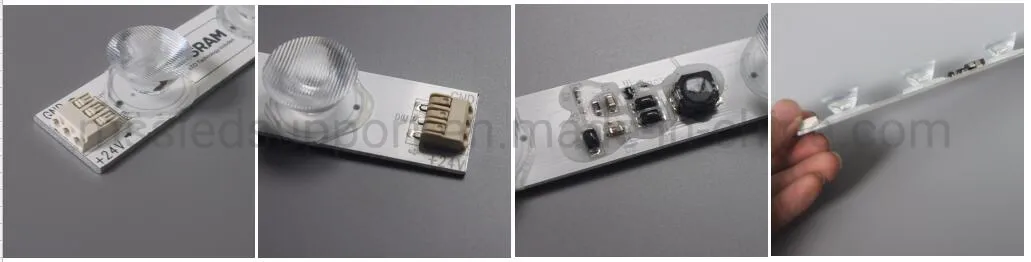

High Power LED Lightbar
Key Features:
Constant Current Technology (CCT)
Aluminum plate for superior heat dissipation
Energy saving & Environment friendly
Long life span

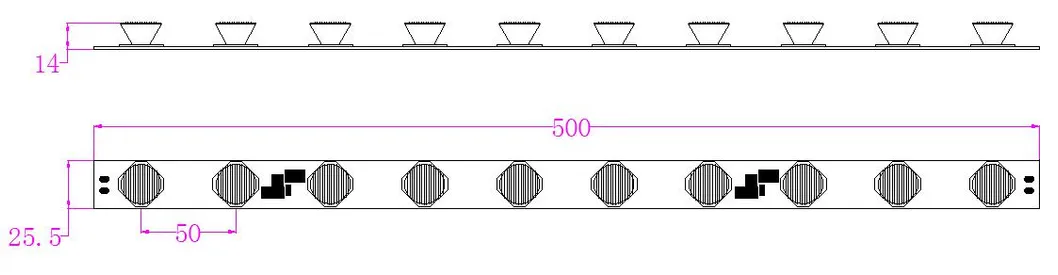

■Dimensions & Design
LED Dimensions

Remark: The pitch of the light-bar is variable.

■Environmental & Operating Conditions
Parameter Range
Ambient temperature range (TA on free air) -25…..+55ºC
Operating (case) temperature range (TC) -25…..+55ºC
Storage temperature range -25…..+65ºC
IP rating IP33
■Electrical Parameters
Supply voltage range 24±0.5 VDC
Supply Current range (per module) 0.875A
Power range (per module) 21W Max
ESD protection Contact 4KV, Air 8KV
■Optical Parameters
Part No. Typ. CCT Flux Range Beam angle
SLB10XCR-2100B500 7000 K (6000K-8000K) 1900 lm - 2100 lm 10*40°
■Product Gallery

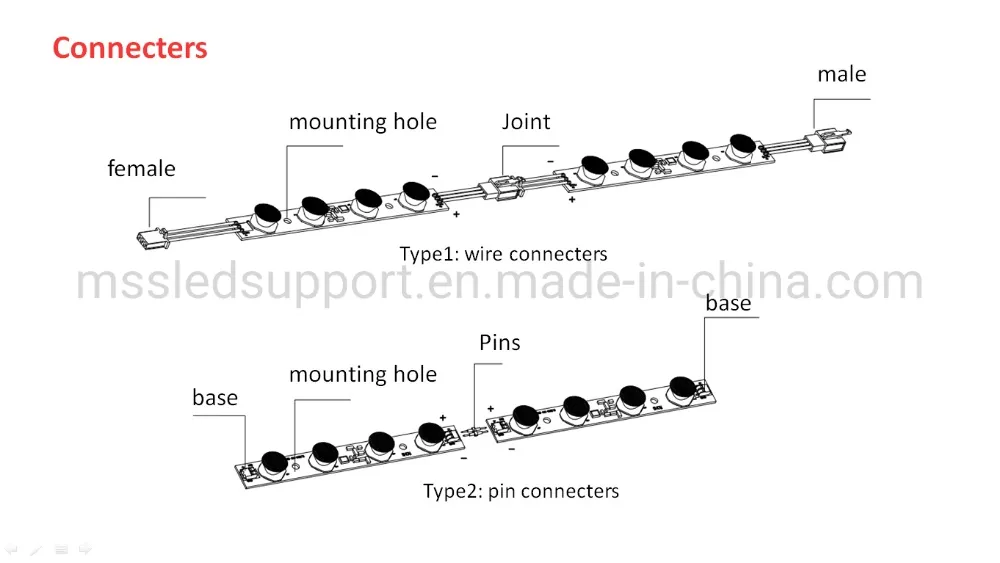

LED Bar Detail 1

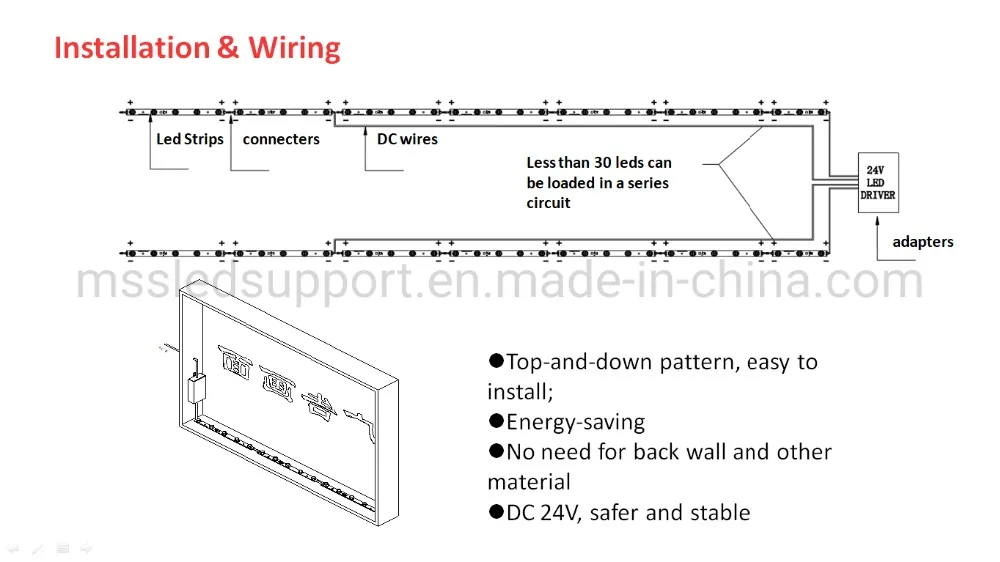

LED Bar Detail 2

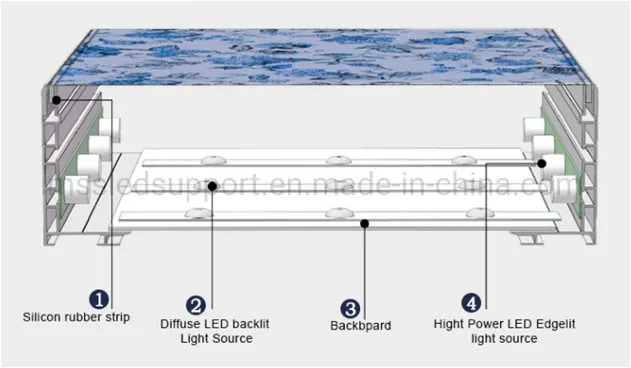

LED Bar Detail 3

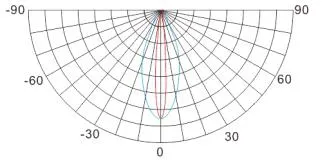

■Light Distribution
Light distribution graph
■Applications
1. Commercial standing lighting
2. Light box lighting
3. Logo lighting
4. Line/shape lighting

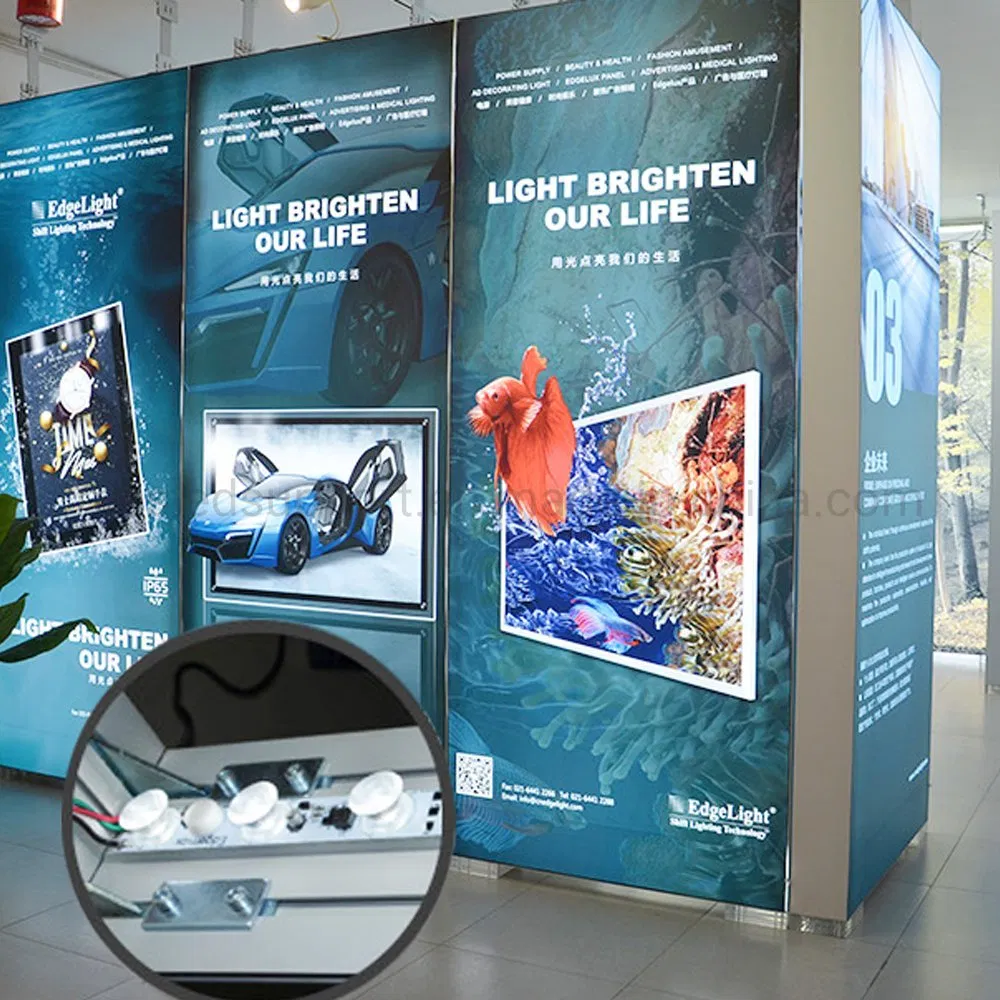

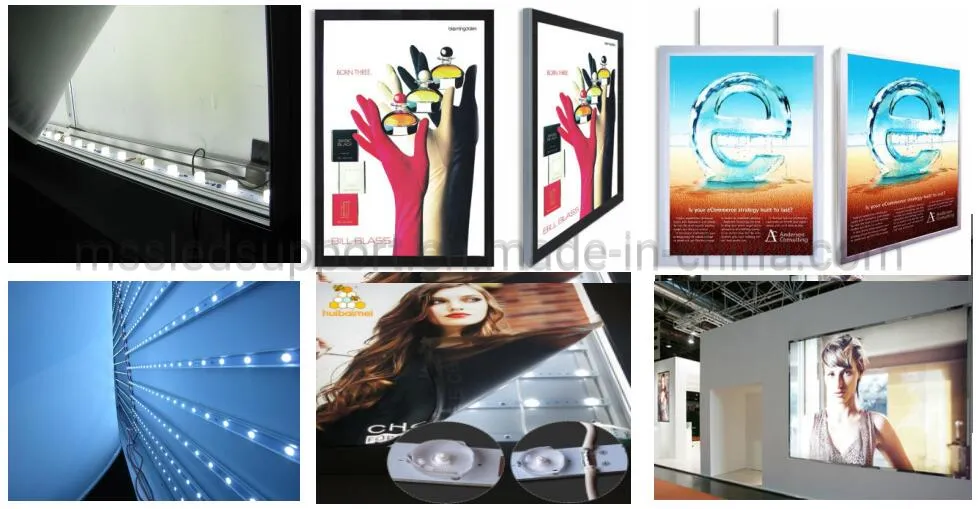

Application Showcase
■Packaging Details

1. Outer carton: 65x31x30cm | Inside carton: 707x295mm | PE film: 250x125mm.

2. 12pcs per chain, 4pcs chain in one inside carton (48pcs per layer).

3. 10 layers in one outer carton (480pcs per outer carton).

Frequently Asked Questions
What type of light boxes is this LED bar suitable for?
This high-power LED edge light rigid bar is specifically designed for double-sided light boxes with a depth of 5cm or more.
What is the advantage of Constant Current Technology (CCT)?
CCT ensures a stable current flow to each LED module, which prevents flickering, ensures uniform brightness, and significantly extends the lifespan of the LEDs.
How does the product handle heat dissipation?
The rigid bars are built with an integrated aluminum plate, which provides excellent thermal conductivity to dissipate heat efficiently and maintain performance.
What is the beam angle and luminous flux of this module?
The module features a specialized 10*40° beam angle designed for edge lighting, with a luminous flux ranging between 1900lm and 2100lm.
Can the length of the light bars be customized?
Yes, customized lengths are available to fit different light box dimensions and specific project requirements.
What is the warranty period for this product?
We provide a 5-year guarantee for these LED rigid bars, ensuring long-term reliability for your advertising and decoration projects.
