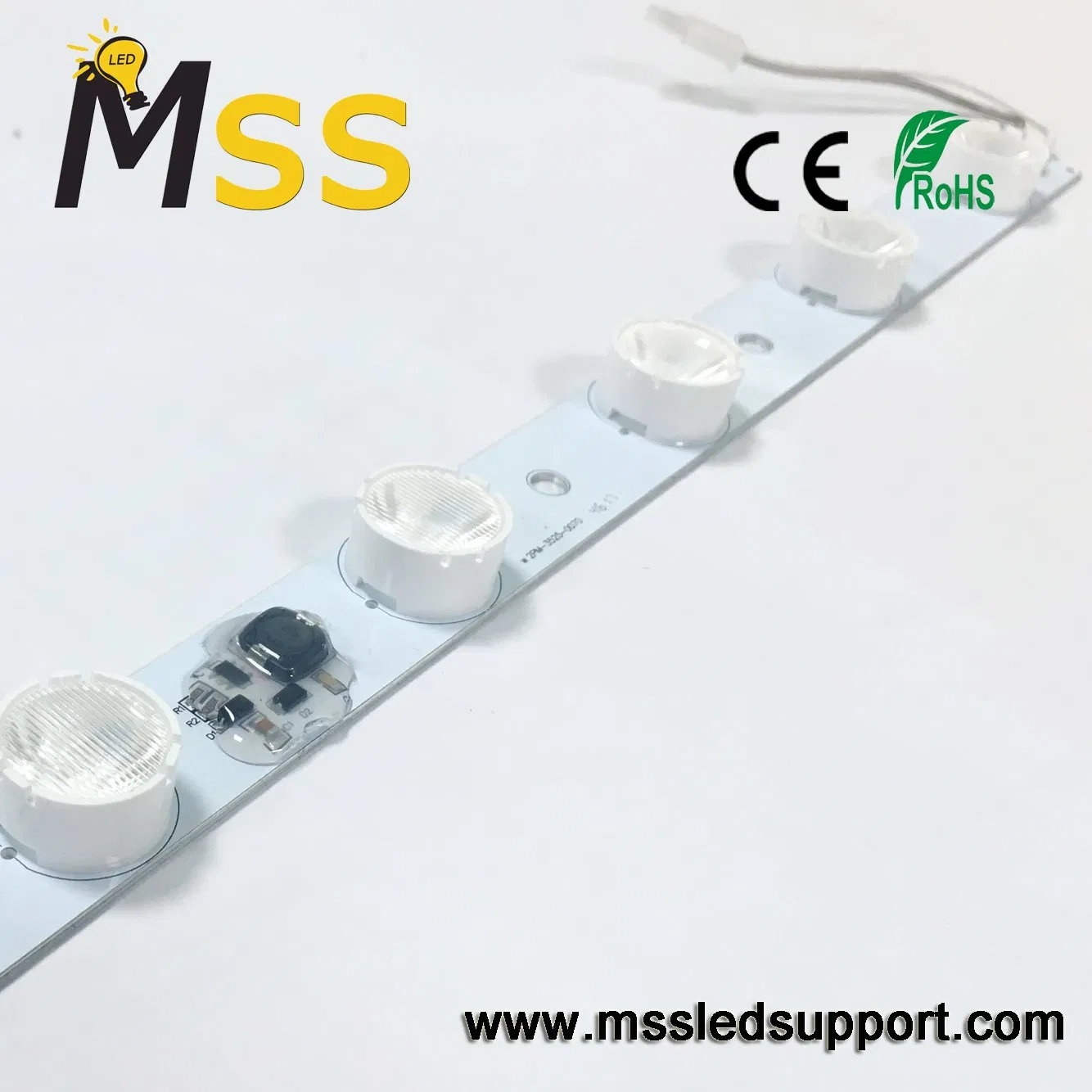

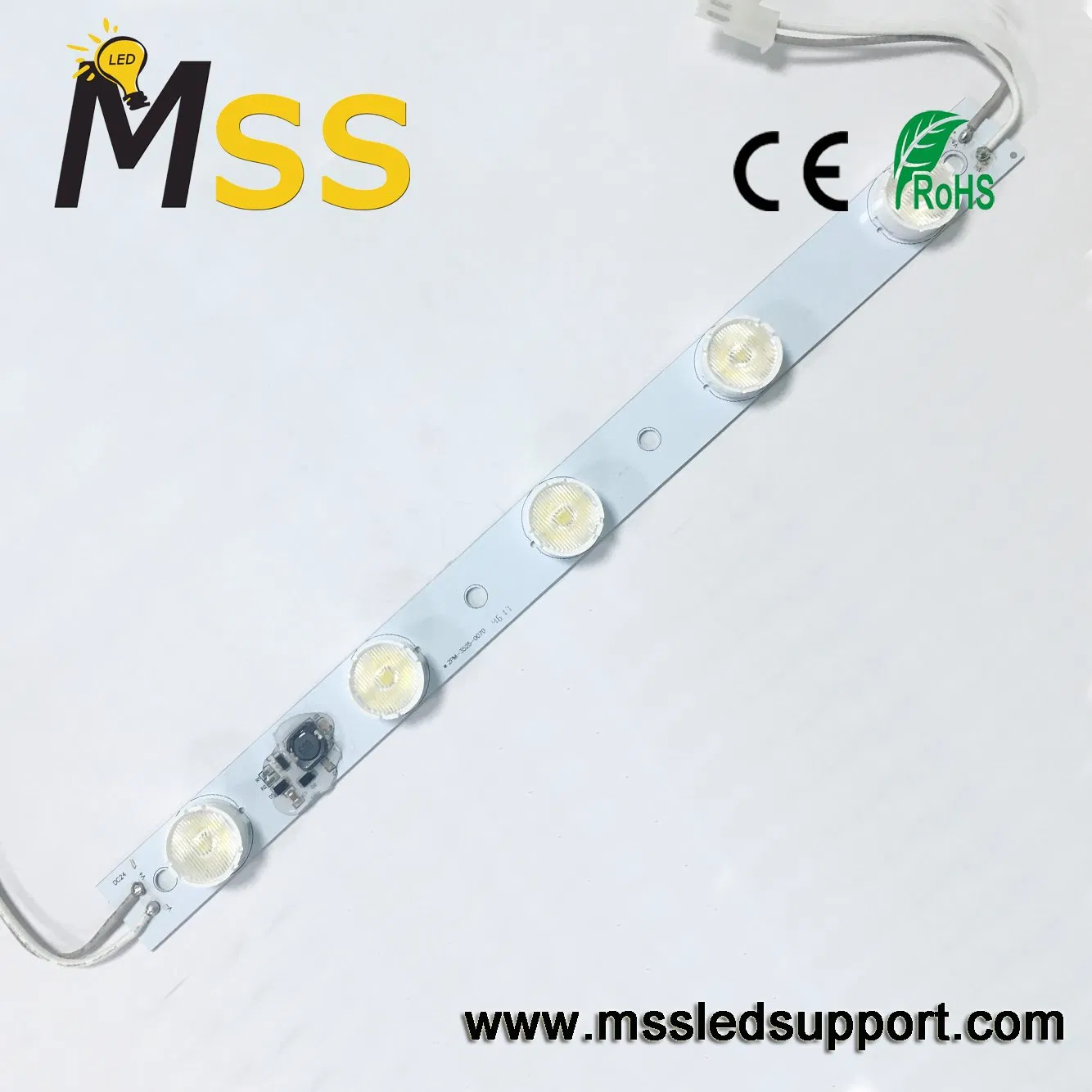

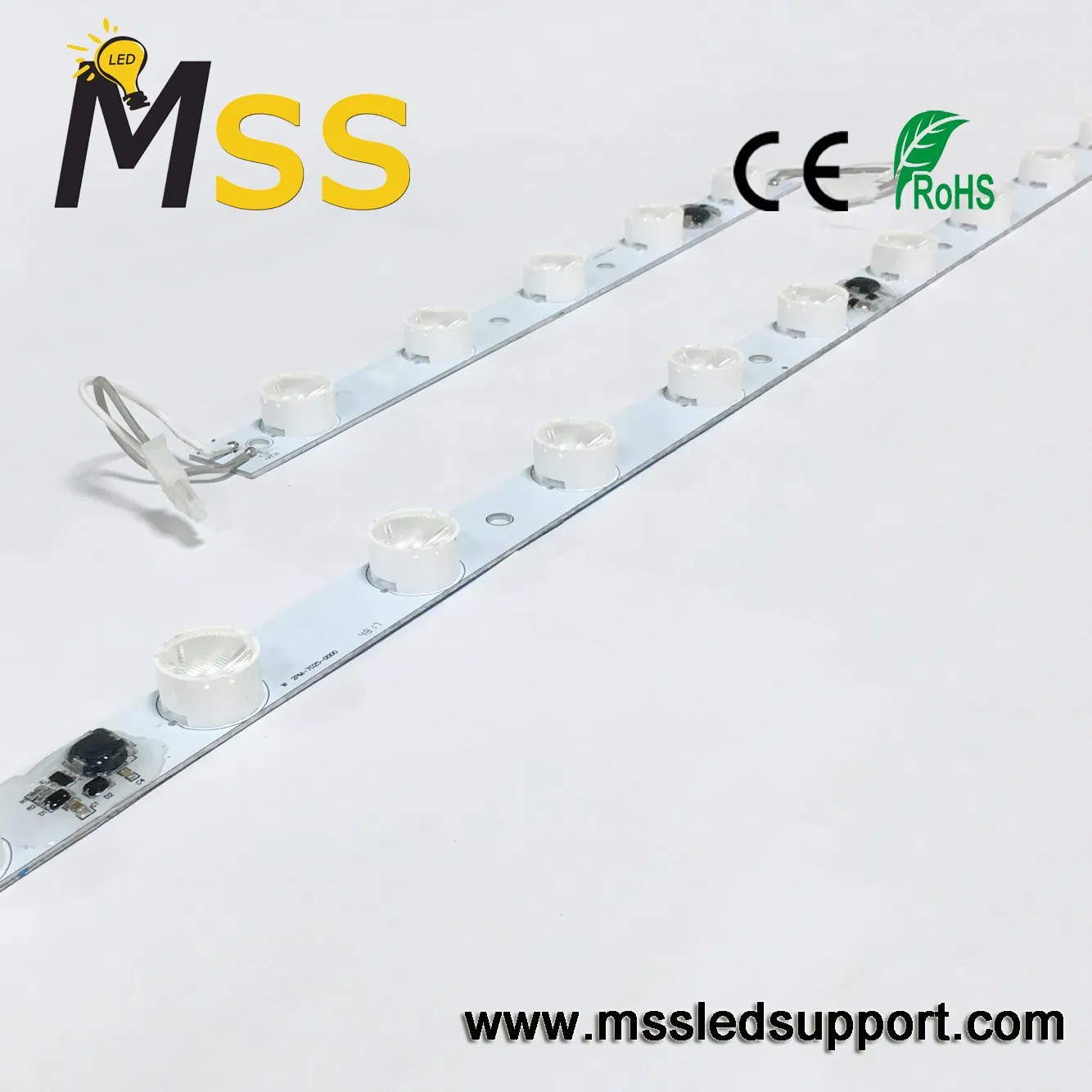

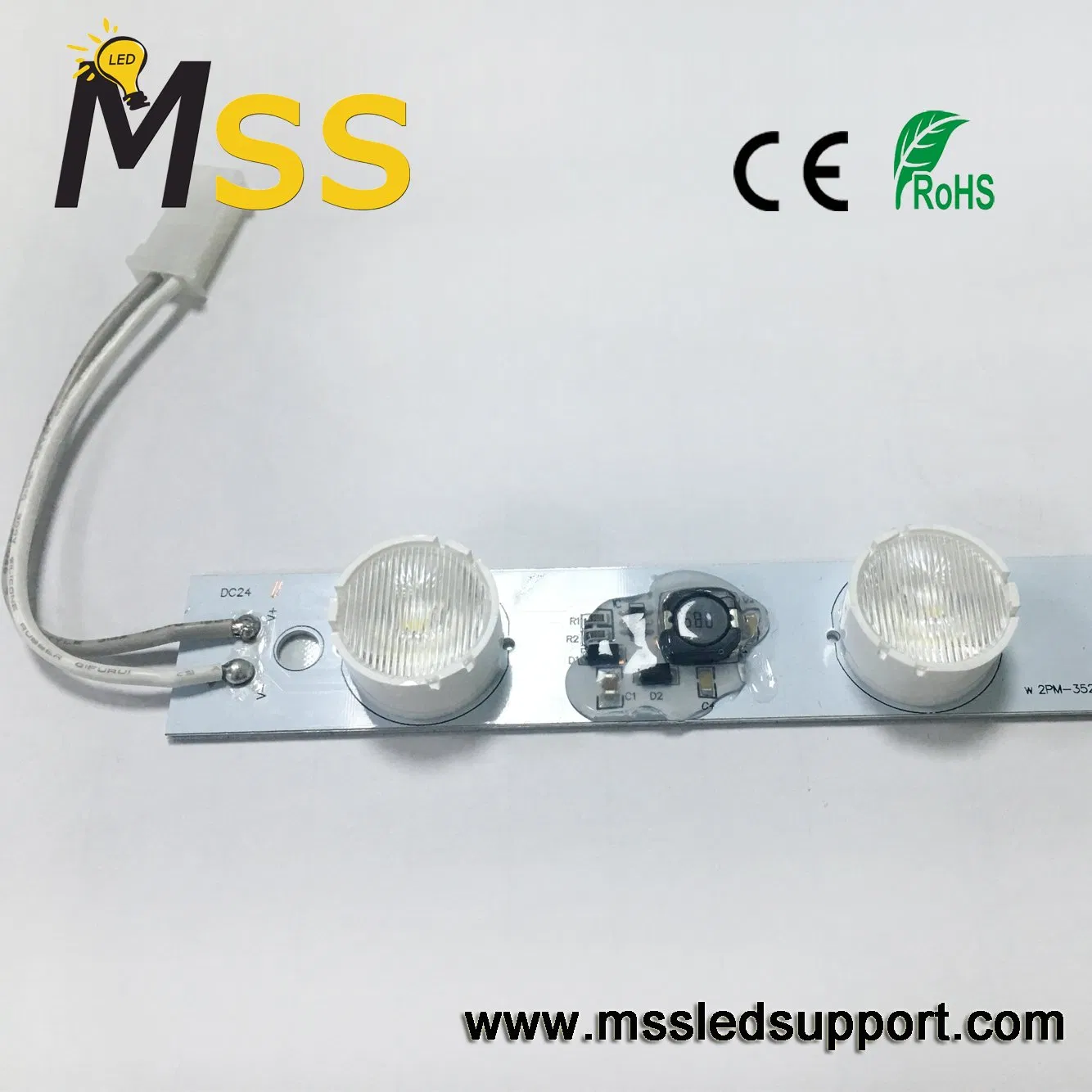

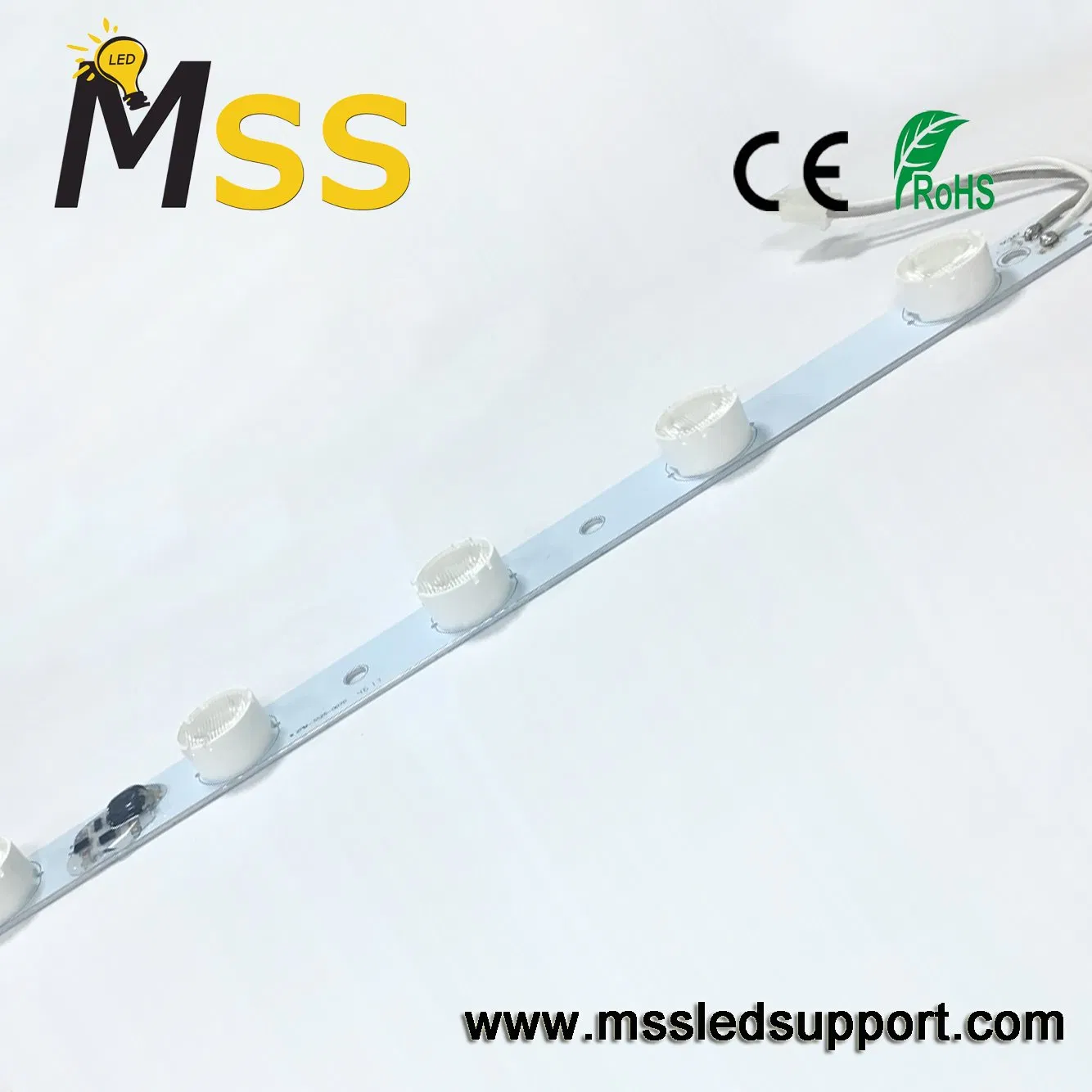

Ce, RoHS Certified LED Lighting Bar

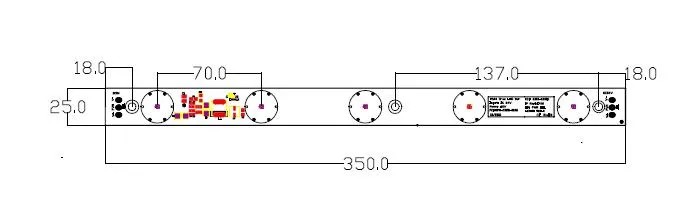

Remark: The pitch of the light-bar is variable.
| Parameter | Range |
|---|---|
| Ambient temperature (TA) | -25 ~ +55ºC |
| Operating temperature (TC) | -25 ~ +55ºC |
| Storage temperature | -25 ~ +65ºC |
| IP rating | IP62 |
| Parameter | Value |
|---|---|
| Supply voltage range | 24±0.5 VDC |
| Supply Current (per module) | 550mA |
| Power (per module) | 13.2W Max |
| ESD protection | Contact 4KV, Air 8KV |

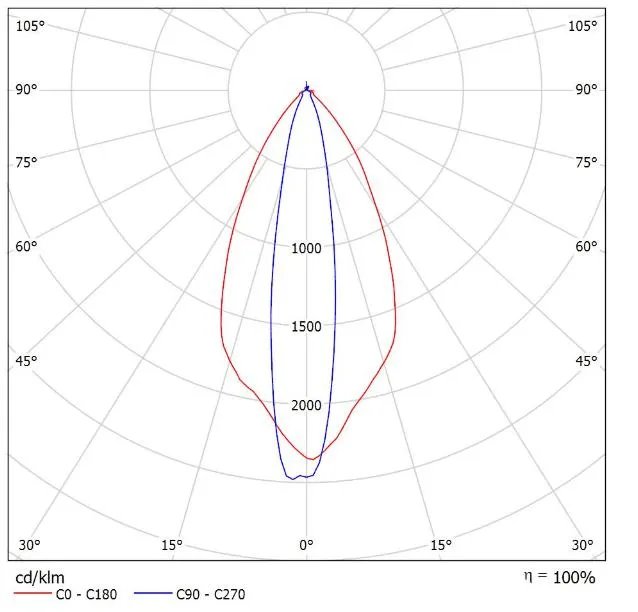

| Part No. | CCT Range | Flux Range | Beam Angle |
|---|---|---|---|
| SLB5X3535-132B350 | 6000K - 8000K | 900lm - 1020lm | 12°X56° |
1. Outer carton: 49x29.5x24cm | Inside: 390x27x20mm
2. 1pc per chain, 10pcs chain in one layer (100pcs per layer).
3. 10 layers in one outer carton (1000pcs total per carton).
