Basic Information
Emitting ColorWhite
Voltage12V
IP RatingIP33
MaterialAcrylic
TypeScrolling Light Box
UsageAdvertising, Decoration
LED Chips BrandEpistar
Installation ModeBacktape Stick or Screw Fix
Input Voltage12V 24V
Color TemperatureWhite 2800K 4000K 6500K 10000K
LED Q'ty120/M
ChipSMD 2835
Cuttable25mm
CRI90
Lumens130lm/Watt
OriginChina
HS Code9405429000
Capacity1,000,000PCS/Month
Product Description

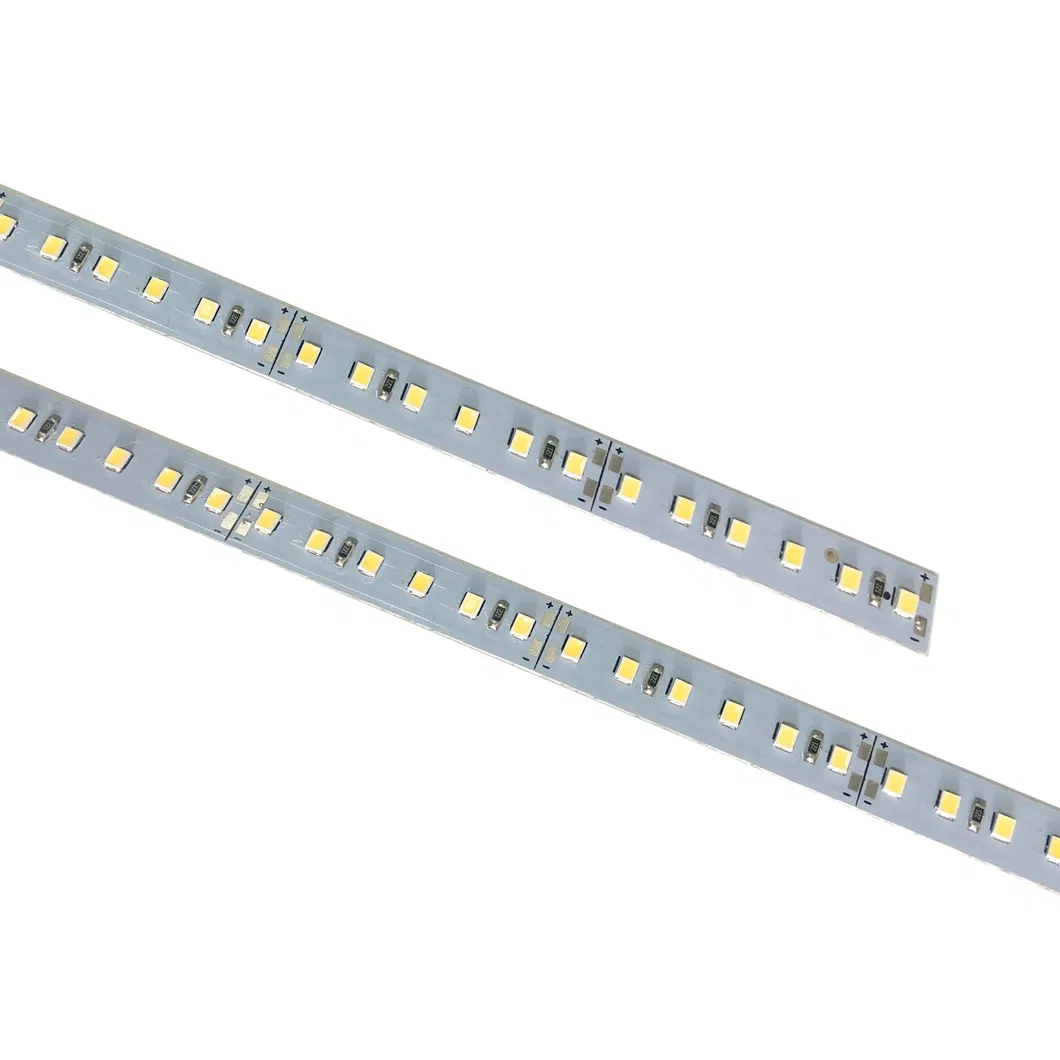

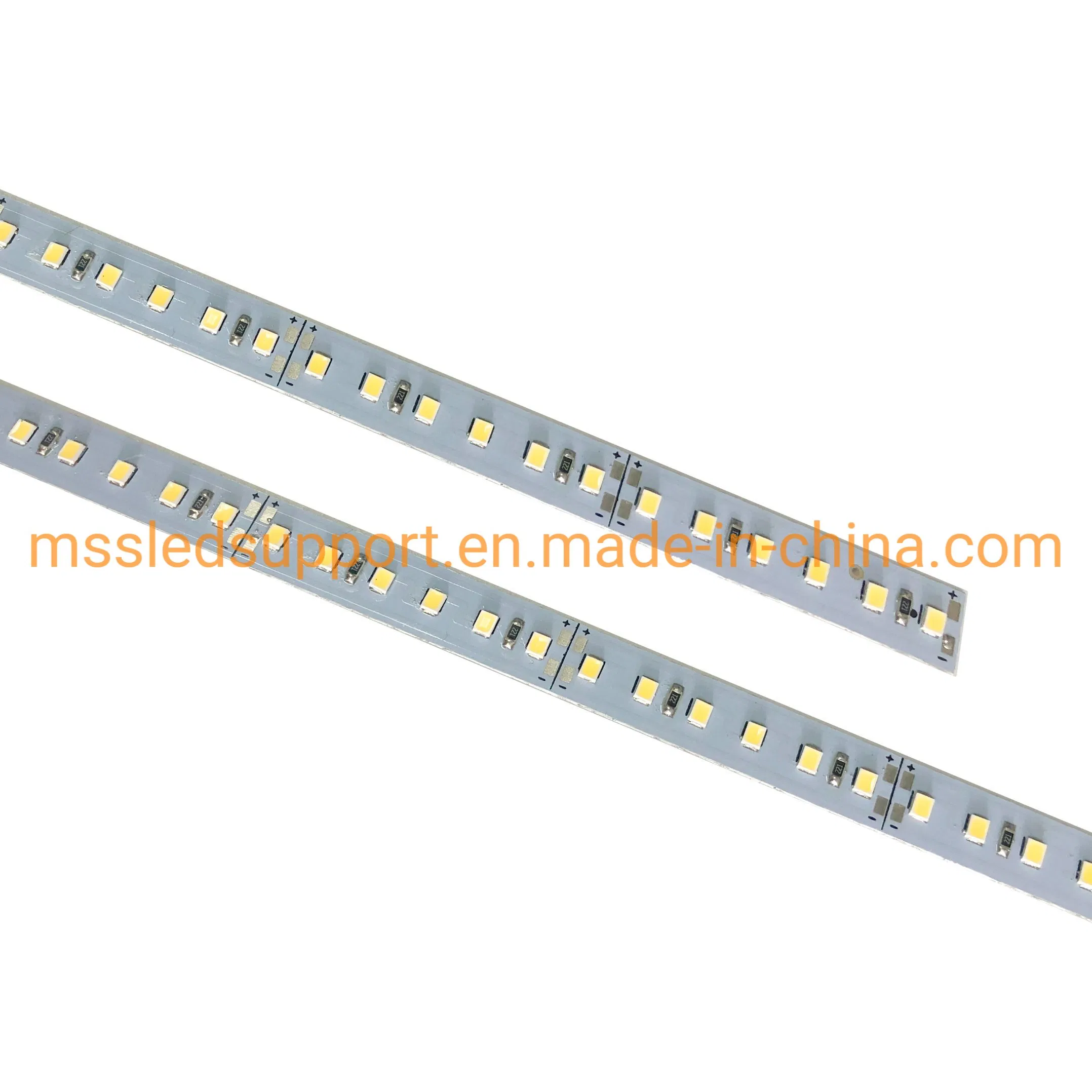

Ultra-bright 130lm/W 8mm 10mm 12mm PCB 12V 24V Led Rigid Strip Smd 2835 5630 5050 Led Rigid Light Bar Strips for Cabinet light.
Main Features:
- Assembled with PCB hard boards, convenient for cabinet and wall installation.
- Multiple LED options: 30, 36, 60, 72, 120 LEDs (Supports Customization).
- DC 12V (3 LEDs) or 24V (6 LEDs) cuttable sections.

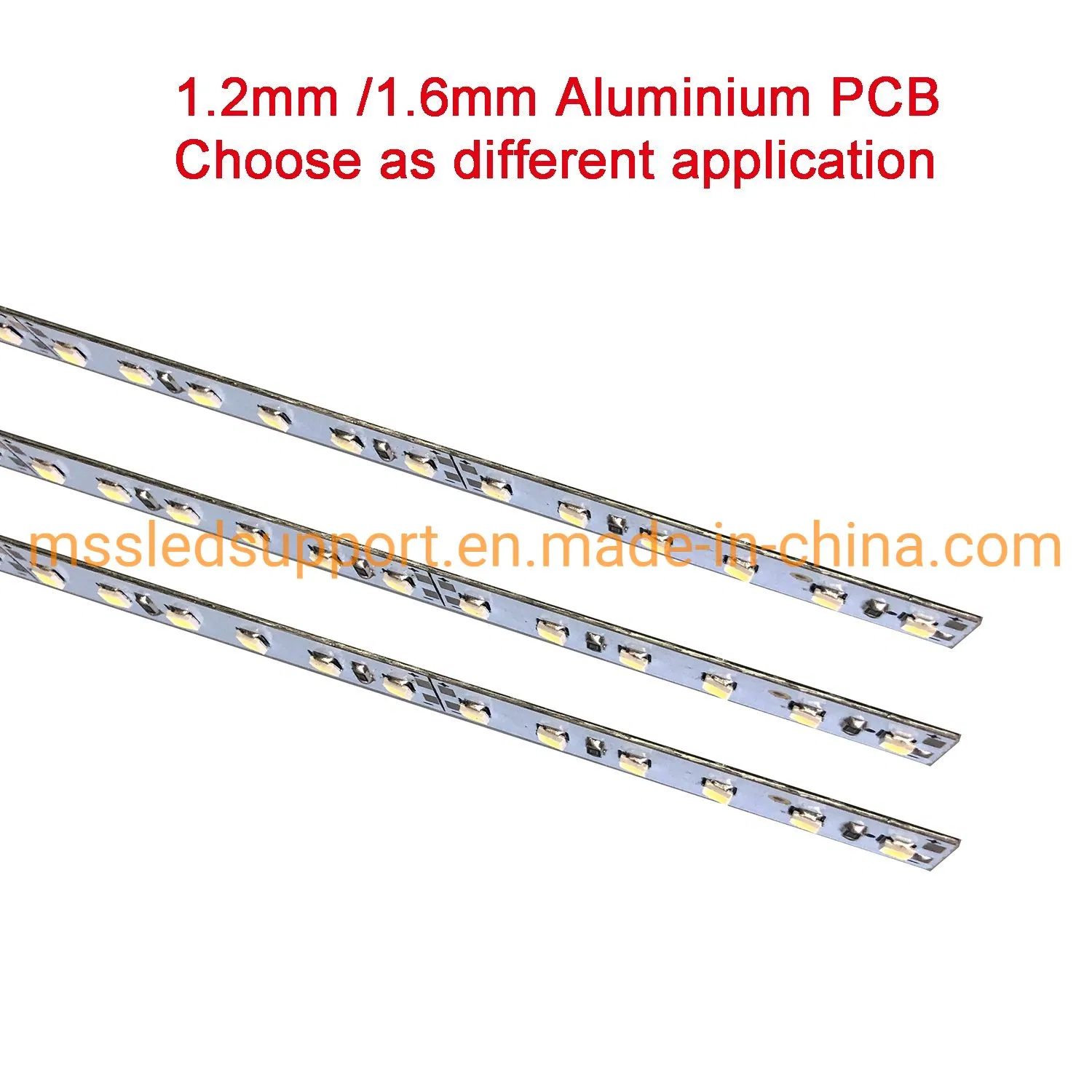

- Ultra-thick Aluminium PCB (1.2mm ~ 1.6mm).

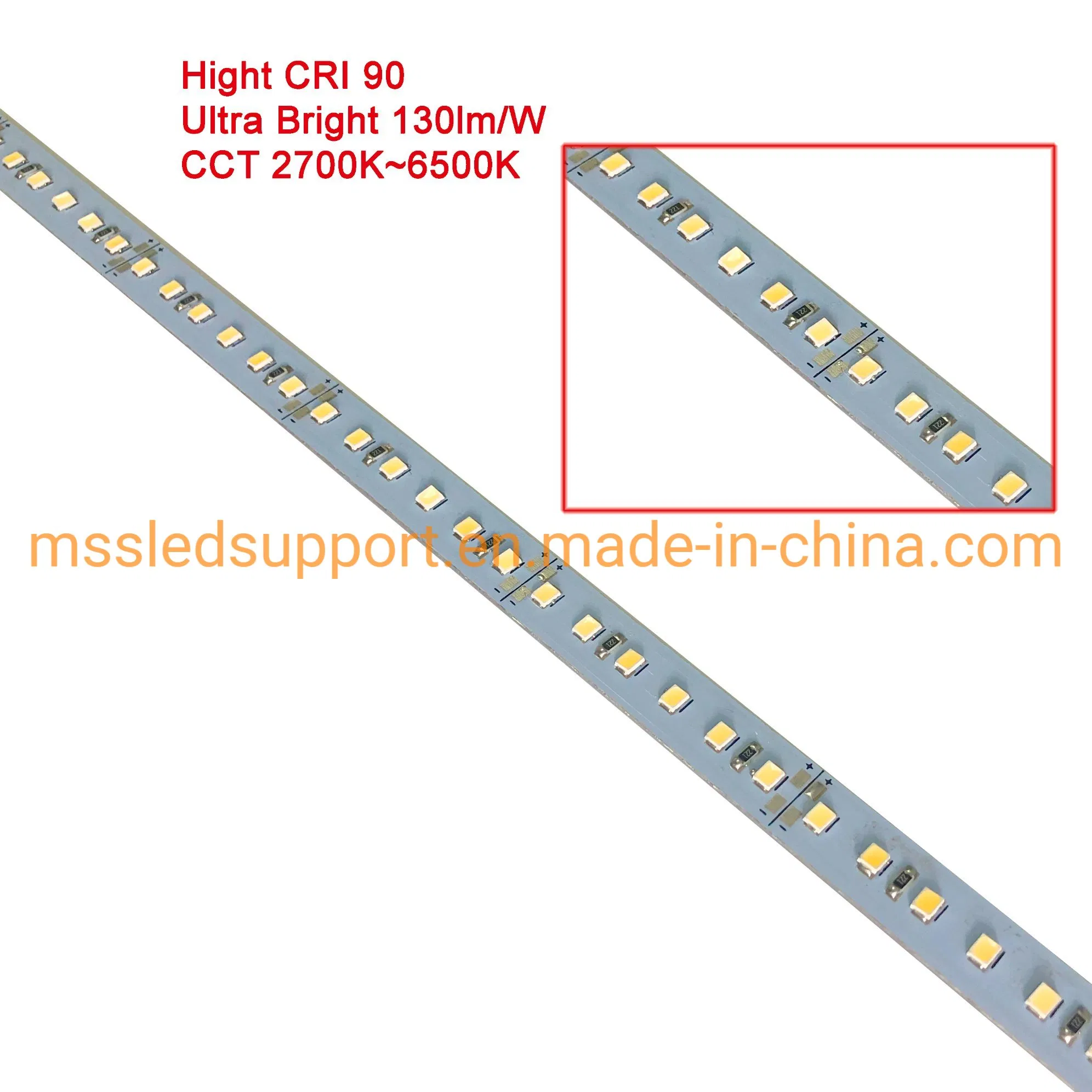

- Ra 90 high reliability and excellent color performance.

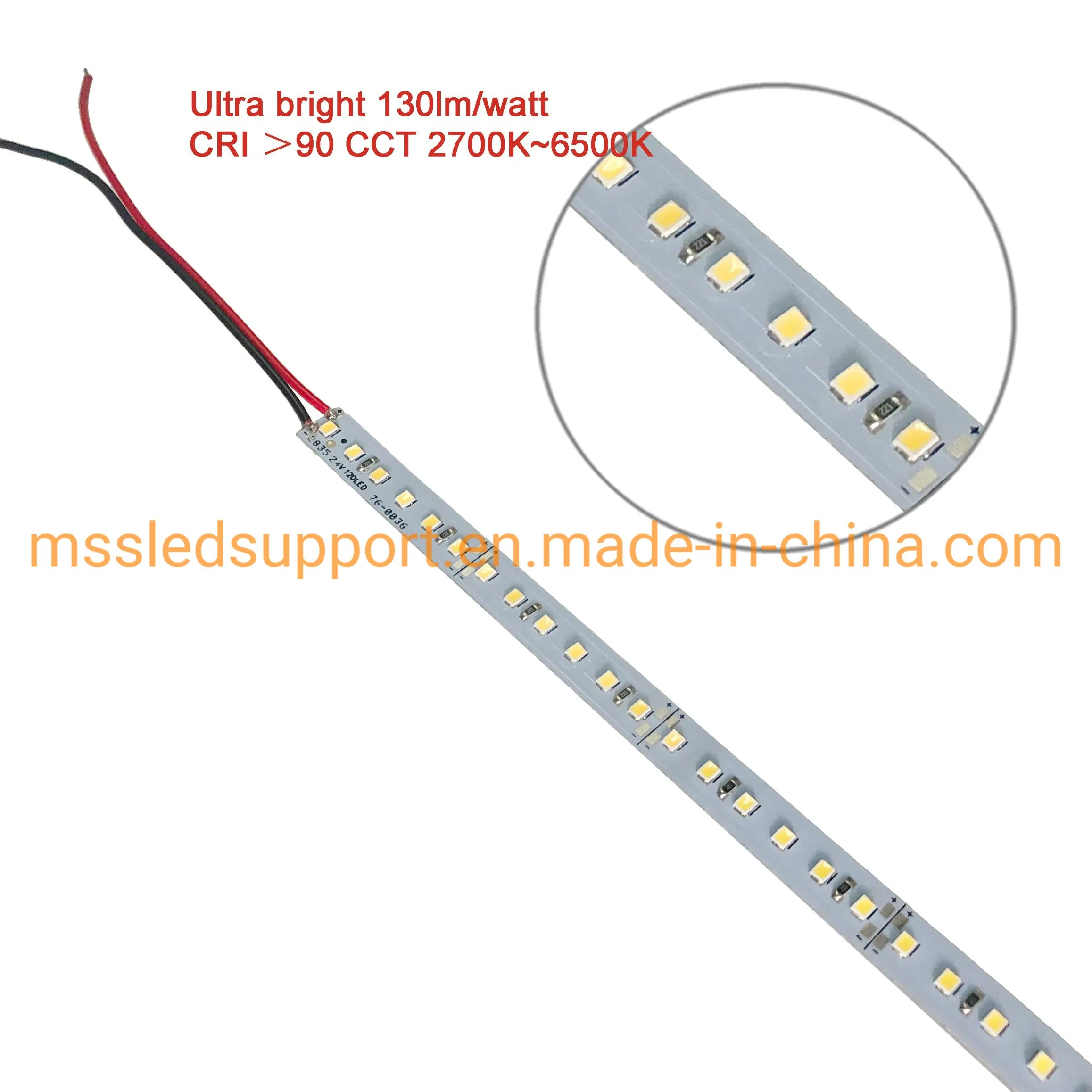

- 130lm-150lm/watt high brightness efficiency.
- Ideal for jewelry displays, showcase lighting, and cabinet illumination.
Technical Specifications
| Model | RGL100WA |
| LED Qty | 120leds/m |
| LED Type | Epistar SMD 2835 |
| LED Color | White |
| Input Voltage | 12V DC / 24V DC |
| Wattage | 10W/meter |
| Luminous Efficiency | 130-150lm/W |
| Dimension | W8*L990mm or custom size |
| Color Temperature | Warm white (2800-3200K), Natural white (4000-4500K), Cool white (6000-6500K) |
| Light Efficiency | >85% |
| Beam Angle | 120° |
| Working Temp | -40°C ~ +50°C |
| Life Span | 50,000 hrs |
| Certificates | CE, RoHS |
| IP Grade | IP33 |
| PCB Color | Copper / White / Black |
| Installation | Screw or Back adhesive |
Visual Details

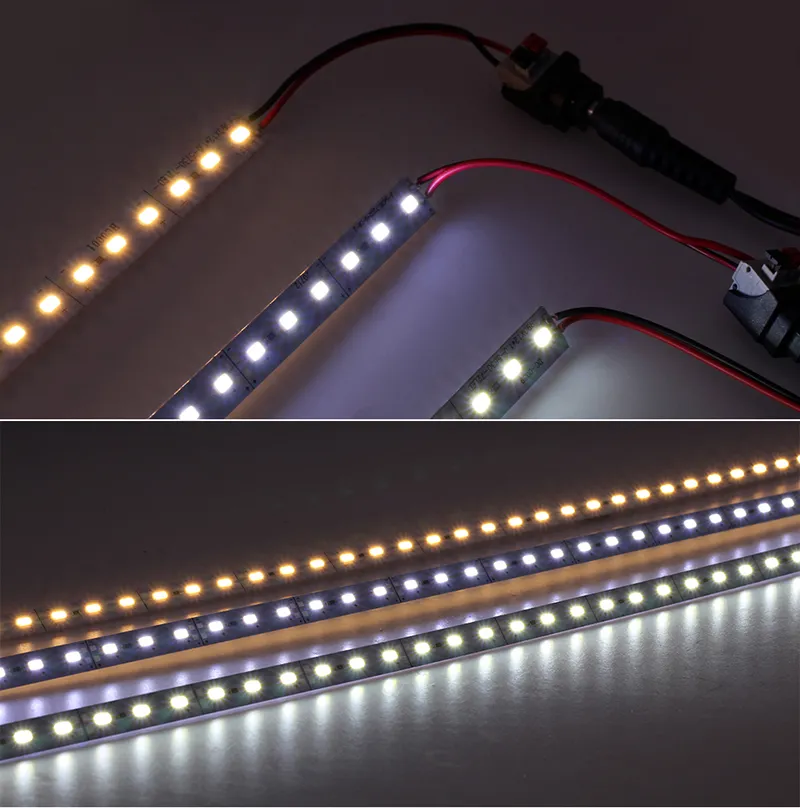

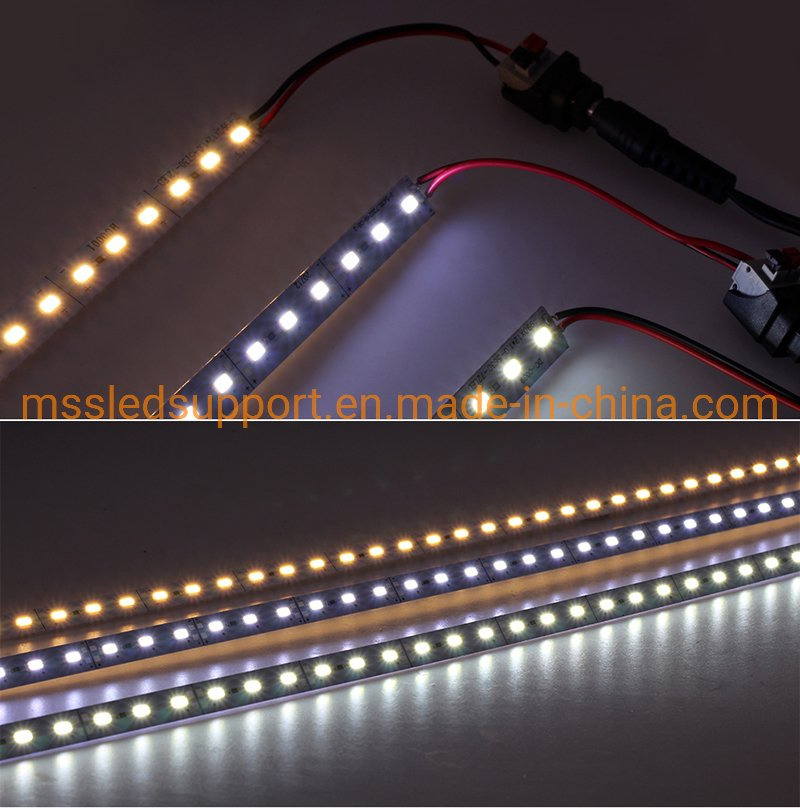

Color Temperature Options:

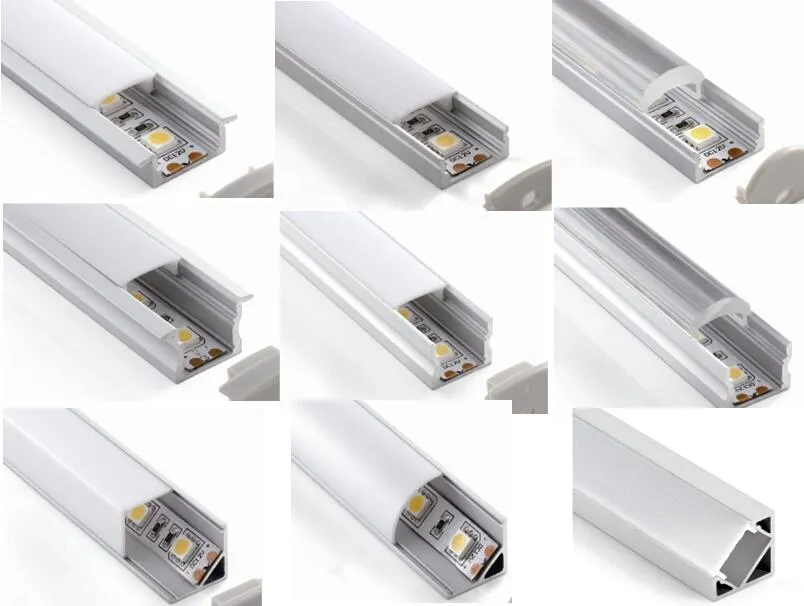

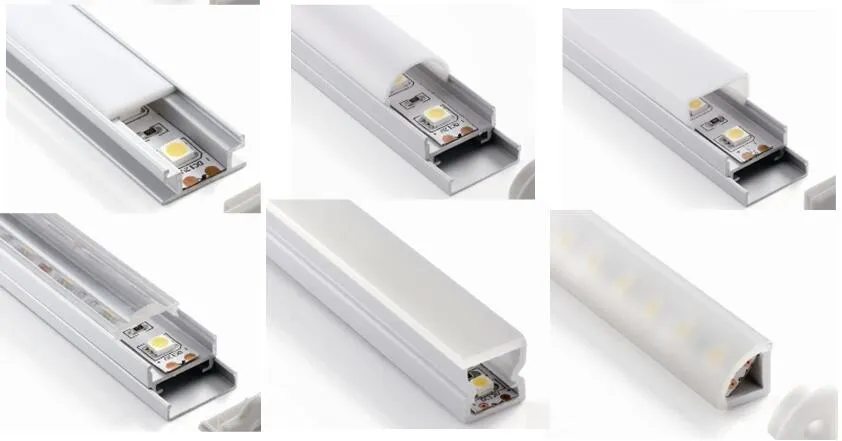

Optional Aluminium Profiles:

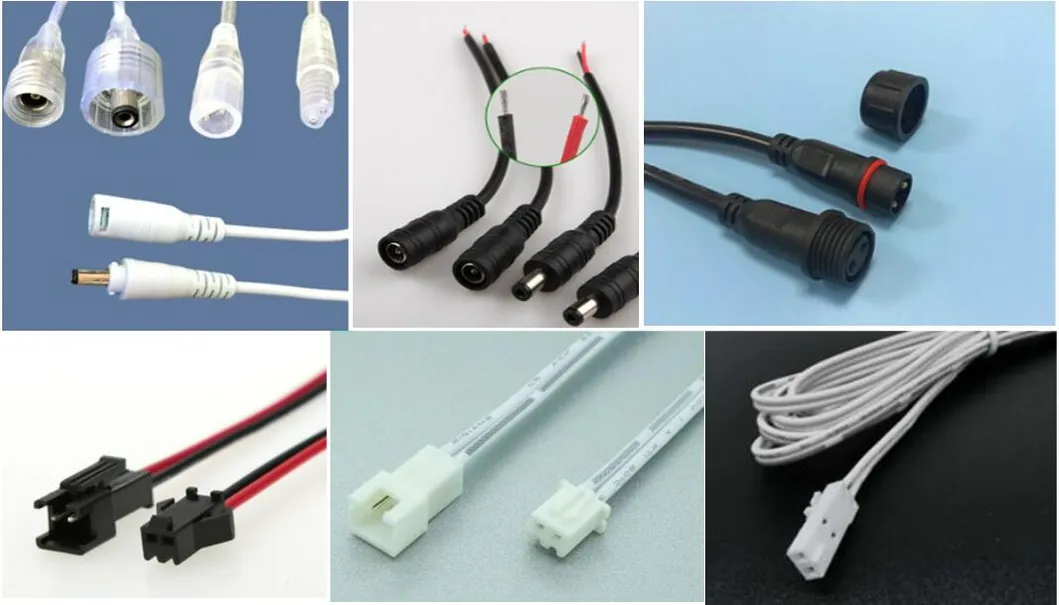

Connectors & Certificates:

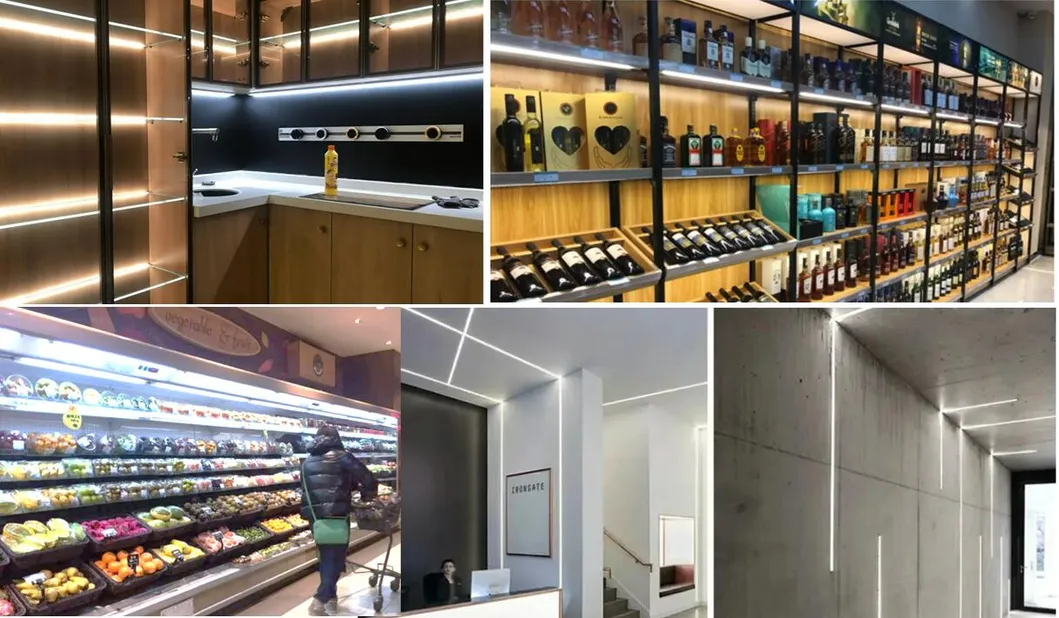

Applications
- Architectural canopy and archway lighting
- Advertising signage backlight/edge lighting
- Auditorium and stairway decoration
- Showcase and under-cabinet lighting
- Exhibition and event decorative lights
- Bar and freezer cabinet lighting
- Cove lighting solutions
Frequently Asked Questions
What is the energy efficiency of these LED rigid strips?
Our strips offer high efficiency ranging from 130lm to 150lm per Watt, providing superior brightness with low energy consumption.
Can the light bars be customized in length?
Yes, we support customization for length, LED quantity per meter, and PCB width to fit your specific project requirements.
What is the color rendering index (CRI) of the lights?
The strips feature a CRI of Ra 90, ensuring vibrant and accurate color reproduction for jewelry and display items.
Is it easy to install these rigid bars in cabinets?
Absolutely. They come with options for screw fixing or high-quality back adhesive tape for quick and stable installation.
How long do these LED bars typically last?
Designed with high-quality Epistar chips and thick aluminium PCBs for heat dissipation, they have a lifespan of up to 50,000 hours.
Are these strips waterproof for outdoor use?
These specific strips are IP33 rated, which is suitable for indoor applications like cabinets and showcases. For outdoor use, please inquire about our higher IP-rated models.
