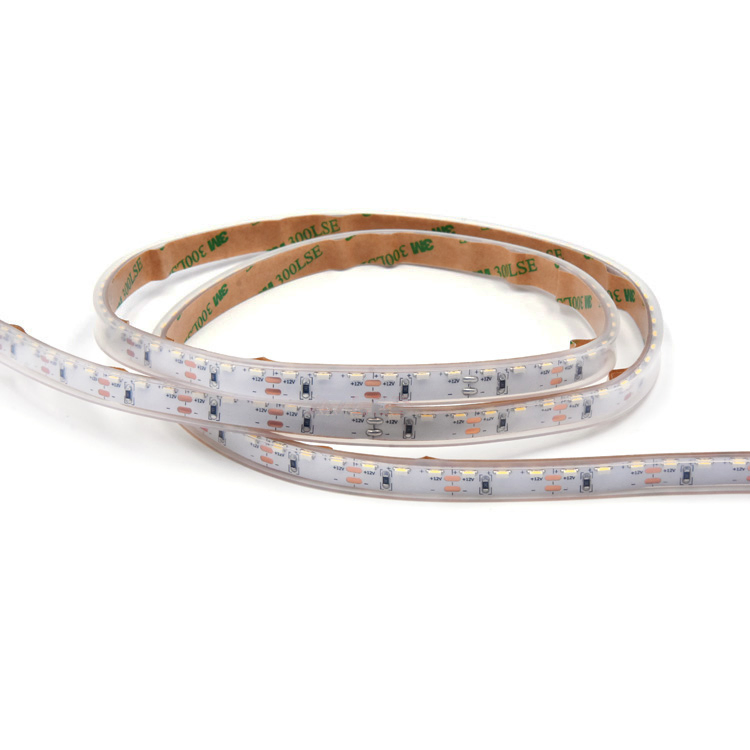

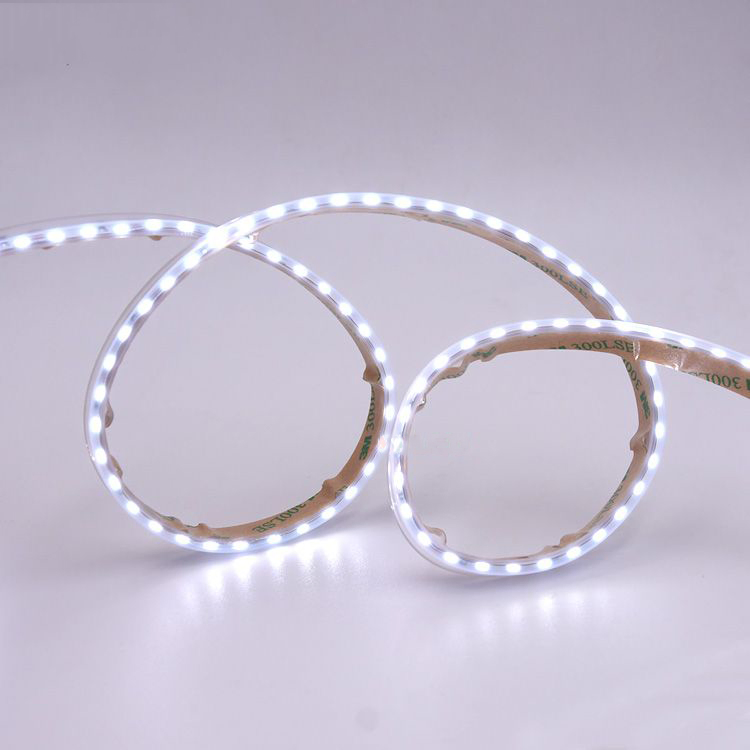

Mini Flexible Light Side Emitting SMD 3014 LED Strip for Decoration Lighting

1 / 4

Mini Flexible Light Side Emitting SMD 3014 LED Strip for Decoration Lighting

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Emitting Color

White/ Red/ Yellow/ Green/ Blue/ RGB

Voltage

DC12V/DC24V

IP Rating

IP20, IP33, IP65, IP68

Macadam Level

3-5 Step

Max. Length

5m/Roll LED Strip

Warranty

3-5 Years

Origin

China

HS Code

9405409000

Capacity

100,000m/Month

Product Description

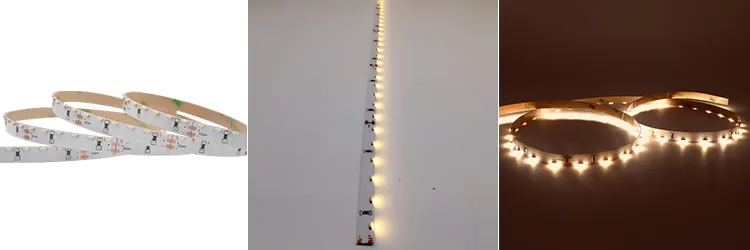

High Bright Side View SMD 3014 LED Tape

✔ Rolled copper FPC for superior thermal dissipation and bend-ability.
✔ Equipped with 20WAG or above high-quality cables.
✔ Cuttable every 3 LEDs per unit with soldering pads for customization.
✔ Enhanced 3014 LED specifically optimized for strip lighting products.

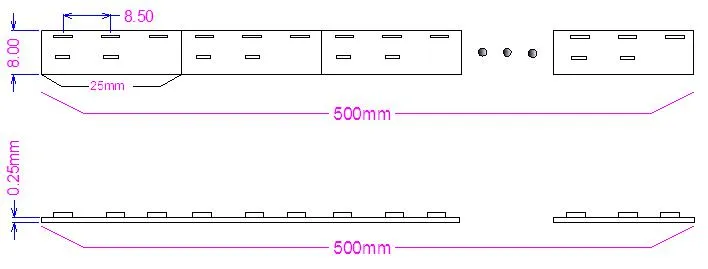

Dimensions

Environmental Conditions

Ambient temperature range (TA on free air)	-25…..+50ºC
Operating (case) temperature range (TC)	-25…..+50ºC
Storage temperature range	-25…..+60ºC
Standard IP rating	IP33

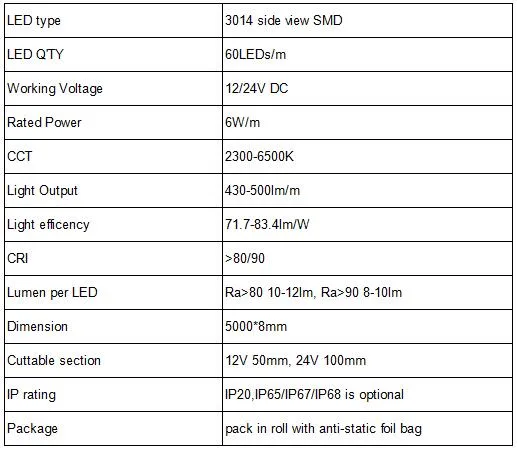

Electrical Parameters

Important Attention

1. Maximum length is 5 meters from power supplier to a single end.
2. Avoid mechanical stress on the LED strip and its components.
3. Ensure the power supply matches the total load requirements.
4. Housing design must comply with IP standards for the specific application.
5. Use additional lightning protection if not built into the power supply.

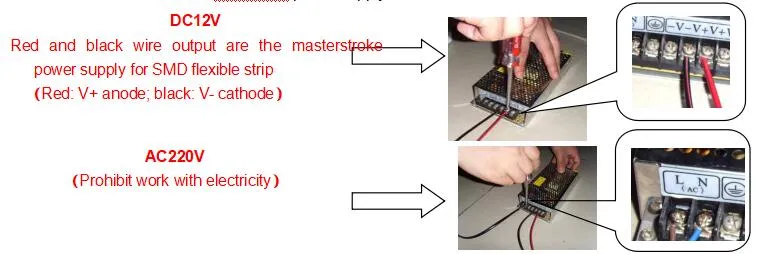

Installation Guide

1. Power supplies must feature short-circuit and over-voltage protection. Use insulated handles during installation.

Note: Wire diameter should be chosen based on strip quantity, distance, and power load. RV multi-core wire is recommended.

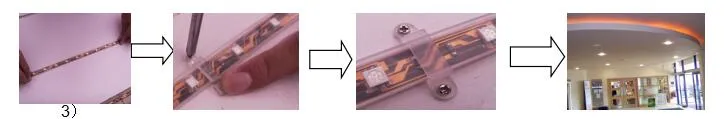

2. Fitting the strips:

• Spread the strip flatly in the desired location.
• Use transparent clips (approx. 4 pcs per meter). Place clips between LEDs to avoid pressure.

3. Connection: Connect every 5 meters to the main line. If powered from both ends, up to 10 meters can be connected.

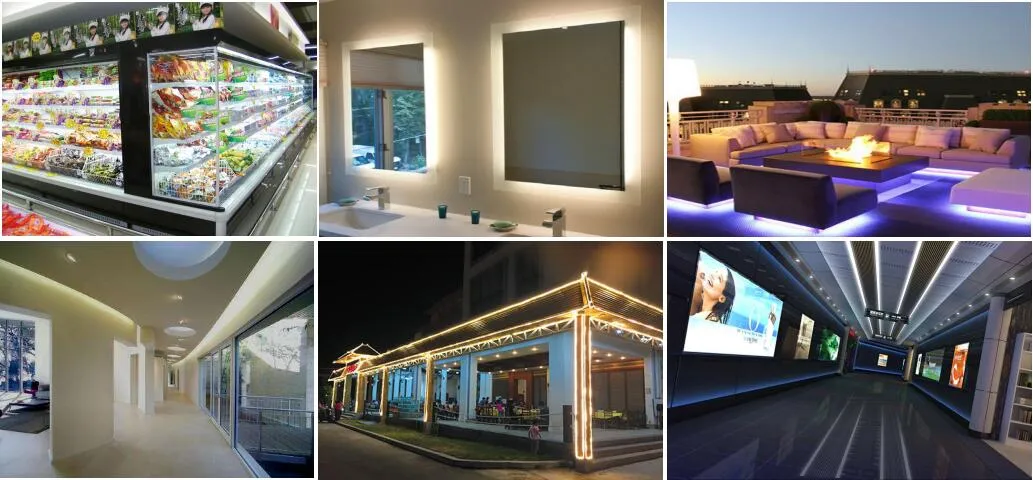

Applications

1. Curve & Contour Lighting

2. Freeze & Cold Storage Lighting

3. Light Bar Source

4. Special Signage & Advertising

Frequently Asked Questions

Q1: What is the maximum length for a single power connection?

A1: The maximum recommended length is 5 meters when powered from a single end to ensure consistent brightness and avoid voltage drop.

Q2: Can this LED strip be used outdoors?

A2: Yes, we offer different IP ratings ranging from IP20 (indoor) up to IP68 (fully waterproof), making it suitable for various environmental conditions.

Q3: Is the LED strip cuttable?

A3: Yes, the strip is designed with soldering pads and can be cut every 3 LEDs to fit your specific length requirements.

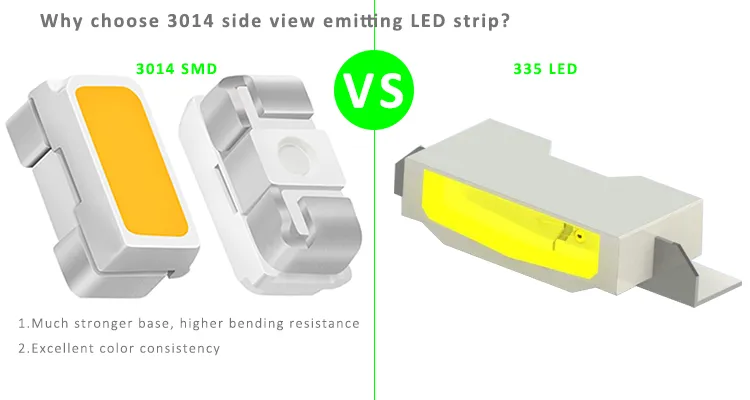

Q4: What are the benefits of the side-emitting 3014 SMD?

A4: Side-emitting LEDs are perfect for edge lighting, signage, and applications where the light needs to be directed parallel to the mounting surface.

Q5: What is the warranty period for these LED strips?

A5: We provide a 3 to 5-year warranty depending on the specific model and application environment.

Q6: What voltages are supported?

A6: This product line supports standard DC12V and DC24V power inputs for flexibility in different installation setups.
