Basic Product Information
| Model No. | KDY-A27 COB720RGBIC |
|---|
| Product Name | RGB Digital COB LED Strip |
|---|
| Emitting Color | RGBIC Dream Full Color |
|---|
| Voltage | 12V / 24V DC |
|---|
| LED Quantity | 720 LEDs/M |
|---|
| Wattage | 21W/M |
|---|
| CRI (Ra) | >90 |
|---|

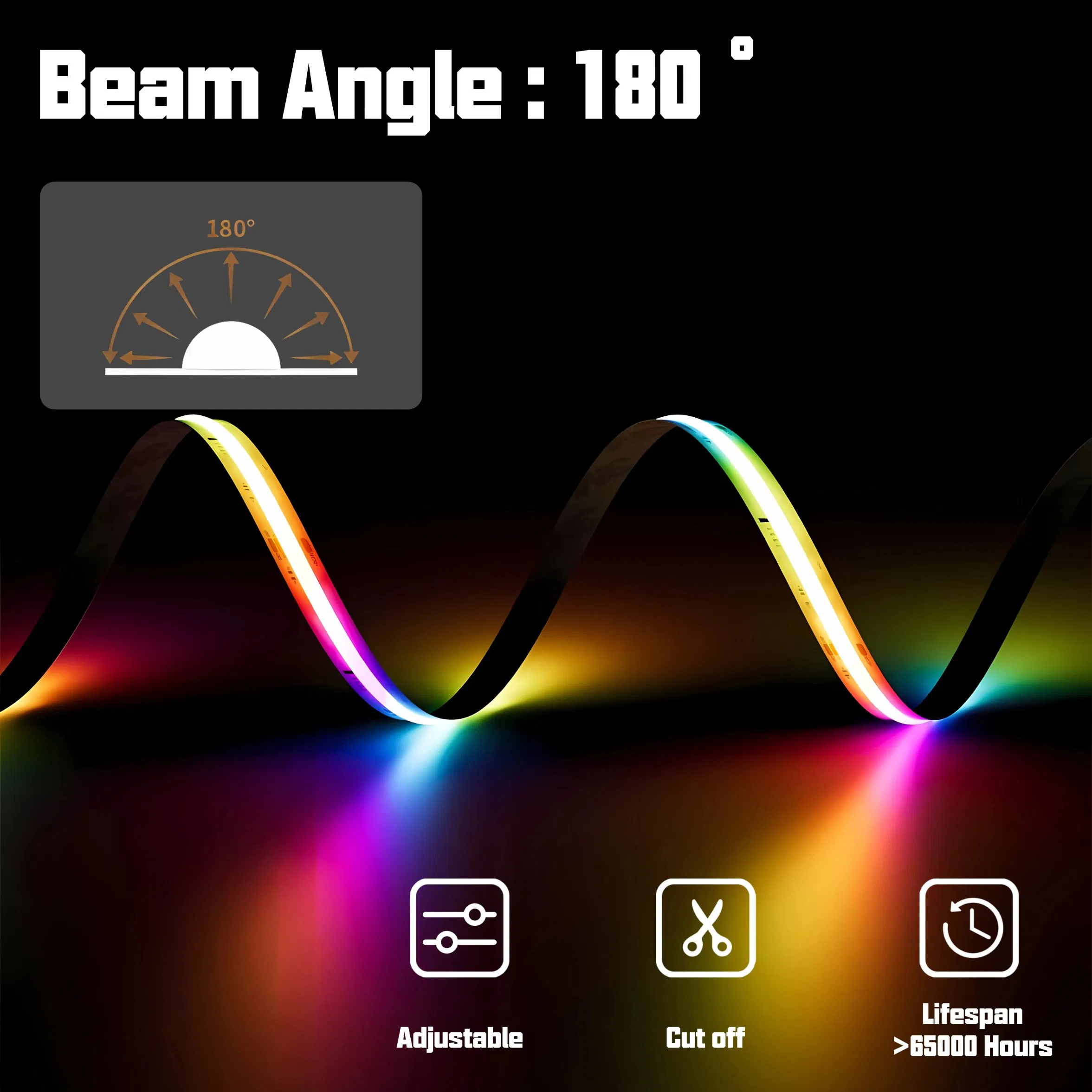

| Beam Angle | 180 Degree |
|---|
| IP Rating | IP20 / IP65 / IP66 / IP67 / IP68 |
|---|
| PCB Material | Double-Sided Coated Pure Copper |
|---|
| Lifespan | 50,000 Hours |
|---|
Product Description & Features

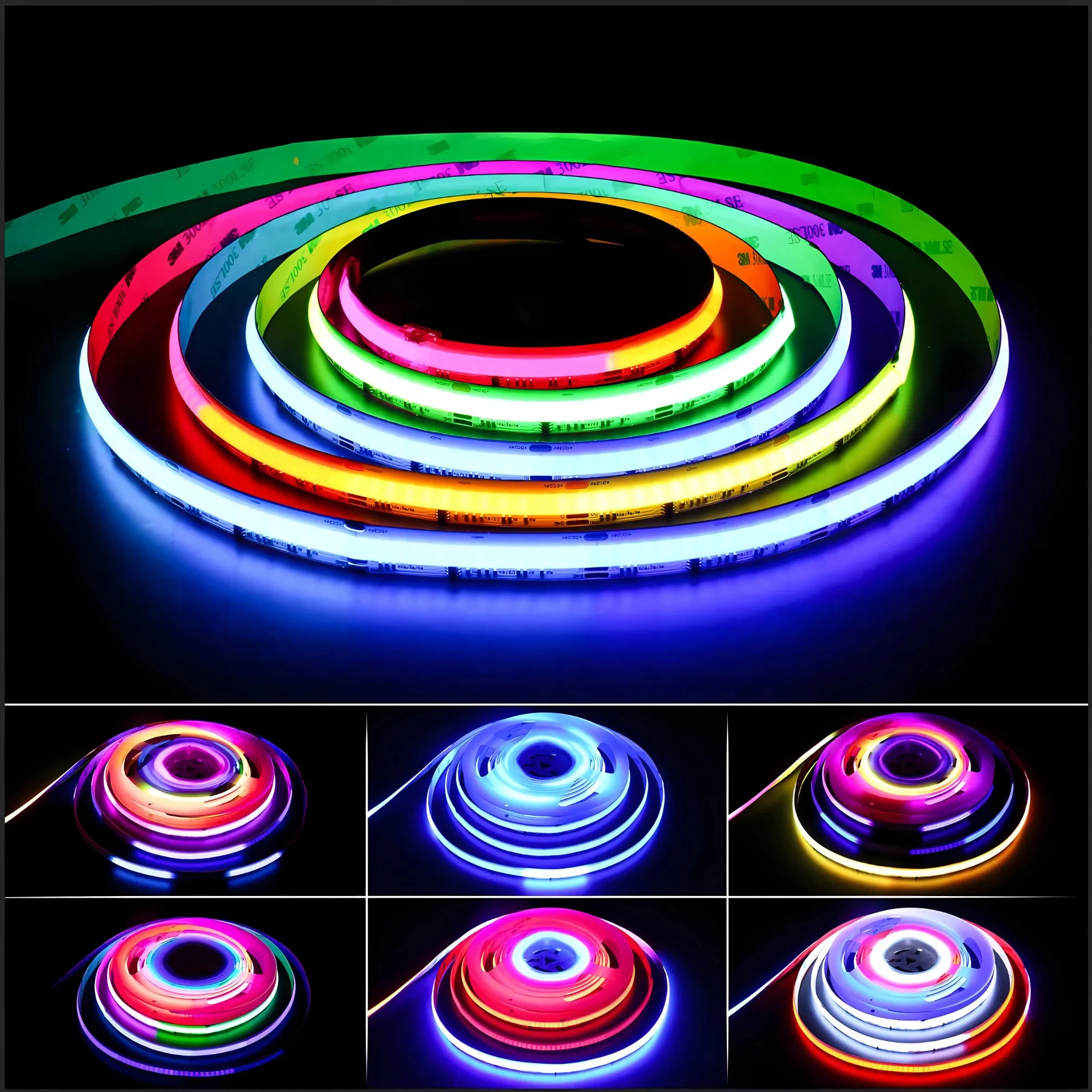

The Addressable FOB LED Light COB Strip features the WS2811 IC, allowing for precise control over every segment to create stunning "Dream Color" effects. With high-density 720 LEDs per meter, it provides ultra-bright and perfectly balanced lighting without any dark spots or visible dots.
- Addressable lighting with WS2811 IC technology
- High brightness with zero dark areas or lighting spots

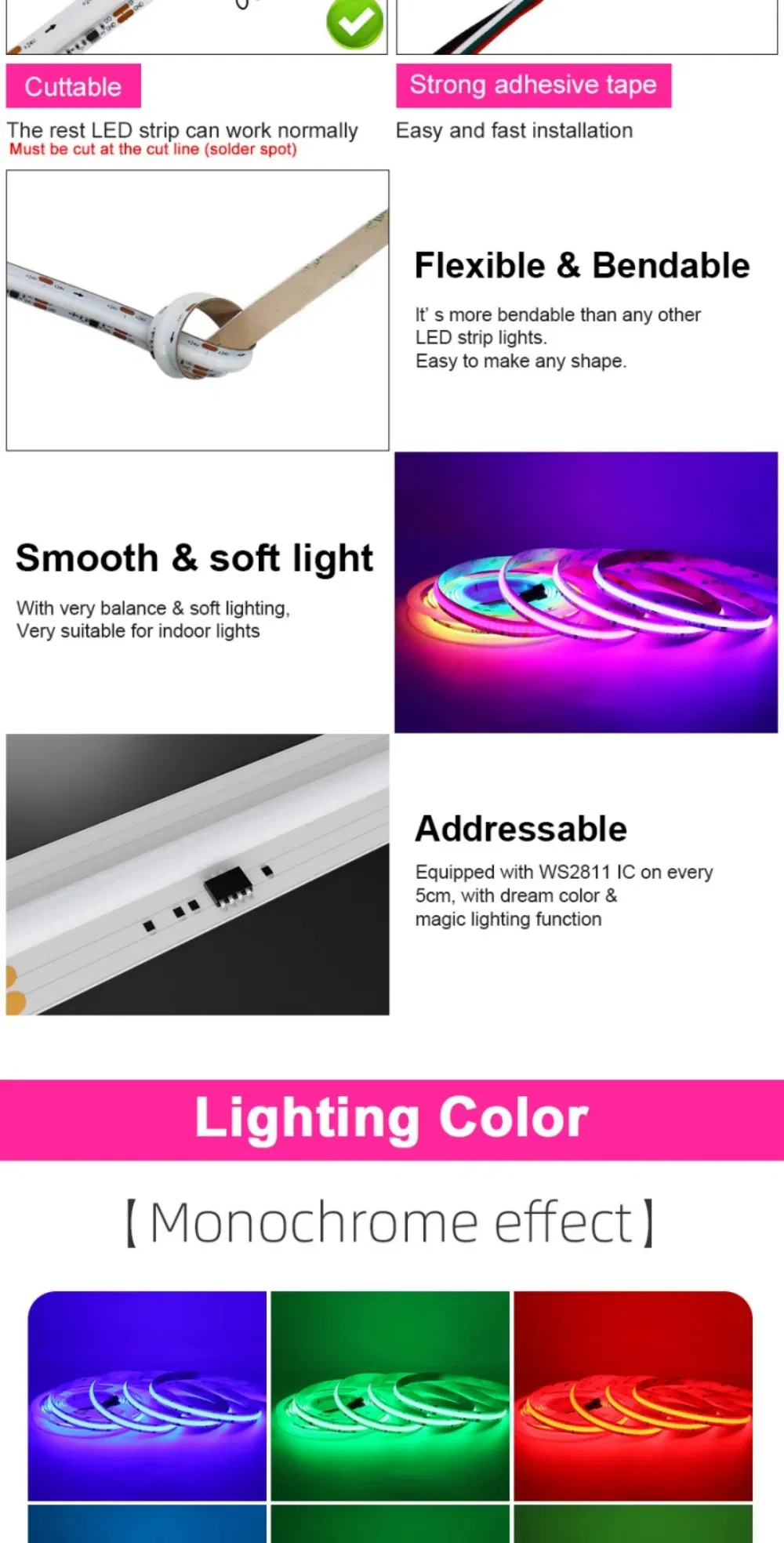

- Superior flexibility compared to standard SMD strips

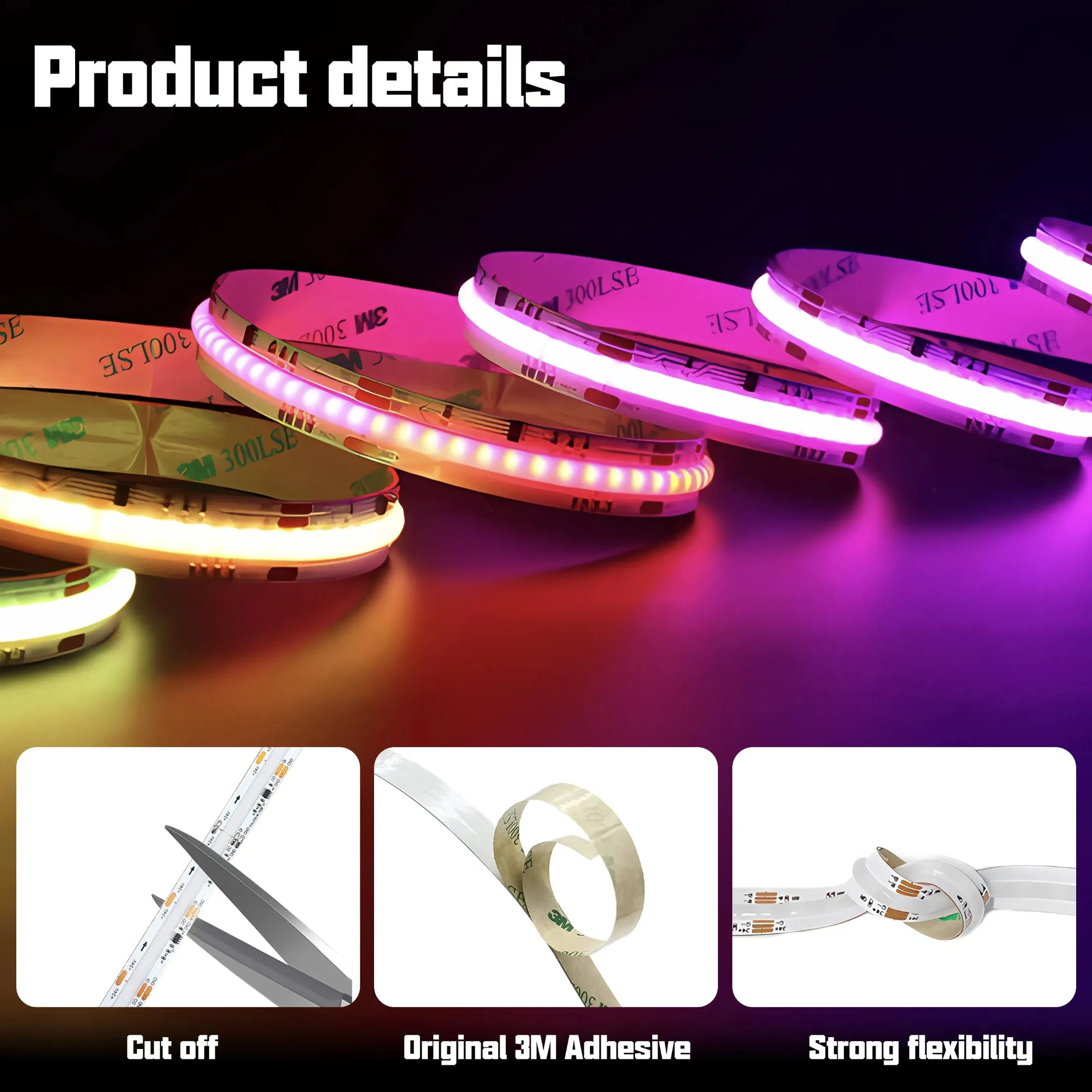

- Cuttable and jointable for custom length requirements
- Excellent for high-end decorative lighting
- Compatible with WiFi controllers (Alexa & Google Home)
Notice: Due to product upgrades, the adhesive backing may transition from yellow to blue. Both versions maintain the same high-quality performance.
Technical Specifications
| Parameter |
Details |
| IC Type | WS2811 |
|---|
| PCB Width | 12mm |
|---|

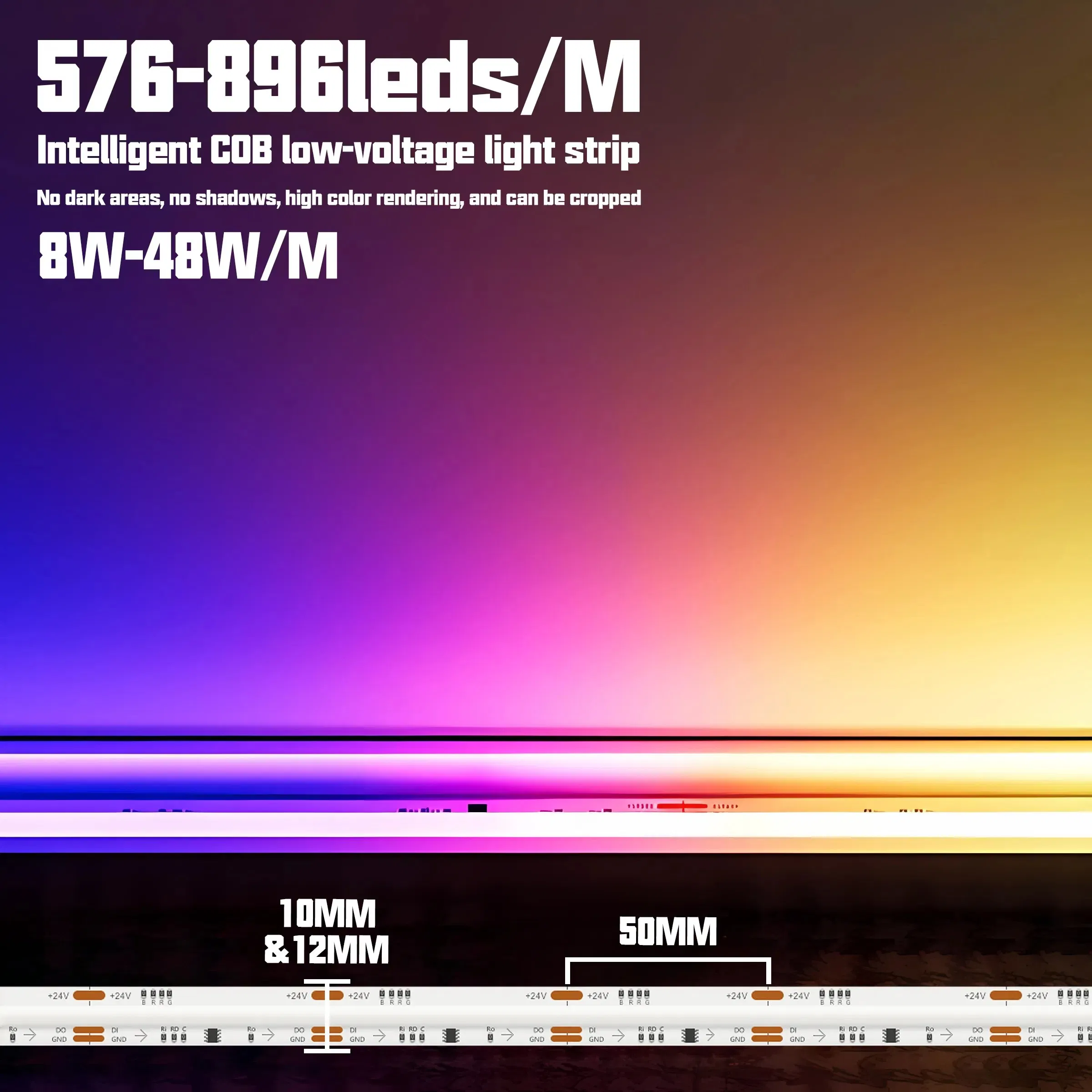

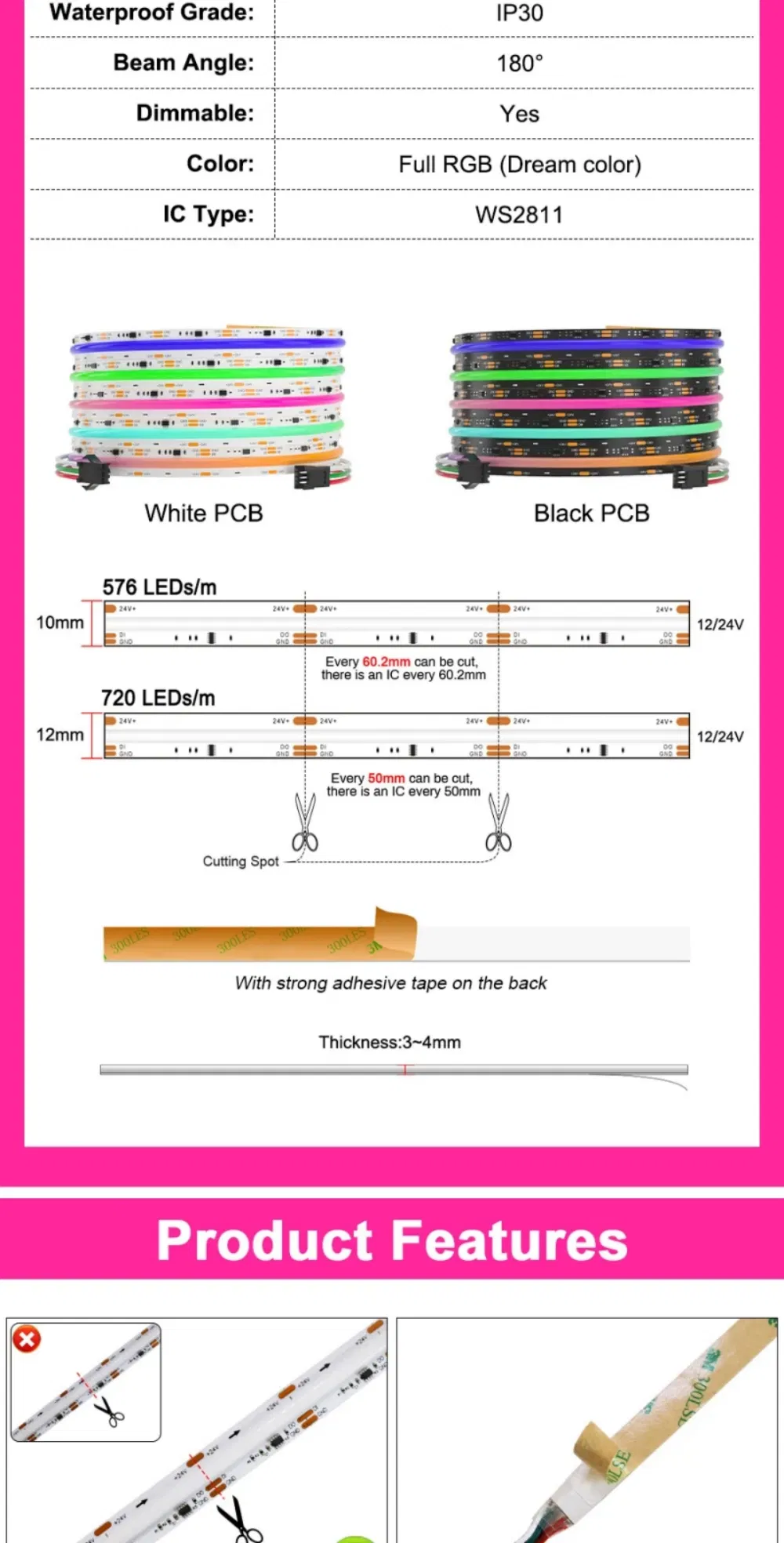

| Cutting Size | 50mm |
|---|
| Luminous Flux | 980-1100 lm/M |
|---|
| Control Mode | Remote Control / App / Voice |
|---|
| Standard Length | 5m / 10m per roll |
|---|
Reliability & Installation
Reliability Test Items:
| Test Item |
Conditions |
Duration |
| Thermal Shock | -25ºC (15min) to 100ºC (15min) | 300 Cycles |
| Life Test | Ta = 25ºC | 1000 Hours |
| Humidity Storage | Ta = 85ºC, RH = 85% | 1000 Hours |
Key Installation Requirements:
- Handle with care; do not squeeze or fold the LED strip.
- Avoid installation in corrosive, flammable, or explosive environments.
- Use only neutral adhesives; strictly avoid acidic or alkaline fixatives.
- Ensure power is cut off during installation and debugging.
- Observe correct positive and negative polarity to prevent damage.
- Installation should be performed by a professional to meet safety standards.
Wide Applications
- Architectural decorative lighting
- Archway, canopy, and bridge edge lighting
- Amusement park and theater mood lighting
- Emergency hallway and walkway lighting
- Stairway accent and concealed lighting
- Backlighting for signage and channel letters
- Cove lighting and edge-lit acrylic panels
Frequently Asked Questions
What makes WS2811 COB LED strips different from regular COB?

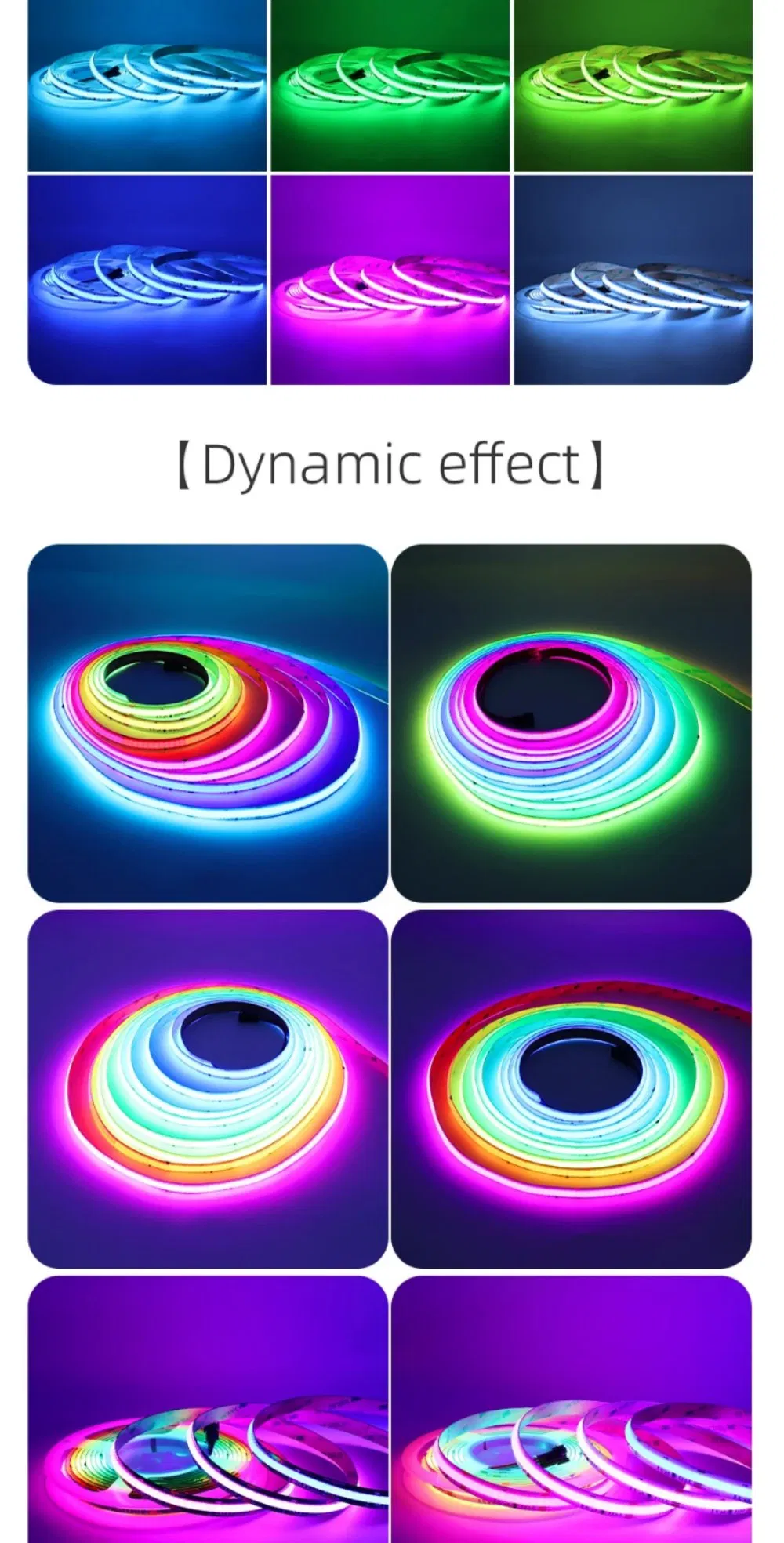

The WS2811 IC allows the strip to be "addressable," meaning you can control the color and movement of light segments individually, creating dynamic "dream color" effects like chasing and flowing, which standard COB strips cannot do.
Can I cut the strip to a specific length?
Yes, the strip is cuttable every 50mm. This allows you to tailor the length precisely to your project requirements.
Do I need a special controller for this LED strip?
Yes, because it is an addressable RGBIC strip, you will need a WS2811-compatible pixel controller (Remote, Bluetooth, or WiFi) to manage the color effects.
Is the strip suitable for outdoor use?
We offer various waterproof ratings ranging from IP20 (indoor) to IP68 (fully waterproof). Please select the appropriate IP rating based on your installation environment.

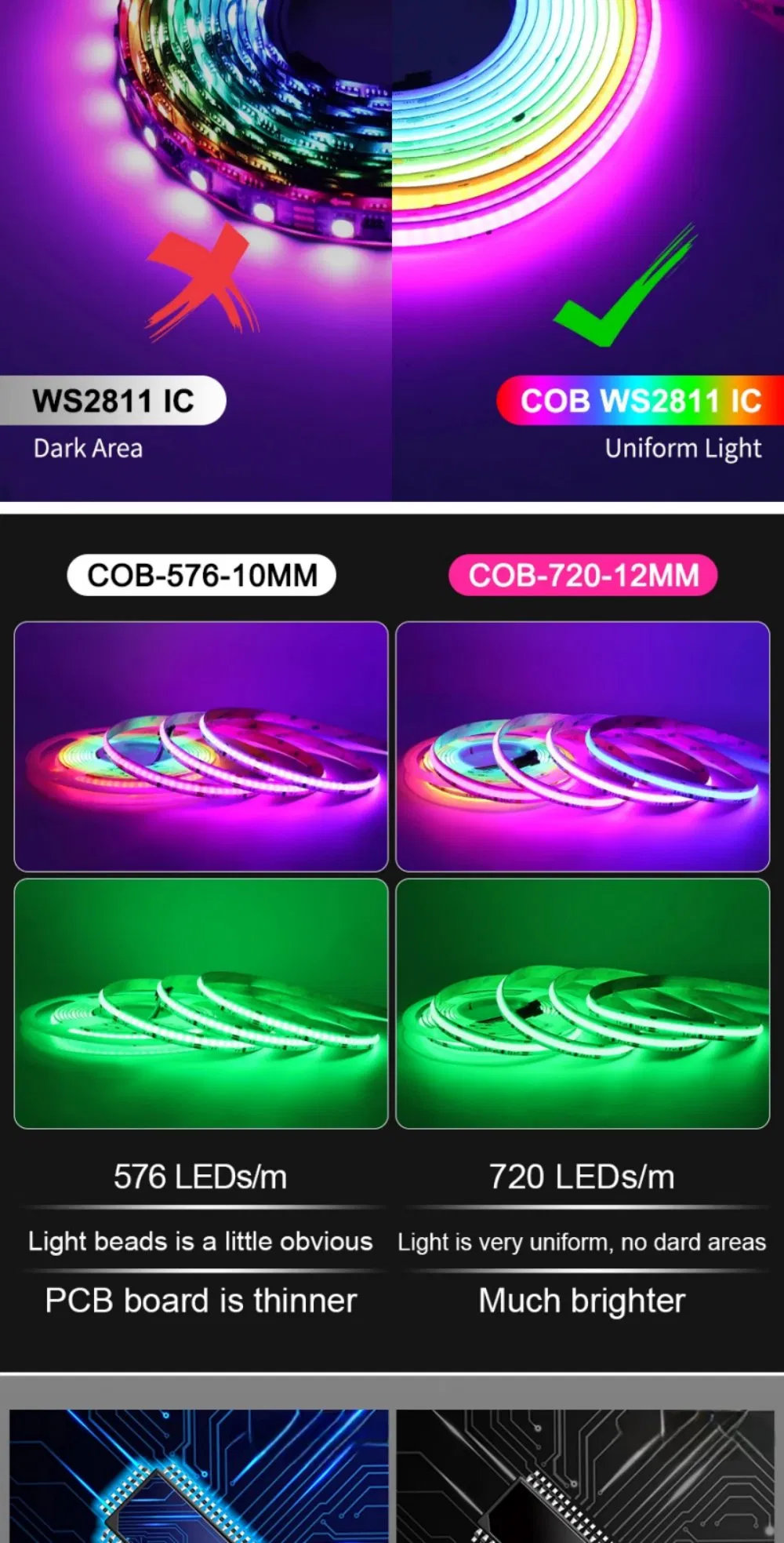

What is the advantage of 720 LEDs/M density?
The high density ensures a completely seamless light output with no visible "dots" or dark spots, even when installed in shallow profiles or used for direct view lighting.
How long is the product warranty?
We offer a warranty period of 2 to 5 years depending on the specific model and application. During this time, we provide repair or replacement for any quality-related issues.
