Basic Information
Application
Bar, Lighting, Advertising
Light Color
White/Red/Blue/Green/Yellow
Specification
1000*6*0.3mm
Production Capacity
50,000m/Month
Product Description

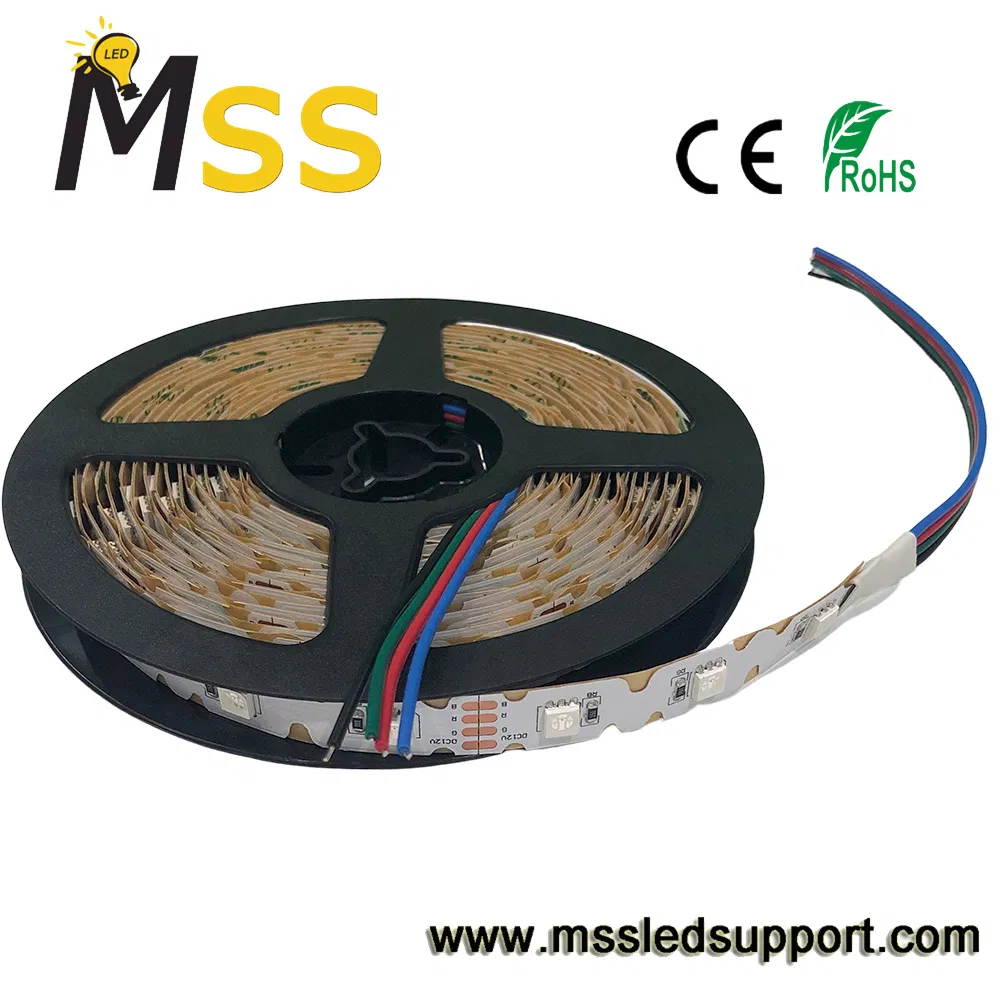

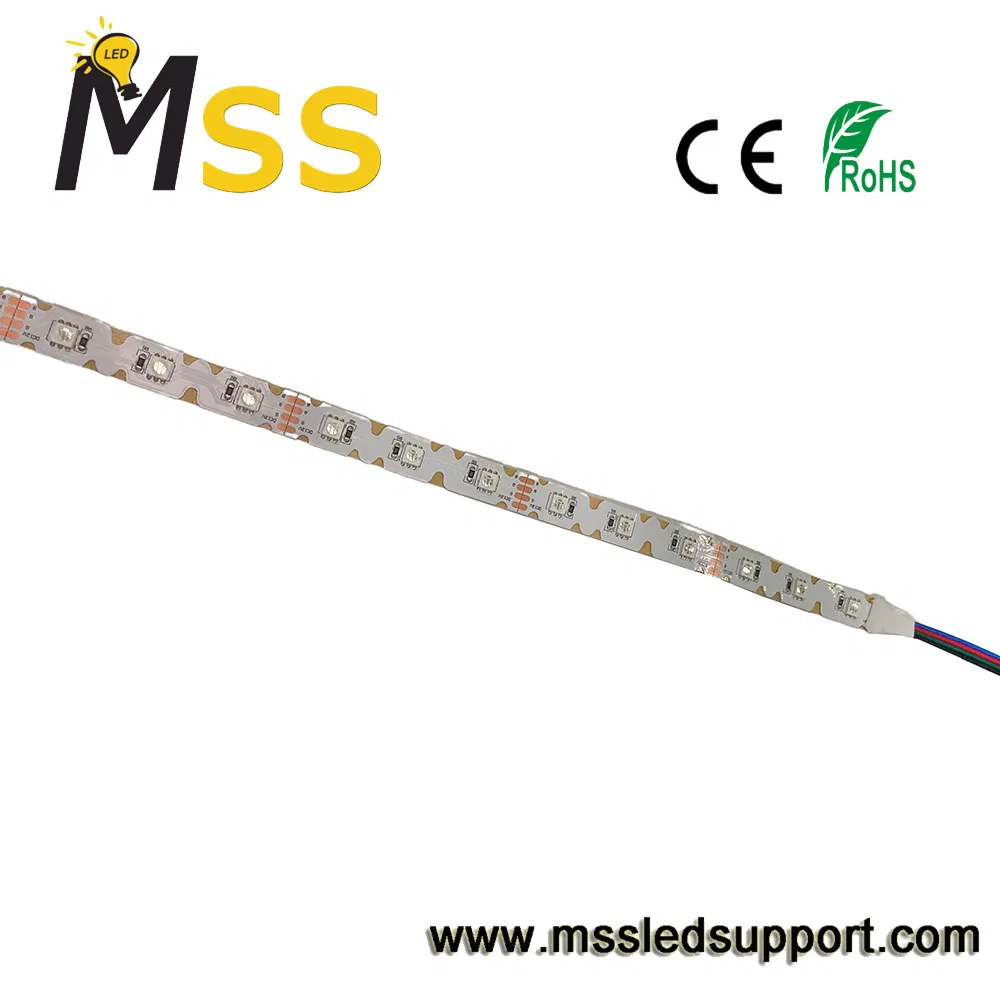

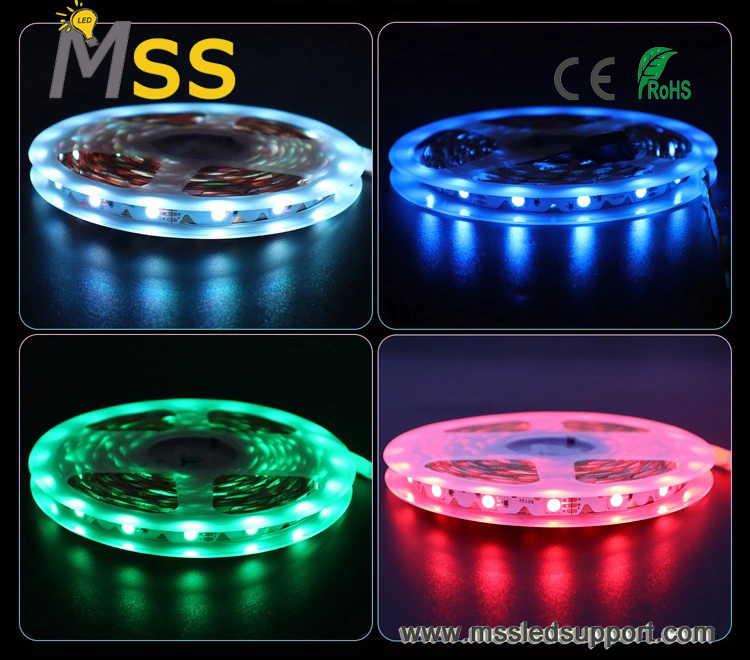

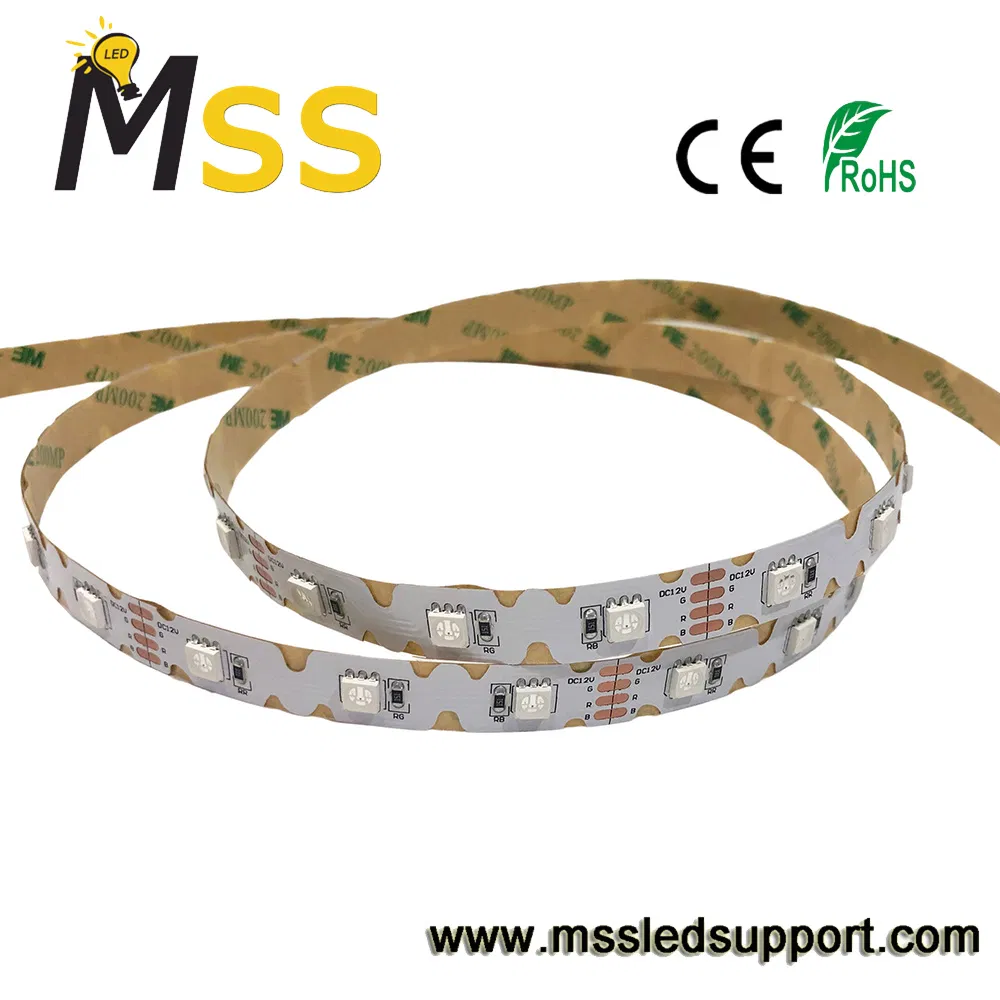

Unique S-type zigzag pattern allows for bending the strip to make bends, curves and to form non-regular shapes as you like.

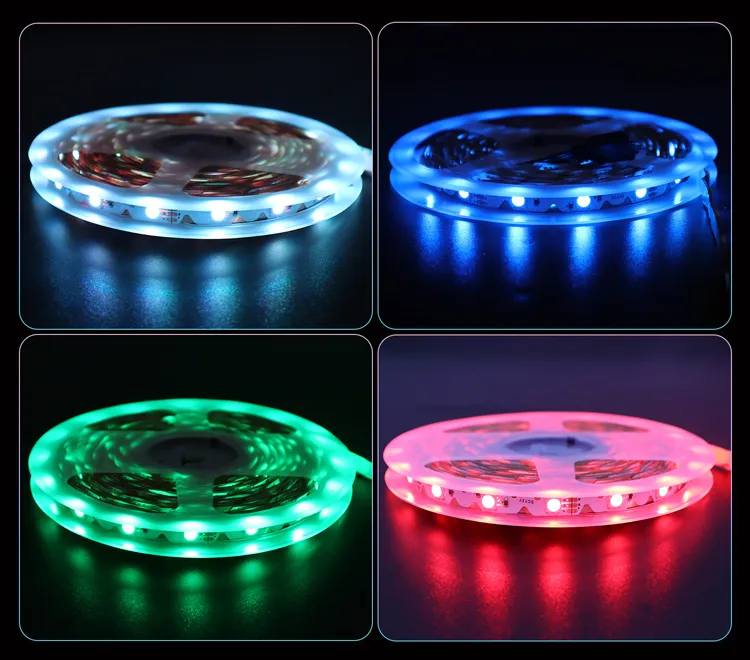

With 3 basic colors, you can choose different colors and modes in different scenes.
The strip light is easy to cut. It cuts every 3 LEDs along the cutting mark without damaging the rest.
This very high brightness LED strip is powered by high-quality SMD5050 LED chips.
Fitted with an easy-to-install original 3M adhesive tape with excellent adhesion.
Product Parameters
| LED Type | 5050 RGB 3-in-1 |
| LED Density | 60 LEDs/m (18 LEDs/ft) |
| Operating Voltage | 12V/24V DC optional |
| Light Color | RGB Color Changing |
| Max Power | 12W/m |
| LED wavelengths | R: 620-630nm; G: 520-530nm; B: 465-475nm |
| Beam Angle | 120 degree |
| Dimmable | Yes (requires controller) |
| PCB Width | 8mm (0.31 in) |
| Cuttable | 3 LEDs a segment |
| Reel Length | 5 meters (16.4ft)/reel |
| Product Lifetime | 50,000 Hours |

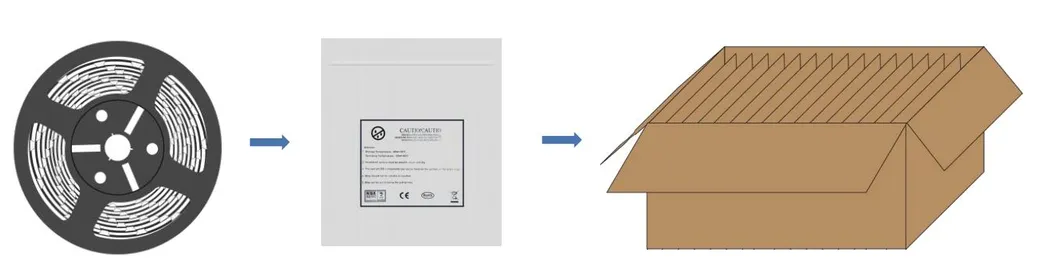

Packaging & Shipping

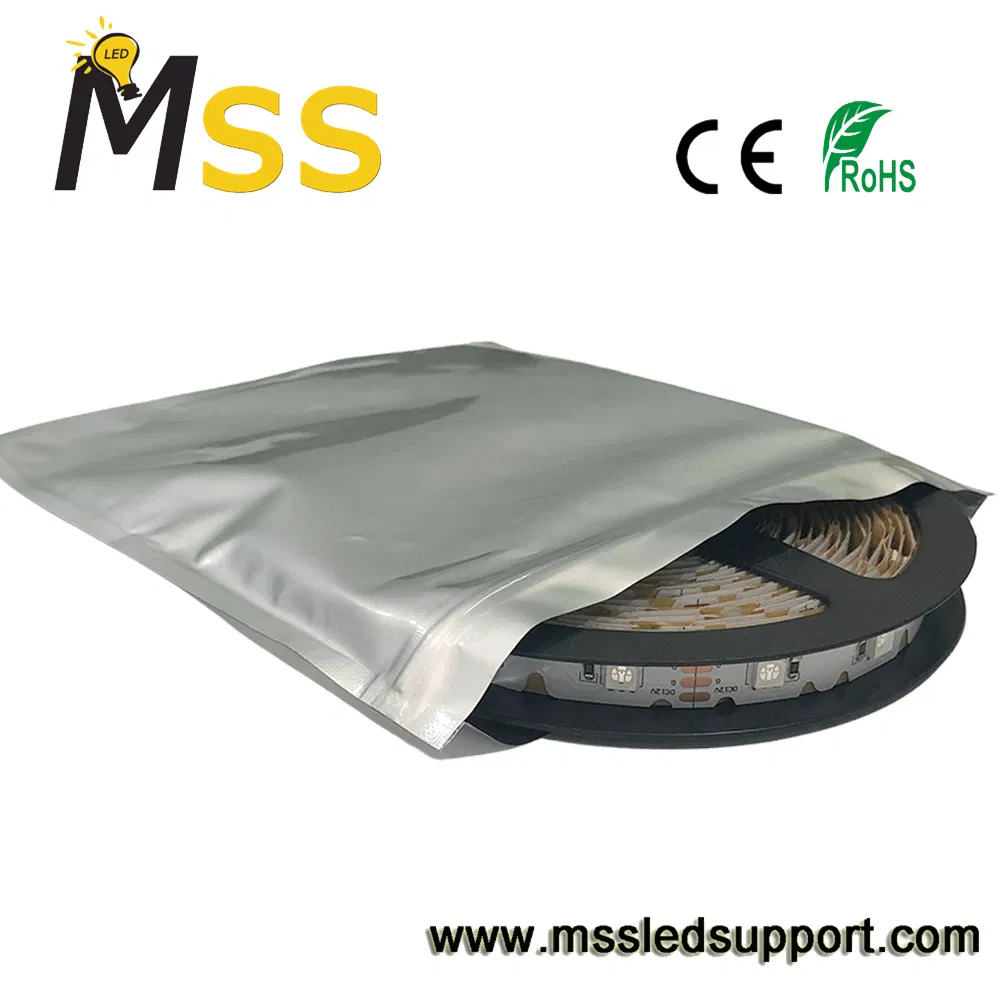

Outer carton: 45x25x25.6cm, Anti-static bag: 186x197x0.12mm.
5 meters per reel, 1 reel per bag, 40 bags per boxes.
Installation Instructions

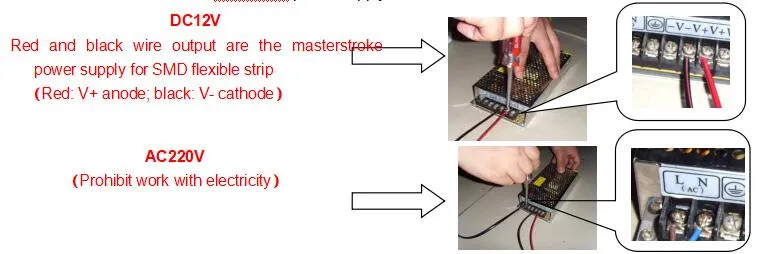

Power supply should have necessary short circuit and over-voltage protection. Use insulated handles during installation.
The diameter of red and black wire depends on the quantity of strips and distance. Suggest using RV wire as masterstroke. If single support exceeds 100W, add extra masterstroke.

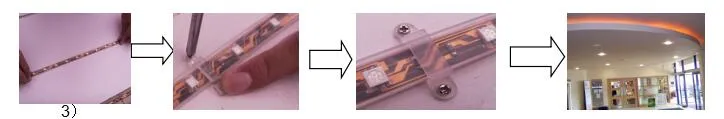

Fit the strips according to the actual situation: Spread flatly and use transparent clips (4 pcs per meter). Do not press on the LEDs.

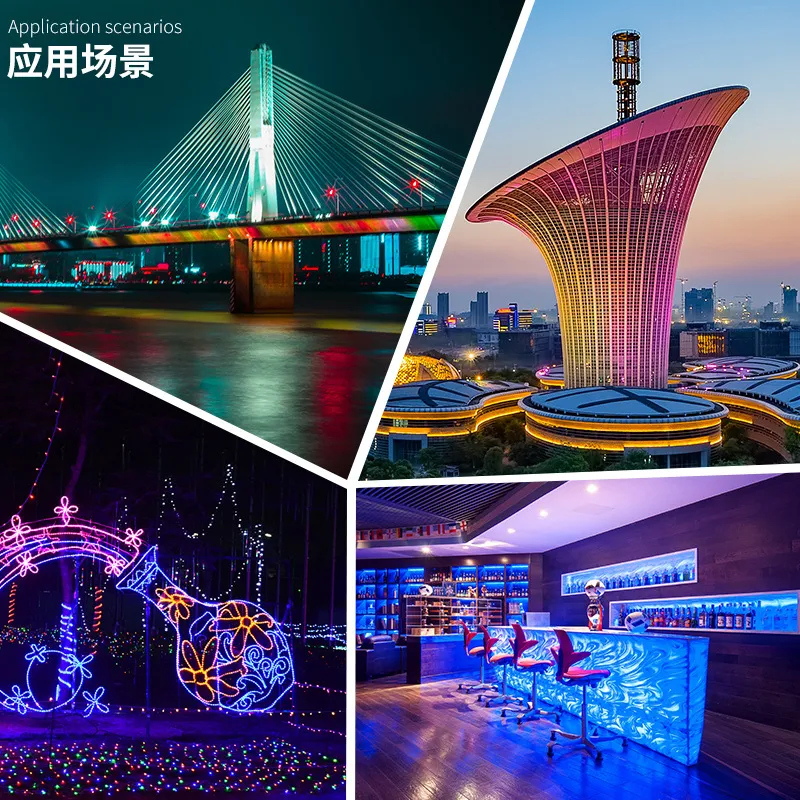

Application
Architectural decorative lighting and backlighting for homes, hotels, and bars.
Auditorium walkway lighting and outdoor illuminated signs.
Amusement park, canopy, and stairway lighting.
Channel signal lighting for stores and restaurants.
DIY lights for home use.

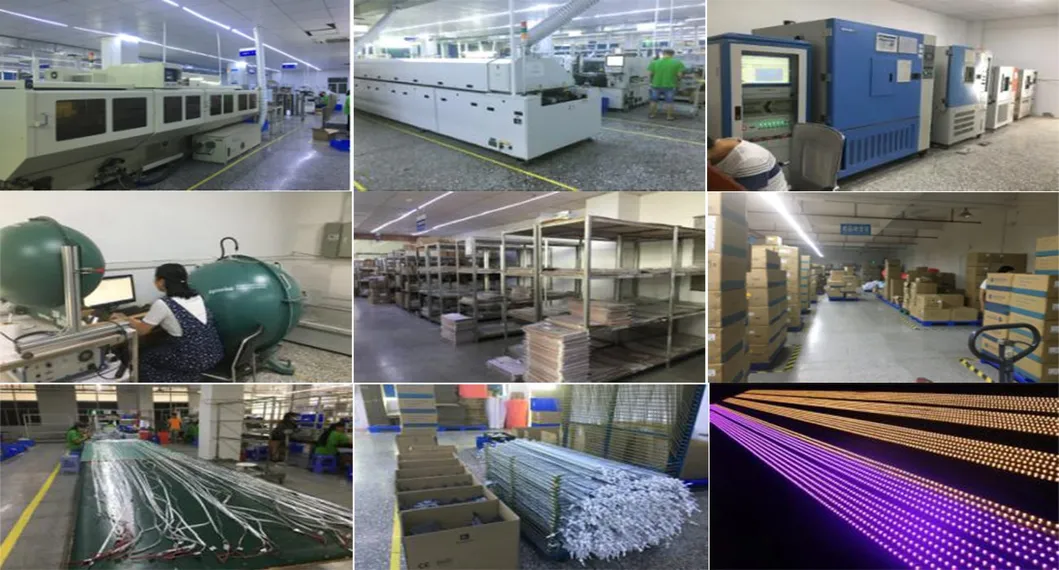

Industry Expertise
Our core team has been engaged in the LED industry since 2007. With nearly 10 years of experience, we focus on LED strip lights, sign modules, and related advertisement lighting products, including power supplies, dimmers, and controllers.
Beyond standard products, we offer custom solutions tailored to exact demands, such as specific lengths, connectors, color temperatures, and lumens based on project requirements.
Frequently Asked Questions
Q: What is the advantage of the S-Shape design?
A: The unique zigzag pattern allows the strip to be folded and bent easily to fit curves and non-regular shapes without damaging the circuit.
Q: Can this LED strip be cut to size?
A: Yes, the strip is cuttable every 3 LEDs along the designated cutting marks.
Q: What is the expected lifespan of the product?
A: The high-quality SMD5050 LED chips are designed to last up to 50,000 hours.
Q: Is the LED strip waterproof?
A: This specific model is IP20 non-waterproof, though other IP rates like IP65 and IP66 are available for different applications.
Q: What voltage is required for operation?
A: The strip operates on either 12V or 24V DC, depending on the specific model selected.
Q: Does it come with adhesive backing?
A: Yes, it is fitted with original 3M adhesive tape for easy and secure installation.
