Basic Specifications
Emitting Color
White/Blue/Red/Green/Yellow

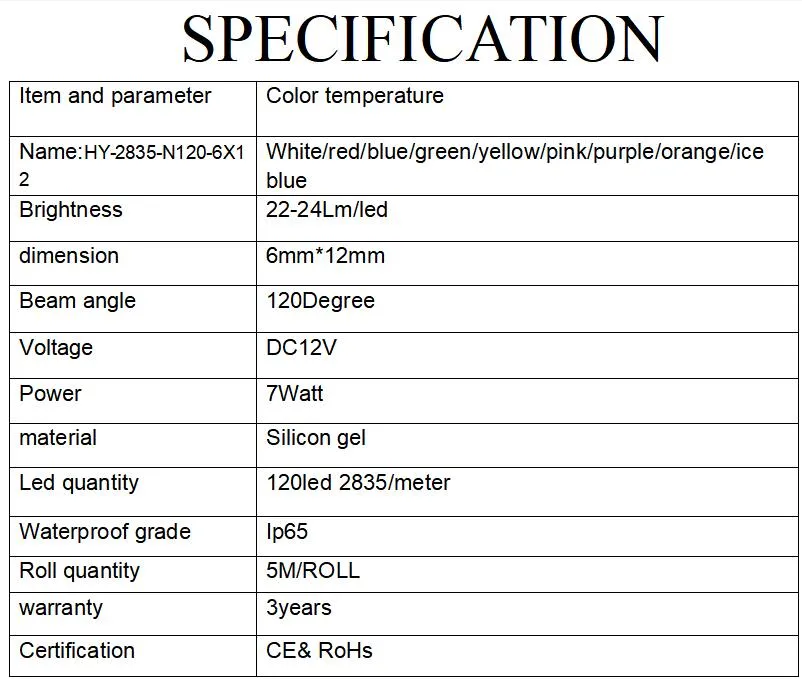

Specification
6*12mm / 8X13MM
Capacity
50,000 Meters/Month
Packaging & Delivery
Package Size
45.00cm * 30.00cm * 28.00cm
Delivery Time
7-12 workdays
Product Description

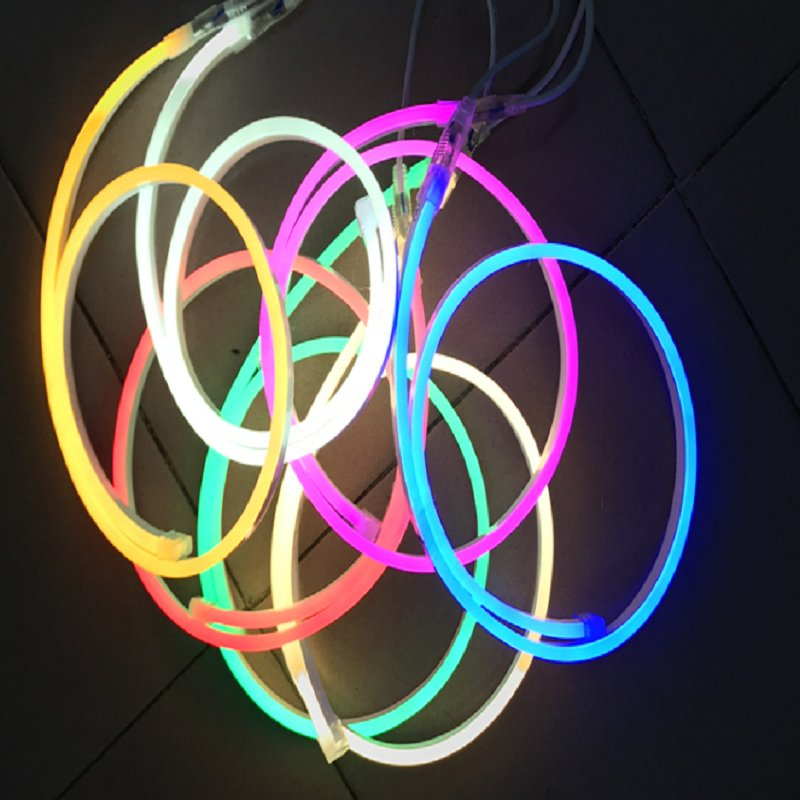

8X13mm/6X12mm Silicon Flex Neon for Neon Signs
Key Advantages
📏
Flexible Length
50 meter/roll with 120 Degree beam angle.
🛠️
Easy Installation

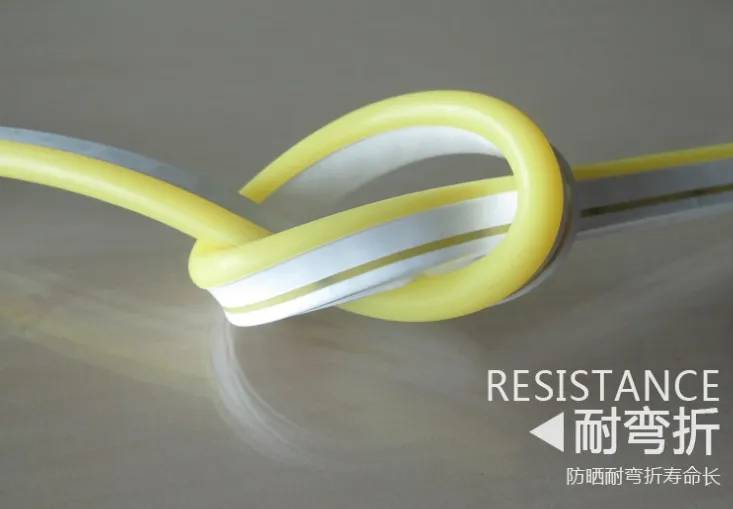

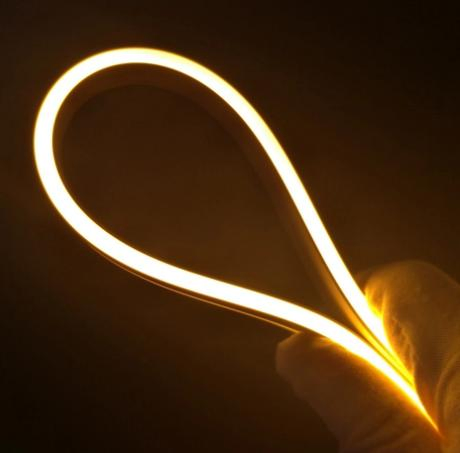

Bend vertically for various applications. Includes 3M double-sided tape.
✂️
Precision Cutting
Every LED can be cut along the tangent line without damage.
💡
High Performance
Topview lighting, high brightness, even color mixture, and low heat.
🛡️
Safety First
DC12V/24V low voltage supply, impact resistant and no glare.
📜
Certified Quality
Fully compliant with CE & RoHS standards.

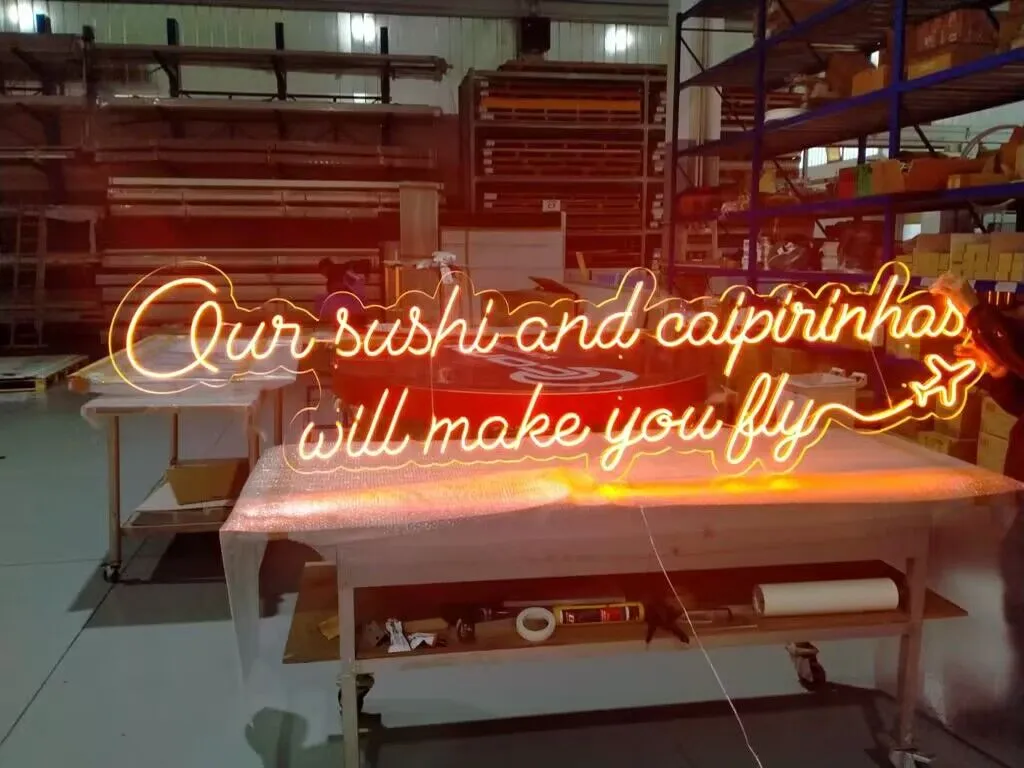

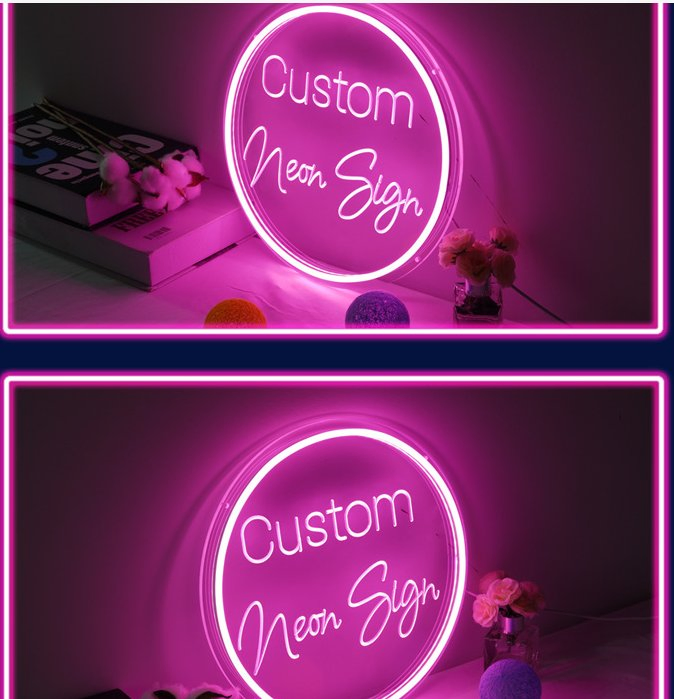

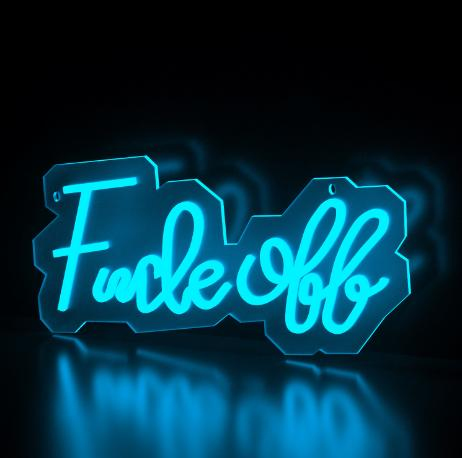

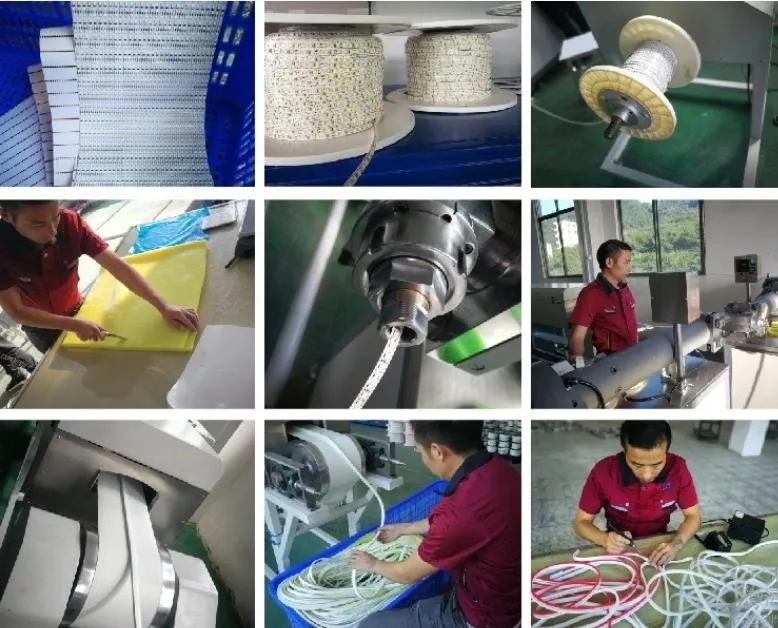

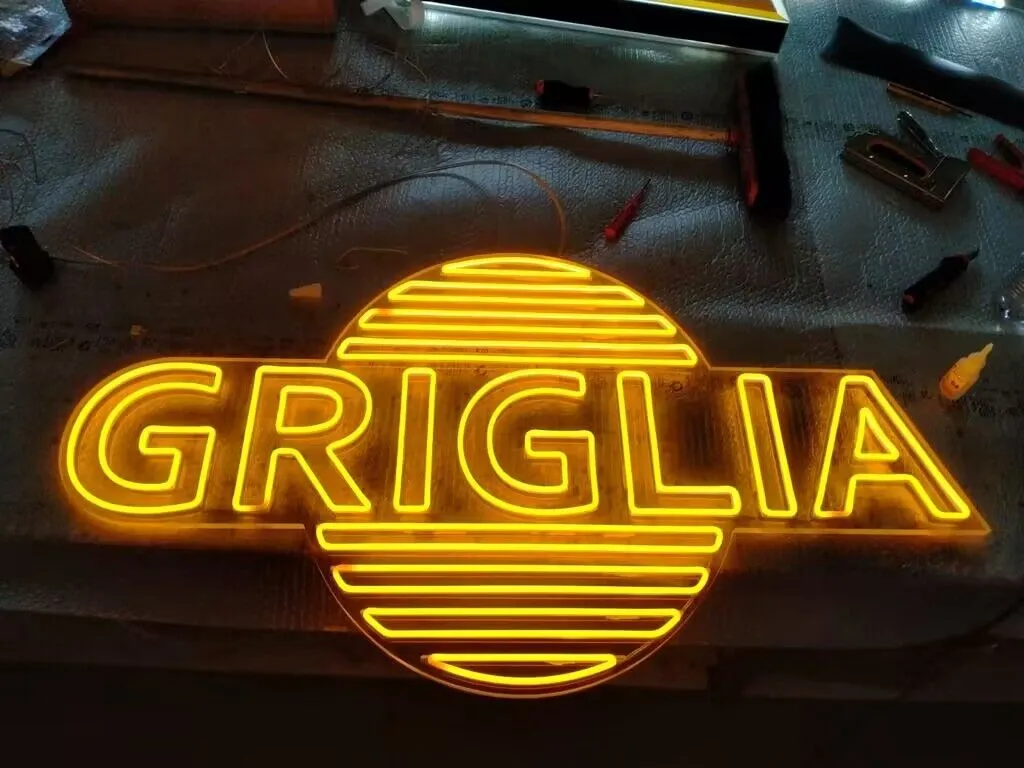

Product Showcase

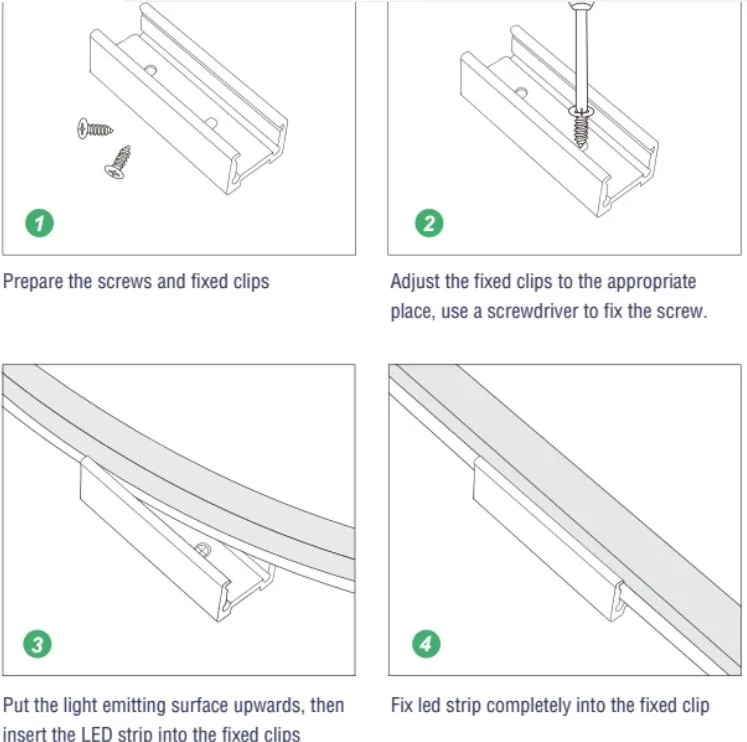

Installation Instructions
1. Adhesive: Product features 3M strong adhesive. Remove protective film and stick directly.
2. Connection: Max connection for single-channel drive is 1 volume (5M). Exceeding this requires additional power circuits.
3. Power Calculation: Total Power = (Number of strips) * (Power of single strip). Use 80% of rated power for safety margin.
Applications
Outdoor/Indoor Borders
Architectural Outlines
Furniture & Refrigerators
Signage Lighting
Cove Lighting
Commercial Centers
Residential Buildings
Important Notes
• Ensure DC output voltage matches the strip's rated voltage. Do not connect directly to AC 220V.
• Cut only at marked places. For outdoor use, waterproof all junctions.
• Do not bend excessively (minimum angle > 10 degrees).
• Install in anti-static environments; operating temperature: -50°C to 70°C.
• Avoid strong acids or alkalis in the working environment.
Frequently Asked Questions
Q1: Can this neon strip be used outdoors?
Yes, the product has an IP67 rating and is made of silicon gel, making it suitable for both indoor and outdoor applications.
Q2: What is the minimum cutting length?
The strip is designed with high precision and can be cut every 1cm at the marked positions without damaging the rest of the circuit.
Q3: Does it require a specific power supply?
Yes, it requires a DC12V or DC24V power supply. It must not be connected directly to AC 220V mains power.
Q4: How long is the warranty period?
We provide a 3-year warranty for this silicon flex neon product, ensuring long-term reliability and performance.
Q5: Is the installation difficult?
Not at all. The strip is highly flexible and comes with 3M double-sided adhesive tape on the back for quick and easy mounting.

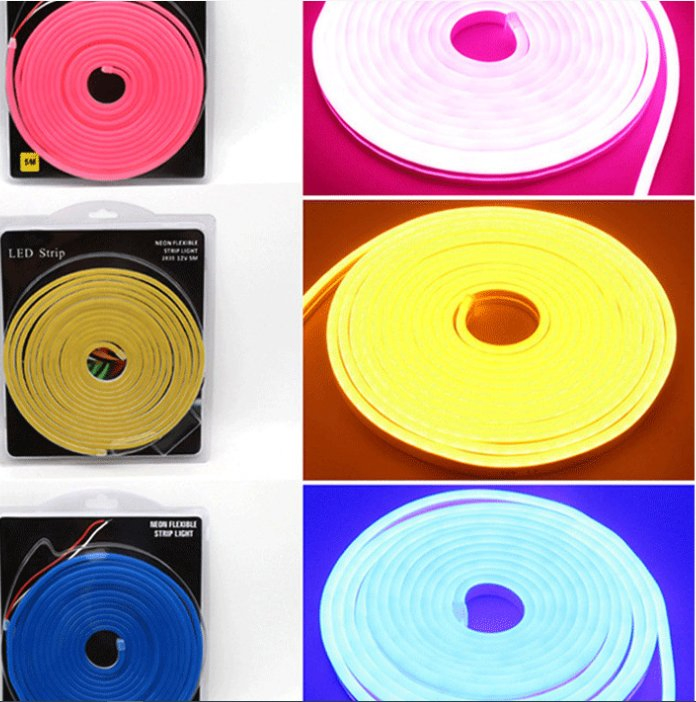

Q6: What colors are available for this model?
We offer a variety of colors including White, Blue, Red, Green, and Yellow, with color temperatures ranging from 3000K to 15000K.
