1 Basic Specifications
Usage
Advertising, Decoration
Length
Customized Length Available
LED Light
Waterproof LED Light
2 Product Description

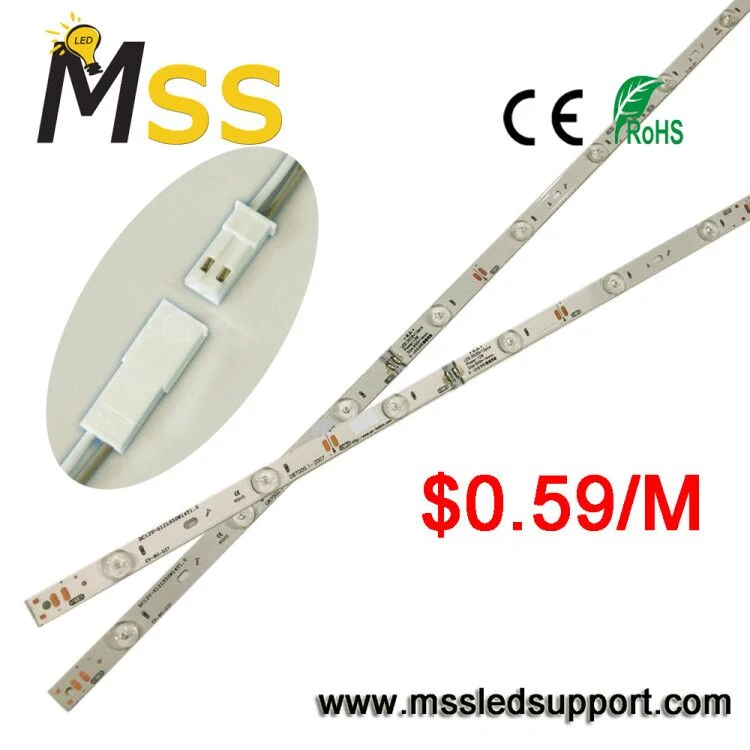

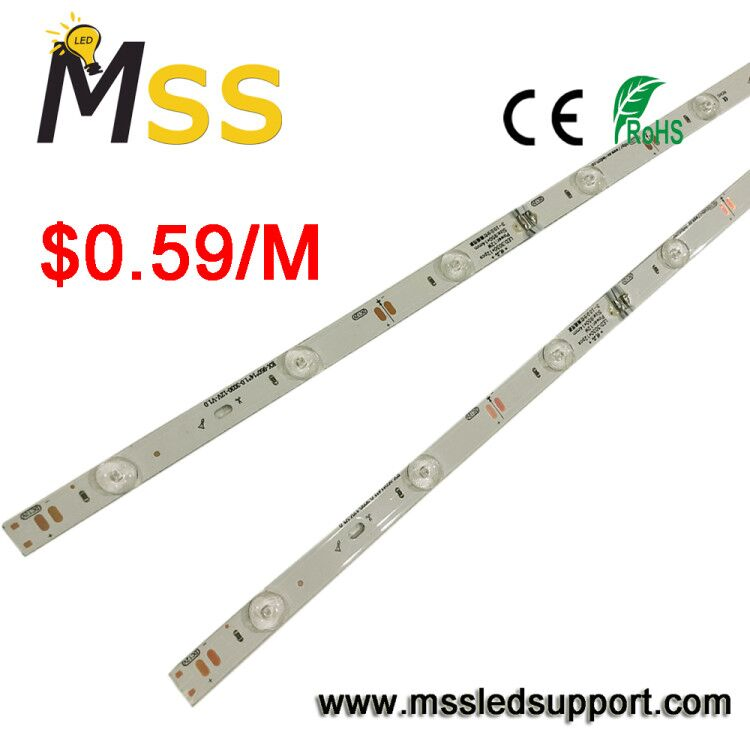

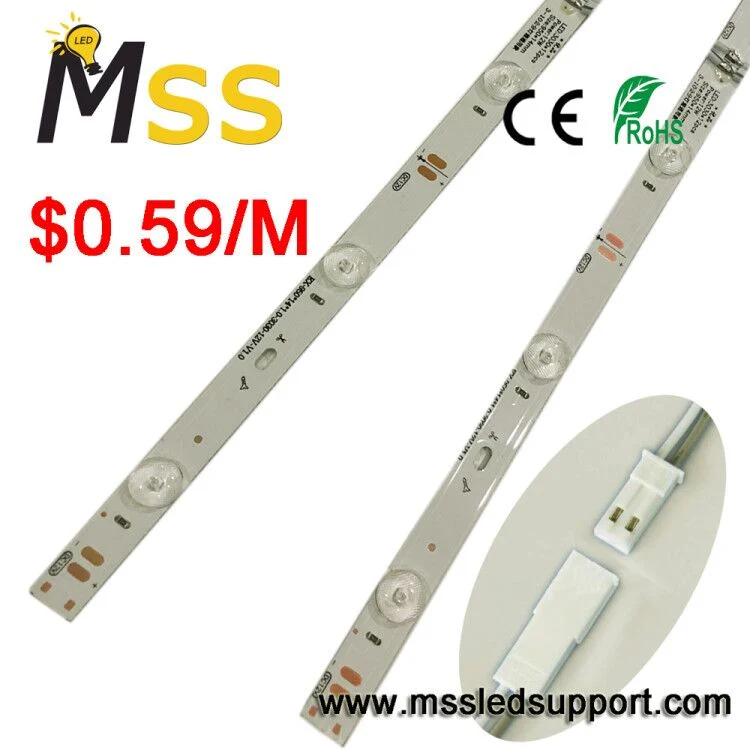

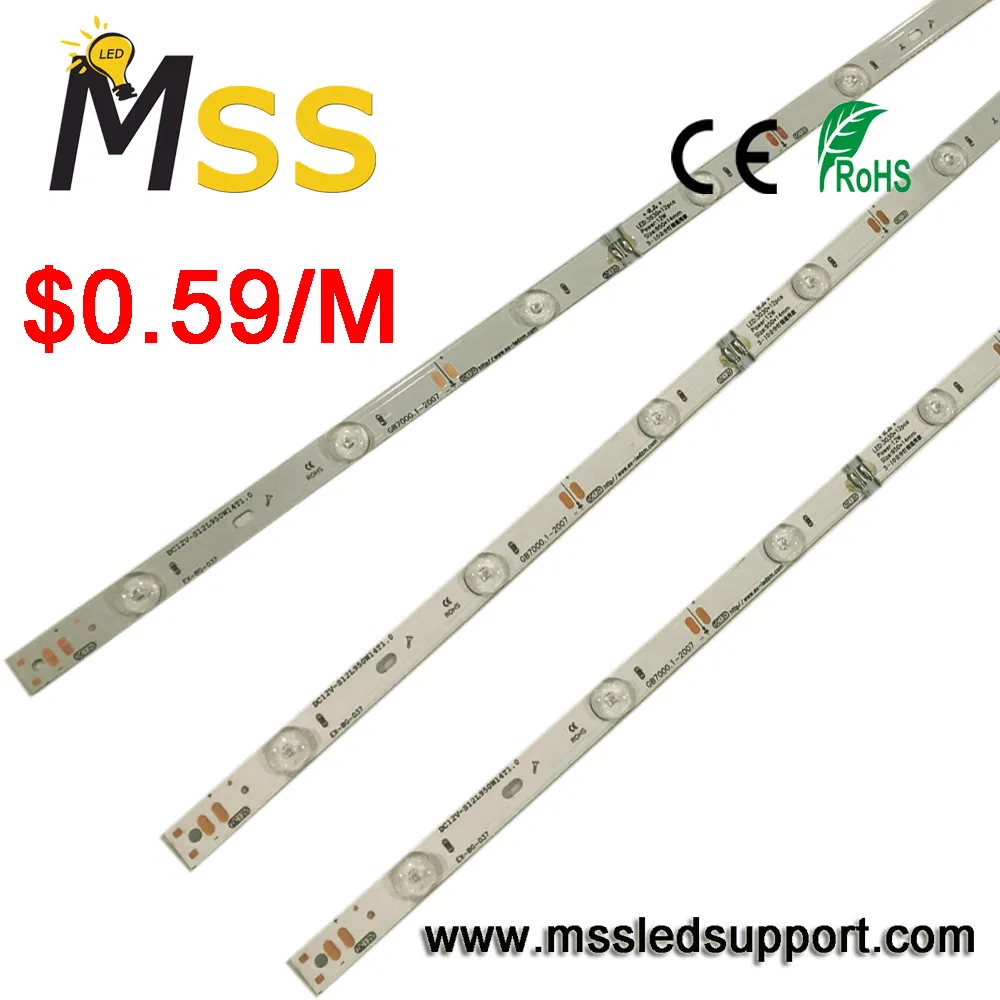

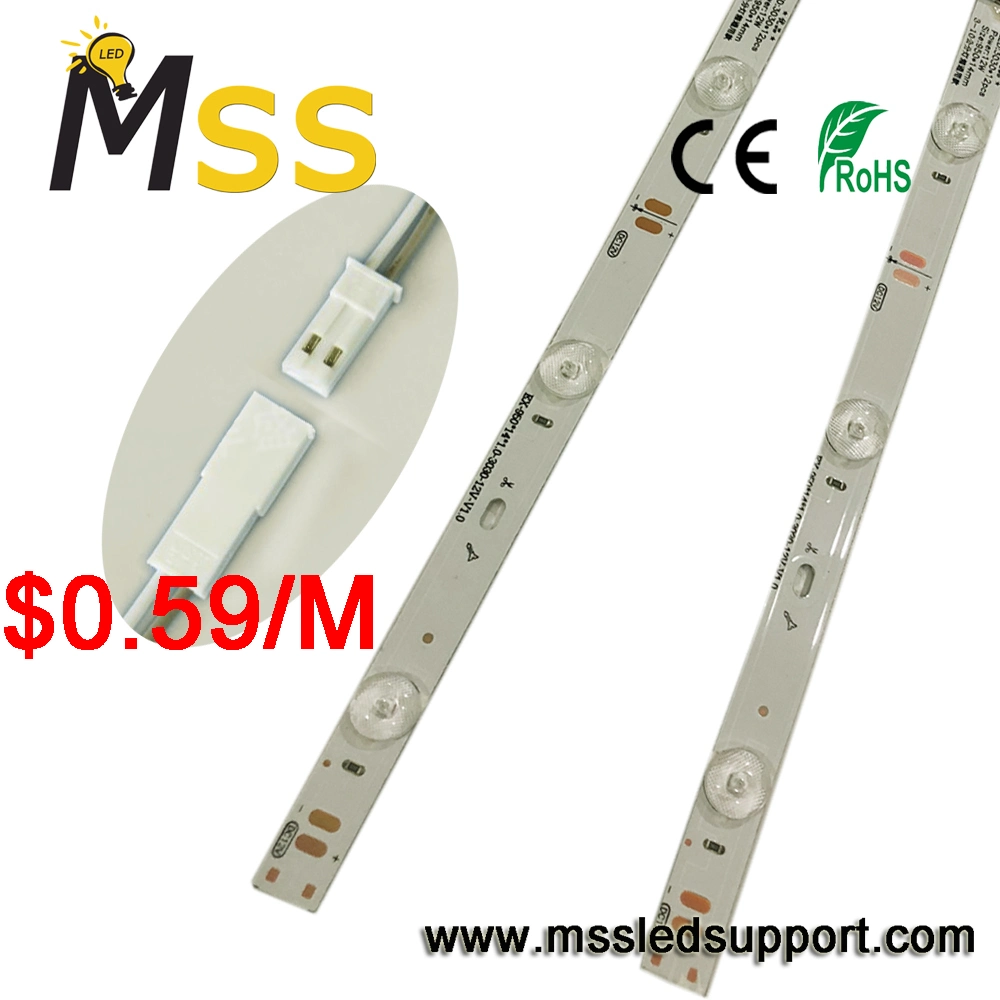

SMD 3030 High Power LED Strip LED Rigid Bar for 3mm light box
✓ Constant Current Technology (CCT)
✓ Aluminum plate for heat dissipation
✓ Energy saving, Environment friendly
✓ Long life span
✓ DIM for PWM

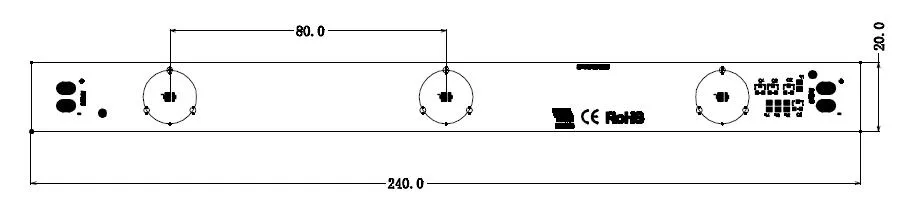

3 Dimensions & Layout
Remark: The pitch of the light-bar is variable.
4 Technical Parameters
| Environmental Conditions |
| Ambient temperature range (TA on free air) | -25…..+55ºC |
| Operating (case) temperature range (TC) | -25…..+55ºC |
| Storage temperature range | -25…..+65ºC |
| IP rating | IP62 |
| Electrical Parameters |
| Supply voltage range | 24±0.5 VDC |
| Supply Current range (per module) | 150mA |
| Power range (per module) | 3.6W Max |
| ESD protection | Contact 4KV, Air 8KV |
| Part No. |
Color Range (K) |
Flux Range (lm) |
Beam Angle |
| LB3X3030-360B240 |
6000K - 8000K |
270 - 300 lm |
170° |

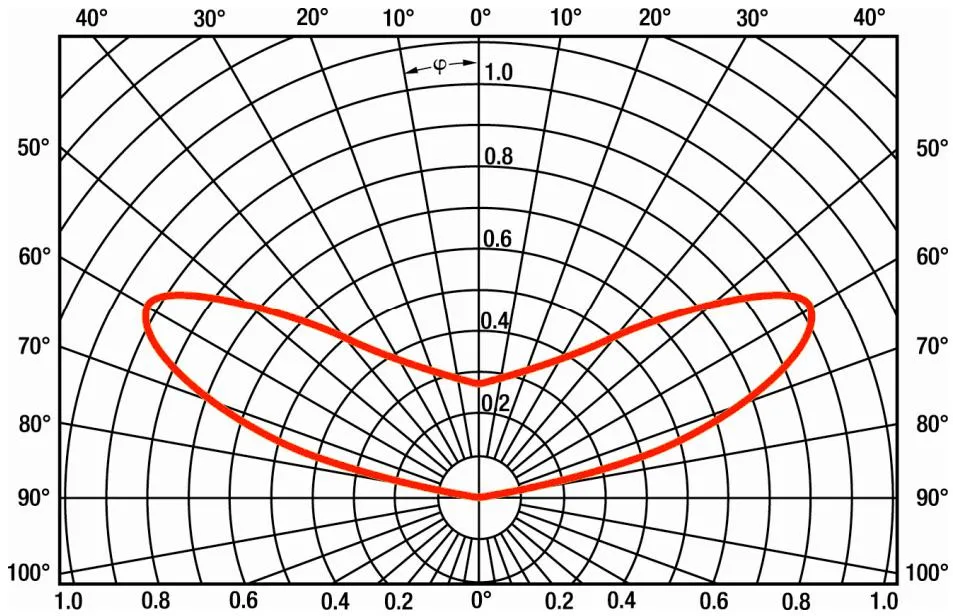

5 Light Distribution
! Installation Attention
1. Max. number of modules of one chain is 10pcs from power supplier to single end.
2. Parameters can change depending on material used for channel letters or lighting boxes.
3. The LED module and its components may not be mechanically stressed.
4. Ensure adequate power supply; installation by qualified personnel only.
5. Housing design should follow IP standards. Surge protection recommended.

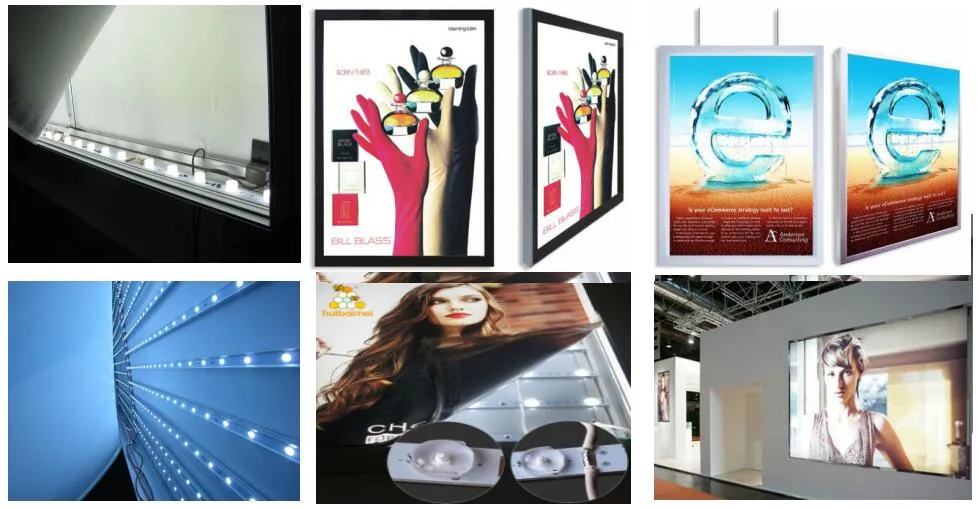

6 Applications
● Commercial standing lighting
● Light box lighting
● Logo lighting
● Line/shape lighting
7 Packaging Details
Carton Size: 65x31x30cm
Chain Qty: 12pcs per chain
Total Qty: 480pcs per outer carton
Frequently Asked Questions
What is the working voltage for this LED rigid bar?
The standard working voltage is DC 24V (±0.5 VDC). A 12V version is also mentioned in basic specs for different configurations.
Is this product suitable for outdoor use?
Yes, it features IP62 protection according to technical parameters, and is designed with waterproof LED lights, making it suitable for protected outdoor advertising and decoration.
Can the light intensity be dimmed?
Yes, the LED rigid bar supports DIM for PWM (Pulse Width Modulation) dimming systems.
What is the maximum chain length for installation?
To ensure stable performance and avoid voltage drop, the maximum number of modules in one chain is 10 pieces when connected to a single-end power supply.
How does the bar handle heat dissipation?
The product uses an integrated Aluminum plate specifically designed for efficient heat dissipation, ensuring a long life span.
What is the beam angle of the SMD 3030 LEDs?
The LEDs provide a wide 170° beam angle, which is ideal for uniform illumination in light boxes and logo lighting.
