SMD3014 RGB Side Emitting CCT Control Indoor & Outdoor LED Flexible Strip Lighting

Still deciding? Get samples of $ !
Request Sample

Product Description

SMD3014 RGB Side Emitting CCT control Indoor & Outdoor LED Flexible Strip Lighting

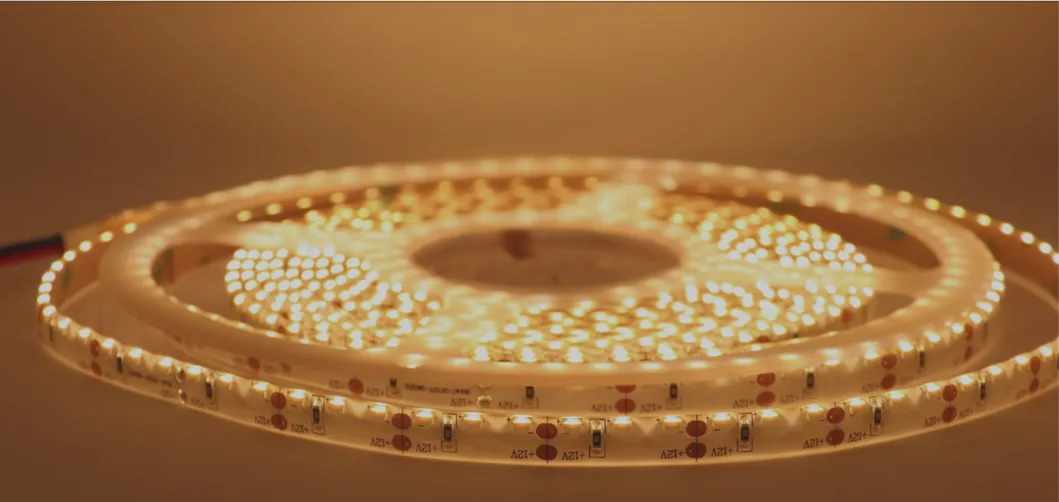

SMD3014 RGB Side Emitting LED Strip
📊

Basic Specifications

Model NO.
FLW-020-12/24060-RGB
Emitting Color
RGB/ CCT/ Single Color
Voltage
24V/12V
IP Rating
IP20/IP65/IP67/IP68
Lumen
>10lm/M
CRI
CRI>80ra
PCB Material
Double-Sided FPCB
Beam Angle
120 Degree
Life Time
>50,000 Hours
Operation Temp.
-20-50 Degree
Cuttable (12V)
3 LEDs Per Section
Cuttable (24V)
6 LEDs Per Section
Warranty
3 Years
Origin
P. R. China
Capacity
1000PCS Per Day

Advantages & Features

Key Advantages

  • 99.9% purity diameter >1mm golden wire
  • Epistar chips or other premium big size chips
  • High-quality copper bracket for LED
  • Mitsubishi or Internatix phosphor powder
  • Copper PCB and copper wire construction

Main Features

  • Life time: 50,000 hours
  • Single color compatible with dimmers
  • Dual white color with CCT controller
  • RGB functionality with RGB controller
  • Versatile IP options (IP20/IP65/IP67)
💡

Applications

  • Show case decoration and backlighting
  • Advertising displayer boards
  • Hotel and shopping mall decorative projects
  • Commercial lighting projects
  • Furniture, shelf, corridor, and stairs
📐

Technical Dimensions & Parameters

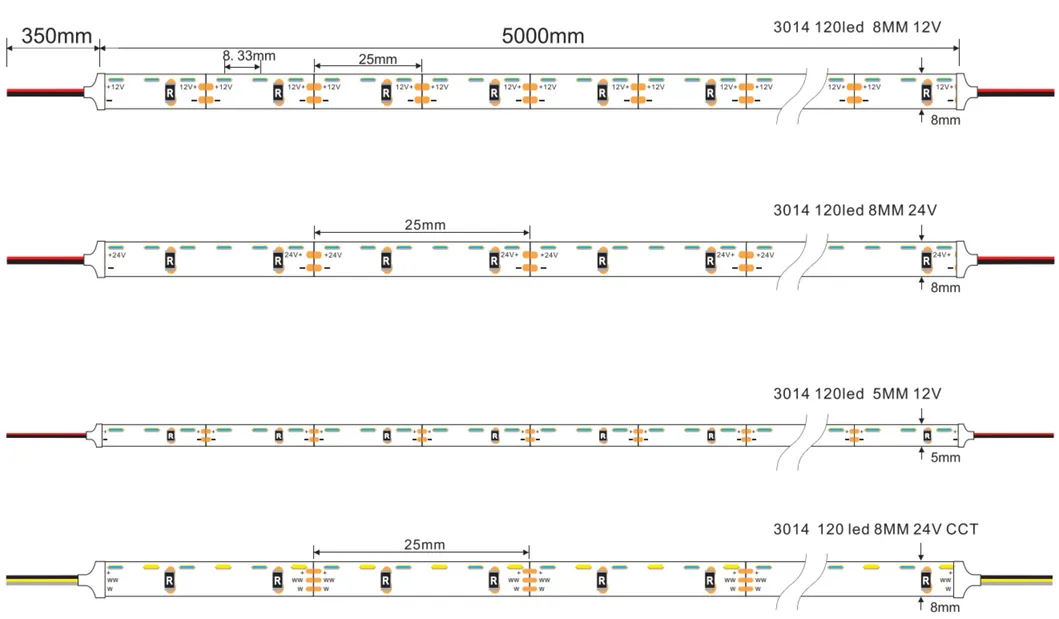

Dimension Drawing

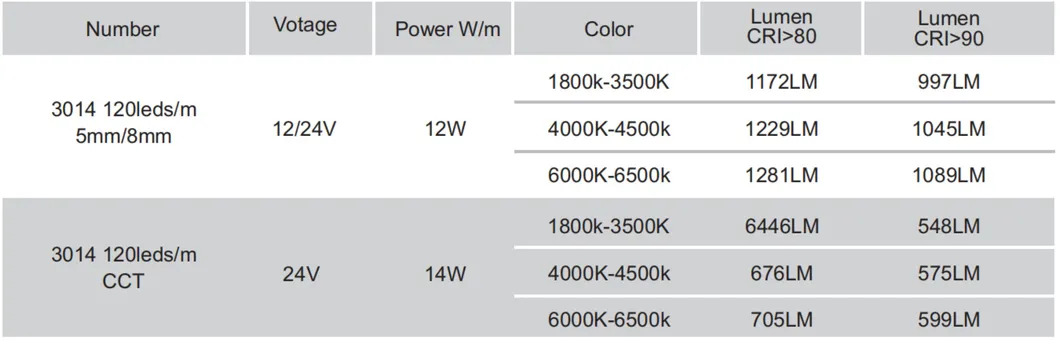

Basic Parameters
🔧

IP Rating & Installation

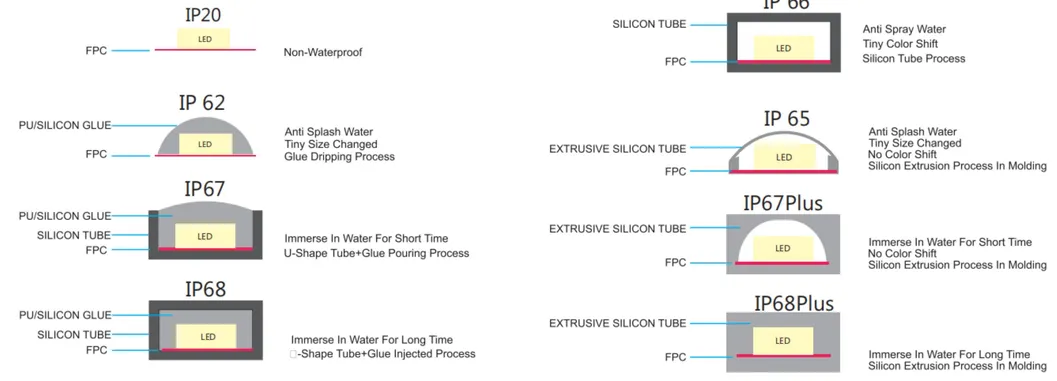

IP Rating Overview

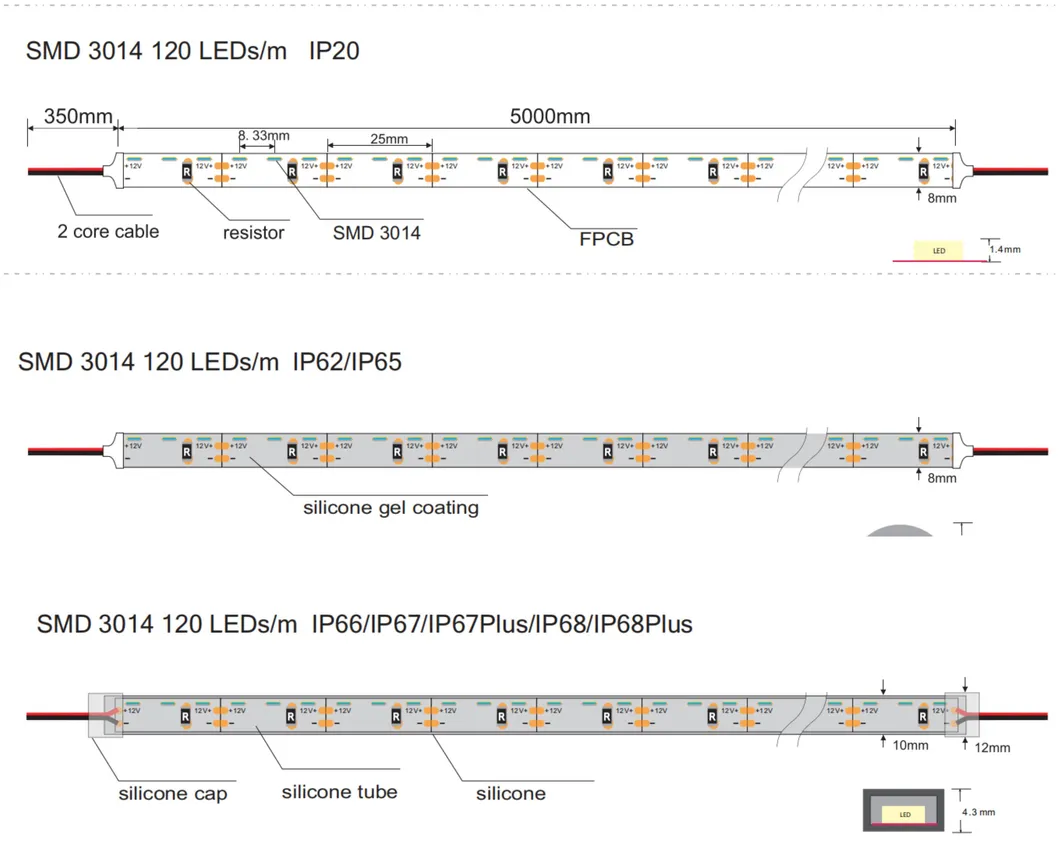

IP Drawing Detailed
Installation Diagram
📦

Accessories & Packing

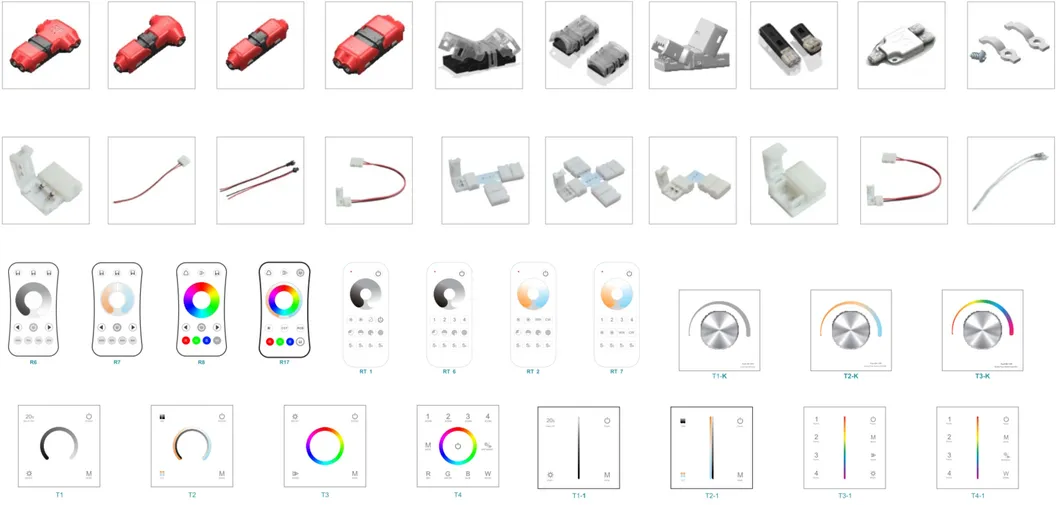

LED Strip Accessories
Product Packing

Frequently Asked Questions

Q1: Are you a manufacturer? A1: Yes, we are a professional LED strip light manufacturer with our own specialized production factory.
Q2: Do you provide OEM services? A2: Yes, we offer full OEM services based on your concepts and requirements, subject to specific MOQ levels.
Q3: What are the shipping methods and delivery times? A3: We typically ship via DHL, UPS, FedEx, or TNT. It usually takes 3-5 working days to arrive. Sea and air freight options are also available.
Q4: How can I place an order for LED strips? A4: First, share your requirements. Second, we provide a quote. Third, the customer confirms samples and pays the deposit. Fourth, we proceed with production.
Q5: What is the warranty period for your products? A5: We offer a comprehensive 2 to 5-year warranty on our lighting products depending on the specific model.
Q6: How do you handle defective products? A6: Our products maintain a defect rate under 0.2%. During the warranty period, we will replace or repair faulty units, or provide suitable solutions based on the situation.
