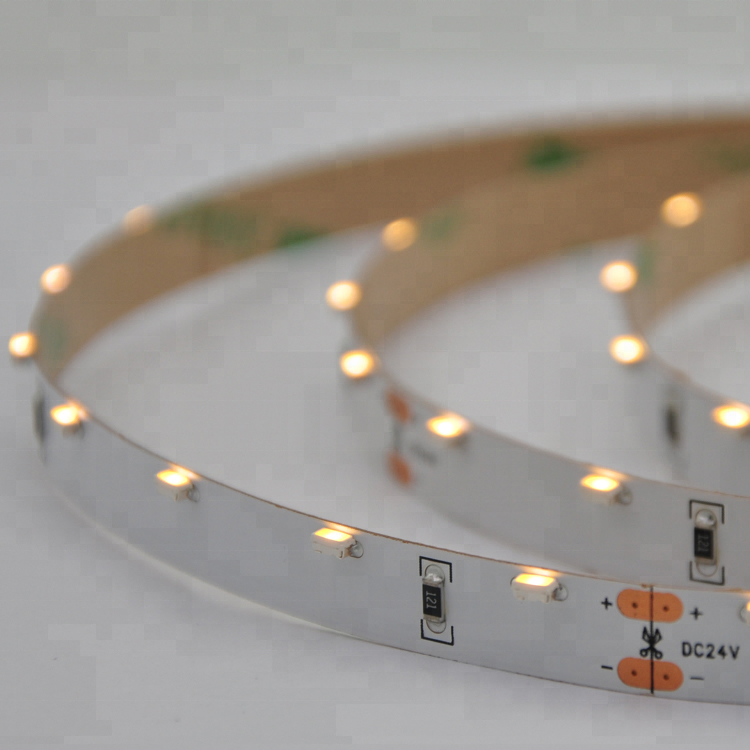

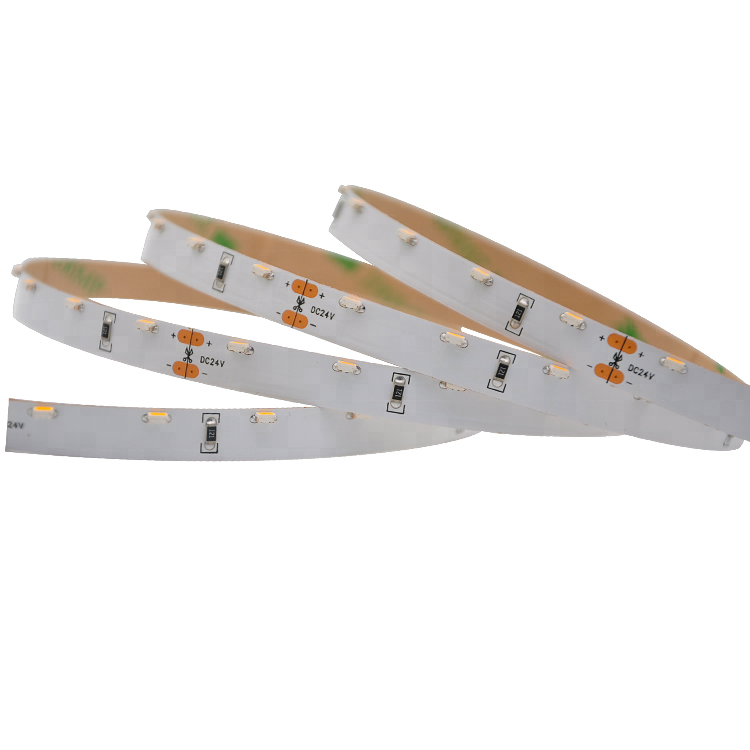

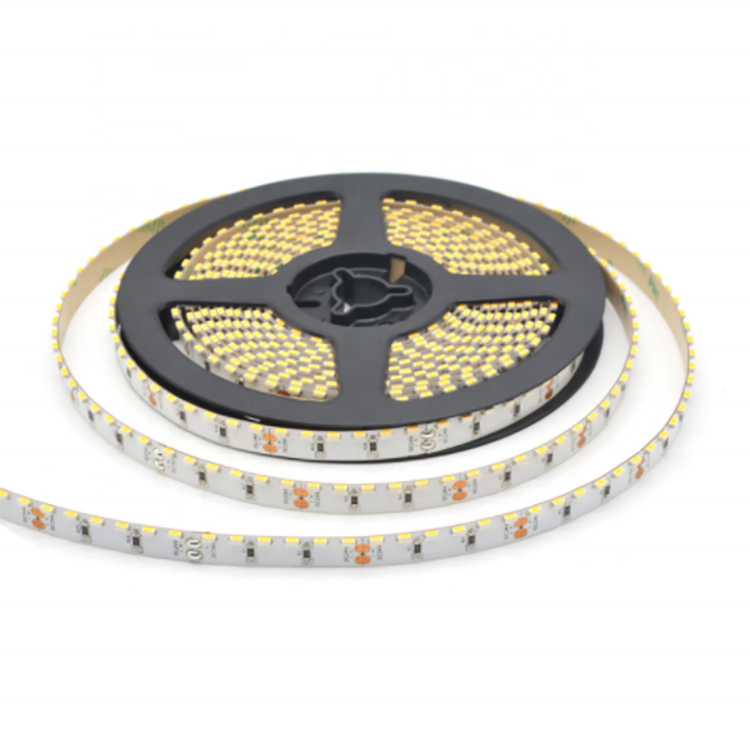

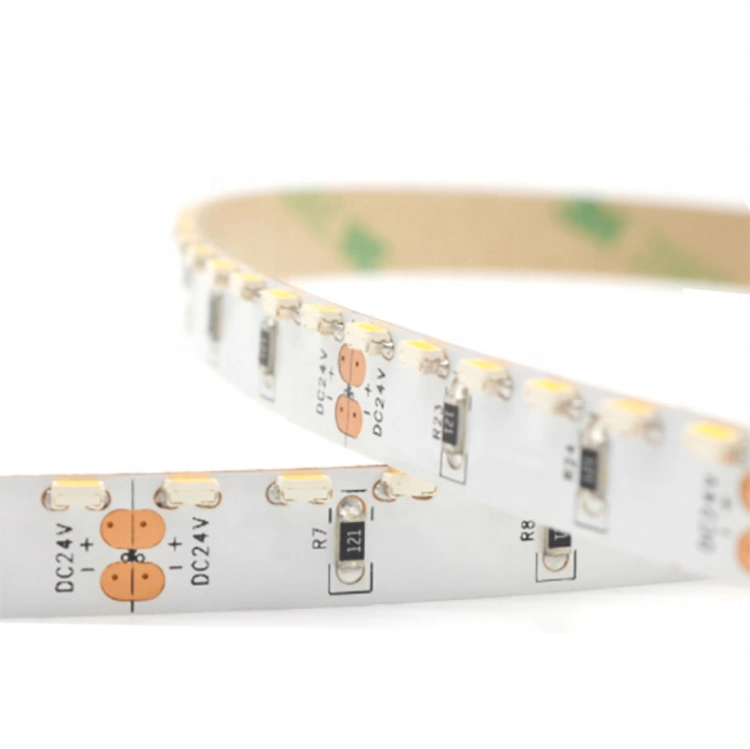

SMD3014 Side Emitting CCT Control LED Flexible Strip Lighting for Indoor & Outdoor

📋 Basic Information

Emitting Color

White/ Red/ Yellow/ Green/ Blue/ RGB

Voltage

DC12V/DC24V

IP Rating

IP20, IP33, IP65, IP68

Macadam Level

3-5 Step

Max. Length

5m/Roll LED Strip

Warranty

3-5 Years

Transport Package

Anti-Static Package

Specification

5000*8mm LED STRIP

Trademark

OEM/ODM

Origin

China

HS Code

9405409000

Production Capacity

100,000m/Month

📦 Packaging & Delivery

Package Size

1.00cm * 1.00cm * 1.00cm

Package Gross Weight

1.000kg

💡 Product Description

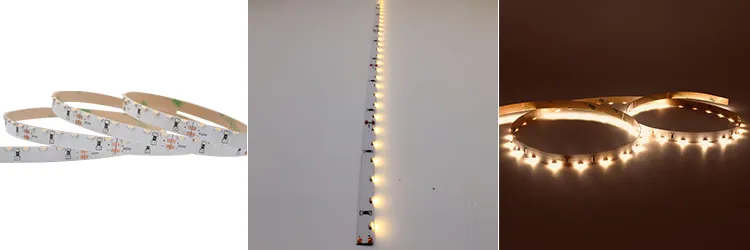

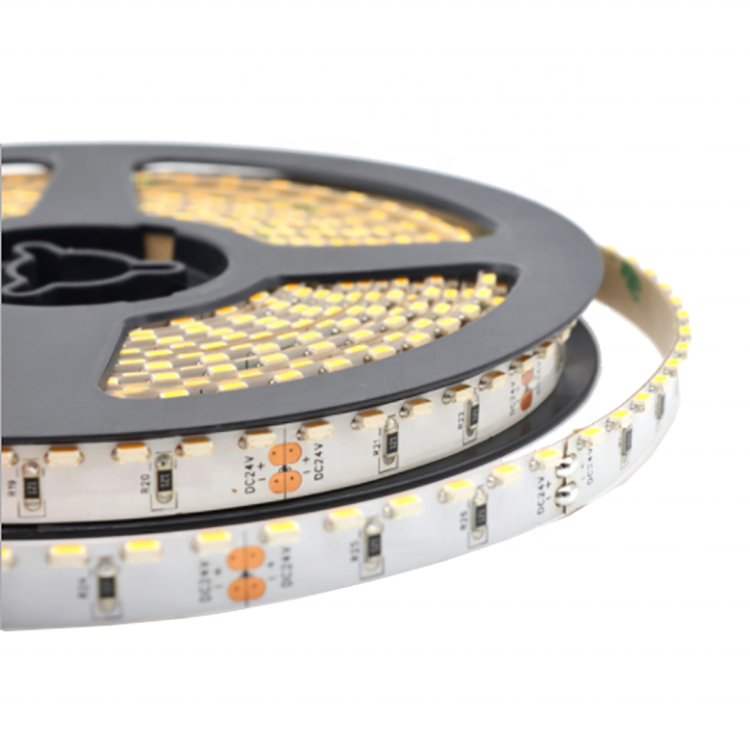

High Bright Side View SMD 3014 Side Emitting LED Tape Strip

Key Features

✔

Rolled copper FPC for superior thermal dissipation and bend-ability.

✔

Equipped with 20WAG or above cables for stable performance.

✔

Each 3 LED per unit with soldering pads for secondary operation.

✔

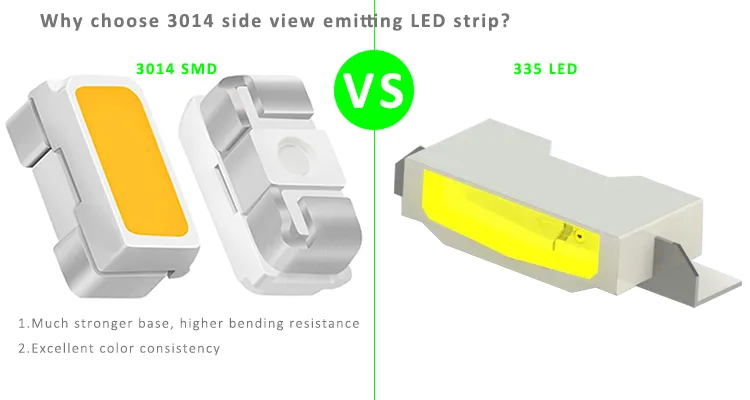

Enhanced 3014 LED specifically designed for strip products.

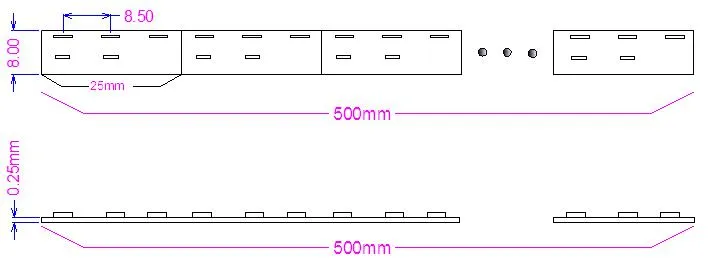

Dimensions

Environmental and Application Conditions

Ambient temperature range (TA on free air)	-25…..+50ºC
Operating (case) temperature range (TC)	-25…..+50ºC
Storage temperature range	-25…..+60ºC
IP rating	IP33

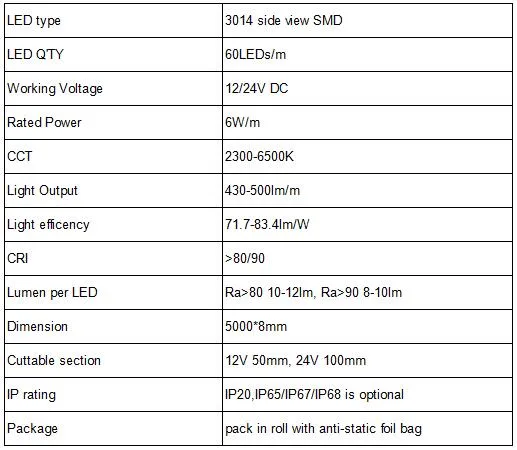

Electrical Parameters

Attention:

1. Max. Length of strip is 5 meters from power supplier to single end.
2. The LED strip and its components must not be mechanically stressed.
3. Ensure adequate power supply for the total load. Installation by qualified personnel only.
4. Housing design should follow IP standards of the application.
5. If surge protection is not in the power supply, a lightning protector is required.

🛠️ Installation & Description

1

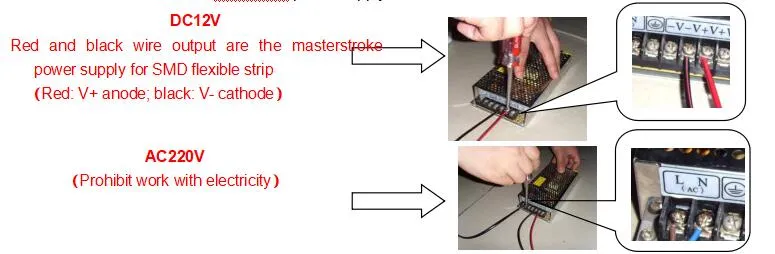

Power supply should have short circuit and over-voltage protection. Use insulated handles during installation.

Note: Wire diameter depends on strip quantity, distance, and power. For distances over 100W, use extra masterstroke cables. RV wires are suggested for flexibility.

2

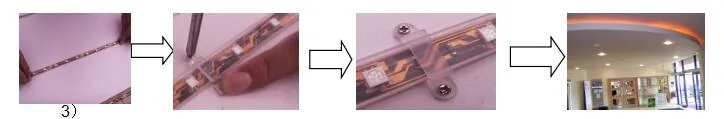

Fit the strips using transparent clips (4 pcs per meter). Ensure clips are placed between LEDs, not pressing on them.

3

Connect every 5 meters to a main line. With power at both ends, it can support up to 10 meters.

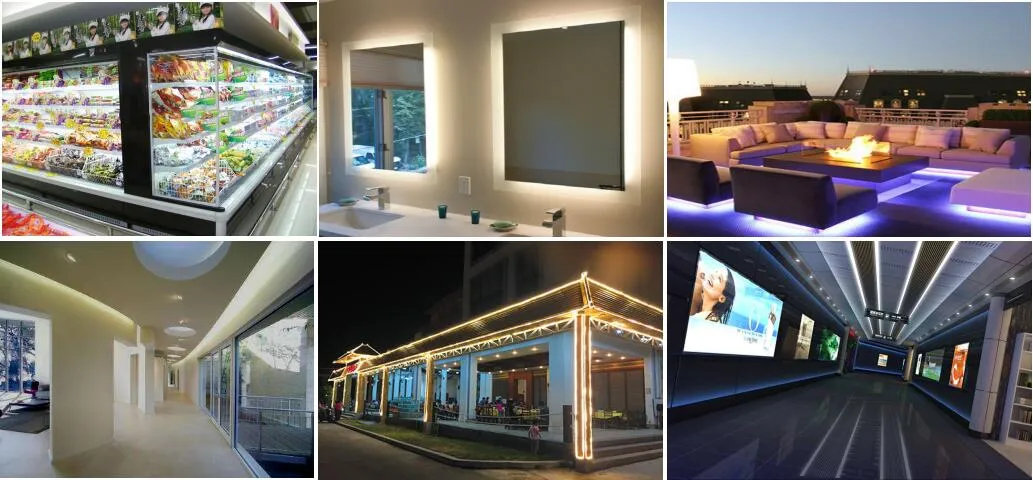

🚀 Applications

1. Curve lighting

2. Freeze lighting

3. Light bar source

4. Special signage

❓ Frequently Asked Questions

What is the standard input voltage for this LED strip?

The strip supports both DC12V and DC24V input voltages, making it versatile for various power configurations.

Can this side-emitting strip be used for curved installations?

Yes, it uses rolled copper FPC which provides excellent bend-ability and thermal dissipation, ideal for curve lighting applications.

What is the maximum length I can run in a single series?

The standard maximum length is 5 meters per roll from a single power supply end to prevent voltage drop.

Is this product waterproof?

We offer multiple IP ratings including IP20, IP33, IP65, and IP68 to suit both indoor and outdoor environmental needs.

What is the warranty period for these LED strips?

We provide a 3 to 5-year warranty depending on the specific model and application conditions.

Can the strip be cut for custom lengths?

Yes, the strip is designed with units of 3 LEDs, each featuring soldering pads for easy cutting and secondary connection.
