Solderless Free and Fast Crystal Connector for FPCB Width LED Strip Light

1 / 3

Solderless Free and Fast Crystal Connector for FPCB Width LED Strip Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

Model NO.

Crystal connector

HS Code

9405409000

Production Capacity

10,000m/Day

Product Description

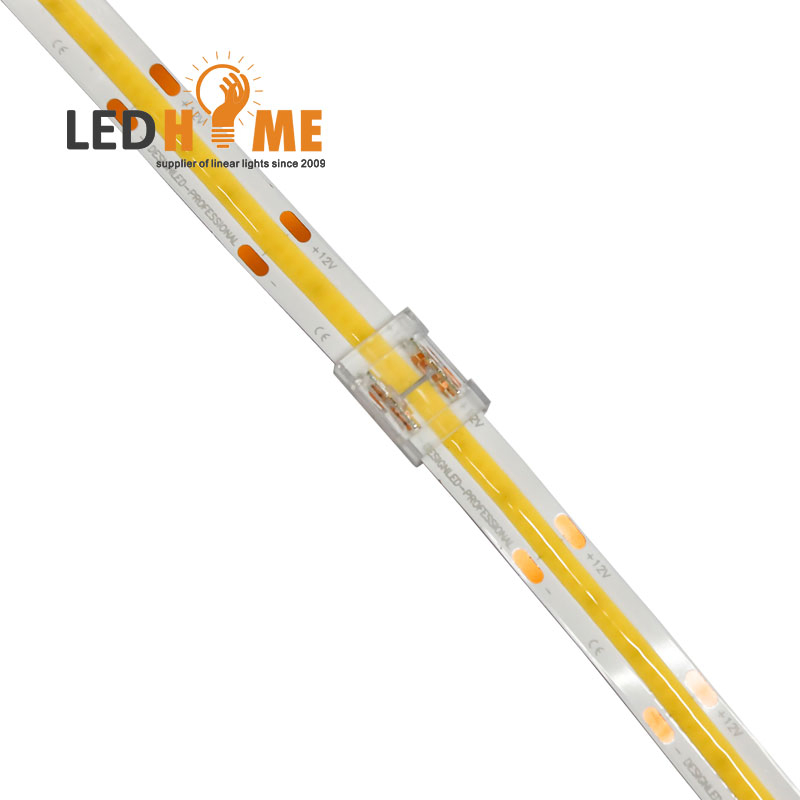

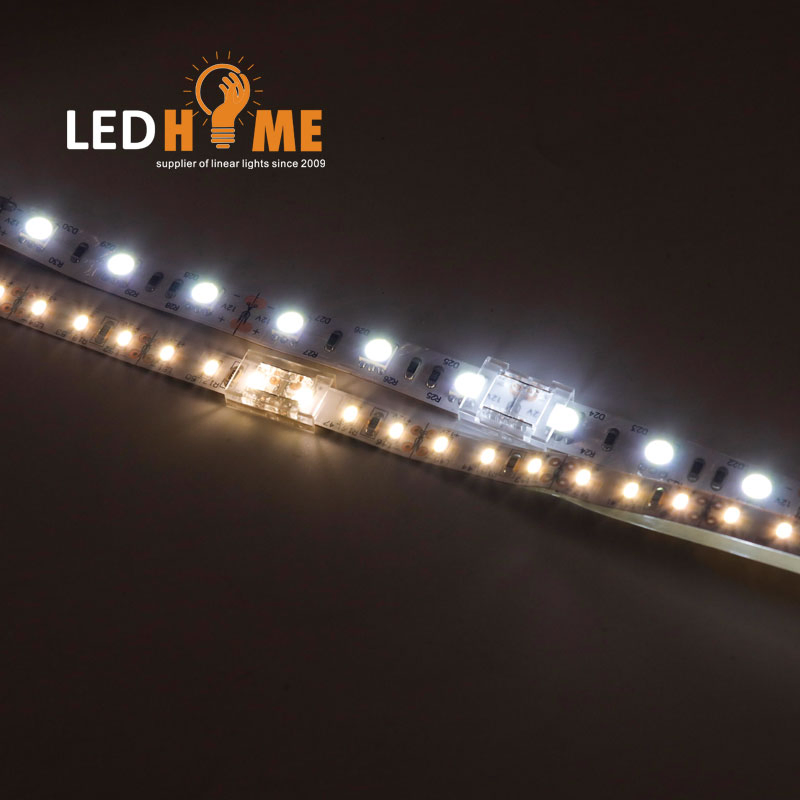

Solderless Free and Fast Crystal Connector for 6mm/8mm/10mm FPCB Width LED Strip Light

Key Advantages:

Soldering free for strip and wire cable point
Traceless connector design
Transparent material, no color effect, no CCT change
Ultra-thin profile: thickness only 4mm
Easy and fast assembly
Commonly used for 90% IP20 LED strips

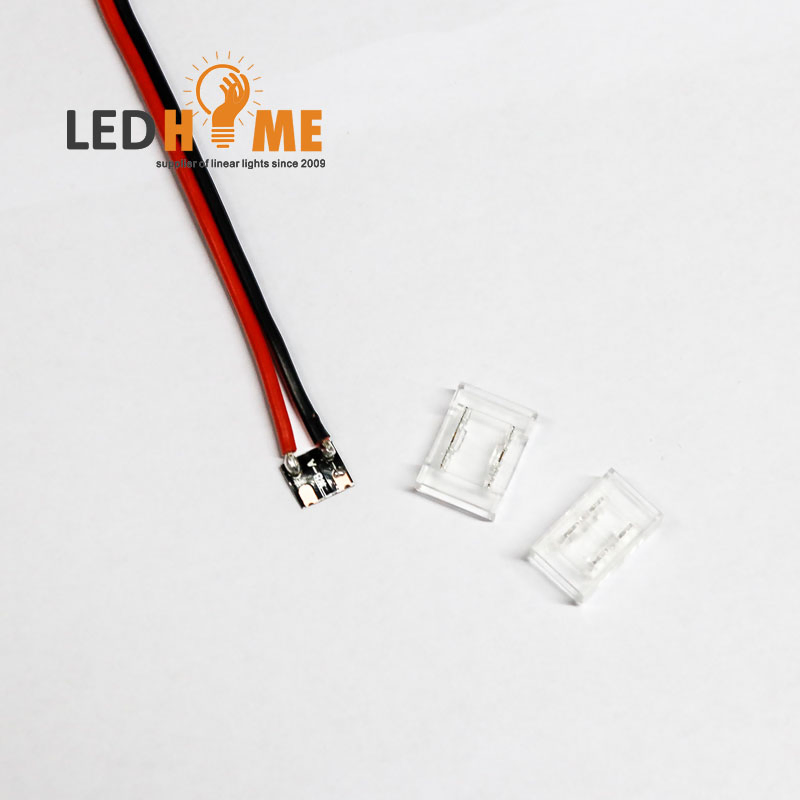

Multi-functional: suitable for both connection and wire cable soldering-free
Compatible with 6mm, 8mm, and 10mm FPCB width strips

Dimension & Specifications

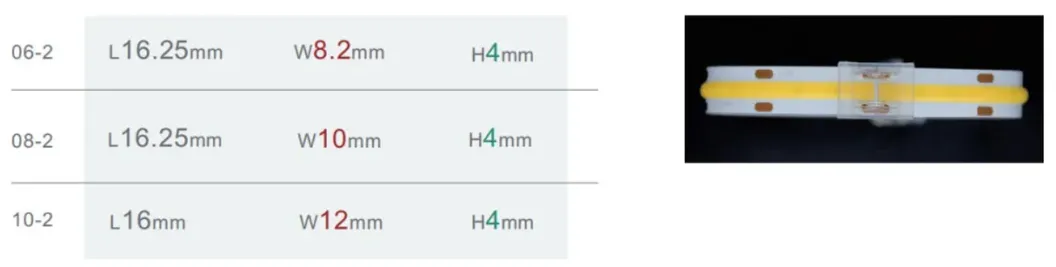

Product Dimensions:

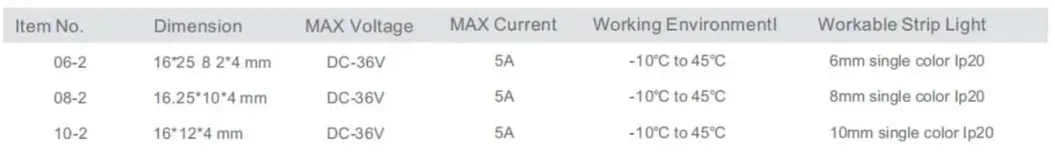

Electronic Specification:

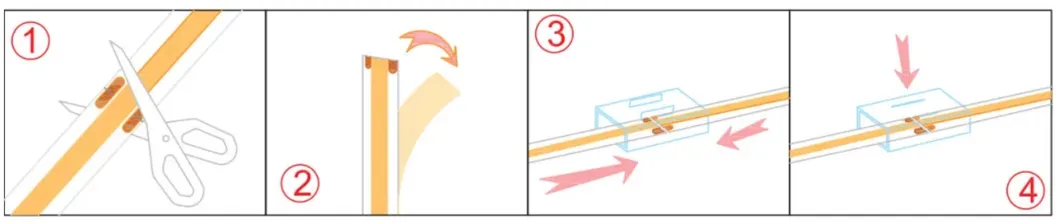

Installation Guide

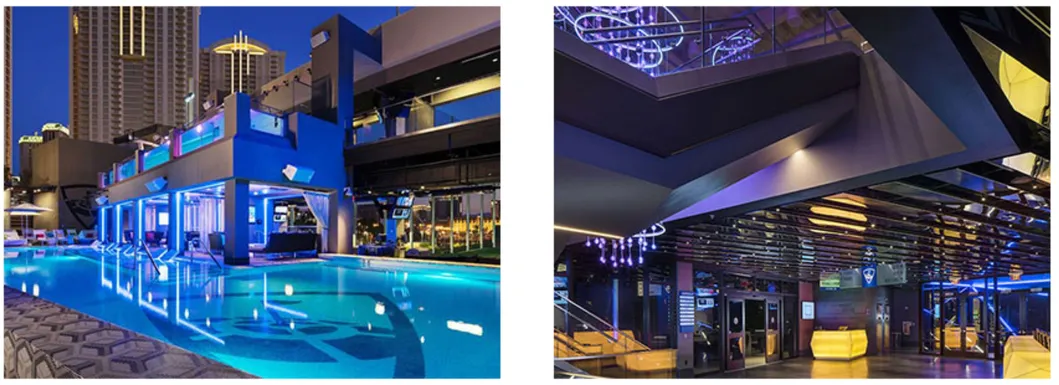

Application: Running a larger gap

For projects like under-cabinet kitchen lighting where you need to span a gap (e.g., over a stove or sink), simply use two strip-to-wire connectors and 20-gauge stranded wire. Attach a connector to the end of each strip and secure the wires into the grooves as shown.

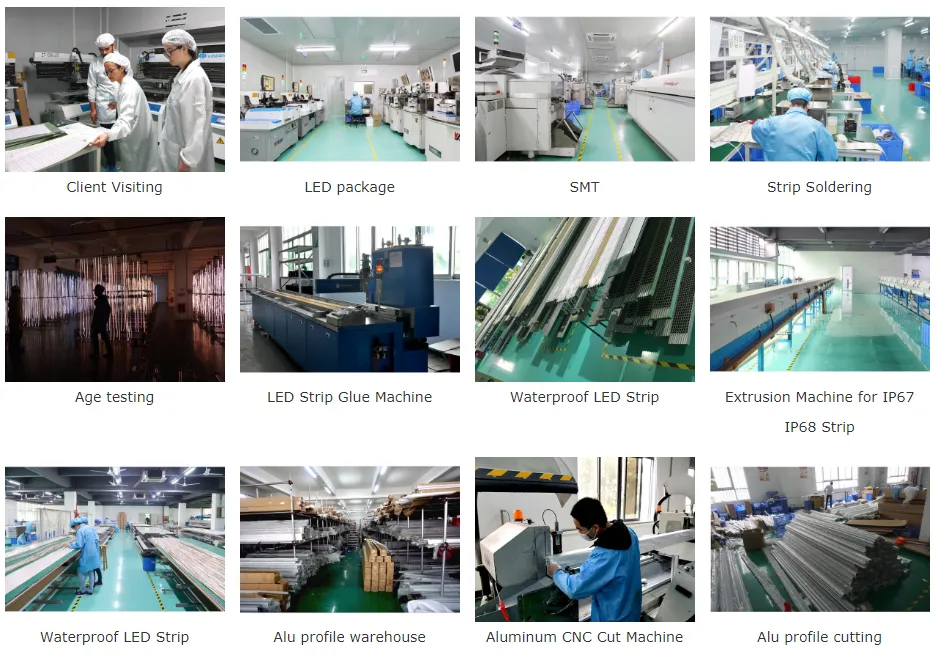

About Our Manufacturing

We are a manufacturer with ten years of experience in the lighting industry, specializing in LED aluminum profiles, LED neon lights, and LED strip lights. Since our founding, we have been dedicated to producing high-quality, cost-efficient LED products using the latest technology.

Our experienced team provides comprehensive technical and mechanical services to meet the high expectations of our customers worldwide. We continuously innovate to lead the field in lighting solutions.

Frequently Asked Questions

Q1: Which LED strip widths are compatible with this connector? A: This crystal connector is designed to be compatible with 6mm, 8mm, and 10mm FPCB width LED strips.

Q2: Does this connector require soldering? A: No, it is a completely solderless solution, allowing for fast and easy connection between strips or between strips and wires.

Q3: Will the transparent design affect the light quality? A: No, the transparent material ensures there is no color effect or change in Color Temperature (CCT), making the connection virtually traceless.

Q4: What is the thickness of the connector? A: The connector is ultra-thin with a thickness of only 4mm, making it ideal for tight installations.

Q5: Can I use this for waterproof LED strips? A: This connector is commonly used for 90% of IP20 (non-waterproof) LED strips.

Q6: What is your daily production capacity? A: Our facility has a production capacity of approximately 10,000 meters per day.
