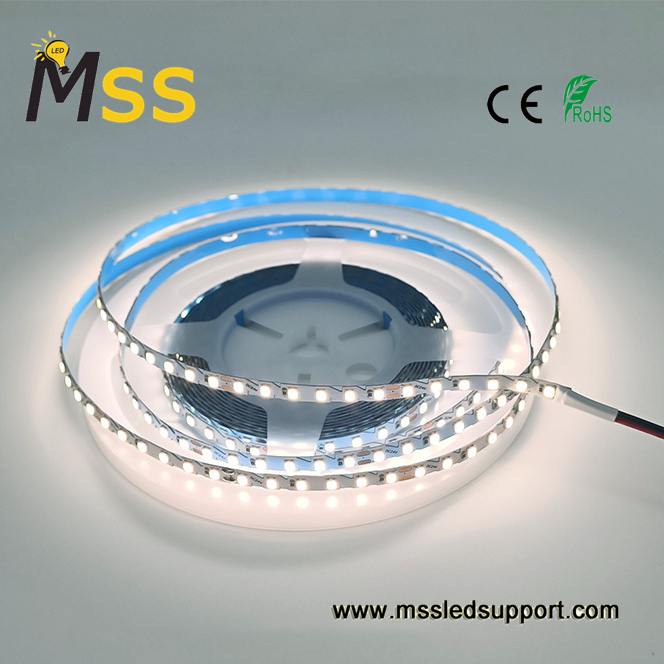

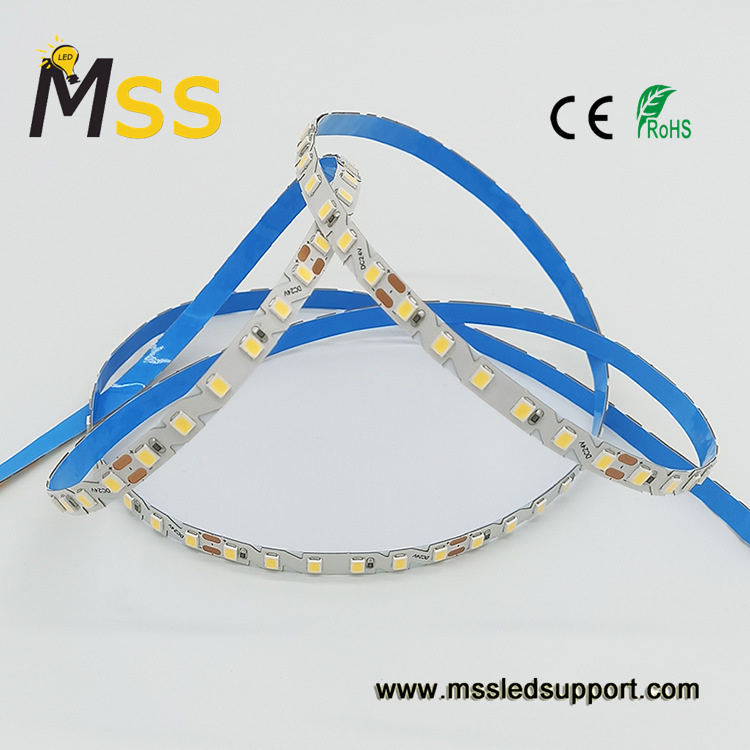

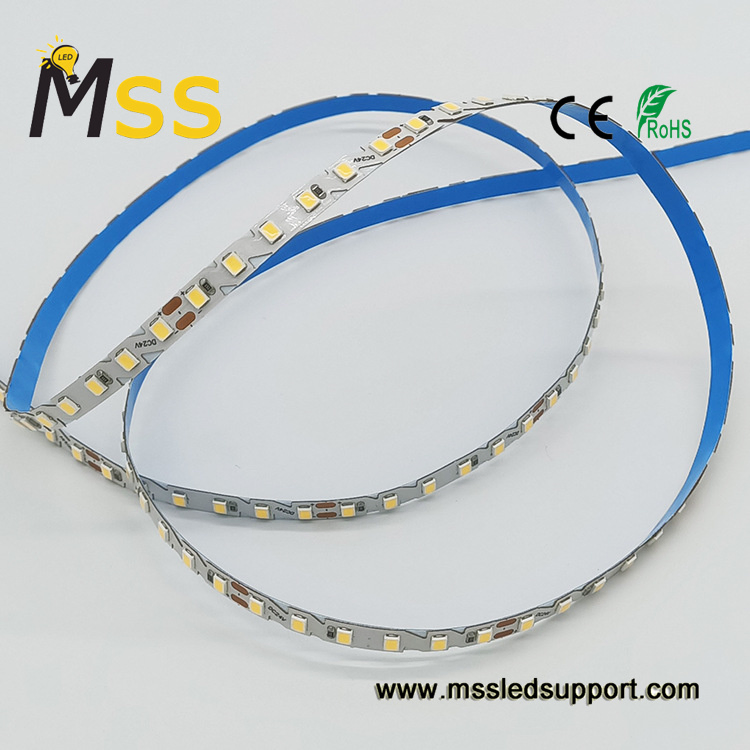

Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters
Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters
Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters
Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters
Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters
1 / 5
Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters
Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters
Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters
Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters
Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters

Super Bright Source 2835 60LEDs 120LEDs Zigzag S Shape 12V 24V DC S Type LED Strip for Signage and Channel Letters

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Application
Bar, Lighting, Advertising
Type
Flexible LED Strip
Light Color
White/Red/Blue/Green/Yellow
Max. Length
5m/Roll
Warranty
3 Years
IP Rate
IP33, IP65, IP66
Specification
1000*6*0.3mm
Origin
China
Production Capacity
50,000m/Month
★

Product Overview

Super Bright Source 2835 Zigzag S-Shape LED Strip - Designed specifically for signage and channel letters, this 12V/24V DC S-Type LED strip offers unparalleled flexibility for complex lighting projects.

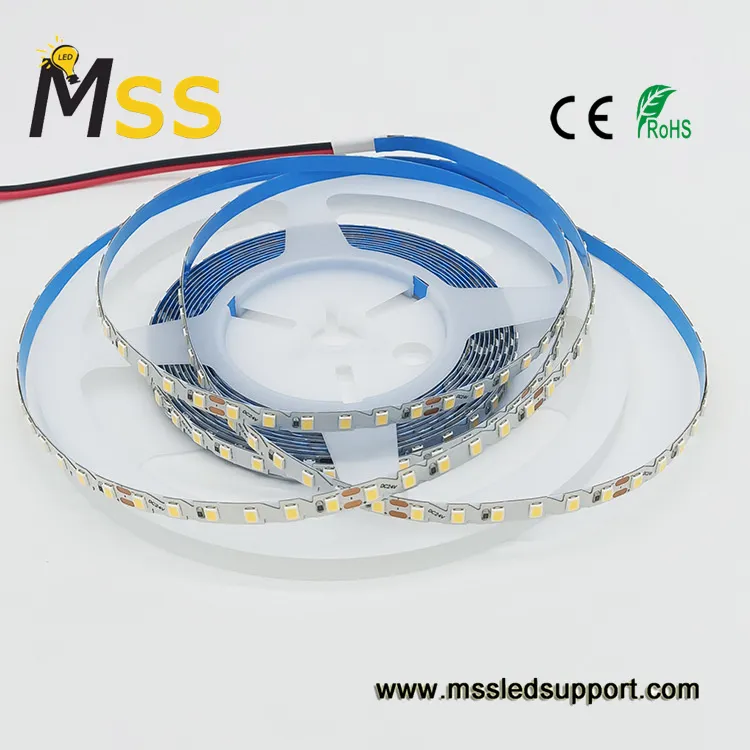

Zigzag S Shape LED Strip

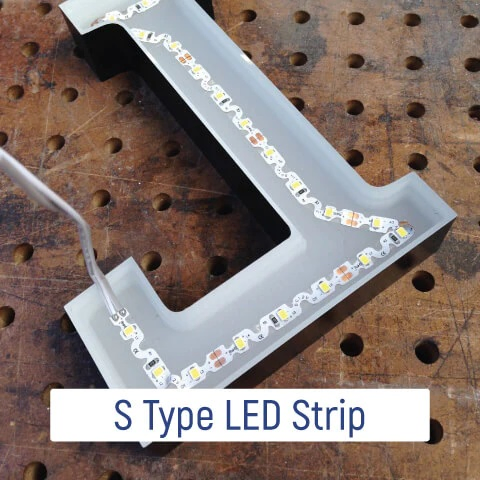

S Type LED Strip for Signage

Key Features:

  • Bendable design allows installation on corners and curved surfaces without cutting.
  • Ideal for bars, stained glass, under cabinets, shelves, and closets.
  • Easy installation for both professionals and DIY enthusiasts.
⚙

Technical Data

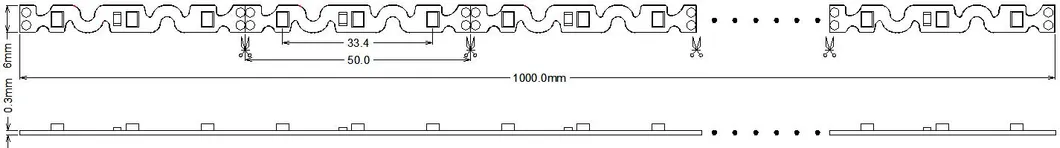

Dimensions:

LED Strip Dimensions
Environmental & Application Conditions
Ambient Temperature Range-25 to +50ºC
Operating Temperature Range (TC)-25 to +50ºC
Storage Temperature Range-25 to +60ºC
IP RatingIP33
Electrical Parameters
Supply Voltage Range12.5±0.5 VDC
Supply Current (per meter)700 mA
Power (per meter)8.4 W
ESD ProtectionContact 4KV, Air 8KV
☼

Optical Performance

Part No. Color Range (CCT/Wavelength) Typ. Lumen (per meter)
SF60C-283510000K - 22000K780 LM
SF60W-28356000K - 8000K780 LM
SF60M-28353000K - 3400K780 LM
SF60R-2835620nm - 630nm (Red)252 LM
SF60G-2835520nm - 530nm (Green)564 LM
SF60B-2835460nm - 470nm (Blue)168 LM
SF60Y-2835588nm - 594nm (Yellow)222 LM
!

Installation Guidelines

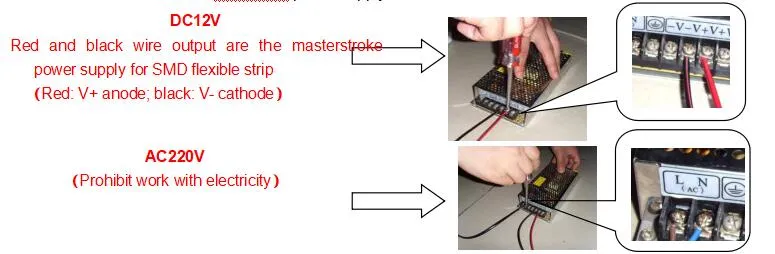

Wiring Diagram

Note: The diameter of red and black wires should be chosen based on the total power load and distance between the power supply and the strips.

  1. Max length is 5 meters for a single-end power feed.
  2. Ensure the power supply has short-circuit and over-voltage protection.
  3. Use transparent clips for fitting (approx. 4 pcs per meter). Do not press directly on the LEDs.
  4. For runs up to 10 meters, power must be supplied from both ends.

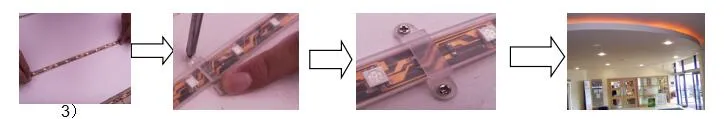

Clip Installation

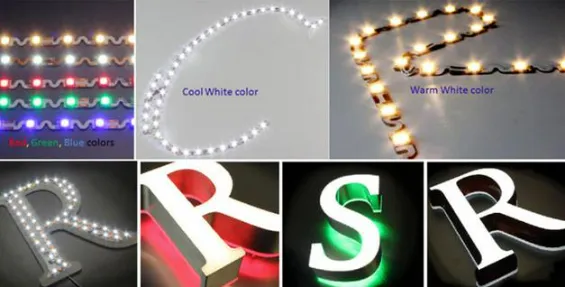

Application Example
📦

Packaging Details

Standard Reel
5 Meters per Reel
Bag Type
Anti-static Bag (186x197mm)
Carton Size
45.00cm * 25.00cm * 25.60cm
Gross Weight
8.000kg (per box)
?

Frequently Asked Questions

Q1: What makes the S-shape LED strip different from standard strips? The zigzag "S" design allows the strip to be bent laterally, making it perfect for creating curves and sharp angles in channel letters and signage without the need for cutting or soldering.
Q2: Can I use this LED strip outdoors? The standard model is IP33 (indoor use). However, we offer IP65 and IP66 versions which are suitable for protected outdoor or high-moisture environments.
Q3: What is the maximum continuous length I can install? For a single power supply connection at one end, the maximum recommended length is 5 meters to avoid voltage drop. If you power it from both ends, you can extend this to 10 meters.
Q4: Is the 2835 LED chip bright enough for commercial signage? Yes, the 2835 SMD is a high-efficiency chip. Our SF60 series provides up to 780 lumens per meter, which is ideal for bright, uniform illumination in advertising displays.
Q5: What is the warranty period for this product? We provide a 3-year warranty on our S-type flexible LED strips, ensuring long-term reliability for professional installations.
Q6: Are custom colors or lengths available? Yes, we can offer custom color temperatures, specific lumen outputs, and tailored lengths to meet the exact requirements of your lighting project.
