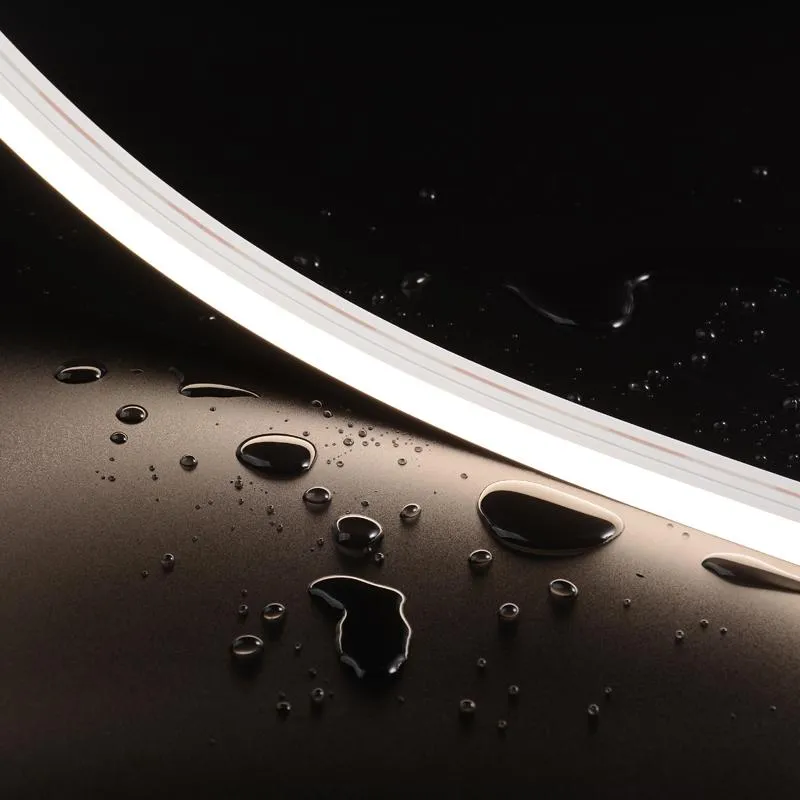

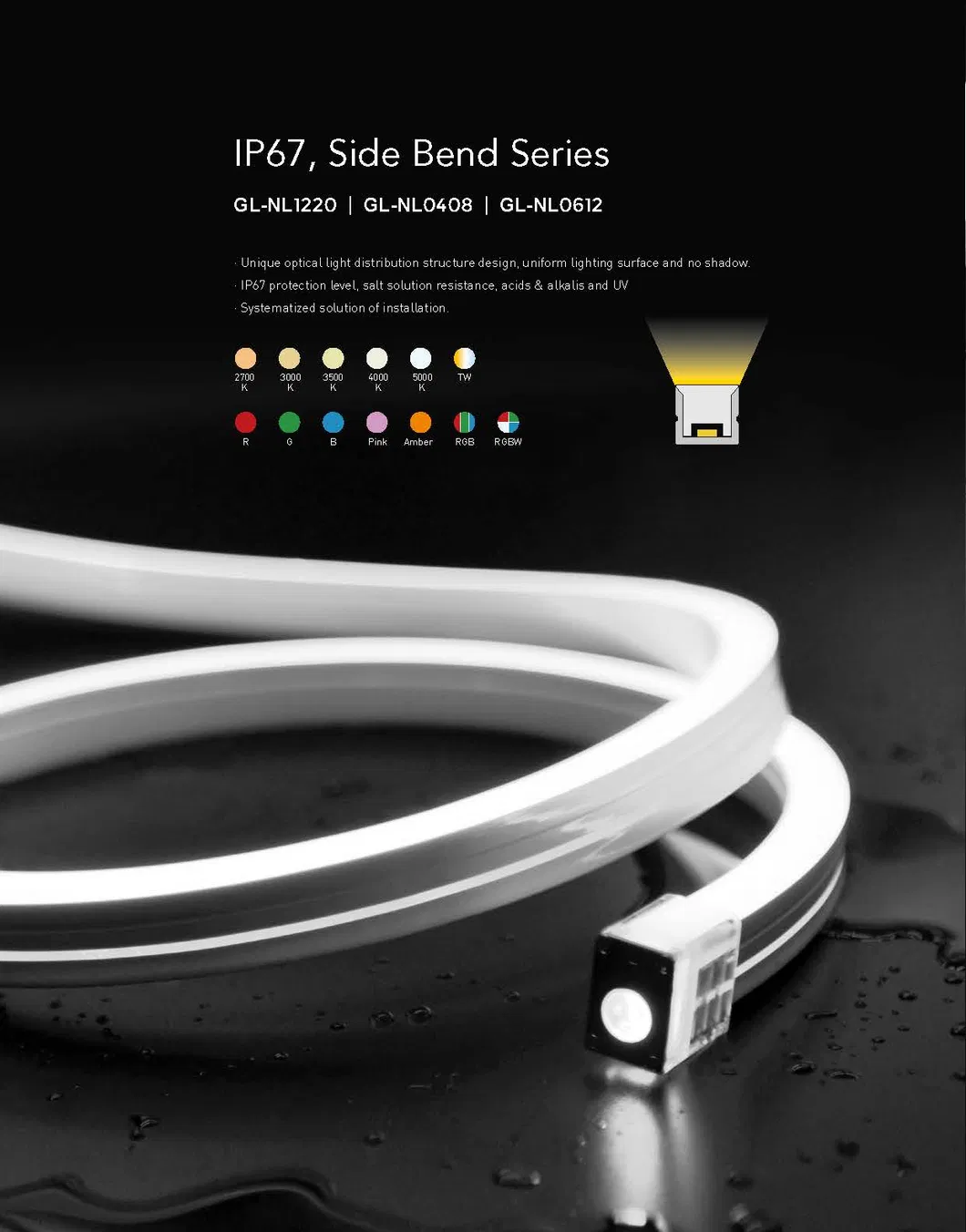

IP67 FLEX LED NEON Side bend, DC24V. Cross section size 6mm x 12mm (W x H), horizontal bending with a diameter of 50mm. It is IP67 protected, UV resistant, solvents resistant and saltwater resistant. Dot-free performance for indoor & outdoor applications.


| Parameter | CCT/Color | Power (W/m) | Lumens (LM/M) | Voltage | CRI (Ra) | Unit Length | Max Run |
|---|---|---|---|---|---|---|---|
| Single Color | 2100K-6500K | 10W | 250-360 | 24V | 90 | 50mm | 13M |
| Single Color | Red/Green/Blue | 10W | 50-400 | 24V | 90 | 50mm | 13M |
| Single Color | Yellow/Pink | 10W | 125-145 | 24V | 90 | 50mm | 13M |
| Tunable White | WW / W / W+WW | 5-10W | 125-220 | 24V | 90 | 50mm | 5M |

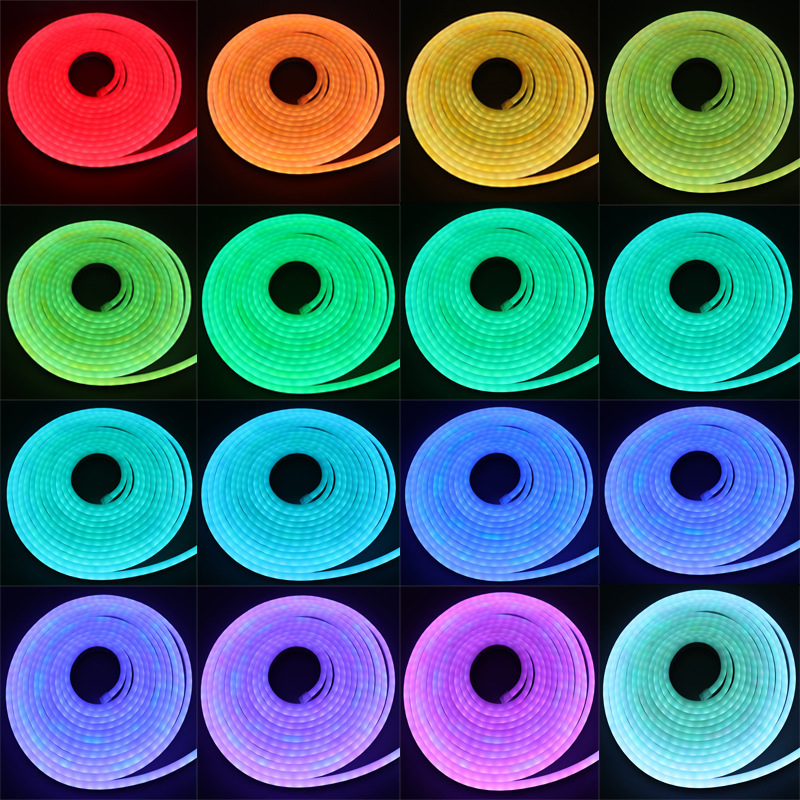

| RGB | R / G / B | 3.3W | 12-53 | 24V | 90 | 50mm | 5M |
| RGB Total | RGB Mixed | 10W | 130 | 24V | 90 | 50mm | 5M |

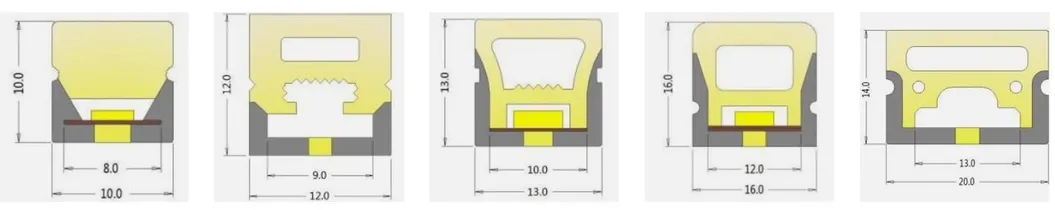

Flat Top Bending

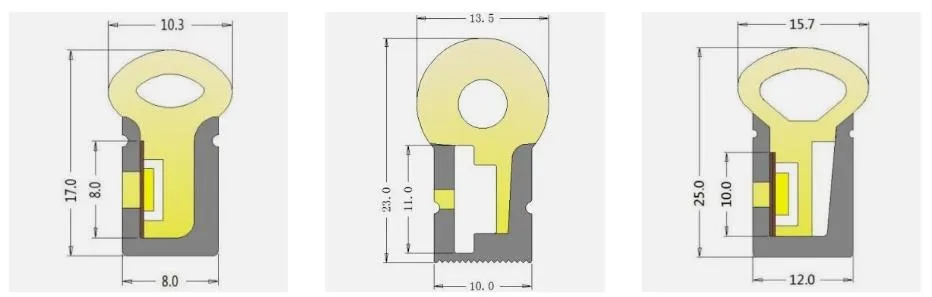

Contour Side Bending

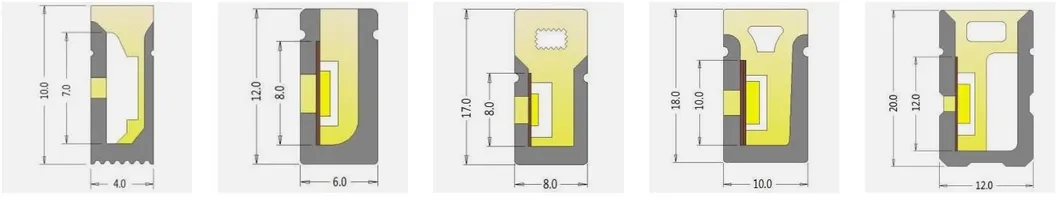

Flat Side Bending

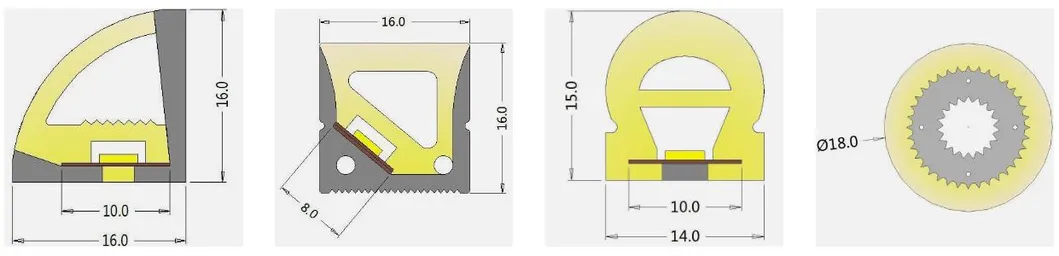

Special Shapes (Trigon/360 Degree)
