Basic Information
Emitting Color
2700K-6500K
Company Profile
"Quality isn't something that can be argued into an article or promised into it. It must be put there. If it isn't put there, the finest sales talk in the world won't act as a substitute."
Founded in 2013, we are a highly professional manufacturer of led lighting products specialized in the design, research, development and sales of SMD LED Strip, COB LED Strip Light, Addressable LED Light Strip, LED Neon Flex, LED Sheet Backlight, Aluminum Profile and other led accessories, which are certificated with ETL CE RoHS FCC REACH ISO9001. We concern every development in led strip industry and pay close attention to every innovation, committing ourselves to being the pioneer of led strip light factory.
CERTIFICATES

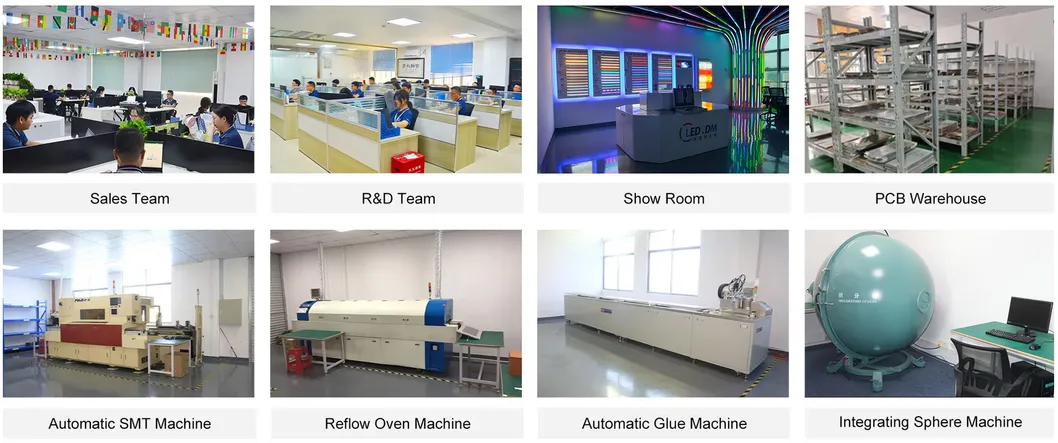

PRODUCTION & TEAM

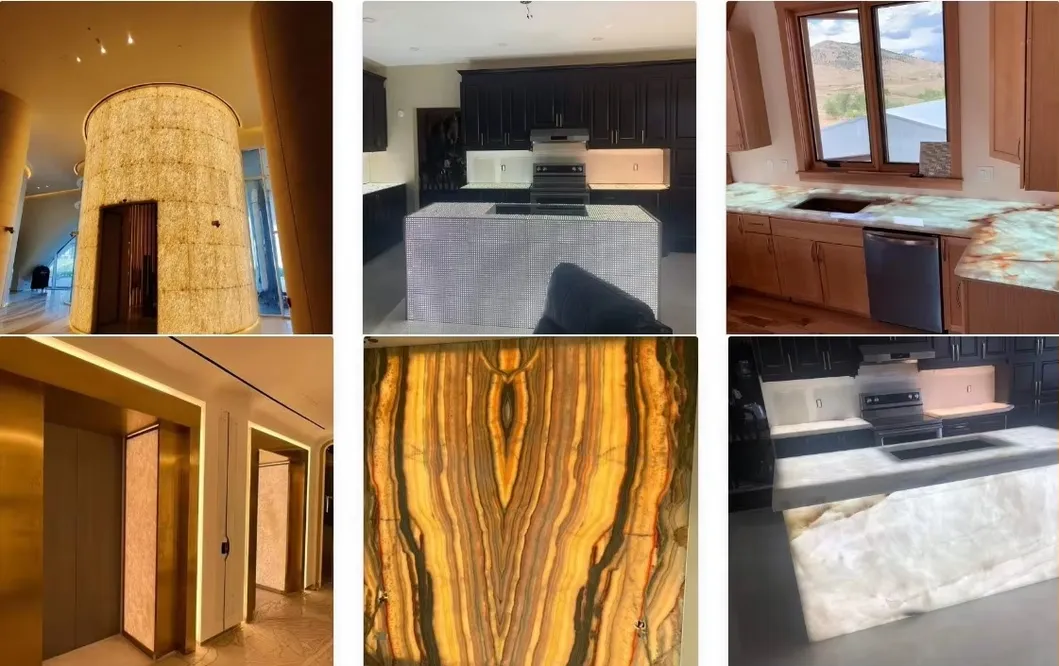

EXHIBITION & CASES

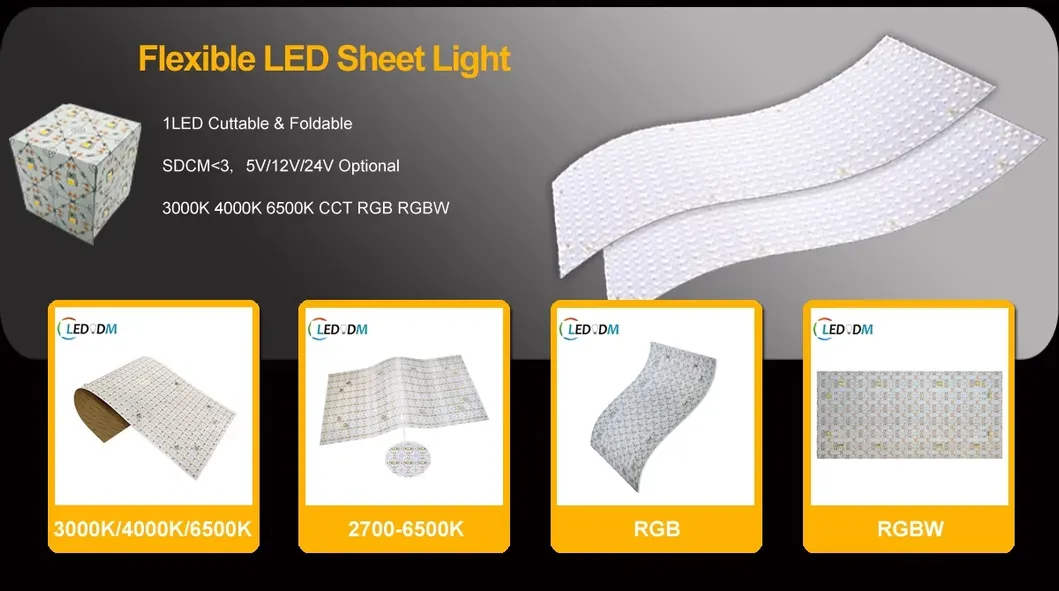

Product Description

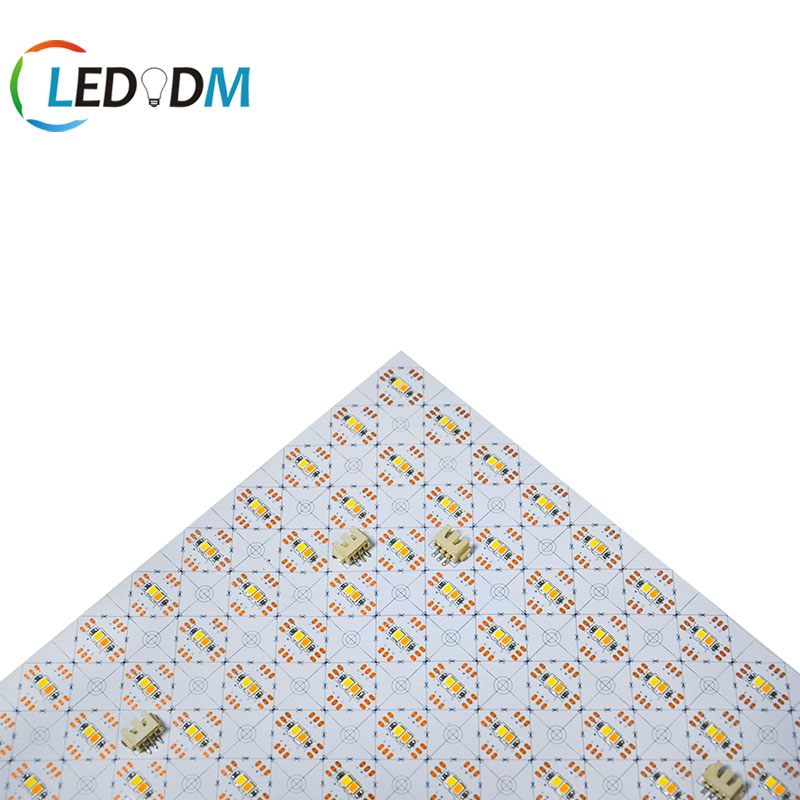

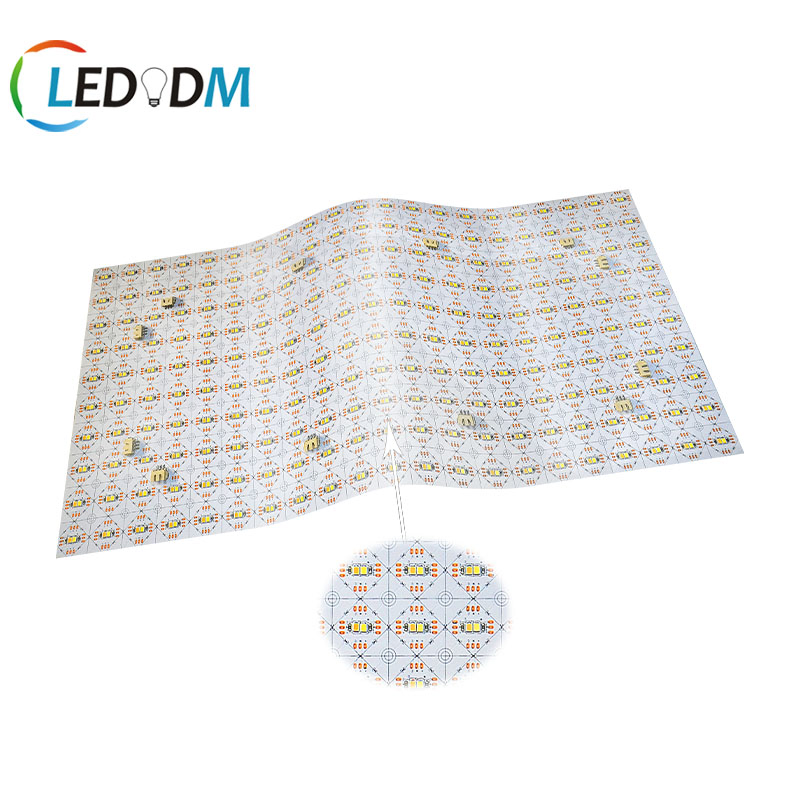

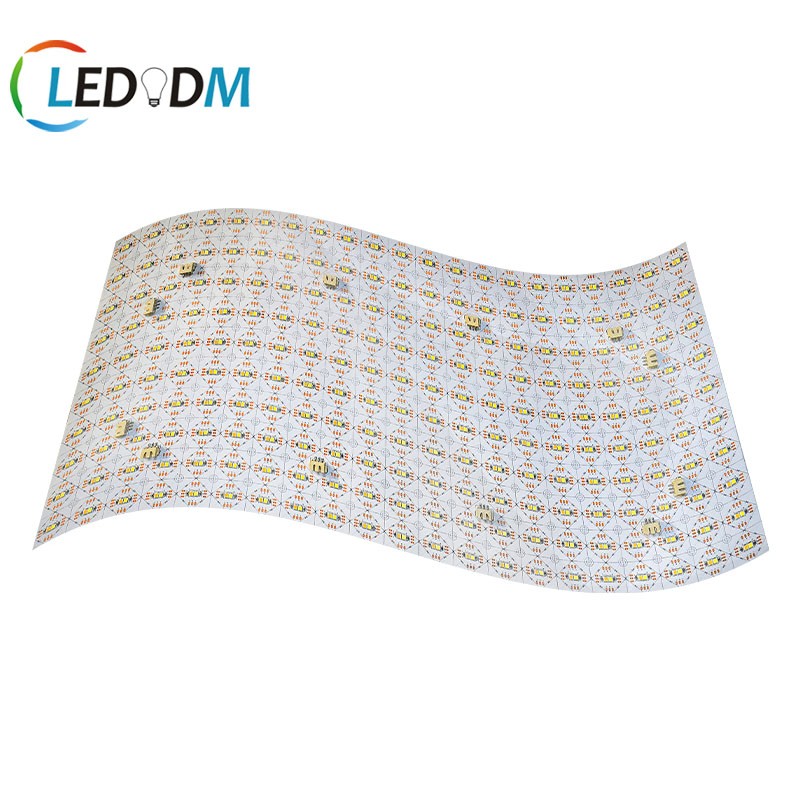

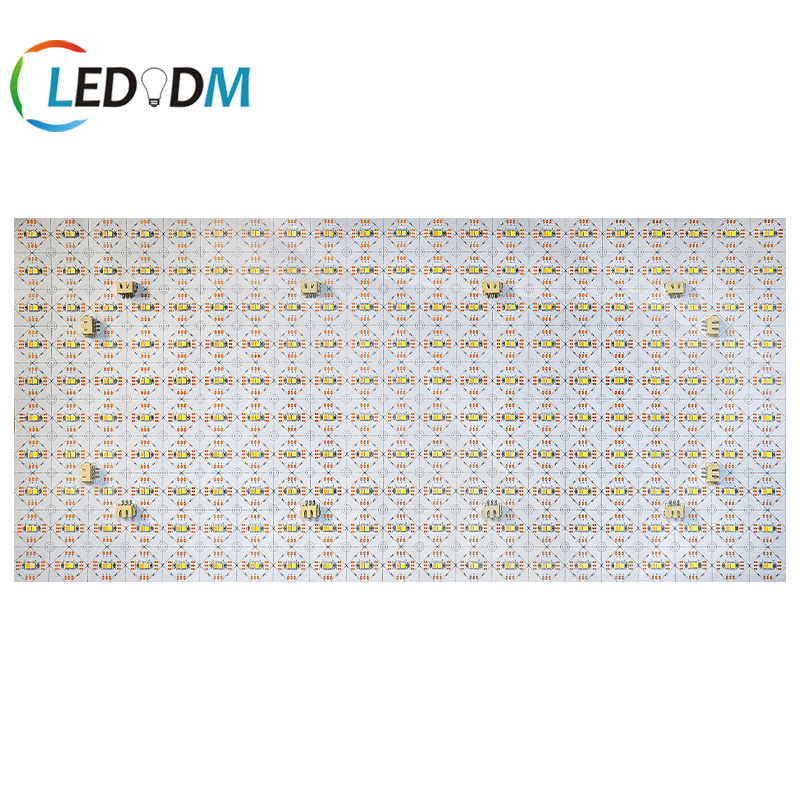

CCT 2700K-6500K 840leds/PCS 24V ETL Tunable White Flexible LED Sheet Panel For Marble Backlight
| Model No |
Specification |
| SMD Type |
LED QTY |
Color |
Voltage |
Power |
Lumen |
Size |
Cuttable Unit |
| SL-2835-105F |
SMD2835 |
105leds/pcs |
2700K/3000K
4000K/6500K |
DC24V |
12w/pcs |
100lm/w |
500*233mm |
33.33*33.33mm |
| SL-2835-420F |
420leds/pcs |
12w/pcs |
120lm/w |
500*233mm |
16.67*16.67mm |
| SL-2835-288F |
288leds/pcs |
30w/pcs |
110lm/w |
480*240mm |
20*20mm |
| SL-2835-840FCCT |
840leds/pcs |
2700K-6000K |
24w/pcs |
110lm/w |
500*233mm |
16.67*16.67mm |
| SL-5050-420FRGB |
SMD5050 |
420leds/pcs |
RGB |
36w/pcs |
NA |
500*233mm |
33.33*33.33mm |
| SL-5050-420FRGBW |
420leds/pcs |
RGBW |
48w/pcs |
NA |
500*233mm |
33.33*33.33mm |
Product Features

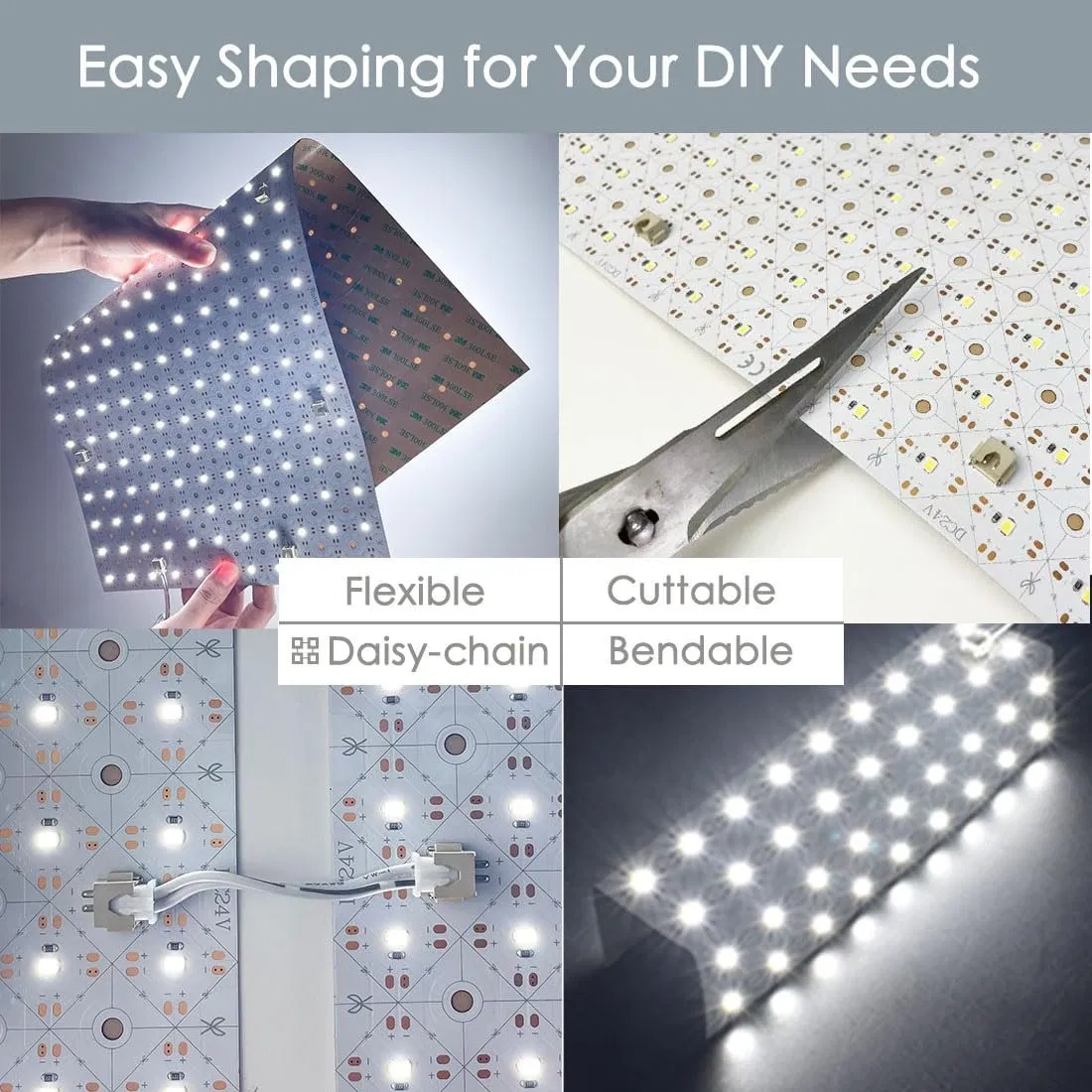

✔Easy installations with cut-fold-connect functionality
✔Plug and play connections make building a system quick and easy
✔Customize CCT, wattage, voltage, lumens, shape, size, and more (with MOQ)
✔Single Color/Dual color/Multi-color/Digital optional

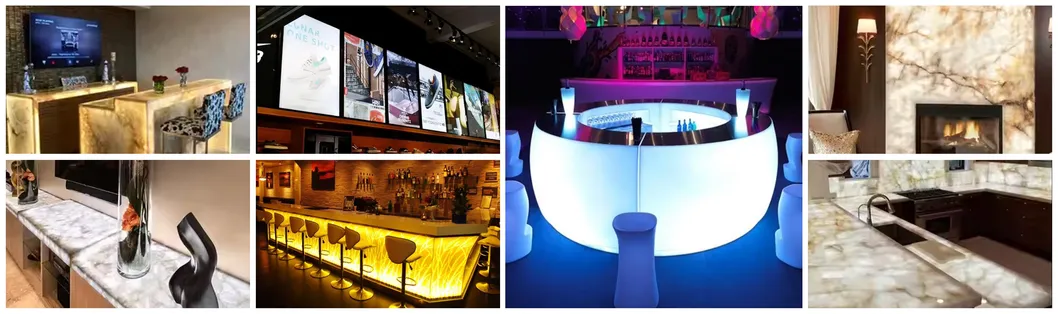

✔Suitable for advertisements, counter and bar tops, curved surfaces, and low clearance applications.
How to Install LED Flexible Sheet?

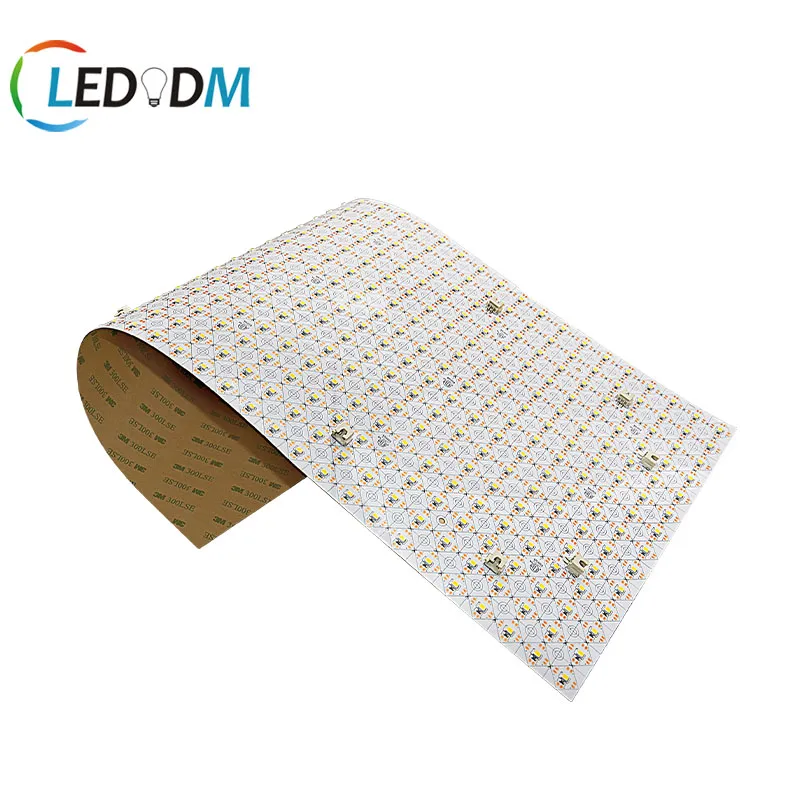

Prepare some flexible led sheets, measure the size of the countertop to be installed, and calculate how many led sheet light to use.
Put and stick the led sheet to the countertop, or fix it with screws. Then use the wires in the accessory bag to connect all the led sheet light. Stick bumper on the lighting board.
Turn on all the light panels and check to see if they are all lit. If it is not lit, please check whether the positive and negative connections are wrong.

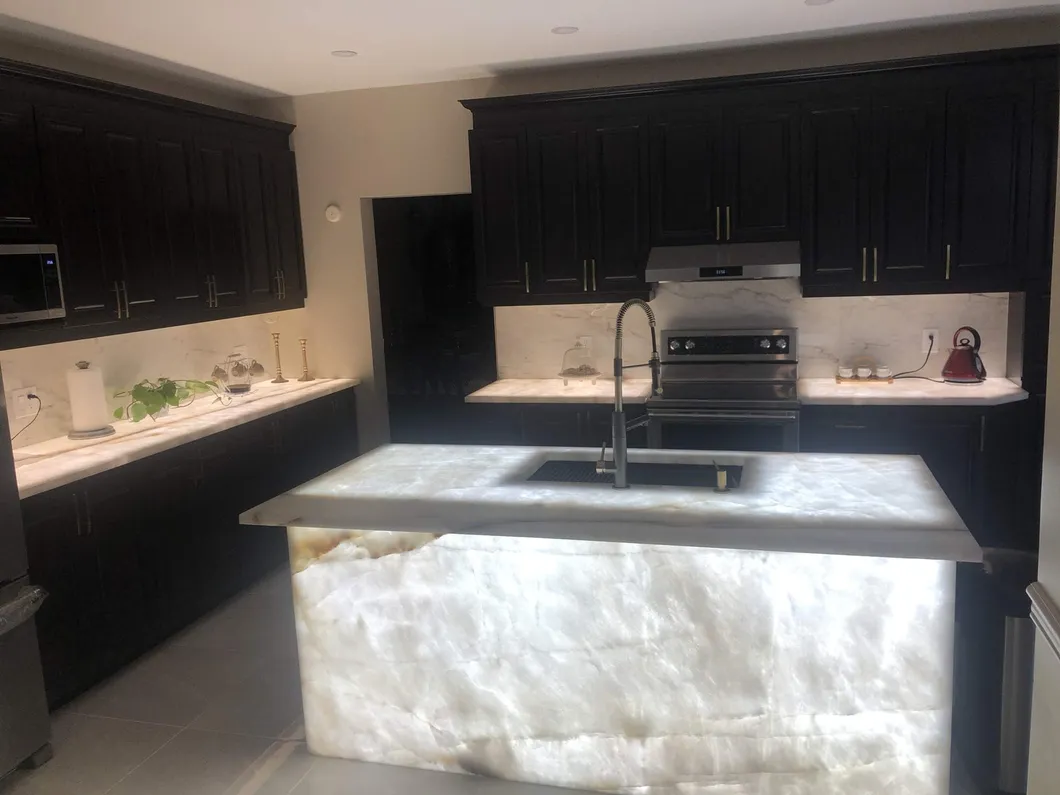

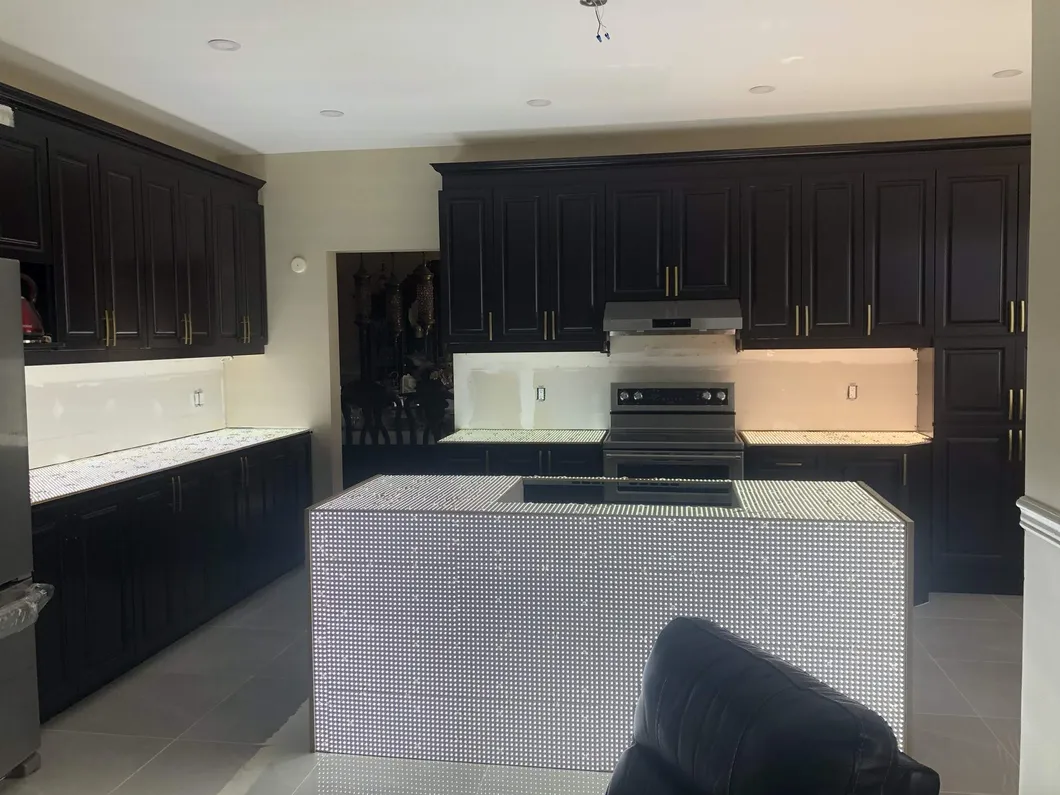

Cover the marble slab on top of the led sheet light, then finished the installation.

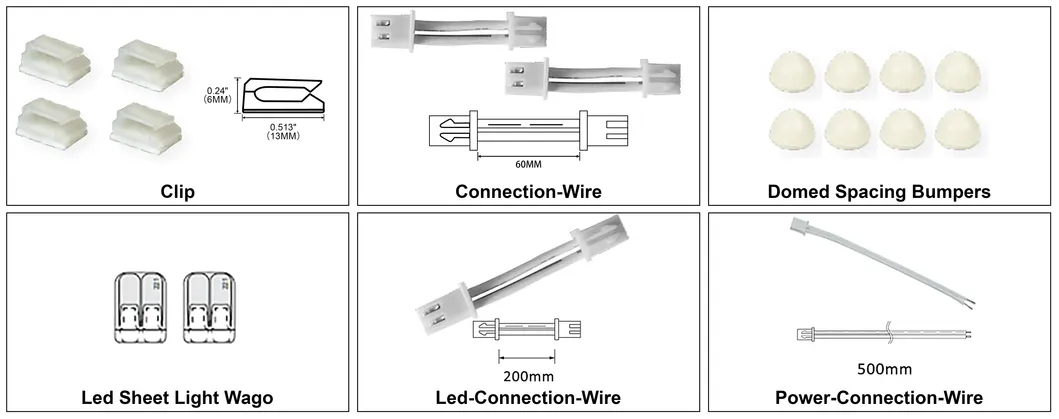

Accessories

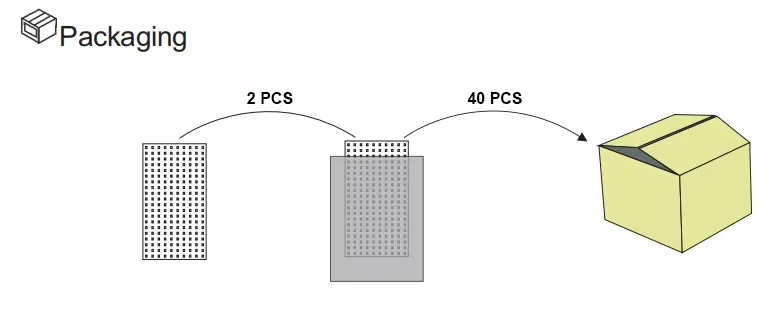

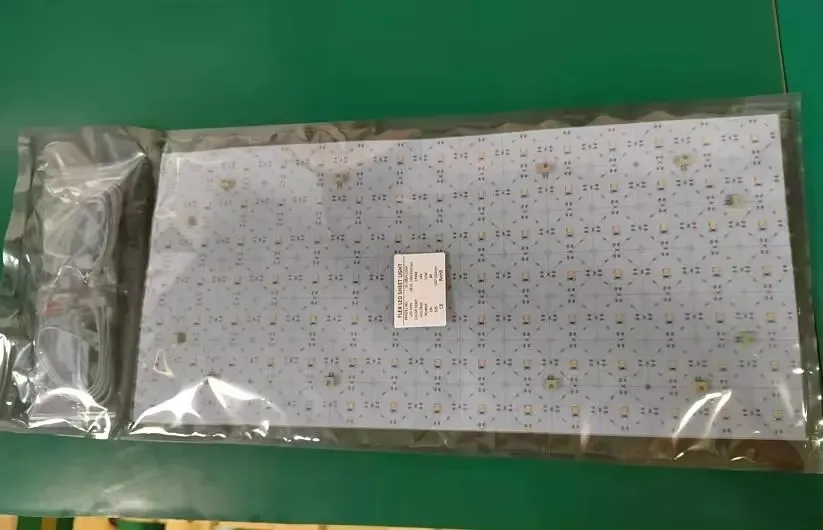

Packaging & Shipping
Delivery
Frequently Asked Questions
What is an LED Matrix Flexible Sheet?
An LED Matrix Flexible Sheet is a display made up of multiple LED pixel points arranged in a grid, designed to show text, images, or animations. Its flexible material allows it to be installed on uneven or curved surfaces.
What are the advantages of LED Matrix Flexible Sheets?
Key advantages include a flexible design for curved surfaces, lightweight construction compared to traditional displays, high energy efficiency, and easy installation without complex mounting brackets.
Is the LED Matrix Flexible Sheet waterproof?
It depends on the specific model. Some versions are designed with waterproof capabilities (like IP54) for outdoor use, while others are for indoor applications. Always check the IP rating in the specifications.
Can I cut the LED Matrix Flexible Sheet to fit specific dimensions?
Typically, these sheets have specific cuttable units (e.g., 16.67*16.67mm). You must cut only along the designated lines to avoid damaging the electrical circuitry.
What is the lifespan of an LED Matrix Flexible Sheet?
The lifespan is generally around 50,000 hours. Proper heat dissipation and a stable power supply are essential to maintaining this longevity.
Can multiple LED Matrix Flexible Sheets be connected together?
Yes, multiple sheets can be connected to create a larger display area. Ensure your power supply and controller can handle the total wattage and pixel count.
