Basic Information
Emitting Color
White/ Red/ Yellow/ Green/ Blue/ RGB
IP Rating
IP20, IP33, IP65, IP68
Max.Length
10m/Roll LED Strip
Transport Package
Anti-Static Package
Specification
5000*4mm/5mm
Production Capacity
100,000m/Month
Packaging & Delivery
Package Size
45.00cm * 26.00cm * 27.00cm
Package Gross Weight
8.000kg
Product Features

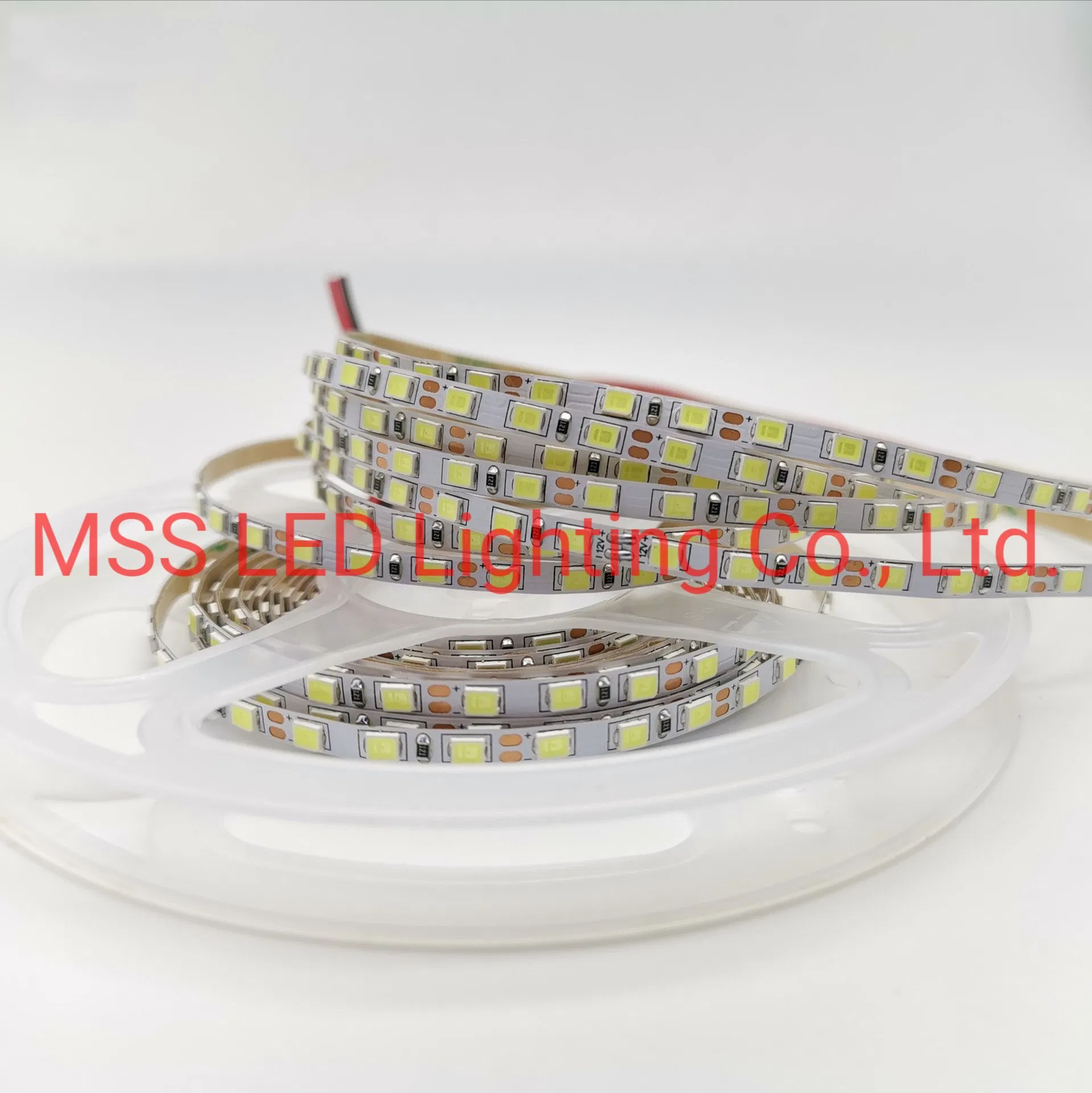

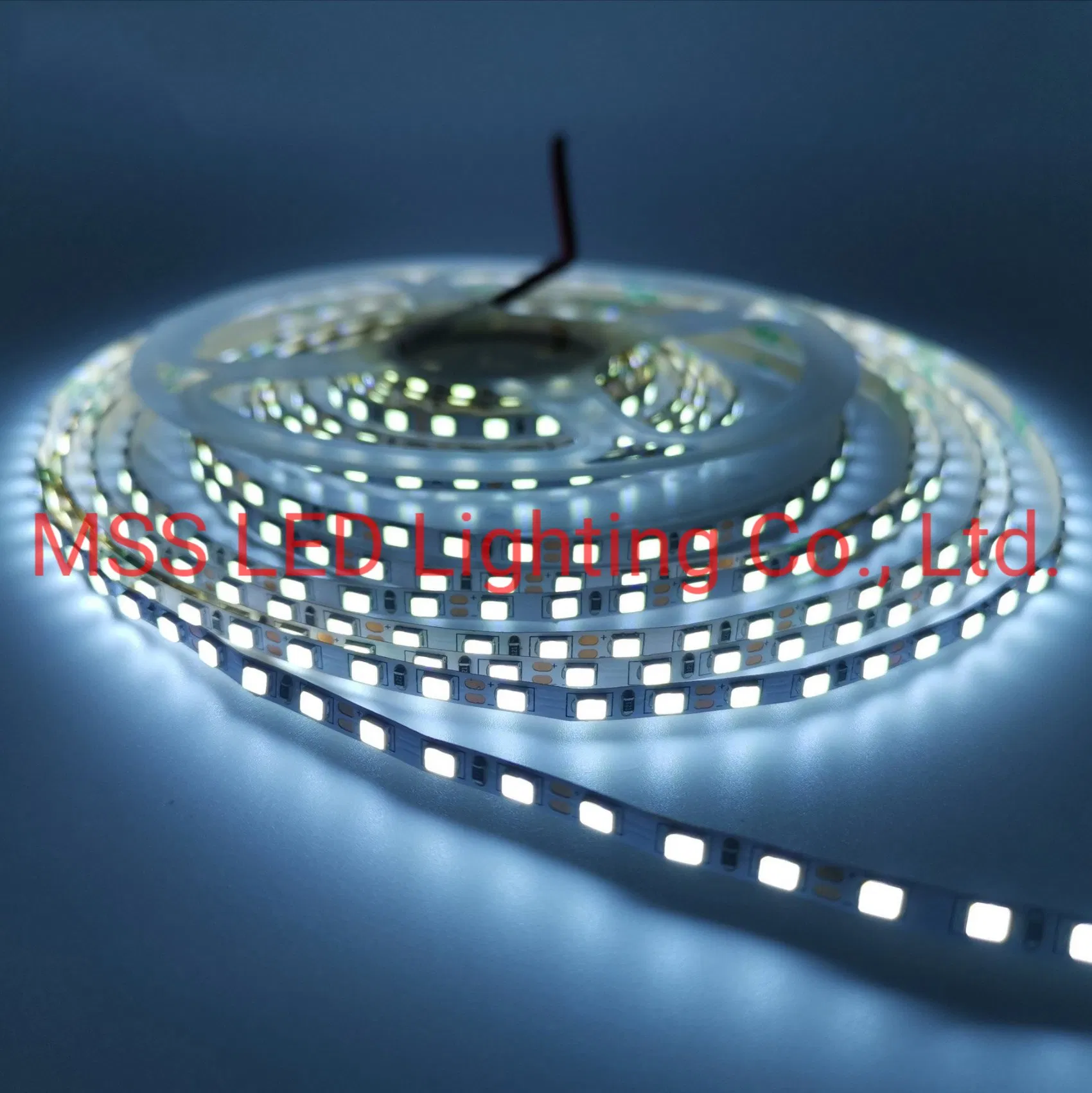

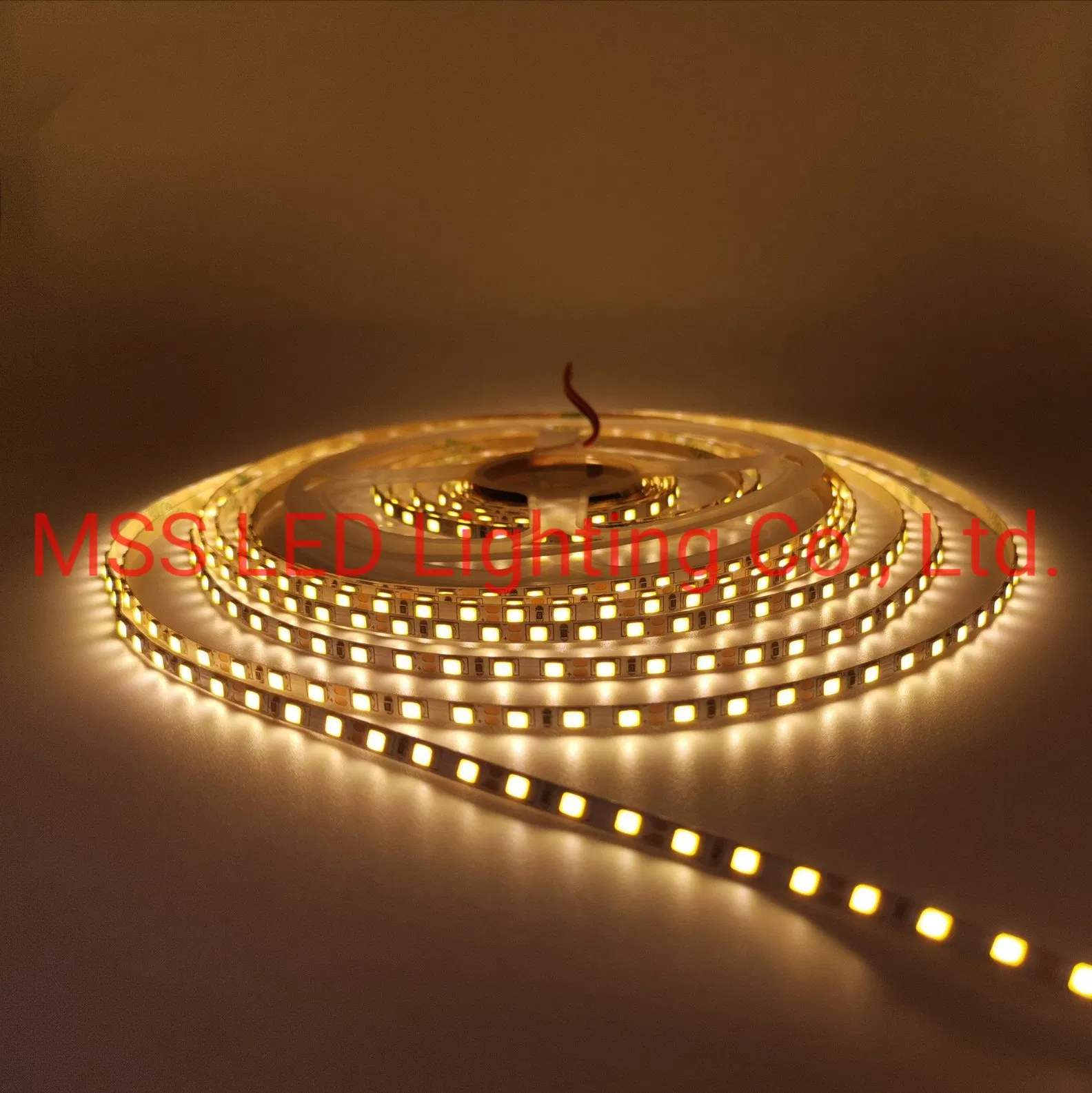

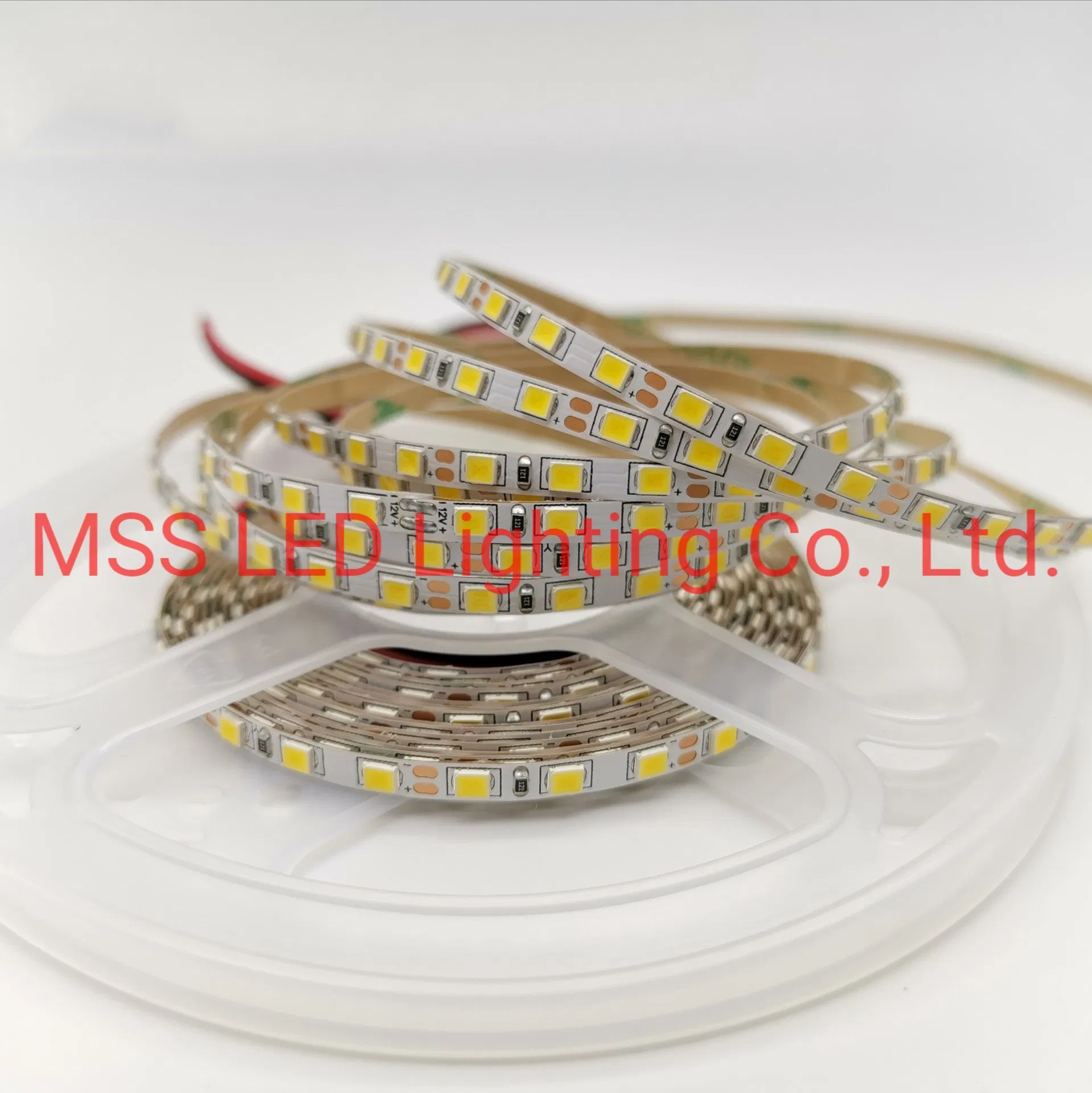

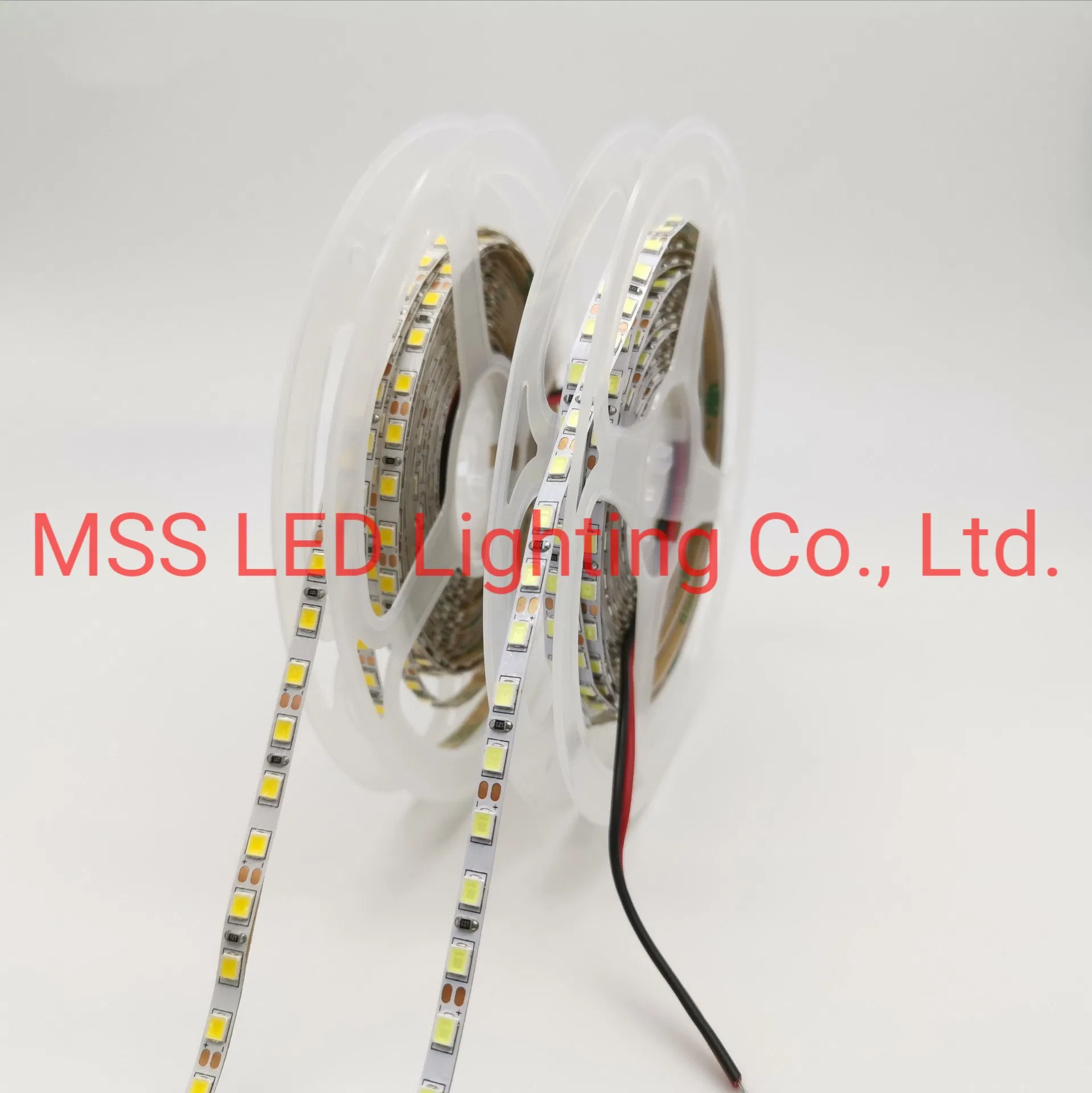

Ultra Narrow 12V 24V 2835 Strip Light 120leds SMD LED 6mm 5mm 4mm PCB Strip Led

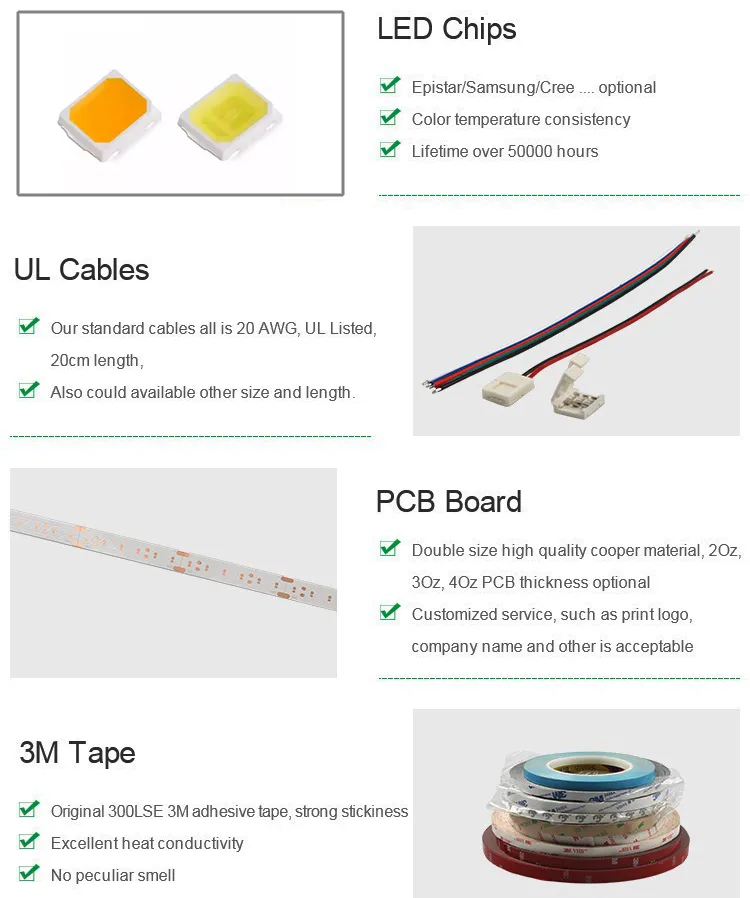

- Adopt Golden bracket SMD 2835 as light source.
- High CRI 80 90 95 options available.
- Keep every batches in one Bin, SDCM < 1.
- 3M 300LSE adhesive tape for easy installation.
- Standard 5M on reel, also could make 10M, 20M one reel.
- CE, RoHS, UL certified.
- IP33 for indoor, or waterproof for outdoor.
- CCT 2800-13000K can be custom made.
Technical Parameters
| IP Rating |
IP20, IP50, IP65, IP66, IP67, IP68 |
Luminous Flux |
900-1000lm/m |
| LED Quantity |
120led/m (600led/5M) |
Power (W) |
9.6W/m |
| Product Size |
L5000*W4mm/5mm |
Input Voltage |
DC 12V/24V |
| Warranty |
3 Years |
LED Type |
SMD 2835 |
| Working Hours |
30,000 hrs |
CRI (Ra) |
80/90 Ra |
| Working Temperature |
-20ºC ~ +45ºC |
Input Current |
6A/3A |
| CCT (K) |
2700K/3000K/4000K/6000K |

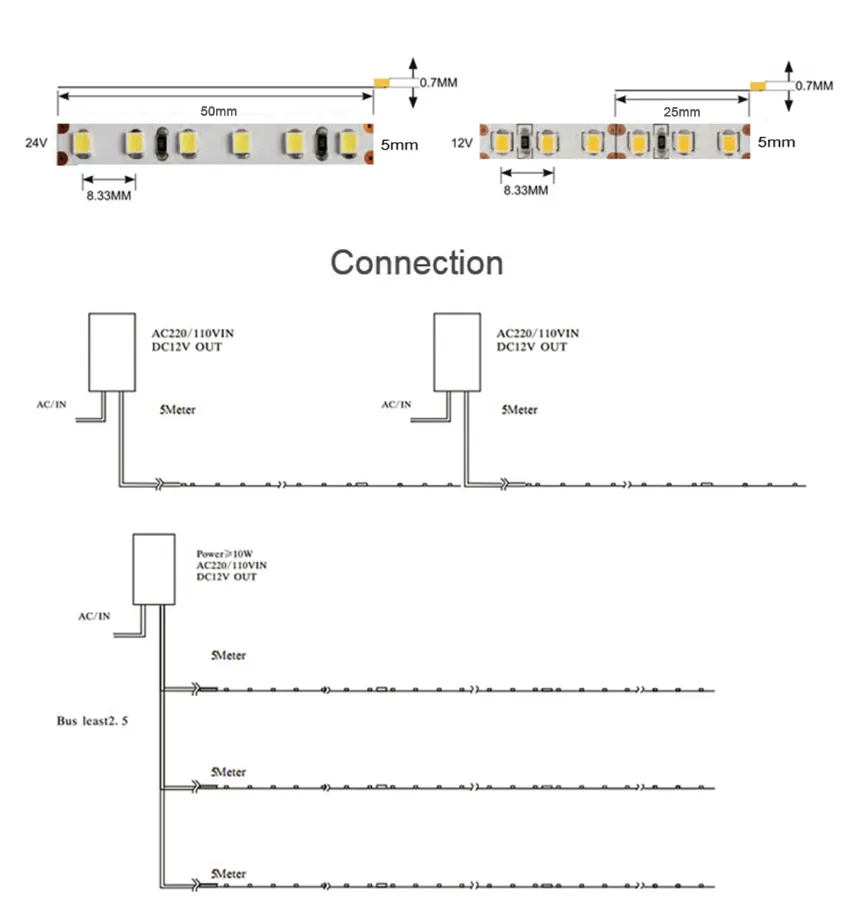

Cut Section |
25MM (3LED) / 50MM (6LED) |
Product Visuals
Applications
1. Architectural decorative lighting
2. Indoor and outdoor decoration
3. Signage letters backlight
4. Car decorative light
5. Holiday decorative lighting
6. Hotel & Restaurant lighting
7. Indoor illuminations
8. Building contour lighting
9. Ad signs & Light boxes
10. Profile lighting
11. Window display lighting
Frequently Asked Questions
What are the available widths for this ultra-narrow LED strip?
We provide ultra-narrow PCB options in 4mm and 5mm widths, perfect for tight spaces and profile lighting.
What is the standard warranty for these LED strips?
The product comes with a standard warranty of 3 years, with options ranging from 2 to 5 years depending on specific requirements.
Can I customize the color temperature (CCT)?
Yes, the color temperature can be custom-made within the range of 2800K to 13000K to suit your specific project needs.
Is this LED strip suitable for outdoor use?
Yes, we offer various IP ratings from IP20 (indoor) up to IP68 (fully waterproof), making it suitable for both indoor and outdoor applications.
What type of adhesive tape is used for installation?
We use high-quality 3M 300LSE adhesive tape to ensure a strong and long-lasting bond during installation.
What is the light source used in this strip?
The strip utilizes high-quality Golden bracket SMD 2835 LEDs, ensuring high brightness and stability.
