3mm 4mm 5mm Ultra Narrow Flex LED Strip for Conceal Lighting

1 / 5

3mm 4mm 5mm Ultra Narrow Flex LED Strip for Conceal Lighting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Emitting Color

White/ Red/ Yellow/ Green/ Blue/ RGB

Voltage

DC 5V/12V/DC24V

IP Rating

IP20, IP33, IP65, IP68

Macadam Level

3-5 Step

Max Length

10m/Roll LED Strip

Warranty

2-5 Years

Transport Package

Anti-Static Package

Specification

5000*4mm LED STRIP

Origin

China

HS Code

9405409000

Capacity

100,000m/Month

Product Features

3mm 4mm 5mm Ultra Narrow Flex Led Strip for Conceal Lighting

✓ Adopt Golden bracket SMD 2835 as light source.

✓ High CRI 80 90 95

✓ Keep every batches in one Bin, SDCM < 1.

✓ 3M 300LSE adhesive tape for easy installation.

✓ Standard 5M on reel, available in 10M, 20M one reel.

✓ CE, RoHS, UL certified.

✓ IP33 for indoor or waterproof for outdoor.

✓ Custom CCT 2800-7000K available.

Technical Parameters

IP Grade	IP20, IP50, IP65, IP66, IP67, IP68	Luminous Flux	1080Lm/m
LED Quantity	600led/5M (120led/m)	Power (W)	14.4W/M
Product Size	5000 × 5mm * 0.3MM	Input Voltage	DC 12V/24V
Warranty	3 Years	LED Type	SMD2835
Working Life	30000hr	CRI(Ra)	80/90 Ra
Working Temp	-20ºC ~ +45ºC	Input Current	6A/3A
CCT(K)	2700K/3000K/4000K/6000K	Cut Section	25MM(3LED)/50MM(6LED)

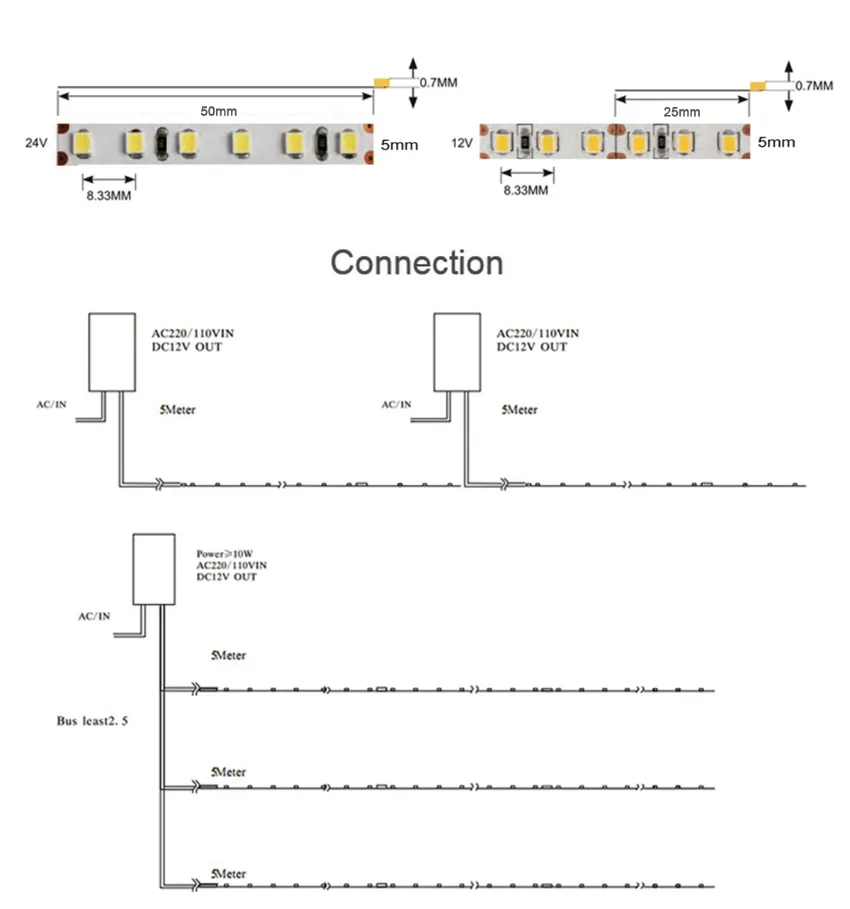

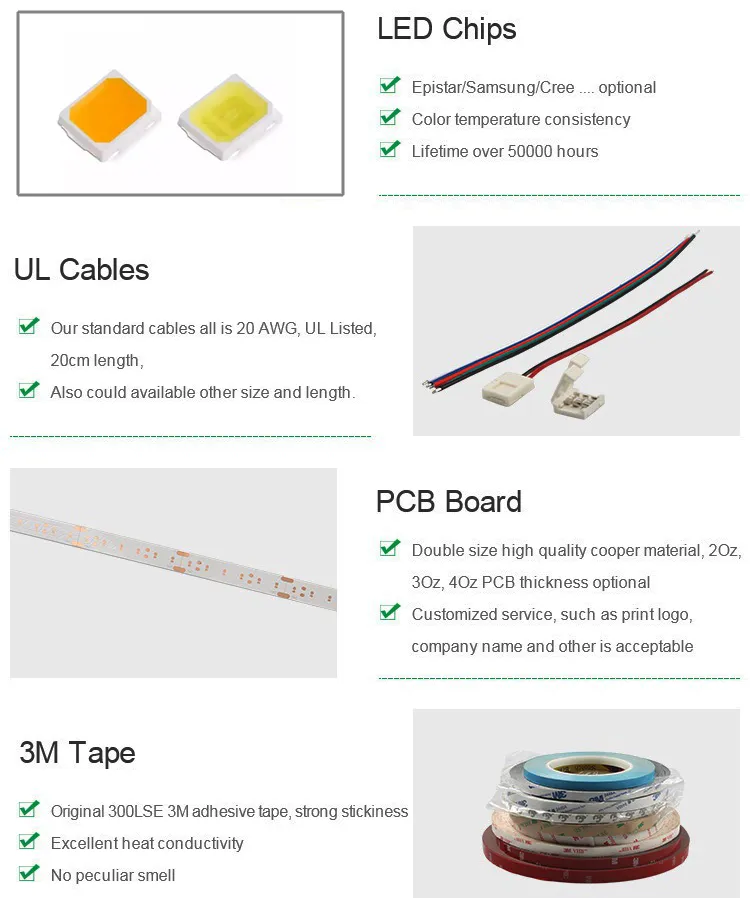

Visual Overview

Applications

Architectural decorative lighting

Indoor and outdoor decoration

Backlight for signage letters

Car decorative light

Holiday decorative lighting

Hotel & Restaurant lighting

Building contour lighting

Ad signs and light boxes

Profile and Window display

Frequently Asked Questions

What are the advantages of 3mm/4mm ultra-narrow LED strips?

The ultra-narrow design is perfect for concealed lighting in extremely tight spaces, architectural contours, and high-end signage where standard strips won't fit.

What is the warranty for these LED strips?

We provide a 2 to 5-year warranty depending on the specific model and application requirements, ensuring long-term reliability.

Can I get custom Color Temperatures (CCT)?

Yes, we offer custom CCT ranging from 2800K to 7000K to match your specific interior or exterior design needs.

Are these strips suitable for outdoor use?

Yes, we provide various IP ratings including IP65, IP67, and IP68, which are designed for waterproof performance in outdoor environments.

How is the LED strip installed?

The strips come with high-quality 3M 300LSE adhesive tape on the back, allowing for quick and secure installation on most smooth surfaces.
