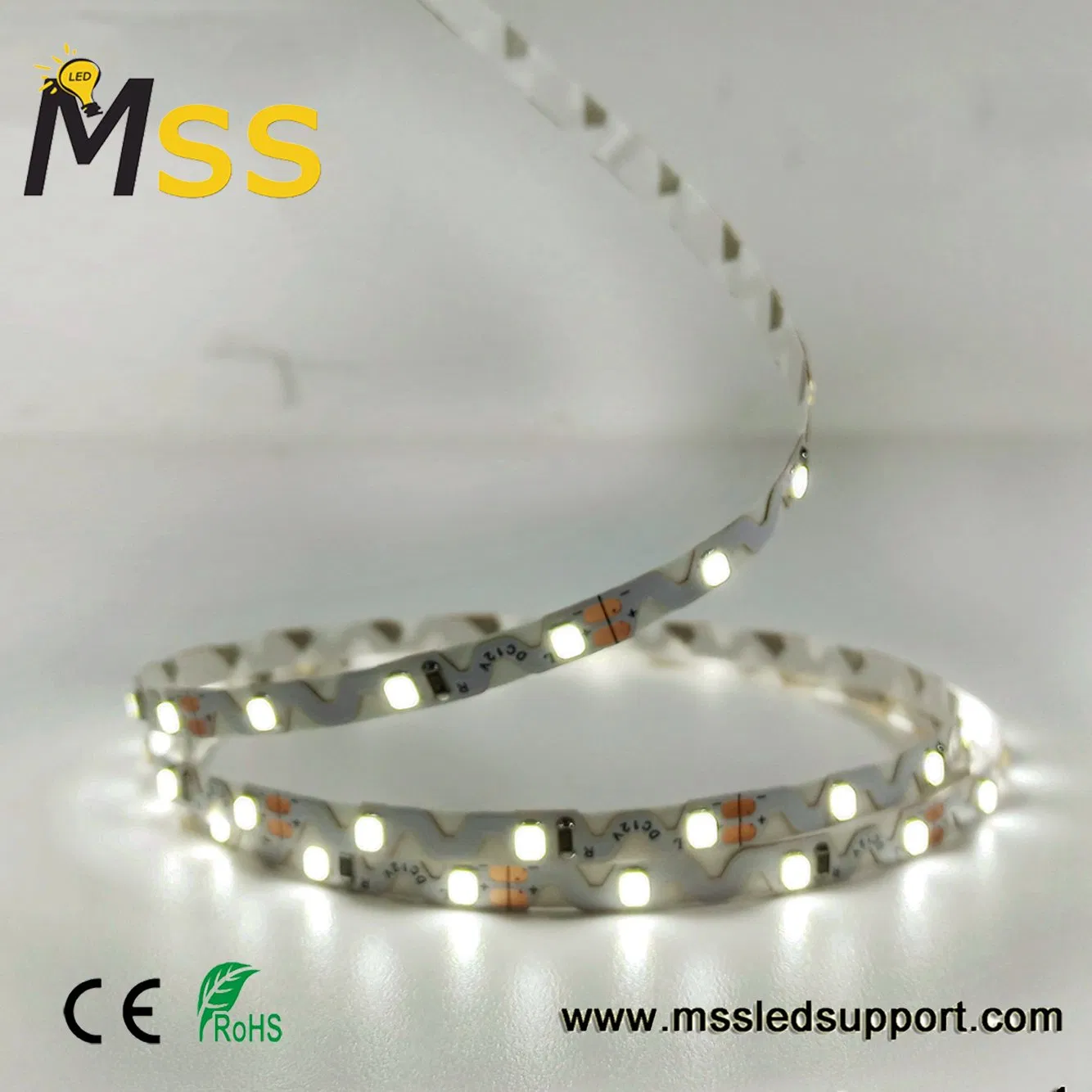

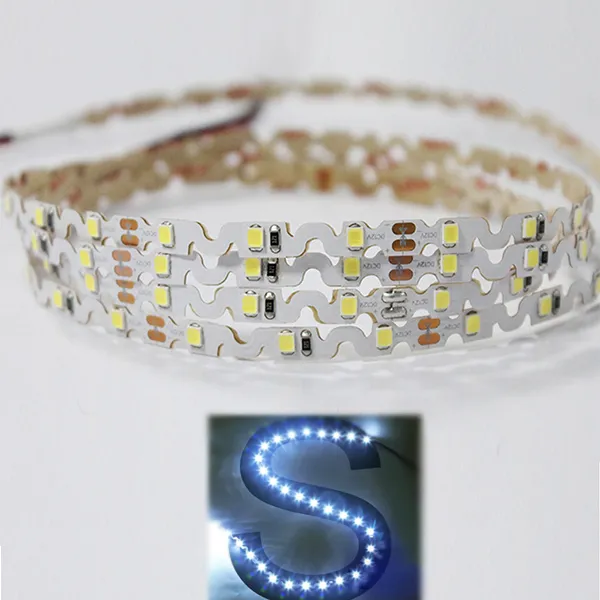

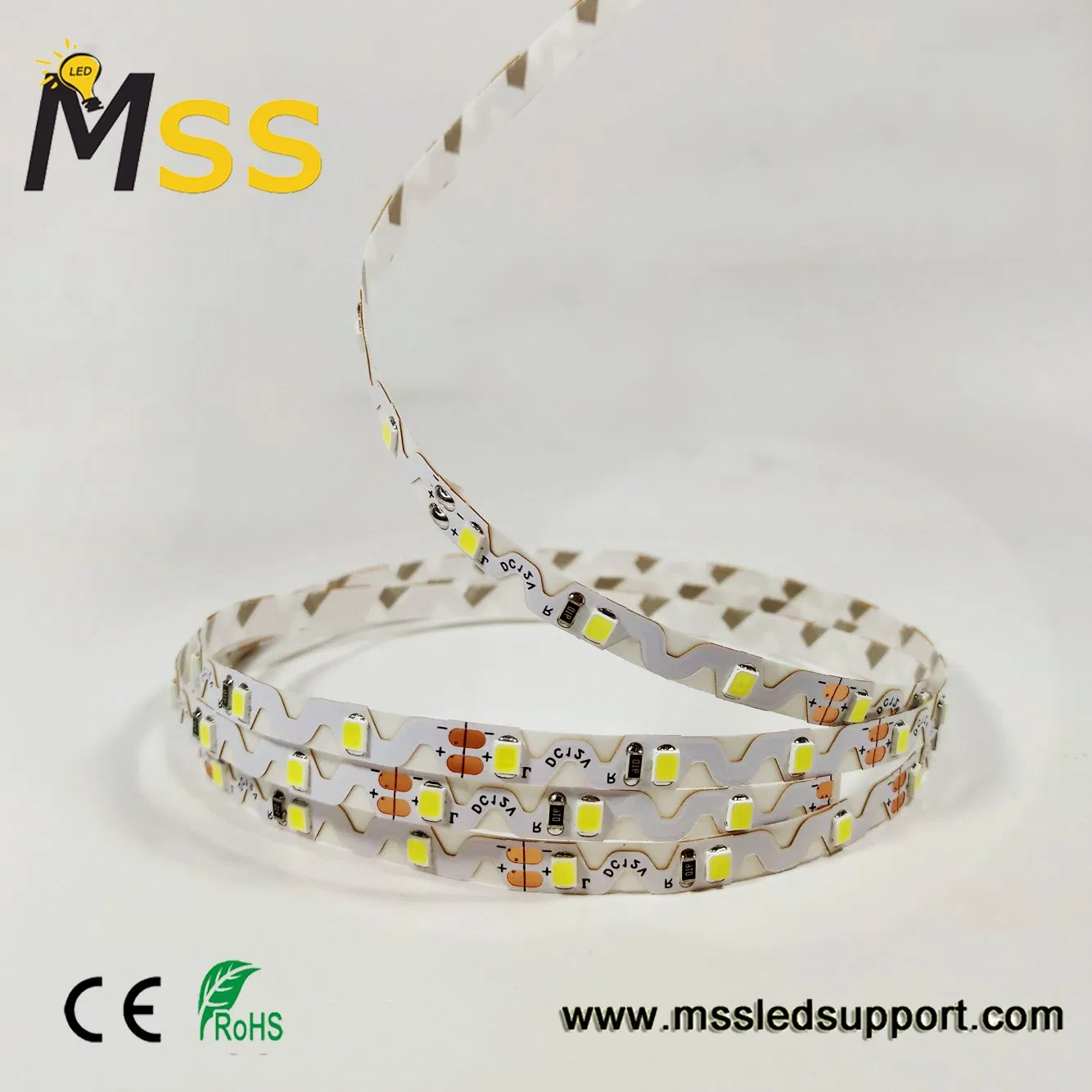

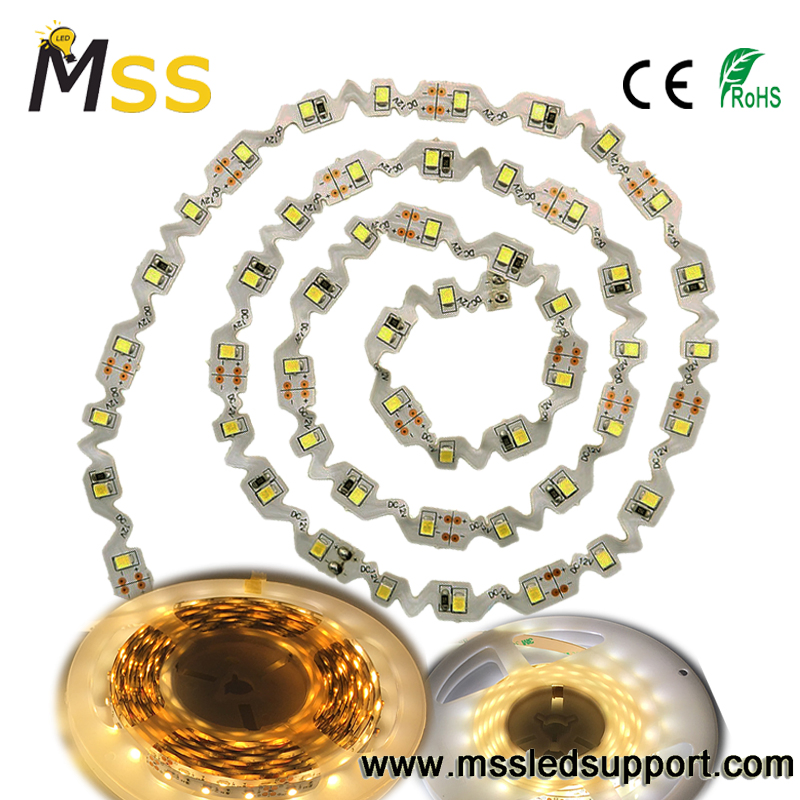

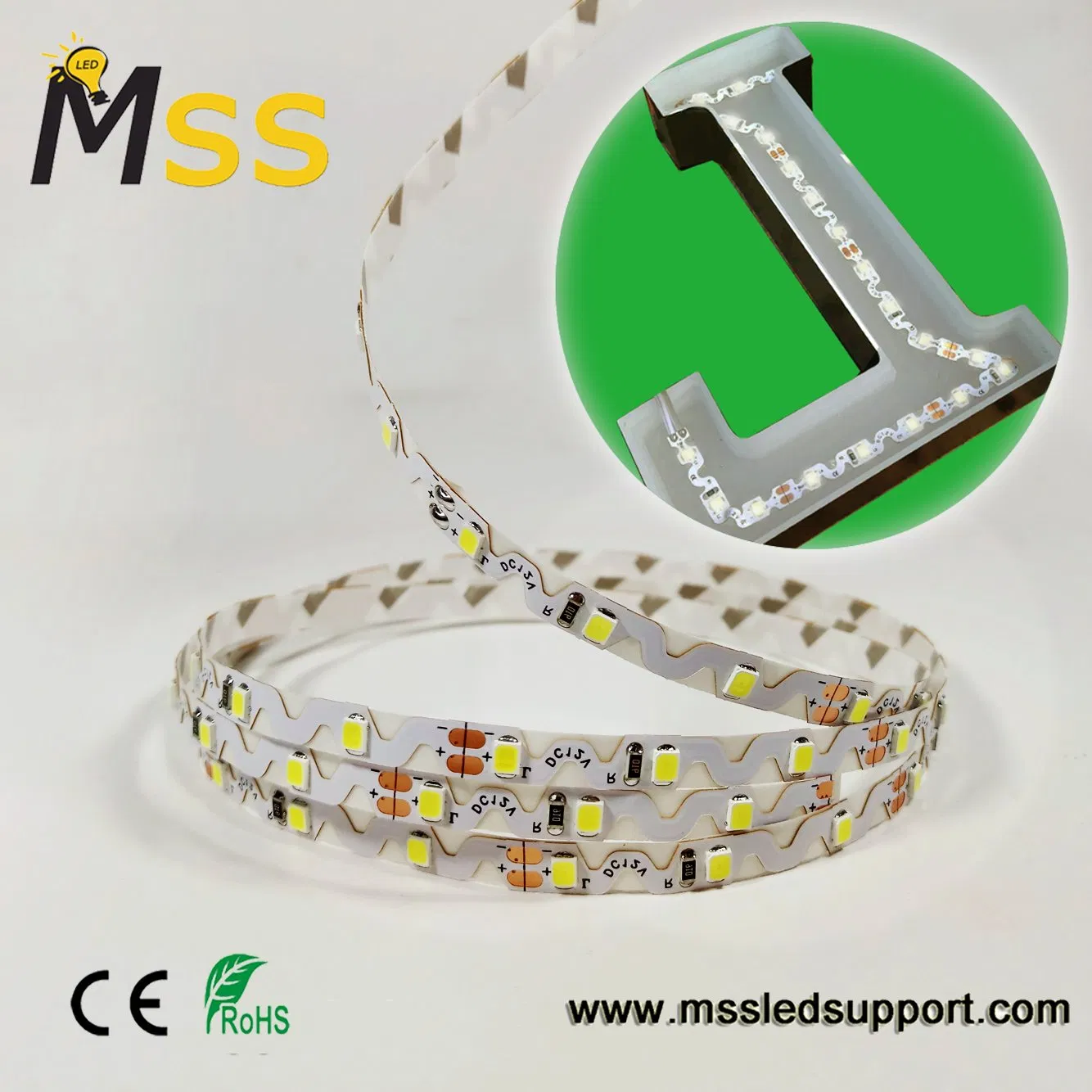

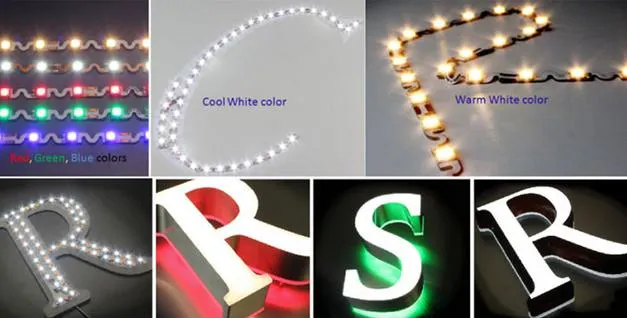

Ultra Slim 6mm 12V DC Multi-bend Flex LED Strip designed for custom shape lighting. These bendable strips offer enhanced possibilities for installation on corners or curved surfaces without the need for cutting and reconnecting.
Key Features: Ideal for lighting bars, stained glass, under cabinets, shelves, closets, and any indoor clean and smooth surface. Designed for both professionals and lighting amateurs for easy installation.
| Environmental Conditions | |
|---|---|
| Ambient temperature range (TA) | -25…..+50ºC |
| Operating (case) temperature range (TC) | -25…..+50ºC |
| Storage temperature range | -25…..+60ºC |
| IP rating | IP33 |
| Electrical Parameters | |
|---|---|
| Supply voltage range | 12.5±0.5 VDC |
| Supply Current range (per meter) | 700 mA |
| Power range (per meter) | 8.4 W |
| ESD protection | Contact 4KV, Air 8KV |
| Part No. | Color Range (CCT/Wavelength) | Flux per meter (Typ.) |
|---|---|---|
| SF60C-2835 | 10000K - 22000K | 780LM |
| SF60W-2835 | 6000K - 8000K | 780LM |
| SF60M-2835 | 3000K - 3400K | 780LM |
| SF60R-2835 | 620nm - 630nm | 252LM |
| SF60G-2835 | 520nm - 530nm | 564LM |
| SF60B-2835 | 460nm - 470nm | 168LM |
| SF60Y-2835 | 588nm - 594nm | 222LM |
