Side Emitting Ultra Thin LED Strip
Side Emitting Ultra Thin LED Strip
Side Emitting Ultra Thin LED Strip
Side Emitting Ultra Thin LED Strip
Side Emitting Ultra Thin LED Strip
1 / 5
Side Emitting Ultra Thin LED Strip
Side Emitting Ultra Thin LED Strip
Side Emitting Ultra Thin LED Strip
Side Emitting Ultra Thin LED Strip
Side Emitting Ultra Thin LED Strip

Side Emitting Ultra Thin LED Strip

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Emitting Color
White 3000K-7000K
Voltage
DC24V
IP Rating
IP33
Macadam Level
3~5 Step
Max Length
5m/Roll
Warranty
3 Years
LED Type
COB/Fob / SMD335
PCB Width
5mm / 8mm / 10mm / 12mm
Production Capacity
60,000m/Month
HS Code
9405409000

Key Features

High Lumen 120pcs/meter SMD335 LED with premium FPCB.
120-degree view angle providing uniform color light beam.
Superior heat conduction with nearly zero lumen depreciation over 1000 hours.
Easy installation with 3M adhesive tape or mounting clips.
Cuttable every 6 LEDs (5cm) for flexible application.

Product Visualization

Side Emitting Ultra Thin LED Strip Dimension

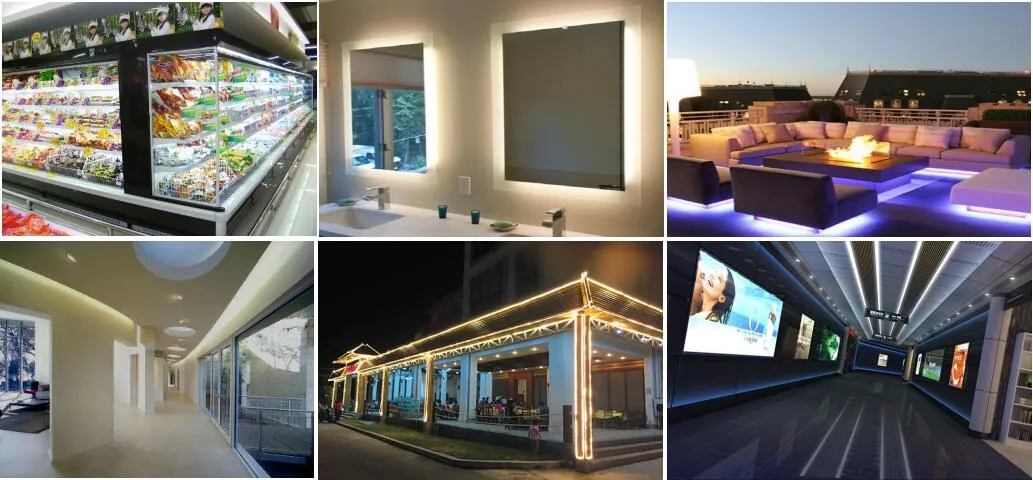

Side Emitting Ultra Thin LED Strip Application

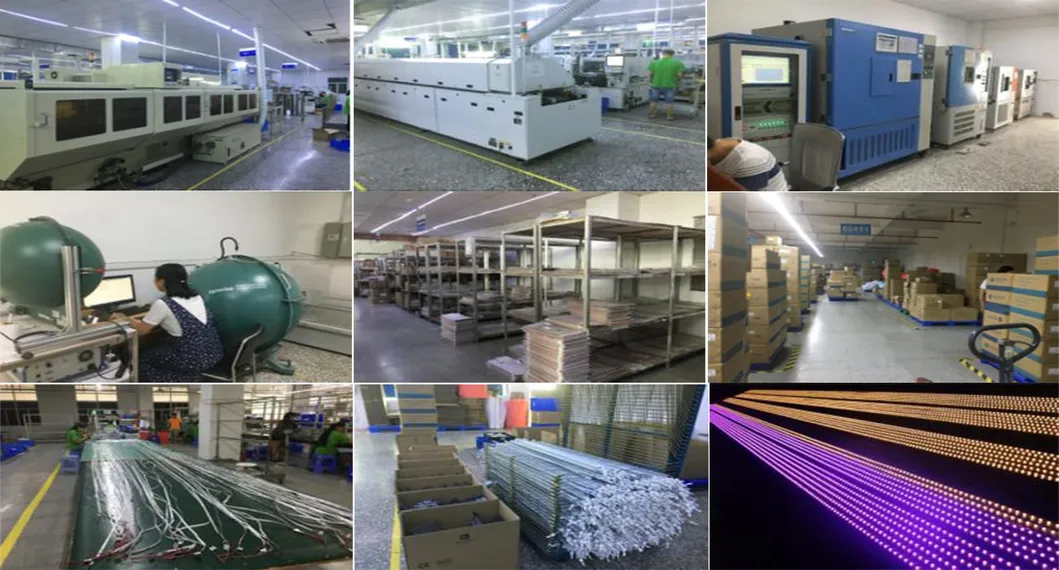

Production Display

Technical Parameters

Light SourceSMD335 LED Chip
Color Temperature2700K - 7000K
LED Quantity60 LEDs/M or 120 LEDs/M
VoltageDC12V or DC24V
Power4.8 Watt / Meter
CRI> 90Ra
Lumen6-7 Lumen / LED
IP RankIP20 / IP65 / IP67 / IP68
Lifespan50,000 Hours
ApplicationSignage, Advertising, Booths, Decorative Lighting

Frequently Asked Questions

What is the advantage of the Sideview SMD335 LED strip?
The Sideview design allows for light to be emitted parallel to the mounting surface, making it ideal for edge lighting, signage, and tight spaces where standard top-emitting strips cannot fit.
Can I cut the LED strip to a specific length?
Yes, the strip is designed to be cut every 6 LEDs (approximately every 5cm), allowing for precise fitting in various installation environments.
Is this LED strip waterproof?
We offer multiple IP ratings ranging from IP20 (non-waterproof) to IP68 (fully submersible), depending on your specific project requirements.
What is the CRI of these LEDs?
The LED chips feature a high CRI (Color Rendering Index) of over 90Ra, ensuring that colors appear vibrant and true to life.
How long is the warranty period?
This product comes with a 3-year warranty, covering performance and manufacturing defects under normal usage conditions.
What are the power requirements?
The strip operates on a low-voltage DC12V or DC24V system, consuming approximately 4.8 Watts per meter, making it energy-efficient and safe.
